Embry-Riddle Aeronautical University trainer projects

[hesham]

Hi,

the Embry-Riddle Aeronautical University trainer projects.
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/20030020349_2003021247.pdf



[Stargazer]

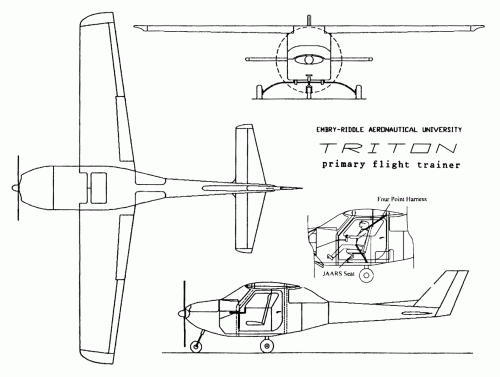

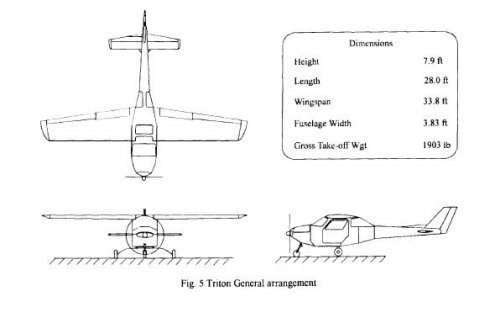

More about the Triton.

Source:
THE DESIGN OF A PRIMARY FLIGHT TRAINER USING CONCURRENT ENGINEERING CONCEPTS
Embry-Riddle Aeronautical Unirorsity
Aerospace Engineering Department

(same source as above)



[Stargazer]

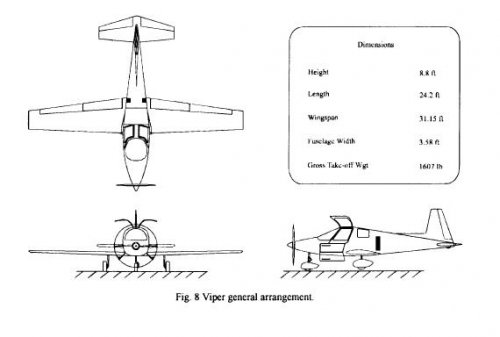

And more about the Viper.

Source:

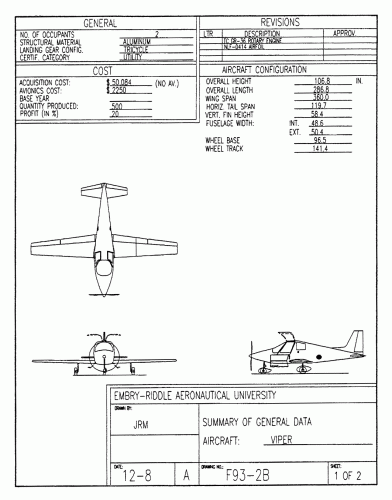

Viper — Report No. F93 -2B - 0R15
Preliminary Design / Section 2
December 8, 1993



[hesham]

Great find Stargazer.



[cluttonfred]

Agreed, though neither of those designs will win any beauty contests.
