At ordata.info you may find information on three types of Egyptian unguided rockets:

110 mm HE rocket: https://ordata.info/ordnance?id=1325
80 mm HE rocket: https://ordata.info/ordnance?id=1312
84 mm HEAT rocket: https://ordata.info/ordnance?id=1320

They bear a resemblance to the Swiss 80 mm Oerlikon rocket but actually they are quite different, apparently bigger than that.

Probably the rockets saw service with the Egyptian Air Force, as the EAF had locally rebuilt MiG-17s with rocket rails under the wings and bomb racks under the fuselage. The version of MiG-17 was used in combat probably in 1967, but certainly during the Attrition War and in 1973, so the rockets must have been developed earlier, presumably in the first half of the 1960s.

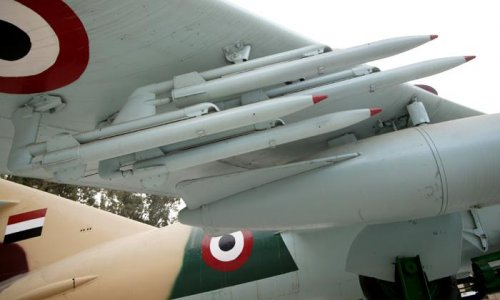

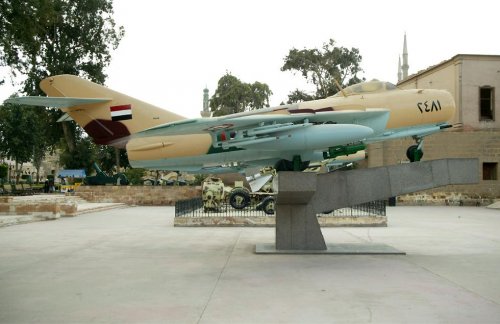

At a museum in Egypt there is such an MiG-17 being exhibited, under wings of which there are rockets that may be 80mm HE. In some sources you may find reference to "76mm Sakr rockets" that probably are the very same that these depicted here.

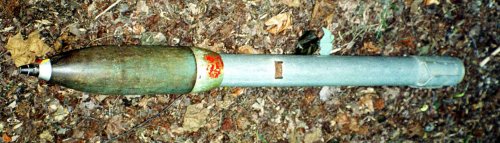

Here you have some pictures form ordata.info.

Does anybody has more on these rockets and the Egyptian ground attack version of MiG-17?

Piotr


Attachments

  • 110mm HE_01.jpg
    110mm HE_01.jpg
    111.7 KB · Views: 268
  • 110mm HE_02.jpg
    110mm HE_02.jpg
    8.4 KB · Views: 249
  • 110mm HE_04.jpg
    110mm HE_04.jpg
    238.6 KB · Views: 250
  • 80mm HE_01.jpg
    80mm HE_01.jpg
    88.2 KB · Views: 238
  • 80mm HE_04.jpg
    80mm HE_04.jpg
    220.2 KB · Views: 235
  • 84mm HEAT_02.jpg
    84mm HEAT_02.jpg
    5.7 KB · Views: 56
  • 84mm HEAT_04.jpg
    84mm HEAT_04.jpg
    215.4 KB · Views: 67

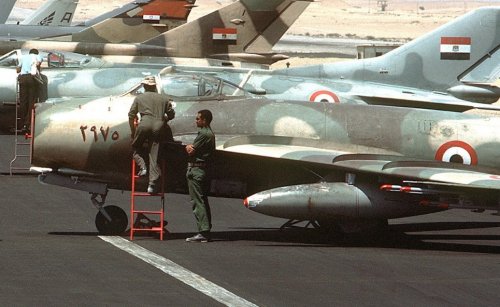

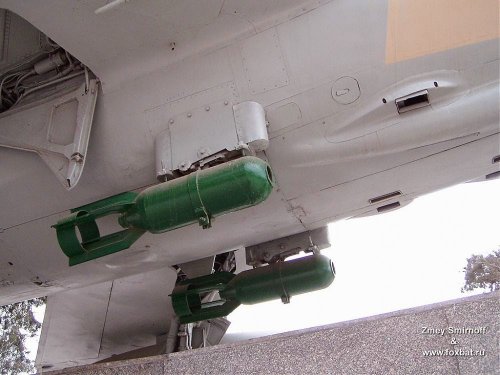

As only 10 attachments are allowed here you've got photos of the Egyptian ground-attack MiG-17s.

Piotr


Attachments

  • MiG-17 bomb racks.jpg
    MiG-17 bomb racks.jpg
    110.2 KB · Views: 94
  • MiG-17 on tarmac.jpg
    MiG-17 on tarmac.jpg
    254.6 KB · Views: 98
  • Mig-17_Rockets.jpg
    31.1 KB · Views: 98
  • Mig-17_Museum.jpg
    84.4 KB · Views: 97
Egyptian T-62s used to, after 1972, carry two unguided rockets, one each side of the turret at a fixed elevation a'la Tulip style. I've only seen pictures of this fitting once, in International Defence Review way back then, in the late 1970s so unsure how common it was or what warheads the rockets carried (HE/Smoke?).

Petrus said:
Does anybody has more on these rockets and the Egyptian ground attack version of MiG-17?
hi Piotr,

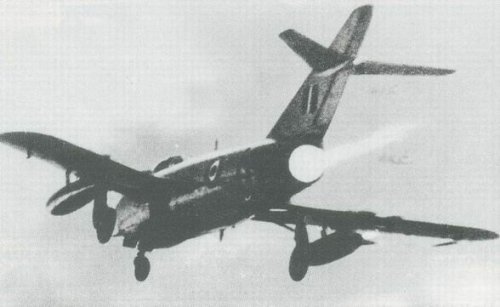

Attached is a photo of an operational Mig-17F with those Sakr rockets. (No info about date and place, unfortunately)

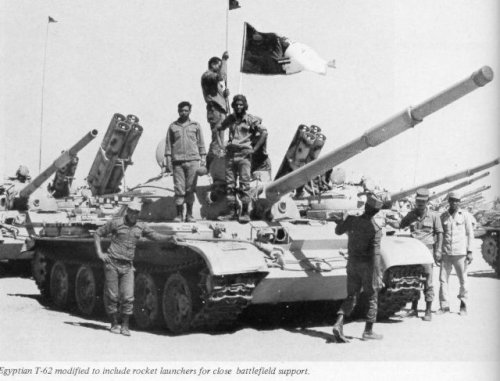

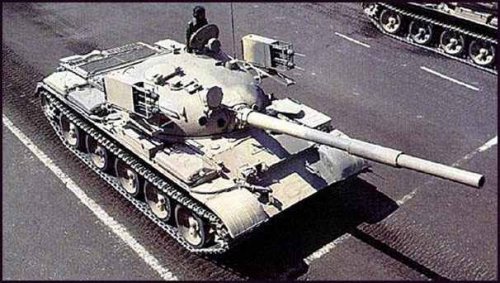

For the T-62s, there were several versions. I attache two photos of parades. (Parades are what the Egyptian army does best...)


Attachments

  • Egypt MiG-17F 1st Sqn scramble in full afterburner from Almaza AB 1956.jpg
    Egypt MiG-17F 1st Sqn scramble in full afterburner from Almaza AB 1956.jpg
    26.6 KB · Views: 98
  • Egypt T-62 Tulip w sakr rockets.jpg
    Egypt T-62 Tulip w sakr rockets.jpg
    52.6 KB · Views: 103
  • Egypt T-62 with Sakr smoke rockets.jpg
    Egypt T-62 with Sakr smoke rockets.jpg
    42.9 KB · Views: 103
At ordata.info you may find information on three types of Egyptian unguided rockets:

110 mm HE rocket: https://ordata.info/ordnance?id=1325
80 mm HE rocket: https://ordata.info/ordnance?id=1312
84 mm HEAT rocket: https://ordata.info/ordnance?id=1320

They bear a resemblance to the Swiss 80 mm Oerlikon rocket but actually they are quite different, apparently bigger than that.

Probably the rockets saw service with the Egyptian Air Force, as the EAF had locally rebuilt MiG-17s with rocket rails under the wings and bomb racks under the fuselage. The version of MiG-17 was used in combat probably in 1967, but certainly during the Attrition War and in 1973, so the rockets must have been developed earlier, presumably in the first half of the 1960s.
At a museum in Egypt there is such an MiG-17 being exhibited, under wings of which there are rockets that may be 80mm HE. In some sources you may find reference to "76mm Sakr rockets" that probably are the very same that these depicted here.

Here you have some pictures form ordata.info.

Does anybody has more on these rockets and the Egyptian ground attack version of MiG-17?

Piotr
As ordata.info unfortunatelly made their resources unavailable to the public, I'm adding here some additional info on the Egyptian rockets that come from the website:

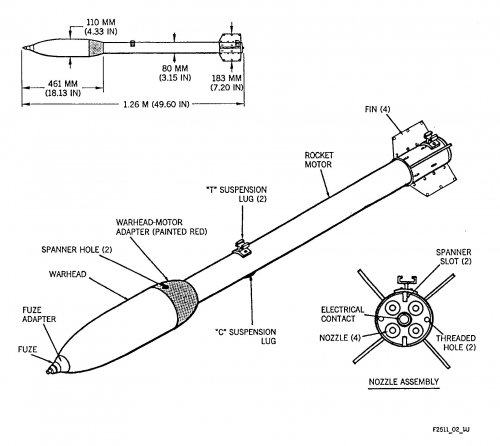

110 mm HE Rocket:

Diameter/Width
110.00 mm​
Length
1.26 m​
Weight
13.60 kg​

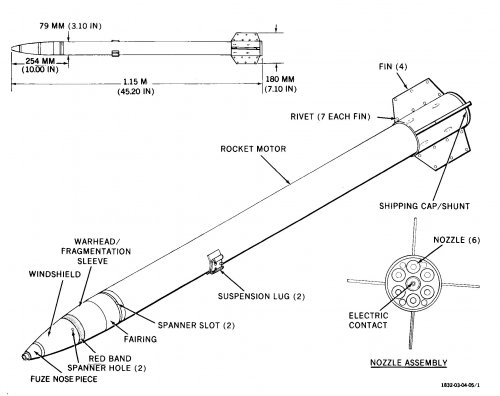

80 mm HE Rocket:

Diameter/Width
79.00 mm​
Length
1.15 m​
Weight
10.90 kg​

84 mm HEAT Rocket:

Diameter/Width
84.00 mm​
Length
1.24 m​
Weight
10.70 kg​

My comment:
I doubt the 110mm rocket weighted only 13.6 kg. According to what you see above it was heavier only by 2.7 kg than the 80 mm HE rocket. I feel a head with diameter larger by 30mm should have weighted more than that. What's your opinion?

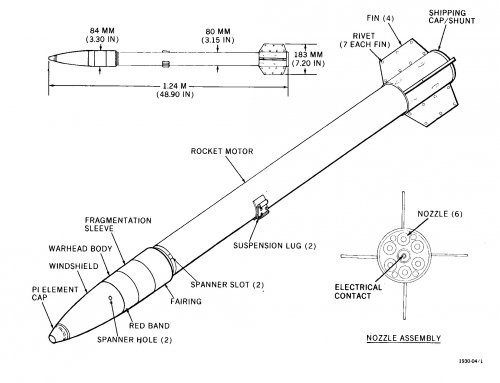

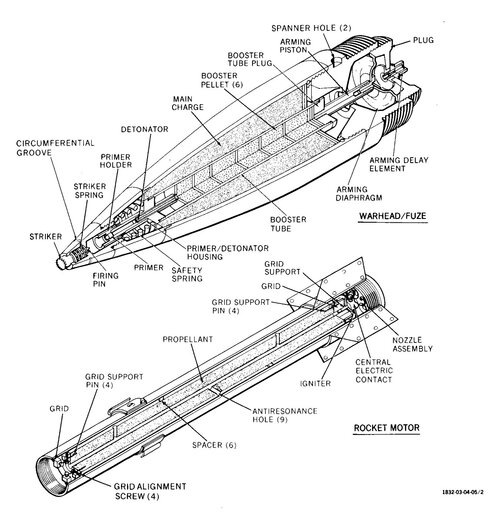

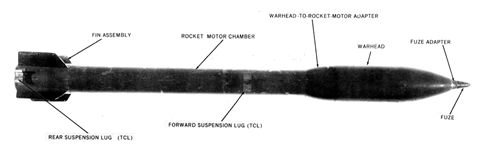

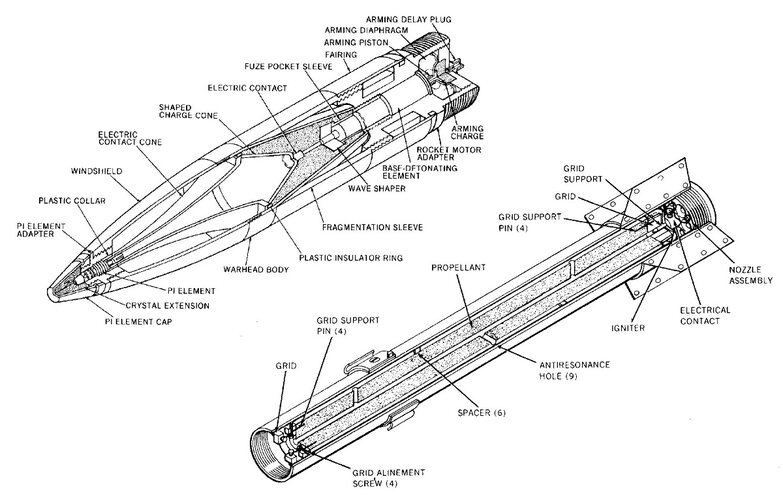

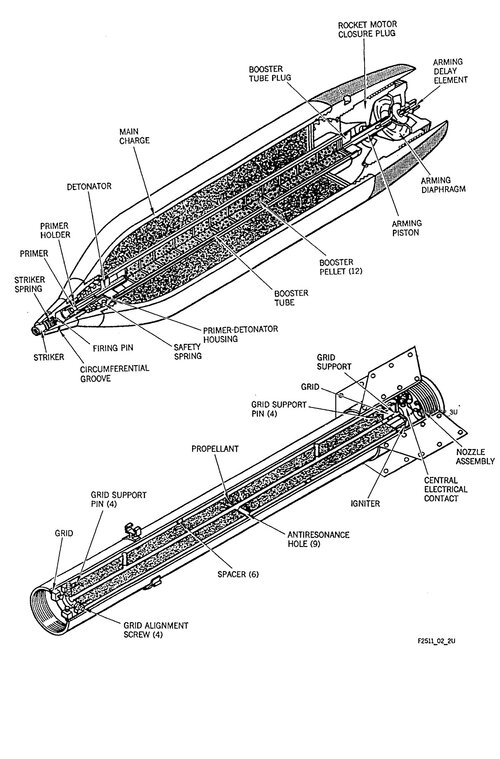

Below you'll find cross-sections of the rockets.

BR
Piotr


Attachments

  • 80mm HE.JPG
    80mm HE.JPG
    377 KB · Views: 45
  • 84mm HE.JPG
    84mm HE.JPG
    230.4 KB · Views: 32
  • 110mm HE.JPG
    110mm HE.JPG
    492.3 KB · Views: 34
Last edited:
It is a 80mm Rocket with three different warheads? Right?

Is it possible that this rocket was used as Sakr 15 with a different (bigger) warhead in Walid APC chassis? And this should be the same as those on the side of T-62 turret.
