Triggered by the Lippisch developments, that were tested with the X-113 on Lake Constance,
Dornier started research in that field during the 1970s, too, called "Stauflügelgerät" (. One project for a commercial transport

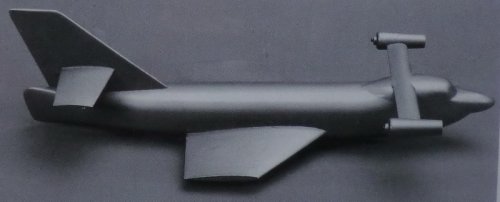

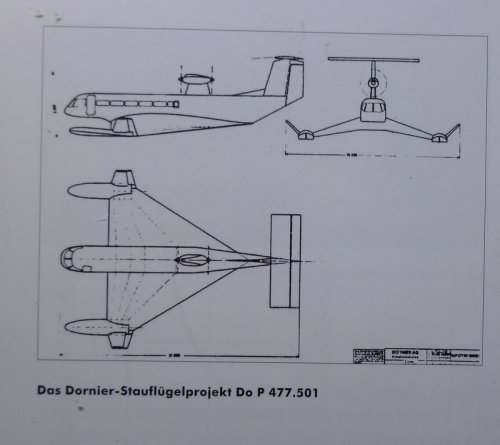

was the P.477 for up to 27 passengers. Another one, desigantion unknown, showed similarities
with the Aleksejew KM-1, but probably would have been powered by four turboprop engines on
the canard and on the tailplane.

(Pictures and data from the book with the handy title „Zeppelins Flieger – Das Flugzeug im Zeppelin-
Konzern und in seinen Nachfolgebetrieben“, different authors, published by the Zeppelin-Museum Friedrichshafen )


Attachments

  • Dornier_P-477-501_01.jpg
    103 KB · Views: 348
  • Dornier_Stauflügel_01.jpg
    86.4 KB · Views: 321
Wow,excellent my dear Jens,


and here is anther Dornier Ekranoplane.


Attachments

  • Dornier Ekranoplane.jpg
    Dornier Ekranoplane.jpg
    97.9 KB · Views: 303
Maybe there's "Dornier" written above the drawing, nevertheless, can we
get the sourde, please ? ;)

Ok my dear Jemiba,


I will search about it,sorry I can't remember it now.

Come on, spill the beans !
Who should be able to read this, if not you ? ;)

Thank you my dears Jemiba and Ucon,


I get a site spoke about that Dornier Ekranoplane,but not the site which I found it
at first,I will search about it,they said it was a Dornier project,but I can't remember
it until now.


http://scienseillustrations.mypage.ru/3685139.html

ucon said:

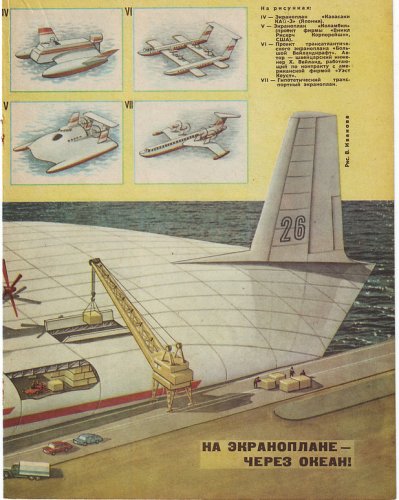

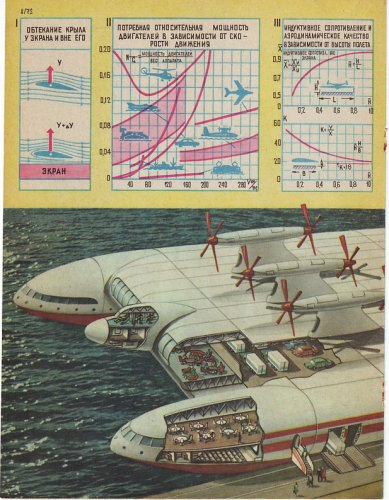

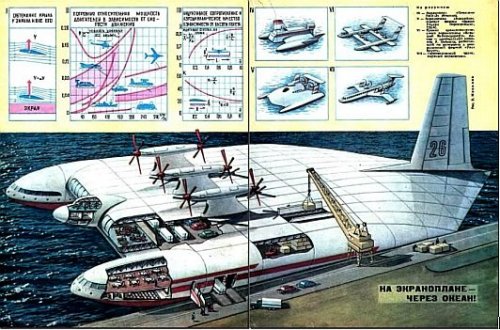

Technika-Molodezhy #8 from 1972


Also from the same site;


http://scienseillustrations.mypage.ru/2303175.html


Attachments

  • Dornier Ekranoplane  1.jpg
    Dornier Ekranoplane 1.jpg
    270.7 KB · Views: 180
  • Dornier Ekranoplane  2.jpg
    Dornier Ekranoplane 2.jpg
    219.8 KB · Views: 83
