The Dornier Do. X with 12 Siemens-Jupiter 525 h.p. Engines

Weights:
Tare Weight (stripped) - 28.2 tons ( 62,100 lbs.)
Tare Weight (equipped) - 30.0 tons ( 66,000 lbs.).
Gross Weight (normal) - 46.0 tons (101,200 lbs.).
Gross Weight (maximum) - 52.0 tons (114,400 lbs.).

Dimensions:
Length o.a. - 40.05 m. (131 ft. 4 in.).
Wing Span - 48.0 m. (157 ft. 5 in.)
Height - 10.25 m. ( 33 ft. 7 in.).
Wing Chord - 9.5 m. ( 31 ft. 2 in.).
Total Wing Area - 486.2 sq. m. (5,225 sq. ft.).
Max Beam of Hull - 4.8 m. ( l5 ft. 9 in.).
Beam over Stumps - l0.0 m. ( 32 ft. 10 in.).
Total length of Cabins - 23.5 m. ( 77 ft.).
Mean Width of Cabins - 3.2 m. ( 10 ft. 6 in.).

Fuel Capacity
In Hull, 4 tanks at 3,000 l - 12,000 l. (2,640 gals.).
In hull and leading edge 4 - 4,000 l. ( 880 gals.).
Normal Capacity - 16,000 l. (3,520 gals.).
Further tanks can be added of - 8,600 l. (1,890 gals.).
Max. Petrol Capacity - 24,600 l. (5,412 gals.).

Oil Capacity
6 tanks at 100 l. in nacelles - 600 l. (132 gals.).
1 tank in hull - 1,300 l. (286 gals.).
Total Oil Capacity - 1,900 l. (418 gals.).

Performance
Max. Speed (according to engines fitted) - 210-230 km./h. (130-143 m.p.h.).
Cruising Speed - 170 km./h. (105 m.p.h.).
Duration (normal capacity) - 12 hrs. at cruising speed.


Attachments

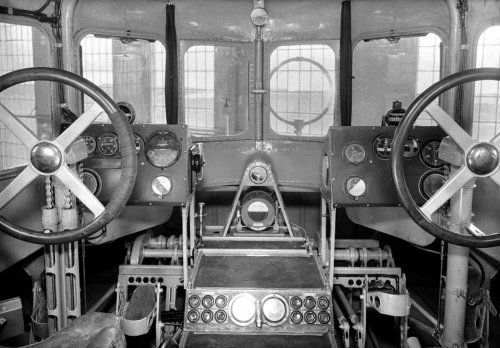

  • Do-x Instr_4.jpg
    Do-x Instr_4.jpg
    245.7 KB · Views: 154

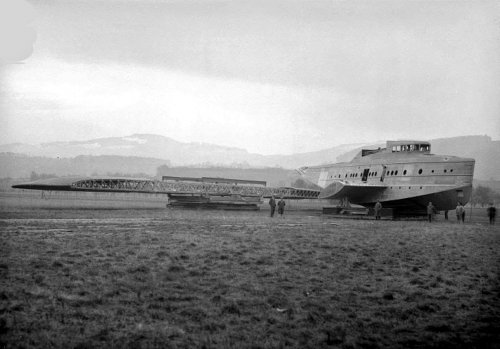

  • D0-xWing_work2.jpg
    293.8 KB · Views: 144

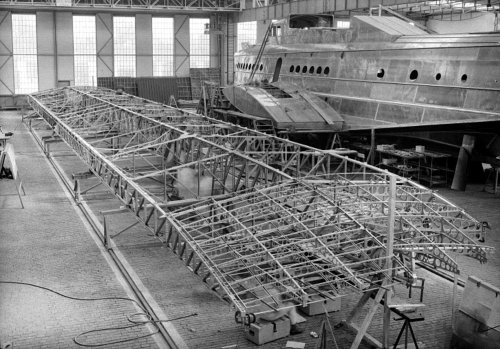

  • Do-x Wing_work.jpg
    Do-x Wing_work.jpg
    253.4 KB · Views: 130
  • Do-x.jpg
    191.6 KB · Views: 119
http://dodlithr.blogspot.ca/2014/11/the-dornier-do-x-first-authentic-data.html


Attachments

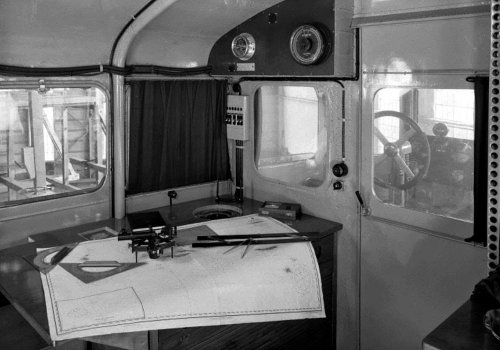

  • Do-xCabin.jpg
    211.8 KB · Views: 113

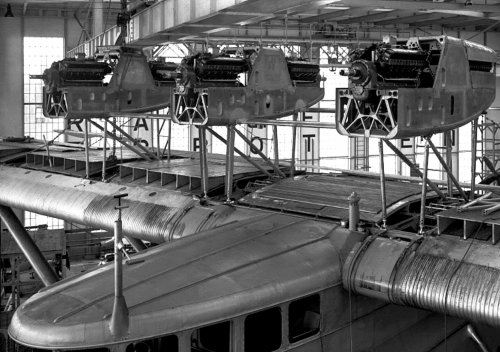

  • Do-xEngine_Swap.jpg
    260.8 KB · Views: 31

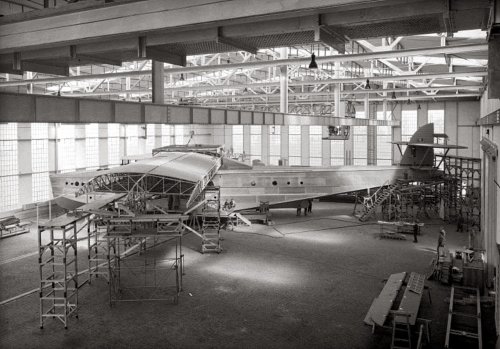

  • Do-xMain_Parts.jpg
    169.9 KB · Views: 35

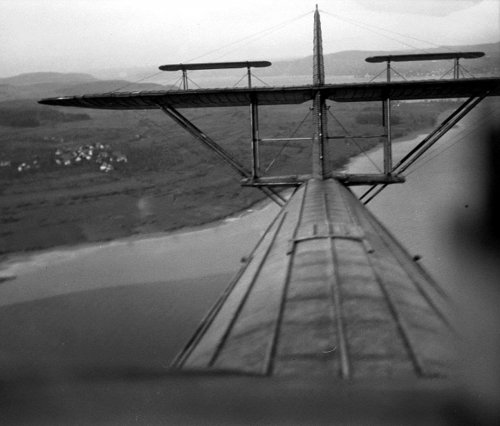

  • Do-xTail.jpg
    129.8 KB · Views: 35
