Things are moving fast these days ! Who would have thought we would see so many secret spaceplanes fly within so short a period of time.
Last April 2010, a 2nd classified spaceplane flew, less than a month after the X-37 took-off (!).
The HTV-2 hypersonic boost-glide lifting-body was launched from Vandenberg toward the atoll of Kwajalein. The vehicle’s aeroshell is made of an all-new super-high temperature carbon-carbon composite which is able to resist temperature of up to 3000 degrees. There are no heat tiles or metal panels, it’s just 7 ply of composite skin that take up all the heat. There is no active cooling. HTV-2 is designed for Global Strike and can cover most of the globe, it was launched by a Minotaur rocket. The vehicle itself is over 12 feet long and weights 2000 pounds. This is the first of several flight tests, the 2nd flight will test the delivery of a sub-munition dispenser system. The HTV-2 can also deliver KEP (Kinetic Energy Projectiles).
The HTV-2 is a more evolved vehicle with a higher lift-to-drag ratio than its predecessors, with a much higher temperature resistant aeroshell (the previous vehicles only had aeroshells able to withstand 300 and 800 degrees respectively. Another earlier version called HTV-1 which looked like a flattened DC-X rocket was abandoned due to problems with the composite lay-up.
The HTV-2 also have a much greater footprint than the vehicles previously tested. HTV-2 can perform maneuvers at 10 to 25 g’s at Mach 20, so you get an idea of how fast the temp can rise. The idea is to have a vehicle able to strike within an hour anywhere around the world from a CONUS launch site. The previously tested smaller DC-X-like vehicles maybe already in service (or could be adopted quickly if the need arise), the HTV-2 will require more tests as it is more ambitious and uses more revolutionary technologies.
I have already done my research and prepared a model kit of the HTV-2. I found the exact official length of HTV-2 and the model kit is now available for 65.00$ (contact me for shipping).
Scale of the model is 1/24th and it measures more than 15 cm (over 6 inches). The model features 5 parts, including movable flaps.
Two very well documented classified spaceplane model kits of vehicles that flew in less than a month, only from Stratosphere Models. I wouldn't have believed it myself if you had told me a month ago...
Stratosphere Models
Website: Picturetrail.com/stratospheremodels
Email: stratospheremodels at yahoo.fr
Photo of the flown predecessors of HTV-2.
The ALL NEW HTV-2 model kit itself, 1/24th scale. It is now available for 54.00$.
Do not worry about the external finish, it will be entirely covered with several layers of spray filler and sanded smooth.
Stephane.
Stratosphere Models.
Website: Picturetrail.com/stratospheremodels
Email: stratospheremodels at yahoo.fr
Last April 2010, a 2nd classified spaceplane flew, less than a month after the X-37 took-off (!).
The HTV-2 hypersonic boost-glide lifting-body was launched from Vandenberg toward the atoll of Kwajalein. The vehicle’s aeroshell is made of an all-new super-high temperature carbon-carbon composite which is able to resist temperature of up to 3000 degrees. There are no heat tiles or metal panels, it’s just 7 ply of composite skin that take up all the heat. There is no active cooling. HTV-2 is designed for Global Strike and can cover most of the globe, it was launched by a Minotaur rocket. The vehicle itself is over 12 feet long and weights 2000 pounds. This is the first of several flight tests, the 2nd flight will test the delivery of a sub-munition dispenser system. The HTV-2 can also deliver KEP (Kinetic Energy Projectiles).
The HTV-2 is a more evolved vehicle with a higher lift-to-drag ratio than its predecessors, with a much higher temperature resistant aeroshell (the previous vehicles only had aeroshells able to withstand 300 and 800 degrees respectively. Another earlier version called HTV-1 which looked like a flattened DC-X rocket was abandoned due to problems with the composite lay-up.
The HTV-2 also have a much greater footprint than the vehicles previously tested. HTV-2 can perform maneuvers at 10 to 25 g’s at Mach 20, so you get an idea of how fast the temp can rise. The idea is to have a vehicle able to strike within an hour anywhere around the world from a CONUS launch site. The previously tested smaller DC-X-like vehicles maybe already in service (or could be adopted quickly if the need arise), the HTV-2 will require more tests as it is more ambitious and uses more revolutionary technologies.
I have already done my research and prepared a model kit of the HTV-2. I found the exact official length of HTV-2 and the model kit is now available for 65.00$ (contact me for shipping).
Scale of the model is 1/24th and it measures more than 15 cm (over 6 inches). The model features 5 parts, including movable flaps.
Two very well documented classified spaceplane model kits of vehicles that flew in less than a month, only from Stratosphere Models. I wouldn't have believed it myself if you had told me a month ago...
Stratosphere Models
Website: Picturetrail.com/stratospheremodels
Email: stratospheremodels at yahoo.fr
![386697903.jpg](/proxy.php?image=http%3A%2F%2Fpic100.picturetrail.com%2FVOL565%2F2335047%2F23190005%2F386697903.jpg&hash=b1301a750a1bc25f87cd658a8ad0469d)
![386697901.jpg](/proxy.php?image=http%3A%2F%2Fpic100.picturetrail.com%2FVOL565%2F2335047%2F23190005%2F386697901.jpg&hash=5386be94f0851efe0f996360d7503df7)
![387078942.jpg](/proxy.php?image=http%3A%2F%2Fpic100.picturetrail.com%2FVOL565%2F2335047%2F23190005%2F387078942.jpg&hash=873b67206a698fe732448a4b5fe06251)
![387078944.jpg](/proxy.php?image=http%3A%2F%2Fpic100.picturetrail.com%2FVOL565%2F2335047%2F23190005%2F387078944.jpg&hash=285db893381868f53585a53121107a51)
![Current_Global_Strike_Vehic-1.jpg](/proxy.php?image=http%3A%2F%2Fi141.photobucket.com%2Falbums%2Fr76%2Focto8%2FCurrent_Global_Strike_Vehic-1.jpg&hash=9b6c66fa26b67816782c00914b38d2ba)
![Flown_Maneuvering_Vehic.jpg](/proxy.php?image=http%3A%2F%2Fi141.photobucket.com%2Falbums%2Fr76%2Focto8%2FFlown_Maneuvering_Vehic.jpg&hash=bbc986ac6ccb770ef241bdeb49f359f4)

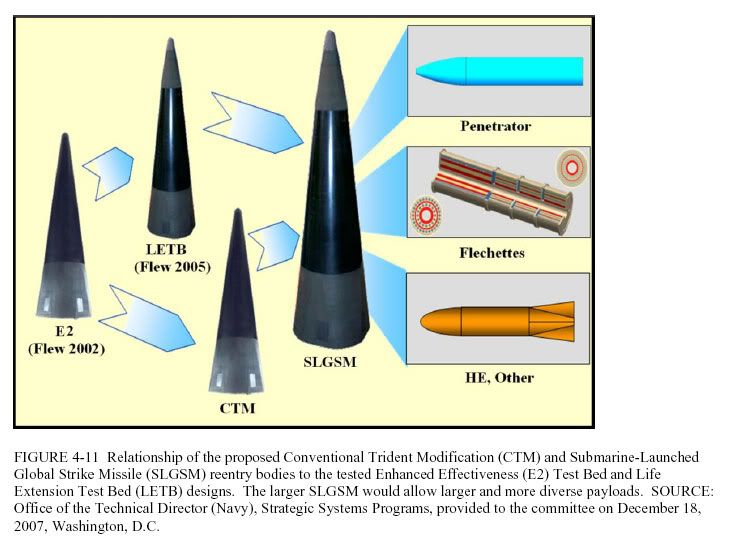

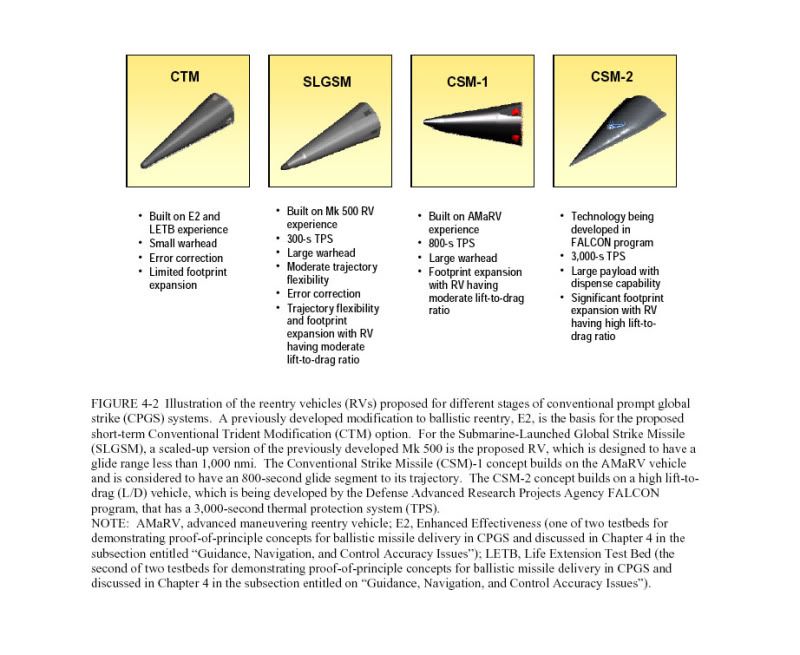

Photo of the flown predecessors of HTV-2.
![Global_Strike_Systems-2.jpg](/proxy.php?image=http%3A%2F%2Fi141.photobucket.com%2Falbums%2Fr76%2Focto8%2FGlobal_Strike_Systems-2.jpg&hash=ceaa2cddebc8ea959aefbe23f6f3cfbe)
![387078492.jpg](/proxy.php?image=http%3A%2F%2Fpic100.picturetrail.com%2FVOL565%2F2335047%2F23190005%2F387078492.jpg&hash=1201b65111bbc97d8c63a6de101dd243)
![387078479.jpg](/proxy.php?image=http%3A%2F%2Fpic100.picturetrail.com%2FVOL565%2F2335047%2F23190005%2F387078479.jpg&hash=28e3f3c5c91088e72d90f6d6b1698e50)
![387078483.jpg](/proxy.php?image=http%3A%2F%2Fpic100.picturetrail.com%2FVOL565%2F2335047%2F23190005%2F387078483.jpg&hash=60d2ab9ae6da8983d3a2056929a4cade)
![387078482.jpg](/proxy.php?image=http%3A%2F%2Fpic100.picturetrail.com%2FVOL565%2F2335047%2F23190005%2F387078482.jpg&hash=2039bbf567c78567060b7126846be602)

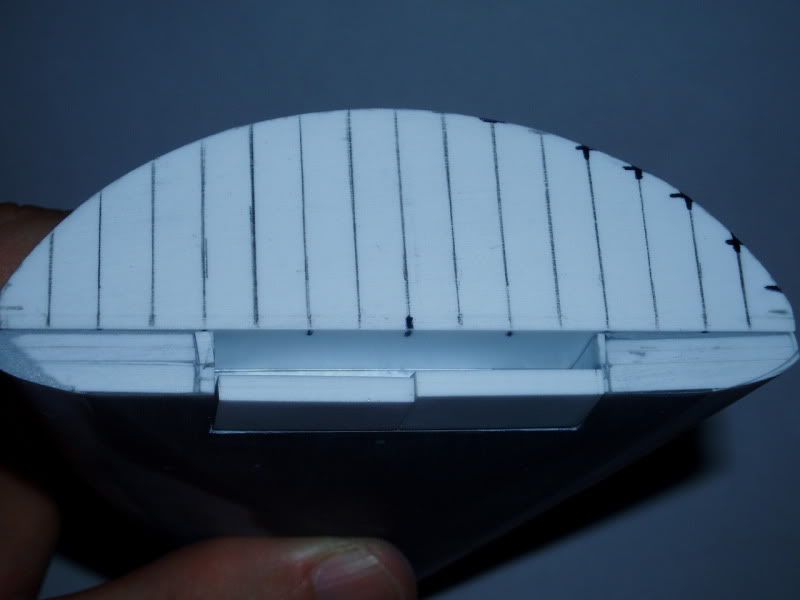

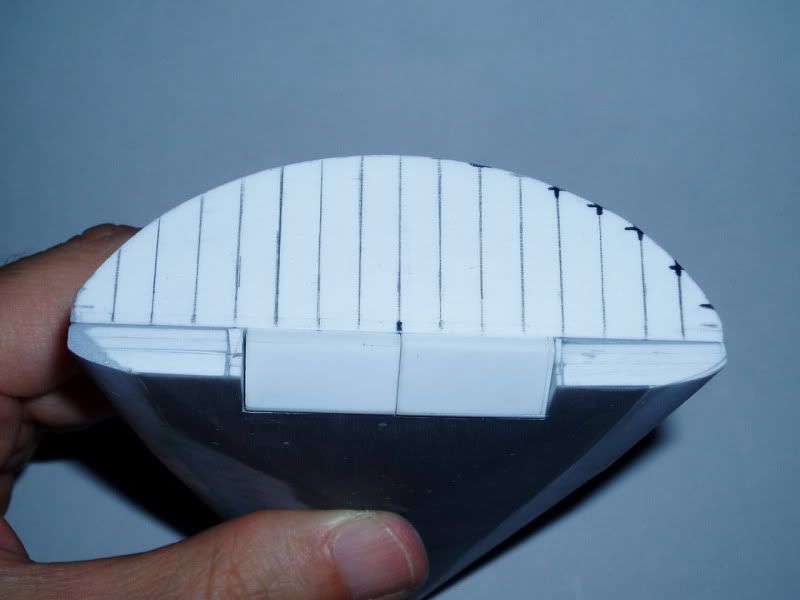

The ALL NEW HTV-2 model kit itself, 1/24th scale. It is now available for 54.00$.
Do not worry about the external finish, it will be entirely covered with several layers of spray filler and sanded smooth.
Stephane.
Stratosphere Models.
