In 1962 DB showed the prototype of a turboprop engine with 1000 hp, designated as PTL-6, later changed to
DB-720. The program was dropped after about 57 hours fligt testing, using a modified Bell UH-1D. By replacing

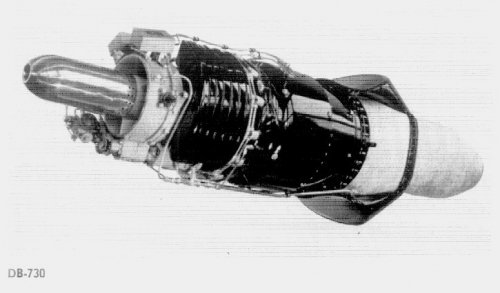

the reduction gear with an axial compressor stage, it became the ZTL-6, later DB-730, another project was the
PTL-10 (DB-721), a turboprop engine with 2200 hp.


Attachments

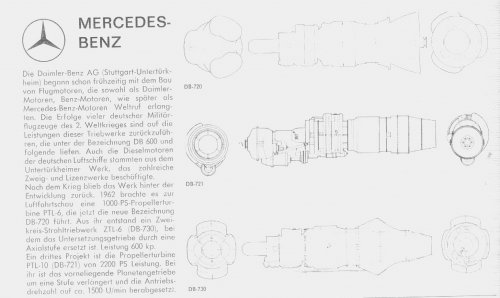

  • DB_jet-engines.jpg
    238.7 KB · Views: 182
  • DB-720.jpg
    83 KB · Views: 173
  • DB-730.jpg
    79 KB · Views: 155
  • DB-721.jpg
    70.3 KB · Views: 144
I really miss a good book on Daimler-Benz`s ventures in aero engines, particularly from the 1920S to 1945 :'( .
