Daimler-Benz 60 "Jäger" project with MK 412 machine-gun

[Justo Miranda]

Unknown Daimler Benz? project published on Luftfahrt International Nº5 as
"Daimler Benz 60 Konstruktionsbericht.K21" 21.01.1944



[Pelzig]

Perhaps this might shed some light on it:


http://www.ww2incolor.com/forum/archive/index.php/t-4127-p-2.html



[Jemiba]

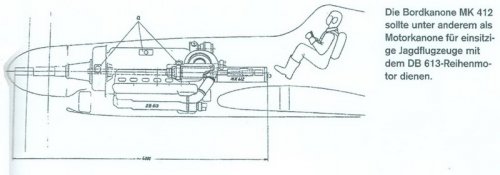

In the mentioned Luftfahrt International N°5 it is said explicitely, that they just were meant
as different DB 613/MK 412/cockpit configurations and were NO real aircraft projects, although
the similarity of the cockpit to the Fw 190 has already lead several people to regard them
as "Fw 190 projects" !



[Justo Miranda]

OK



[Flitzer]

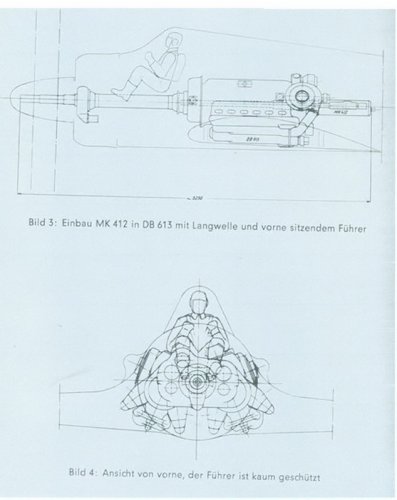

On drawing 001.
Please forgive my ignorance but is that an intake or cooling fan of some sort directly under the pilot on the fuselage underside?


P



[Michel Van]

On drawing 001.
Please forgive my ignorance but is that an intake or cooling fan of some sort directly under the pilot on the fuselage underside?


P

yes the german text labeled it as a cooler



[GeorgeA]

Most likely a heat exchanger for the engine. Not really in the correct position to be a supercharger intercooler.

Given the DB 613 was two coupled DB 603s, and the DB603 could produce up to 3000 hp (albeit in the Porsche T80), that could have been a very fast aircraft.



[Flitzer]

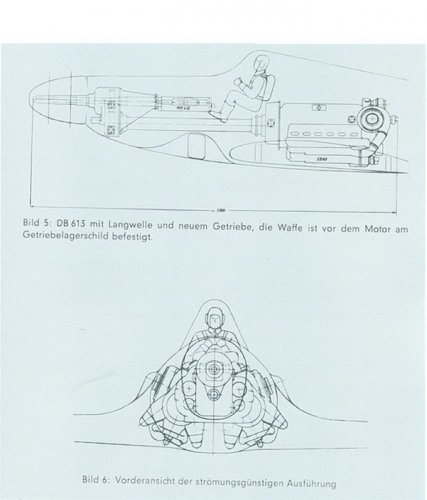

There is also a similar device on picture 003.


They do look rather streamlined.


P
