Shown as models on the Aerosalon 1946 were those czech light transports:

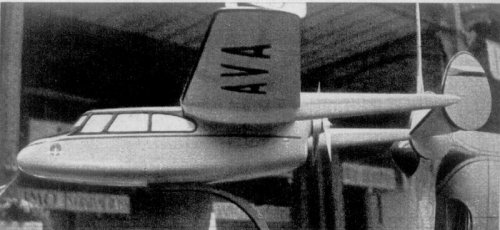

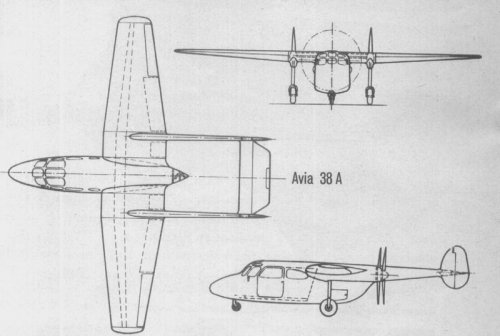

- The Avia 38A with two Walter Mionor 6-III engines, installed side-by-side
in the rear fuselage, span 11m, length 9,05m and an empty weight of 1.900 kg.
Pilot, 4 passengers.

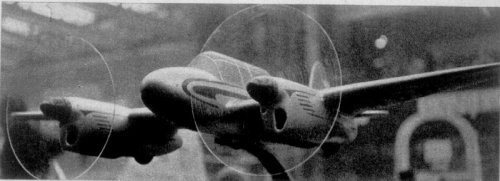

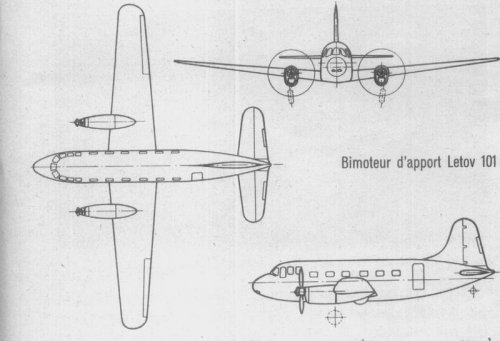

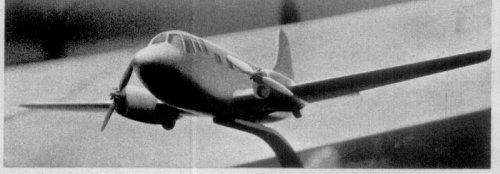

- The Letov 101, two Argus As 410, for 12 passengers and two crew

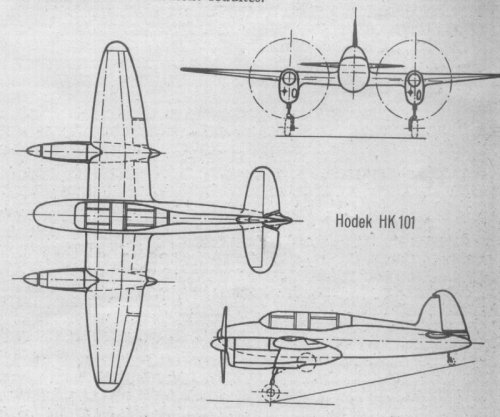

- The Hodek HK 101, a tandem twin seater with two Walter Minor 4-III,
length 5,91m and 7,7m span.

(all pictures and data from InterAvia November 1946)


Attachments

  • Avia-38A_01.JPG
    51 KB · Views: 143
  • Avia-38A_02.JPG
    57.2 KB · Views: 124
  • Letov-101_01.JPG
    52.5 KB · Views: 138
  • Letov-101_02.JPG
    37.8 KB · Views: 121
  • Hodek_HK-101_01.JPG
    76.4 KB · Views: 133
  • Hodek_HK-101_02.JPG
    43.4 KB · Views: 61
Re: Czech post-war twin engined trasnports

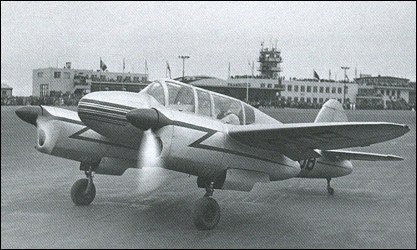

The HK-101 was actually built and flown (3 September 1947) and maybe even two examples were completed (I'm not sure).


Attachments

  • hodek_hk-101.jpg
    34.8 KB · Views: 54
You're right, sorry ! Was too biased by a comment, that for a twin engined
two-seater probably isn't a large market, due to the higher price for purchase
and maintenance.
