Czech Avia Aircraft Designations

[hesham]

Avia Av-38 Expres (1946)
Avia Av-41 (1946)
Avia Av-48 (1949)
Avia LE P-3.4 (1949)



[Stargazer]

New topic started from an old post in a generic topic. Feel free to add to it!



[hesham]

Hi,


BH-1 Single-piston-engine monoplane two-seat touring aircraft,one built
BH-2 Single-piston-engine monoplane one-seat touring aircraft,one built
BH-3 Single seat fighter monoplane,based on BH-2
BH-4 Single seat fighter monoplane,developed from BH-3,with some improvements and more powerful
engine
BH-5 Single-piston-engine monoplane two-seat touring aircraft,one built
BH-6 Single-piston-engine one-seat biplane fighter aircraft,one built
BH-7 Single-piston-engine one-seat parasol-wing fighter/racer aircraft,two built
BH-8 Single seat fighter biplane,powered by one 310 hp piston engine
BH-9 Two-seat low-wing strut-braced touring and sporting monoplane
BH-10 Single seat aerobatic aircraft,derivative of BH-9
BH-11 Two seat sporting aircraft,very similar to BH-9
BH-12 Another two seat sporting aircraft,developed from BH-9
BH-13 ------?
BH-14 Single engined 12-passenger transport airplane Project,powered by one 450 hp Lorraine
BH-15 Two-seat recce airplane Project,powered by one 450 hp Lorraine.
BH-16 Very light single-piston-engine one-seat monoplane touring aircraft
BH-17 Single seat fighter biplane,powered by one 310 hp piston engine
BH-18 Twin engined large transport airplane Project,intended to accommodate 32-passenger in 1924
BH-19 Single seat low-wing monoplane fighter,also powered by one 310 hp piston engine
BH-20 Single-piston-engine two-seat biplane training aircraft

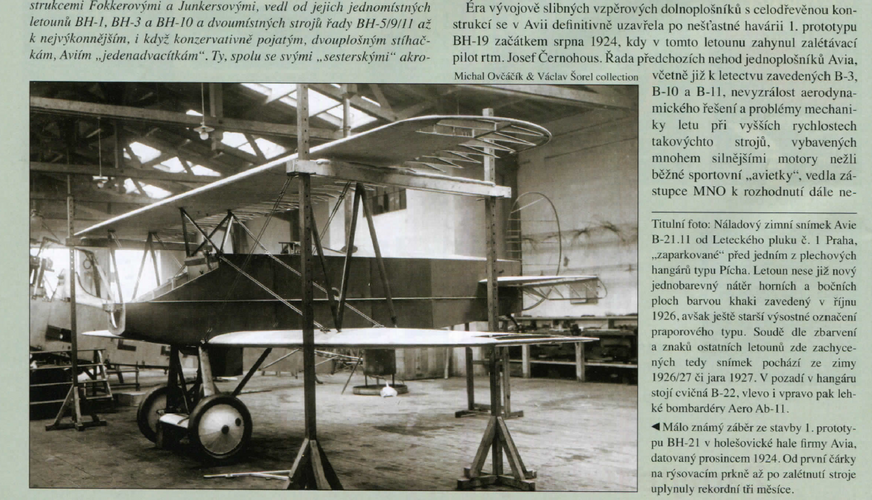

BH-21 Single-piston-engine one-seat biplane fighter/racing aircraft,also powered by one 310 hp engine
BH-22 Single-piston-engine two-seat trainer biplane aircraft,developed from BH-21
BH-23 Single seat night fighter biplane,a redesigned of BH-22N
BH-24 ------?
BH-25 Single-piston-engine seven-seat biplane transport aircraft
BH-26 Single-piston-engine two-seat biplane reconnaissance aircraft
BH-27 Four seat high-wing transport monoplane project,powered by one 110 hp piston engine
BH-28 Single-piston-engine two-seat biplane reconnaissance aircraft,one built

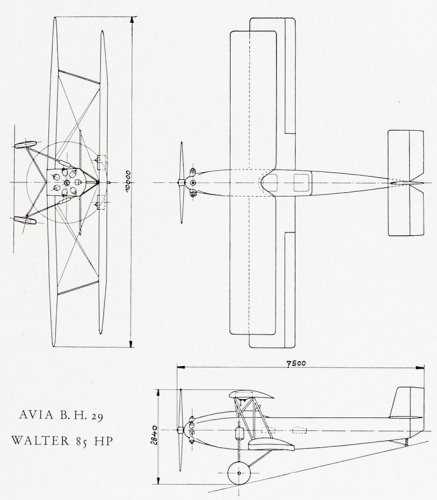

BH-29 Single-piston-engine two-seat biplane primary trainer aircraft

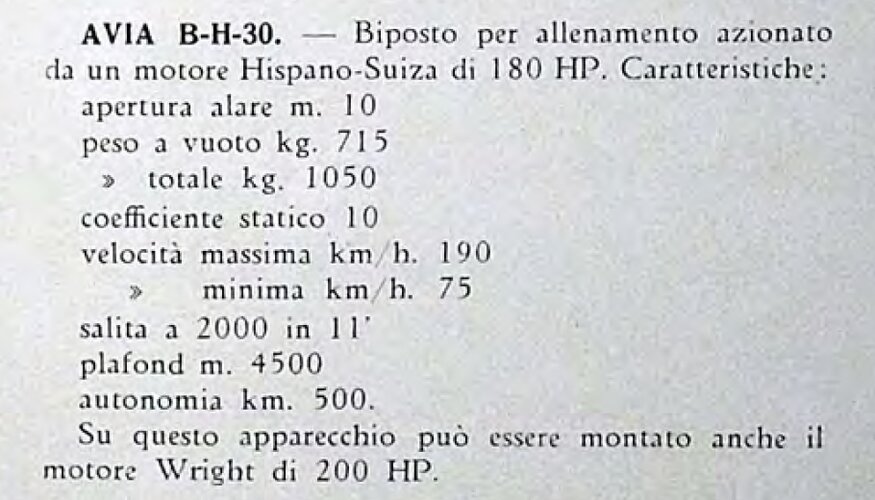

BH-30 was a two-seat trainer aircraft project,powered by one 180 hp Hispano-Suiza engine
BH-31 ------?
BH-32 ------?
BH-33 Single seat fighter biplane aircraft,developed from BH-21 with more powerful engine
BH-34 ------?
BH-35 High-wing three engined postal and transport monoplane project of 1929
B.33 was a licence built Ilyushin Il-10,a single engine two-seat low-wing ground-attack aircraft
B.34 Single seat fighter biplane,powered by one 760 hp piston engine
B.34/1 Single seat fighter biplane,developed from B.34 with some improvements and 740 hp engine
B.34/2 Single seat fighter biplane,also developed from B.34
B.35/1 Single seat low-wing monoplane fighter,with fixed landing gear and 860 hp engine
B.35/2 Single seat fighter monoplane,developed from B.35/1 with some improvements,never completed
B.35/3 Single seat fighter monoplane,developed from B.35/1 with retractable landing gear
B.36 Twin engined mid-wing medium/heavy bomber monoplane project of 1936
J.37 A licence built Junkers K-47 fighter,but I don't know if that did happened or not.
B.38 -------?
B.39 (F.39) was an export version of F.IX bomber (convertion of Fokker F.IX transport into a bomber)
B.40 Three engined high-shoulder-wing transport monoplane project,accommodated ten
passenger,powered by three DR-14 engines
B.41 -------?
B.42 Two seat high wing recce and light bomber aircraft project of 1932
B.43 -------?
B.44 -------?
B.45 -------?
B.46 Three engined high-wing bomber with fixed landing gear,developed from Rohrbach Roterra
B.47 -------?
B.48 -------?
B.49 -------?
B.50 Three engined high-wing light transport project
B.51 Three engined high-wing six-seat commercial transport aircraft
BH.52 ------?
B.53 ------?
B.54 ------?
B.55 ------?
B.56 Single engined high-wing light transport Project,powered by one 600 hp Avia R-29,but the engine
failed,led to develop B.156
B.57 Three engined low-wing 14-seat commercial transport aircraft
B.58 Twin engined medium bomber aircraft,led to develop B.158
B.59 -------?
B.60 -------?
B.61 -------?
B.62 -------?
B.63 A licence built Potez-636 C.3 aircraft
B.64 to B.70 -------?
B.71 A licence built Tupolev SB-2 twin engined medium bomber
B.109 Exported bomber version of Fokker F.IX,which built under licence.
BH-133 Experimental aircraft,developed from BH-33E,with 550 hp radial piston engine
B.134 Single seat biplane fighter,developed from B.34 with 800 hp piston engine
B.135 Single seat monoplane fighter,developed from B.35/3 with many improvements
B.139 A development of F.39 bomber

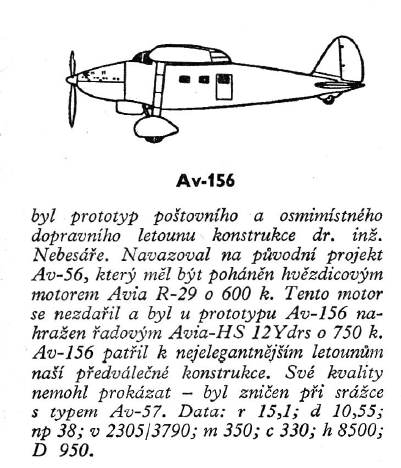

B.156 A refine version of B.56 light transport aircraft
B.157 maybe a developed Project version of Av.57
B.158 Revised design of B.58 twin engined medium bomber,with many improvements
B.234 A version of B.34 fighter,with Gnome-Rhone Mistral engine,project only
B.334 A version of B.34 fighter,with Armstrong Siddeley Panther engine,project only
B.434 ,, ,, ,, ,, ,, ,, ,, ,, ,, ,,
B.534 Single seat biplane fighter,based on B.34 with 850 hp engine
B.634 Single seat biplane fighter,based on B.34 but with many improvements


to be continued

....



[hesham]

Hi,


Ba.112 & Ba.123 light trainer and aerobatic aircraft
B.122 new aircraft developed from BH-22 as aerobatic trainer biplane
Ba.122 single seat aerobatic trainer biplane,developed from B.122
Bs.122 a military version of B.122
B.222 version of B.122,with a NACA close-cowled Rk-17 engine
B.322 experimenatl version of B.122,with enclosed cockpit and Towent-Ringed Rk-17 engine
Ba.422 final development of B.122,with upper wing gulled into the fuselage and anther engine
Ba.422.2 anther prototype of B.422



[hesham]

Hi,


B.228 license-built standard Ilyushin Il-28 twin engined medium jet bomber
CB.228 license-built Ilyushin Il-28U trainer version of Il-28



[hesham]

Post WW2 aircraft;

Av.35 ------?
Av.36 high-wing light cabin touring aircraft,powered by one 120 hp Walter Minor engine
Av.37 was a fighter project,no more details

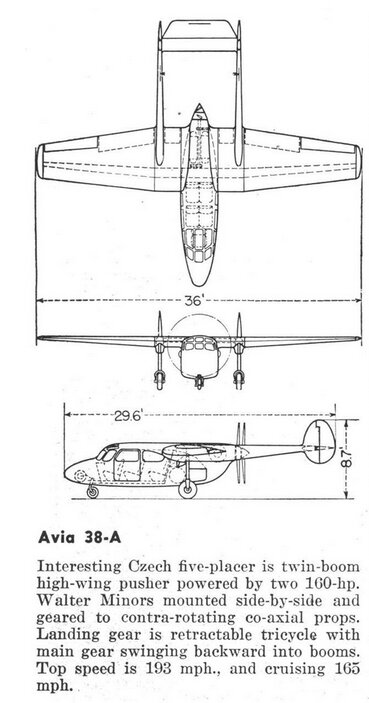

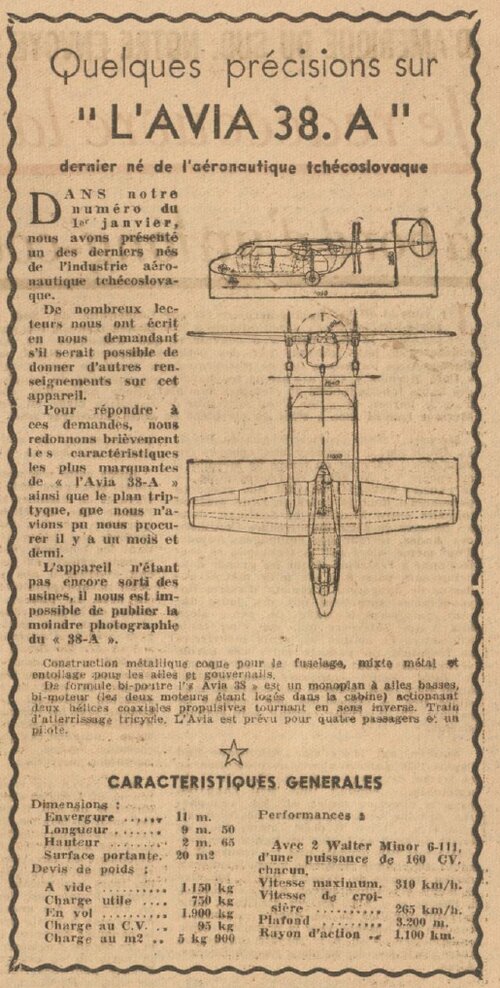

Av.38 twin boom high-wing light transport Project,powered by two engines driven
one pusher propeller,Project only
Av.39 ------?
Av.40 tandem two seat fighter trainer low-wing monoplane Project,powered by one Avia HS 12Y engine
Av.41/I was first allocated to a fighter project,no more details
Av.41 twin boom high wing light transport aircraft,powered by two tractor engines,Project only
Av.42 cantilever low-wing single seat fighter monoplane Project,to replace S-199.
Av.43 was a fighter project,no more details
Av.44 ------?
Av.45 two seat trainer aircraft Project,powered by one V-12 engine
Av.46 utility and observation light aircraft Project
Av.47 utility and observation high-wing twin boom pusher light aircraft Project
Av.48 twin boom high-wing light aircraft Project,powered by single engine
Av.49 utility and observation high-wing twin boom light aircraft Project
Av.50 low-wing medium transport aircraft Project of 1949,powered by two AS-82FNV engines
Av.51 ------?
Av.52 said to be the Avia LE P-3.4 two seat jet trainer Project
Av.53 ------?
Av.54 ------?
Av.55 ------?
Av.136 light aircraft developed from Av.36,with Walter Minor 4-III engine
Av.145 two seat trainer aircraft Project
Av.146 utility and observation light aircraft Project,powered by one M-14 engine
Av.236 light aircraft developed from Av.36,with more powerful multi-engines,such as M-446



[hesham]

Avia LE P-3.4 (1949)

Was there any aircraft or projects in that Avia LE P series ?.



[hesham]

Post WW2 aircraft;


Av.36 high-wing light cabin touring aircraft,powered by one 120 hp Walter Minor engine

Hi,

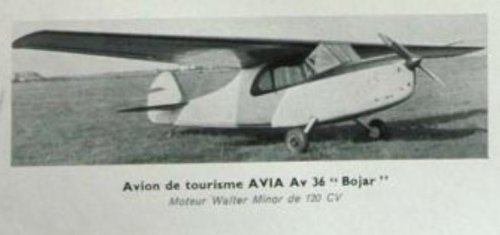

here is the Av.36 Bojar aircraft.



[hesham]

Hi,


I add the B.42 to the list,and I heard that the Avia B.150 was a development
of B.50,but I am not sure.



[kaiserbill]

S-92 - Messerschmitt Me 262A-1a fighter post war
CS-92 - twin seater Me 262, post war.
S-99 - Messerschmitt Me 109G during the war, and post war.
S-199 - Messerschmitt Me109G airframe mated to the Jumo 211, post war.



[hesham]

Thank you Kaiserbill,


also the Avia company had many license built aircraft,some of them are here;


http://cs.wikipedia.org/wiki/Ozna%C4%8Den%C3%AD_letadel_pou%C5%BE%C3%ADvan%C3%BDch_v_%C4%8Ceskoslovensku_po_druh%C3%A9_sv%C4%9Btov%C3%A9_v%C3%A1lce

Cvičná letadla



Bücker Bü 131 - Tatra T-131



Avia S-199C-1 - Klemm Kl 35D[/q]
[/size]

• C-2 - Arado Ar 96B¨

• C-3 - Siebel Si 204D

• C-4, C-104 - Bücker Bü 131D

• C-5 (přeznačen na K-65) - Fieseler Fi 156 posléze Z-26 Trenér

• C-6, C-106 - Bücker Bü 181

• C-8 (přeznačen na K-68) - Piper L-4

• C-10 (přeznačen na S-99) - Messerschmitt Bf 109G/K

• C-11 - Jakovlev Jak-11

• C-110 (přeznačen na CS-99) - Messerschmitt Bf 109G -12

• C-210 (přeznačen na S-199) - Avia S-199

• C-12 - Heinkel He 72

• C-112 - Heinkel He 172

• C-13 - A.V.I.A. Lombardi FL-3

• C-14 - Focke-Wulf Fw 44

• C-15 - Gotha Go 145A

• C-16 - Arado Ar 66C

• C-19 - Praga BH-39

• C-23 - Morane-Saulnier MS.230

• C-25 - Beneš-Mráz Be-250

• C-26 - Arado Ar 396A

• C-30 (přeznačen na D-54) - Siebel Fh 104

• C-105 - Z-126 Trenér

• C-205 - Z-226 Trenér 2

• C-305 - Z-326 Trenér Master

• [editovat]Bitevní letadla



  Iljušin Il-2B-31 - Iljušin Il-2

• B-32 - Petljakov Pe-2FT

• B-36 - De Havilland Mosquito FB Mk. VI

• B-37 - Junkers Ju 87D

• [editovat]Cvičná bitevní letadla



  De Havilland MosquitoCB-32 - Petljakov Pe-2UT

• CB-36 - De Havilland Mosquito T Mk. III

• [editovat]Dopravní letadla



  Douglas C-47D-41 - Avro 625A Anson Mk. II

• D-141 - Avro 625A Anson Mk. III

• D-42 - Airspeed Oxford C Mk. II

• D-43 (původně D-7b) - Junkers W 34

• D-44 - Siebel Si 204D

• D-47 - Douglas C-47

• D-52 (původně D-7) - Junkers Ju 52

• D-352 (původně D-7a) - Junkers Ju 352A

• D-54 - Siebel Fh 104

• D-58 - Focke-Wulf Fw 58C

• [editovat]Kurýrní letadla



  Legendární "K-65 Čáp"K-61 - British Taylorcraft Auster

• K-62 / CK-62 - Polikarpov Po-2

• K-65 - Fieseler Fi 156 „Storch“

• K-68 - Piper L-4 „Grasshopper“

• K-168 - Piper L-4 „Grasshopper“ s motorem Praga D

• K-70 - Messerschmitt Bf 108 „Taifun“

• K-71 - Percival Proctor I

• K-72 - Zlín Z-XII

• K-73 - Noorduyn C-64A Norseman

• K-74 - Fairchild UC-61

• [editovat]Lehká bombardovací letadla



  Heinkel He-111LB-36 - De Havilland Mosquito

• LB-77 - Heinkel He 111H

• LB-79 - Heinkel He 219A "Uhu"

• [editovat]Stíhací letadla



  Avia S-92S-89 - Supermarine Spitfire LF Mk.IXE

• S-90 - Focke-Wulf Fw 190A

• S-92 - Avia S-92 (Messerschmitt Me-262A)

• S-95 - Lavočkin La-5FN

• S-97 - Lavočkin La-7

• S-99 - Messerschmitt Bf 109G/K

• S-199 - Avia S-199 (Messerschmitt Bf 109 G/K rekonstrukce Avia)

• [editovat]Cvičná stíhací letadlaCS-92 - Avia S-92 (Messerschmitt Me-262B)

• CS-95 - Lavočkin La-5UTI

• CS-99 - Messerschmitt Bf 109G/K

• CS-199 - Avia S-199 (Messerschmitt Bf 109-12 rekonstrukce Avia)

• [editovat]Nákladní kluzáky



  Kluzák Waco CG-4NK-4 - Waco CG-4A "Hadrian"

•







[redstar72]

Thank you Kaiserbill,

also the Avia company had many license built aircraft,some of them are here

Hi Hesham!
Actually, this list represents military designations given by postwar Czechoslovakian Air Force to different aircraft they had in service. It doesn't mean that all of these types were produced in Czechoslovakia, moreover by Avia.



[hesham]

OK my dear Redstar,


but for Avia,not all of those designations related to it.



[redstar72]

but for Avia,not all of those designations related to it.

Didn't I say the same thing?



[hesham]

Hi,

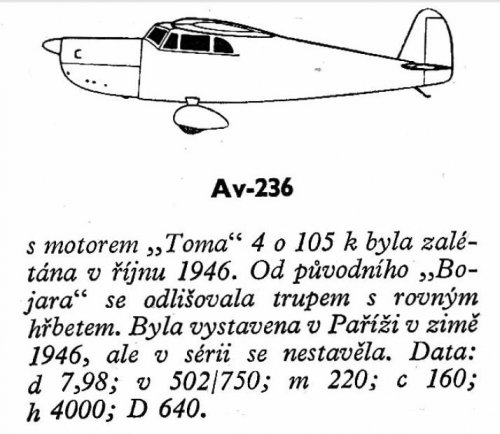

from L + K magazine,here is the Avia Av.236 light aircraft drawing and Info.



[hesham]

Hi,

I add some unknown Projects to the list.



[hesham]

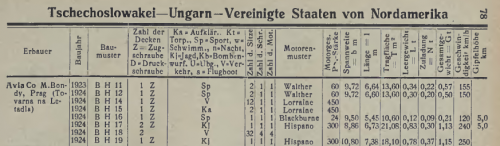

From Taschenbuch der Luftflotten 1924-1925,

here is a big discover,the Avia BH-14 was a single engined 12-passenger transport
airplane,powered by one 450 hp Lorraine,the BH-15 was a two-seat recce airplane,
powered by one 450 hp Lorraine.

Also BH-18 was a twin engined large transport airplane,intended to accommodate
32-passenger in 1924,all of them were a Projects only as I guess.

I hope my dear Jemiba to confirm or add on this.



[hesham]

A new Info,about post WWII aircraft;

AV.37 was a fighter Project.
AV.41 (first allocated) was a fighter Project.



[Winston]

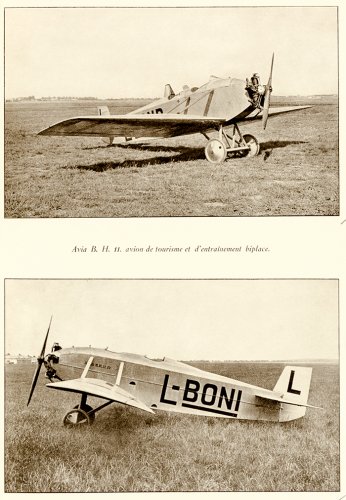

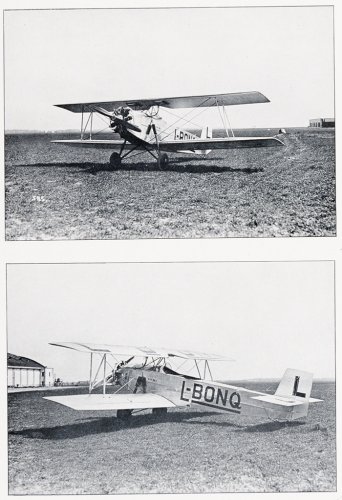

I have found this 3-view of the BH-29 on an auction website, along with images of the BH-11C & BH-29.
http://www.nosbuesch-stucke.berlin/auktion/?lang=en [Lot 97]

Thanks to this registry.
http://www.airhistory.org.uk/gy/reg_L-B.html



[hesham]

Nice find Winston.



[hesham]

Here is an Info about Av.56 Project.

L+K 7/1965



[Bazinga]

1929 L'Aeronautica Avia BH-30



[Bazinga]

1947 Aviation Francaise and 1947 Aviation Week articles on Av-38 Express



[hesham]

1947 Aviation Francaise and 1947 Aviation Week articles on Av-38 Express

They are here;

https://www.secretprojects.co.uk/threads/post-war-twin-boom-designs-from-czechoslovakia.16788/#post-381008



[hesham]

I add some small Infos to the list.



[hesham]

From Revi 90.



[hesham]

A new Info,about post WWII aircraft;

AV.37 was a fighter Project.
AV.41 (first allocated) was a fighter Project.

The good question is; if was there any jet fighter from them ?.



[hesham]

Hi,

again Wikipedia quoted from us (specially me),it's not the first or second even third time,as
you see her,Av.43 Fighter project,as I describe literally,but the really something bothers me,
is to not mention the source, SPF ?!,I sent a complain for them before about this.

Avia Motors - Wikipedia

en.wikipedia.org



[hesham]

Hi,

was there any different between BH-34 and B.34 ?.



[hesham]

The B.34 was a František Novotný design (not Beneš and Hajn). 'BH-34' is just a typo for B.34.

I think not my dear,if we see,there is BH-35 and Av.35,also BH-50 and Av.50,and they are completely
different ?.



[Sarastro]

Hi,
the Avia B.H.34 project actually existed. It was a biplane with an inline Lorraine-Dietrich engine. I have the original drawing and will post it on this forum when I redraw it...



[hesham]

Hi,
the Avia B.H.34 project actually existed. It was a biplane with an inline Lorraine-Dietrich engine. I have the original drawing and will post it on this forum when I redraw it...

Many thanks my dear Sarastro,

there was also BH-52 ?.



[Apophenia]

the Avia B.H.34 project actually existed. It was a biplane with an inline Lorraine-Dietrich engine. I have the original drawing and will post it on this forum when I redraw it...

Wow! I stand corrected. Thanks Sarastro.



[hesham]

Hi,

also in the museum (NTM Archive),there are two unknown projects,Av.51 & Av.55.



[hesham]

I hope to make a separated topic for all BH (Beneš and Hajn) aircraft and projects,whatever under Avia or Praga,
but only their series.



[Sarastro]

Hi,

also in the museum (NTM Archive),there are two unknown projects,Av.51 & Av.55.

Dear Hesham,
the Avia Av.51 type is not in the archives of NTM Praha. Type Av.55, yes.



[hesham]

Dear Hesham,
the Avia Av.51 type is not in the archives of NTM Praha. Type Av.55, yes.

My dear Sarastro,

are you sure ?.



[Sarastro]

My dear Sarastro,

are you sure ?.

Dear Hesham,
I'm sure. I have looked at this volume of the Bittner Collection at NTM, and although the Av.51 type is listed in the table of contents, the pages where it should be are completely missing. After all, it's not the only case in the Bittner collection...



[hesham]

Dear Hesham,
I'm sure. I have looked at this volume of the Bittner Collection at NTM, and although the Av.51 type is listed in the table of contents, the pages where it should be are completely missing. After all, it's not the only case in the Bittner collection...

OK my dear Sarastro,

and I think it was different from B.51 transport ?.



[hesham]

My dear Sarastro,

are you sure ?.

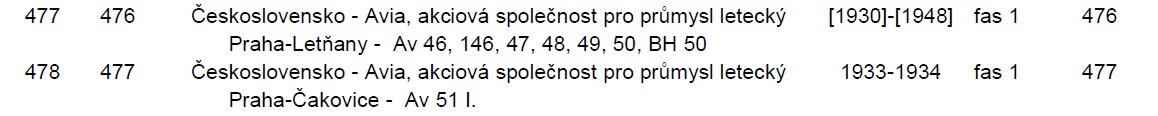

My dear Sarastro,

another report in the NTM archive mentioned Av.51.
