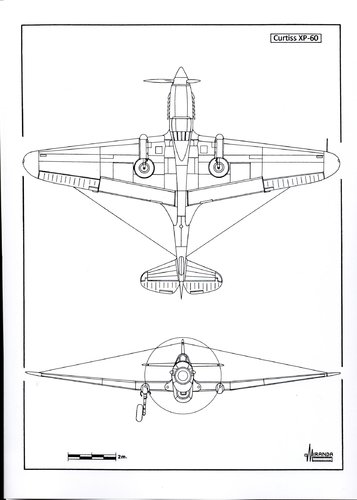

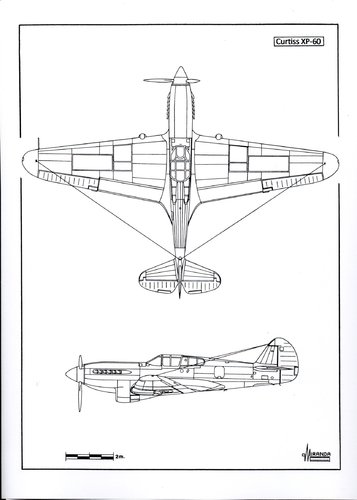

Curtiss XP-60 technical data
Power plant: one 1,300 hp Packard V-1650-1 (Merlin 28), twelve-cylinder, Vee, liquid-cooled engine driving a three-bladed Curtiss-Electric propeller with 11.2 ft of diameter, wingspan: 41.4 ft (12.62 m), length: 32 ft (9.78 m), height: 12.3 ft (3.75 m), wing area: 284 sq.ft (25.54 sq.m), maximum speed: 387 mph (623 kph), maximum weight: 9,713 lbs (4,400 kg),climb rate: 2,067 ft/min (630 m/min), service ceiling: 29,000 ft (8,850 m), armament: six 0.50 cal M2 wing mounted machine guns.
