Curtiss A-10 Shrike drawings needed

[ACResearcher]

While I have tons of photos of the A-8/A-10/A-12 series of aircraft, I have been unable to find any drawings specific to the A-10. I'm especially interested in a GOOD side view.

Can anyone help me out here??

Thanks,

AlanG



[Justo Miranda]

While I have tons of photos of the A-8/A-10/A-12 series of aircraft, I have been unable to find any drawings specific to the A-10. I'm especially interested in a GOOD side view.

Can anyone help me out here??

Thanks,

AlanG

You're right, I couldn't find any good drawings of this plane.



[aim9xray]

Wow, you're right. Only one of those attachments even addressed the A-10 aircraft as requested.



[Arjen]

Found here:

Curtiss YA-10 Shrike : Curtiss

Curtiss YA-10 Shrike bitevní letoun DD.MM.1932-DD.MM.1932

www.valka.cz



[Halfbad]

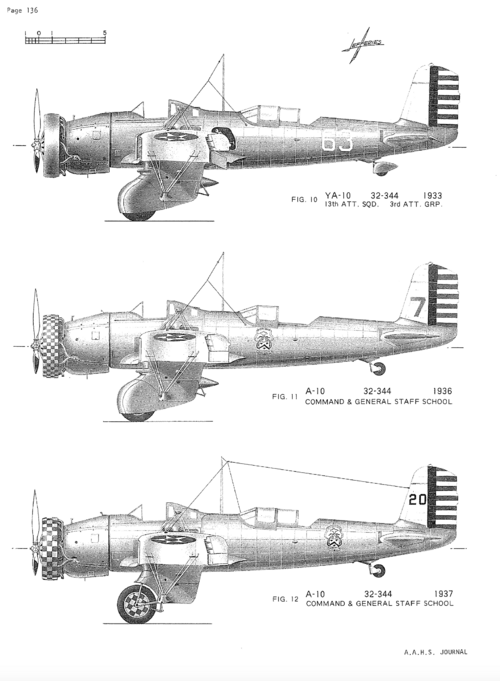

Here are some profiles of the A-10 by Walter M. Jefferies (designer of the original starship Enterprise); excerpt from the Summer 1965 AAHS Journal.



[Aubi]

View attachment 750965
Found here:

Curtiss YA-10 Shrike : Curtiss

Curtiss YA-10 Shrike bitevní letoun DD.MM.1932-DD.MM.1932

www.valka.cz

Thanks for the traffic
Here's the source of that picture, and some other pictures:

Factsheets : Curtiss YA-10

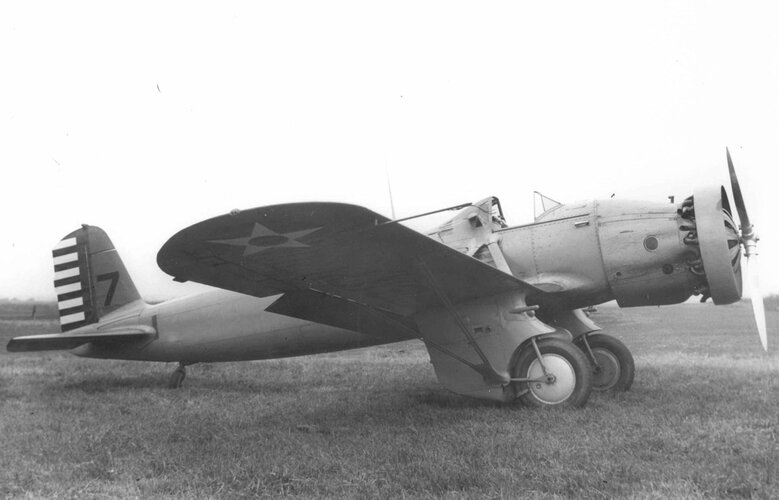

Side view of the Curtiss YA-10 No. 7, taken in 1936 when assigned to the Command and General Staff School, Fort Leavenworth, Kan.

Side view of the Curtiss YA-10 No. 7, taken in 1936 when assigned to the Command and General Staff School, Fort Leavenworth, Kan.

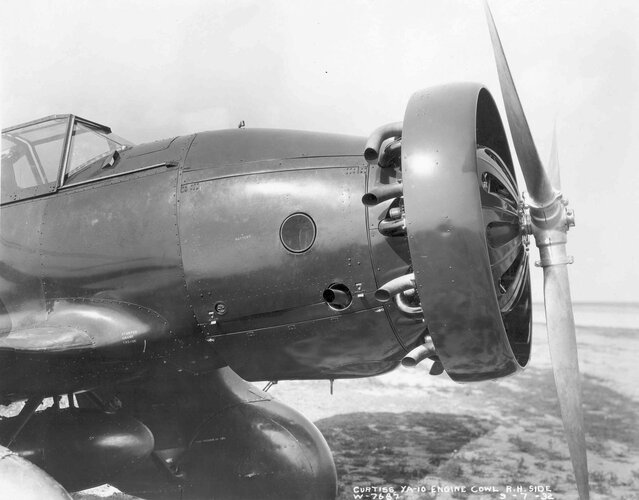

Nose detail of a Curtiss YA-10, showing the radial engine installation with cowling installing. Photograph taken Sept. 7, 1932.

Here are then some pictures of A-12, including one of a cockpit.

https://web.archive.org/web/20110914024731/http://www.nationalmuseum.af.mil/factsheets/factsheet.asp?id=2914



[ACResearcher]

Halfbad, EXCELLENT!! Those drawings should give me exactly what I need, showing the shape of the nose ahead of the firewall!

I appreciate those who shared the photos. I have all those and lots more, but appreciate the thought!!

AlanG



[Aeroweanie]

You're right, I couldn't find any good drawings of this plane.

Can you post a clearer scan of img549? I can almost read the airfoil information in the upper right corner, but need a clearer image.



[Justo Miranda]

Can you post a clearer scan of img549? I can almost read the airfoil information in the upper right corner, but need a clearer image.

Sorry, I don't have a clearer picture.



[Aeroweanie]

Sorry, I don't have a clearer picture.

It looks like I can order the drawings from the National Air & Space Museum, so I'll give that a try.



[Aeroweanie]

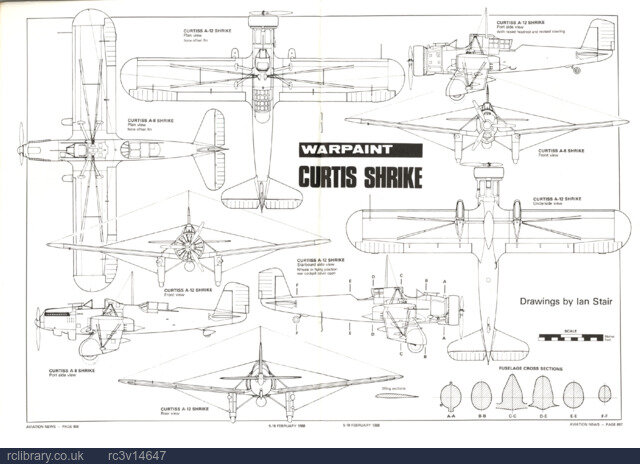

I found it (and a lot more) online here: https://rclibrary.co.uk/3view.asp?ID=12411
