Good Day All -

I recently bought off of EPay a proposal document from Convair to the USAF for a T-56 powered C-131 Mapping and Charting airplane. The document is dated October 21, 1955. The two attached drawings show the layout of the proposed aircraft.

Enjoy the Day! Mark


Attachments

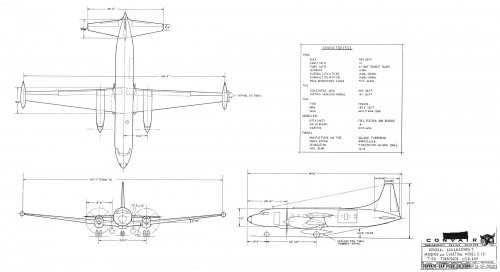

  • zC-131 T-56 Turboprop Mapping & Charting General Arrangement Oct-4-55.jpg
    zC-131 T-56 Turboprop Mapping & Charting General Arrangement Oct-4-55.jpg
    195.9 KB · Views: 298

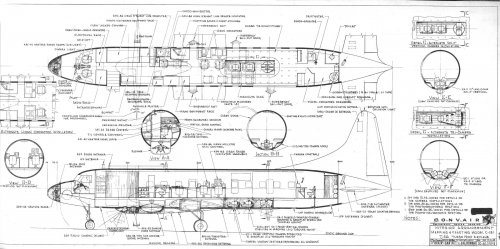

  • zC-131 T-56 Turboprop Mapping & Charting Interior Arrangement Oct-19-55.jpg
    zC-131 T-56 Turboprop Mapping & Charting Interior Arrangement Oct-19-55.jpg
    466.5 KB · Views: 288
