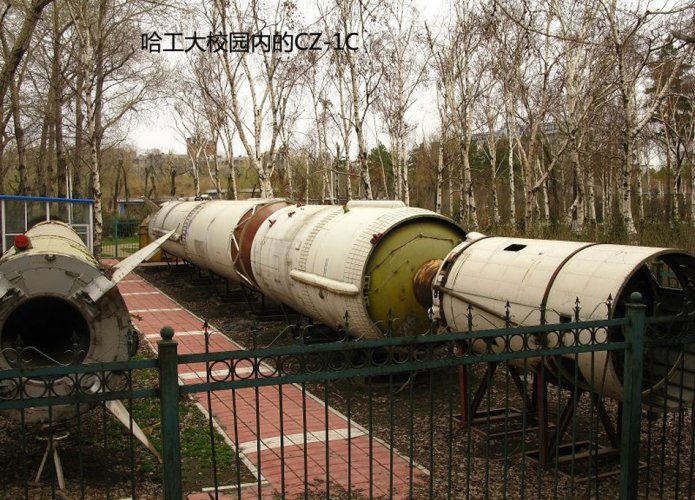

Chinese orbital launcher projects

[TheKutKu]

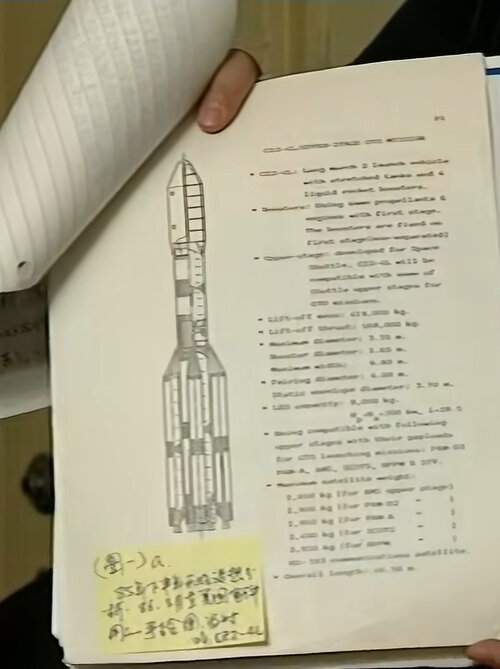

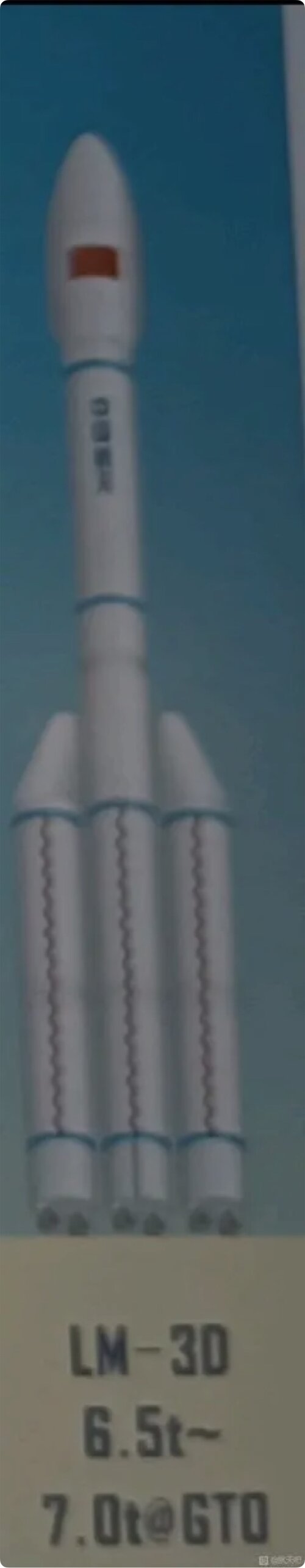

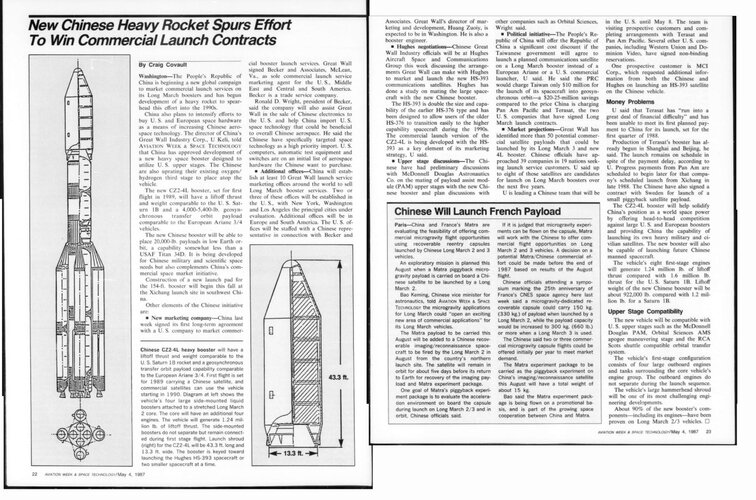

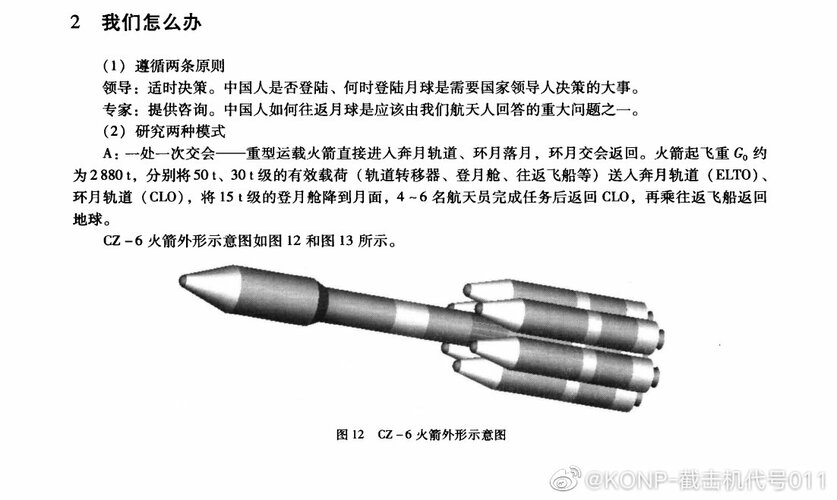

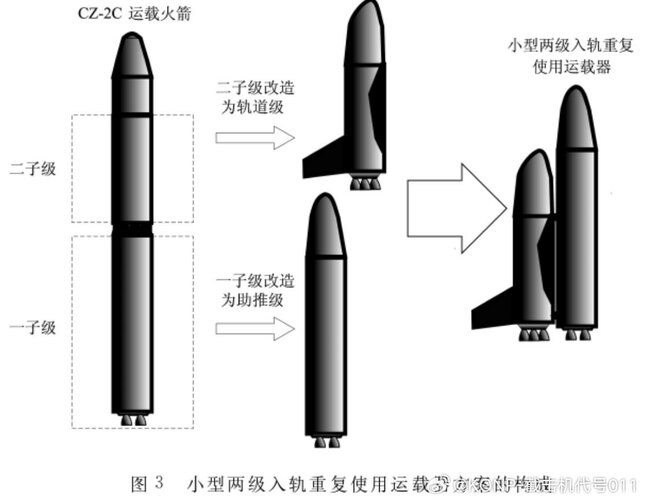

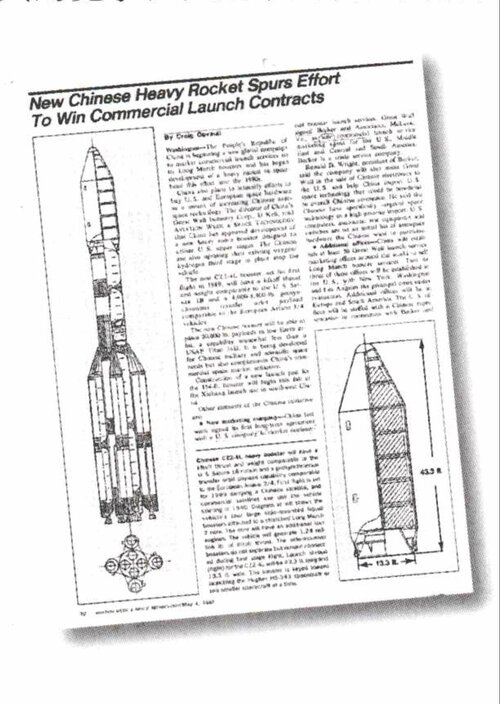

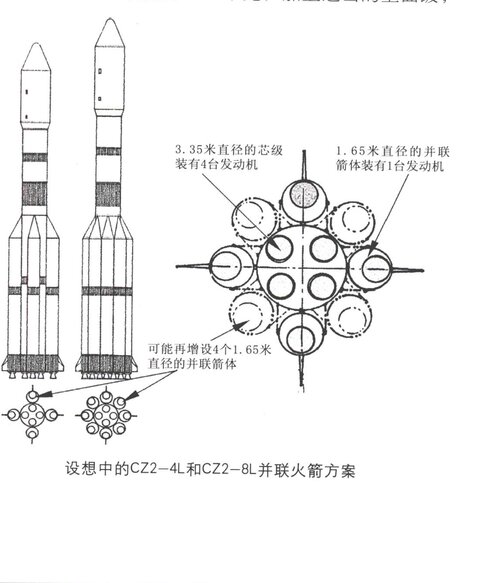

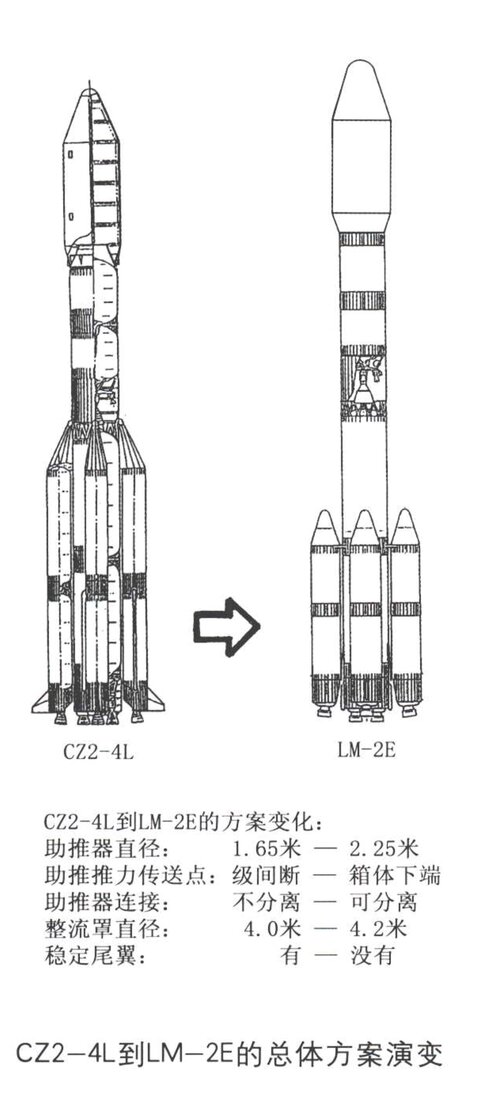

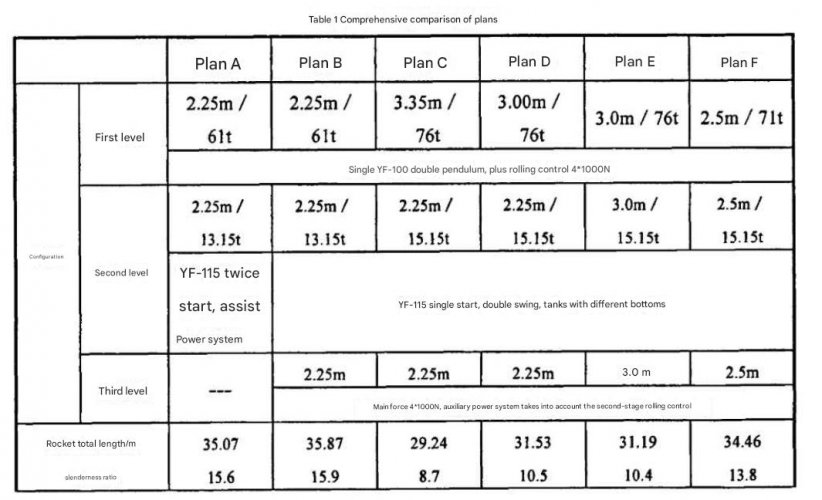

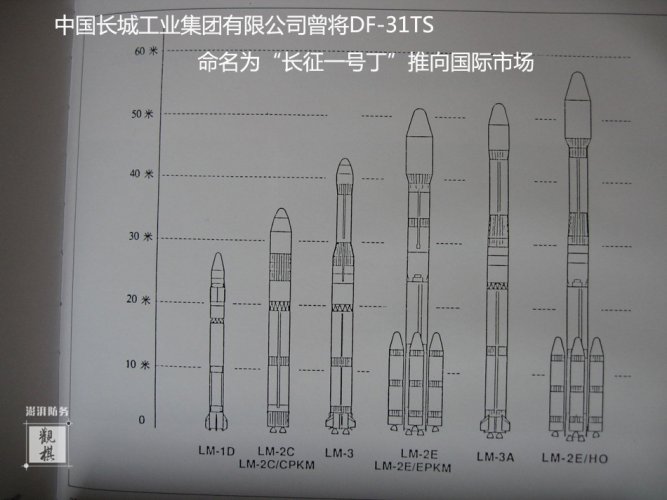

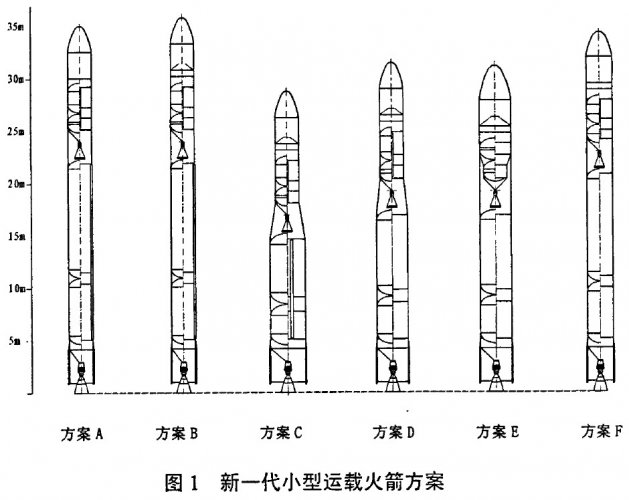

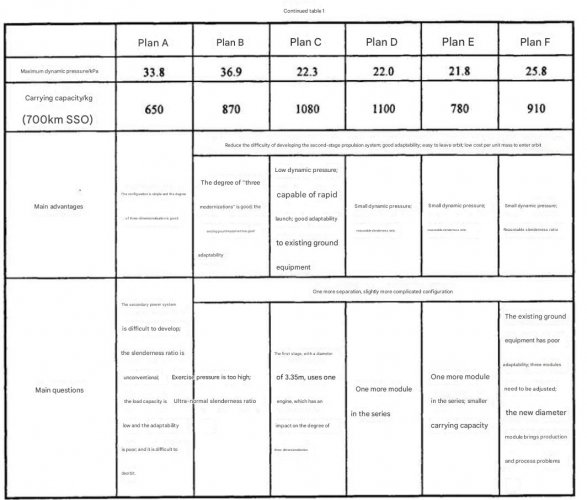

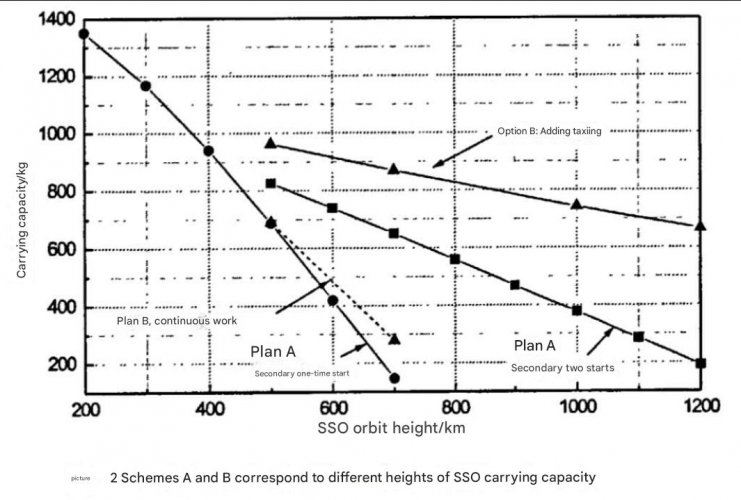

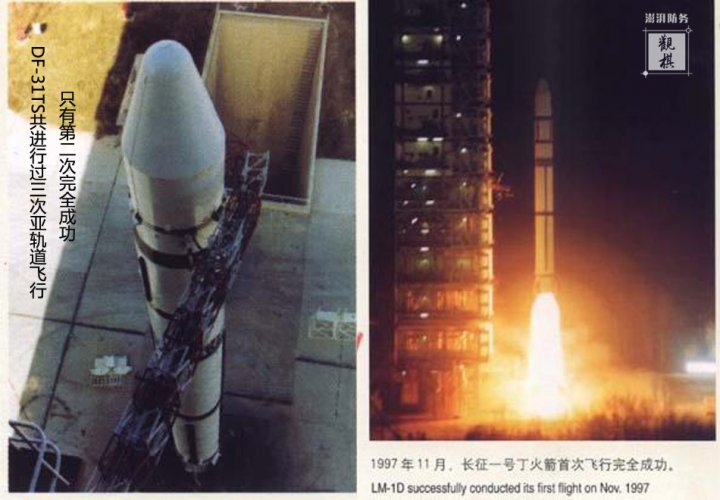

I noticed there wasn't a general thread for this, so I created this since there are a lot of unrealised chinese launcher projects.

Starting with one that's already described on astronautix, but I'm posting a source, taken from Xiandong Bao "A Modular Space Transportation System" (IAF-92-0857) and also described in P.S. Clark (1999) JBIS, 52; Xiandong Bao was an engineer at what is now known as SAST, one of the main subsidiary of the Chinese astronautics giant CASC. This is one of the earlier proposals for a hydrocarbon-fuelled chinese launcher (although slightly earlier one were proposed during initial trade studies for the Shenzhou program)

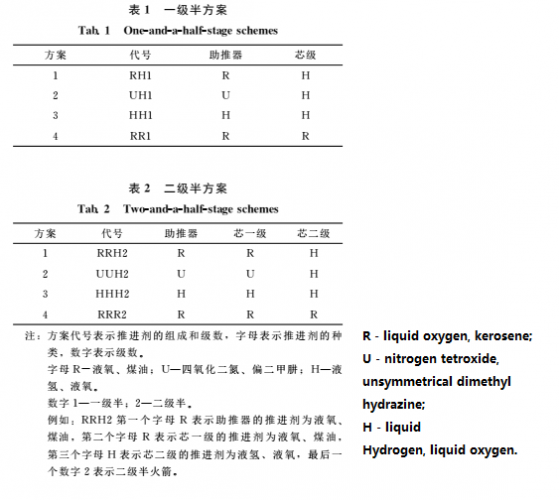

The idea behind the paper is the development of a baseline two-stage launch vehicle. The Chinese paper notes that the first stage fuel would be a "hydrocarbon (CH)" and this is taken to refer to kerosene especially since the Chinese would later express an interest in purchasing Russian liquid oxygen/kero- sene engines (discussed later in this section).

The use of liquid oxygen and kerosene on the first stage of this vehicle would mark a departure for the Chinese, since they have previously used storable UDMH and a nitrogen-derived oxidizer (usually nitrogen tetroxide)

Data for the overall launch vehicle are:
Launch mass 377 tons
Payload capability 11 tons
Length 55 m
Diameter 4.5 m
Launch thrust 4.8 MN (490 tons-force)

On top of the second stage an instrument unit 1.6 metres high would be carried, acting as a data-collection and process- ing centre for the vehicle
The first stage would carry four engines which can gimble for control. The second stage a single main engine and a set of four verniers.

Taking this base design, it is proposed that a three-stage launch vehicle could be developed which could place 6 tonnes into geosynchronous transfer orbit: although not stated, one assumes that the third stage would use liquid oxygen and liquid hydrogen.

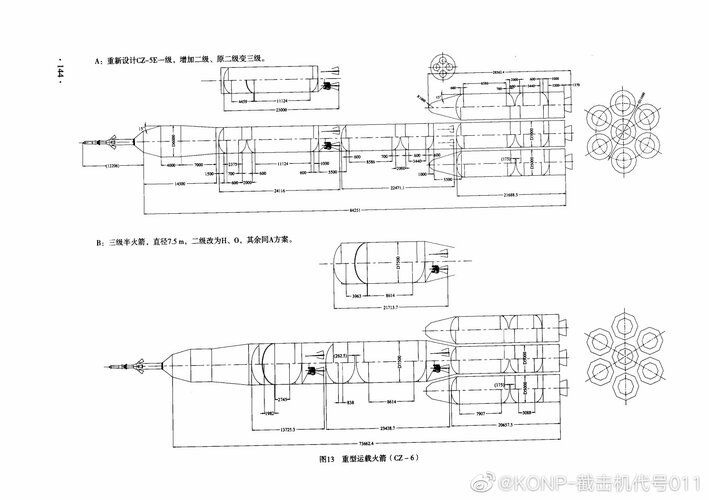

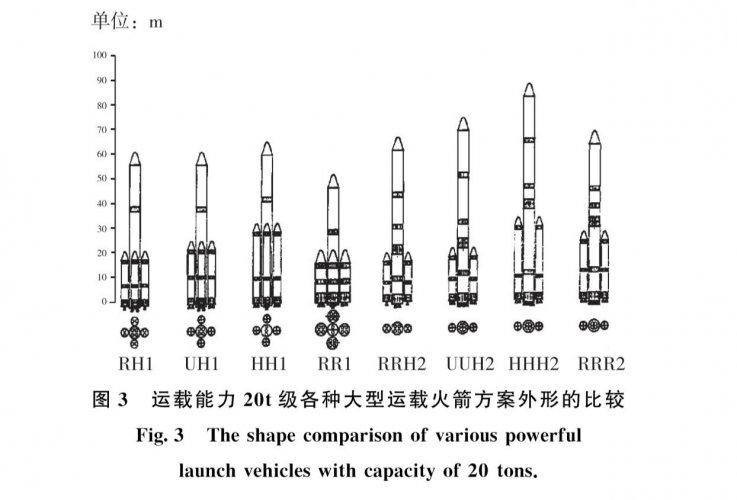

A series of different launch vehicles derived from the baseline launch vehicle's stages and the not-described third stage is proposed, leading to a maximum payload capability of 70 tonnes to the standard 60", 300-500 km reference orbit. For the larger payloads a fairing with a diameter of 5.4 metres and a length of 18 metres would be used.

The paper then speculates:

On the other hand, the Chinese have purchased an RD-120 engine. While the RD-120 itself has been used as the main engine on the second stage of the Zenit launch vehicle, the Russians are planning to introduce a modification designated RD-120K as the first stage of their new Rus/Soyuz-2 family of launch vehicles. It is not known whether the Chinese purchased the RD-120 itself or the more recent RD-120K modification.
One might speculate that if the launch vehicle family proposed in the 1992 IAF paper is being funded, then Chinese engines based upon what they have learned from studying the RD-120 technology could see an application of the first stage of the baseline launch vehicle. However, this is currently pure speculation.

Which of course turned out to be true. the YF-100 engine series was developped partially thanks to what was learned from studying a purchased ukrainian RD-120 (KRD-120 to be more accurate), more can be read here



[TheKutKu]

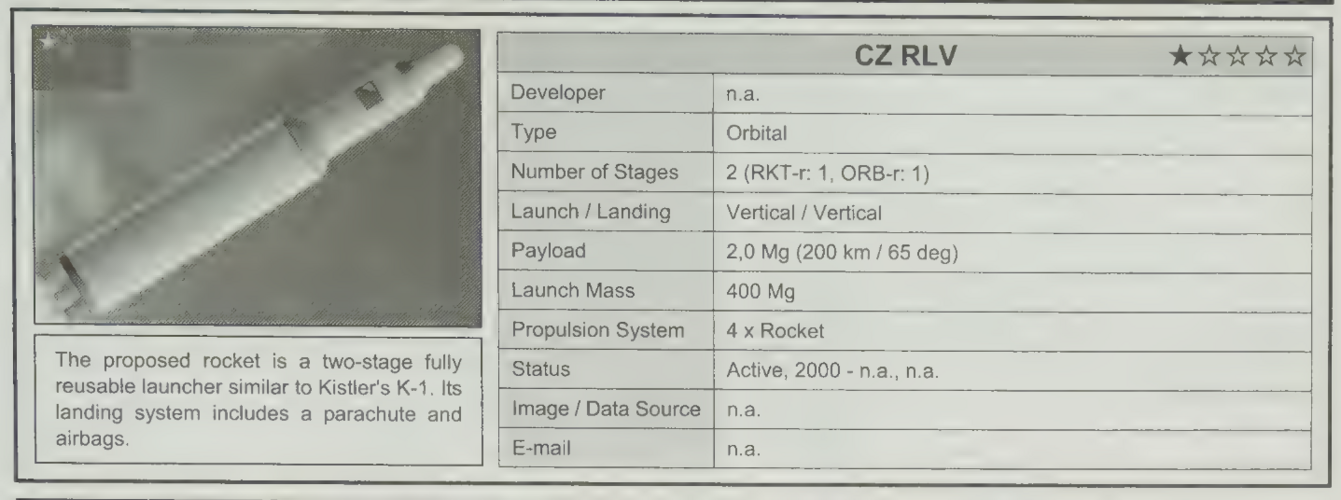

"A project of fully reusable verticaly launched launcher or "Chinese Kistler K-1"", 2000
Description from "Dragon Furieux: Les avions spatiaux chinois", Phillipe Coué, 2017

At the end of the 1990s, the "fever" of satellite constellations for mobile communications led private investors to believe that the market was sufficient to develop fully reusable and commercial launchers. Most of the initiatives were futuristic and had very little technical credibility. Other projects were only tax-saving operations accompanied by beautiful presentations and shiny websites.

However, in this American aerospace galore, the reusable two-stage K-1 launcher from Kistler Aerospace hit the headlines for several years and even reached the point of stage assembly and structural elements. It was perhaps its very classic (and therefore reassuring) configuration that had caught the attention of several potential customers such as NASA, which had at one time considered using the K-1 to resupply the International Space Station (ISS).

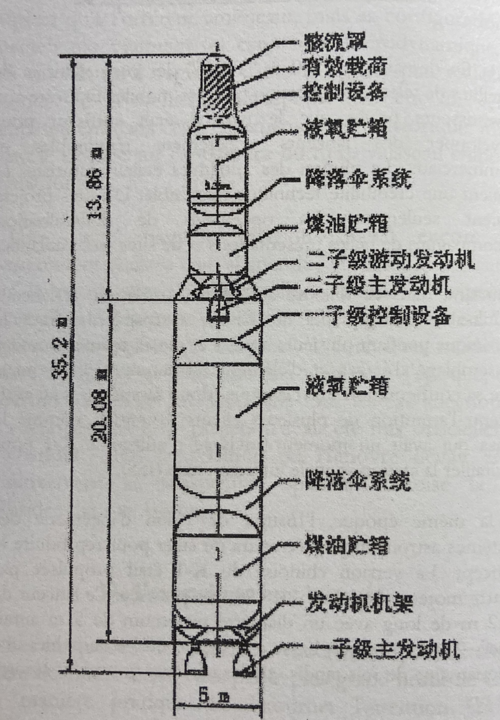

At the same time, the Beijing Institute of Astronautical Systems Engineering (part of Beihang University) took up the subject to reproduce the concept. The Chinese version of the K-1 was propelled by four Kerolox engines with 120 t of thrust (YF-100 class). This 35.2 m long launcher, with a maximum diameter of 5 m, would have sent 2 t in low orbit.

It could have been reused 50 times, while the engines would have to be replaced every 10 launches.

The article showcasing this project was published in the internal journal of CALT "Missiles and Space Vehicles", the article presented the recovery strategies and the simulations that had validated its feasibility.


When the "Chinese K-1" project was unveiled in 2000, Chen Lan, the owner of the "Go Taikonauts" website reported the rumor that this reusable launcher configuration was in competition with five other projects. The selection was expected at the end of 2000.

The mentioned news article can be read here: https://web.archive.org/web/2001042....com/CapeCanaveral/Launchpad/1921/news-23.htm

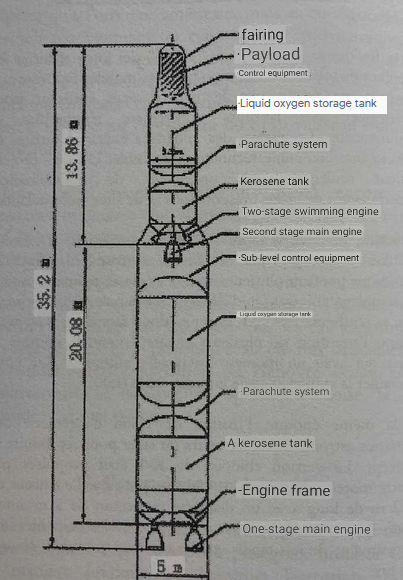

With the following low res picture of a drawing by Chen Lan (original isn't archived, I would appreciate if someone had the full version saved):



[Archibald]

And... here we go (grabs popcorn).
