Chichester-Miles Leopard derived trainer?

[overscan (PaulMM)]

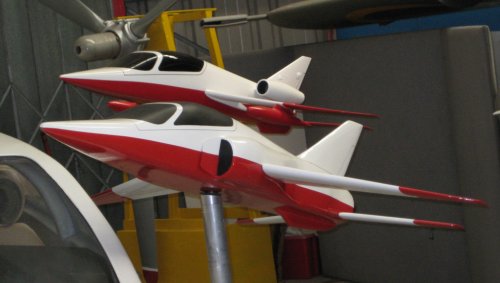

From Midland Air Museum.



[Mark Nankivil]

Nice looking design. I've always liked the looks and thought process behind the Leopard. Anyone have drawings with cross sections for the Leopard?

Thanks! Mark



[Machdiamond]

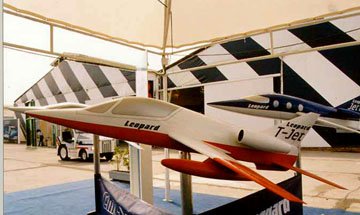

I was going through my files I found this other image of the jet trainer.
There is a possibility that I got it from Aviation Week but I am not sure.
It is a shame that these very nice designs were not produced, including the Leopard Six.
--Luc



[hesham]

Hi,

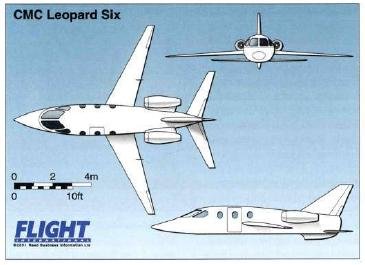

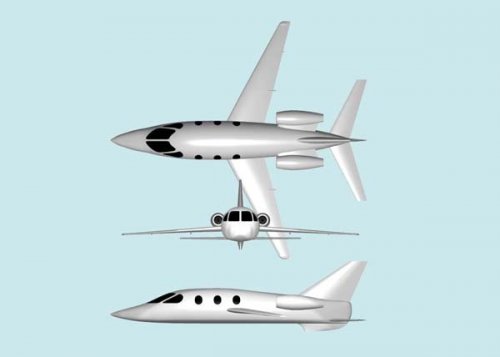

http://www.flightglobal.com/pdfarchive/view/2001/2001%20-%200895.html?search=leopard



[Cy-27]

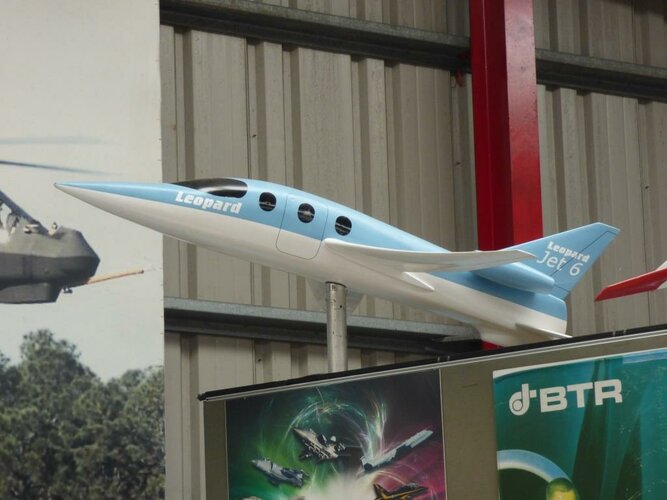

Sorry to resurrect an old thread but a recent visit to Coventry Midland Aircraft Museum resulted in a photo of the model of the CMC Leopard Jet Six noted in Hesham's email above.

The model shown in Post #1 from Paul was still present as well.



[Motocar]

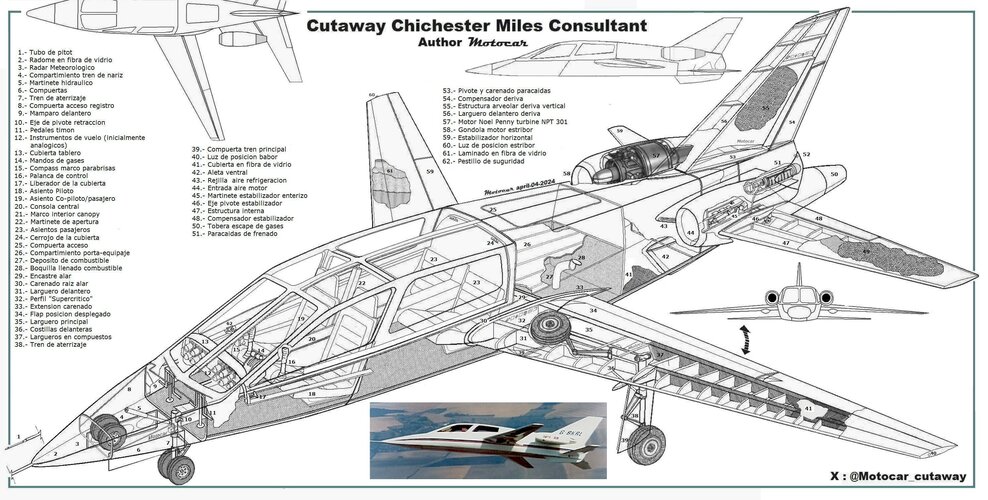

A few days ago I made a speculative schematic cut on the CMC Leopard....!

Motocar

Post in thread 'Motocar's Cutaway drawings' https://www.secretprojects.co.uk/threads/motocars-cutaway-drawings.23005/post-672455
