Changes of a design of YS-11

[blackkite]

Hi!
Source : Takeo Doi's book as you already know..
Twin engine Biscount ⇒ Avro 748 like shape. ;D
Basically YS-11 was designed by Japanese 5 famous designers, Jiro Horikoshi(Zero, Raiden and Reppu), Hidemasa Kimura(Kokenki, A26(Ki-77), TB, N-62 Eaglet) , Takeo Doi(Ki-61, Ki-91, Ki-60/64), Minoru Ohta(Ki-43, Ki-84), Shizuo Kikuhara(Shiden-kai, Kyofu, 97-shiki large flying boat, 2-shiki large flying boat, PS-1).



[blackkite]

Hi! Movie.
http://www.kagakueizo.org/movie/industrial/382/

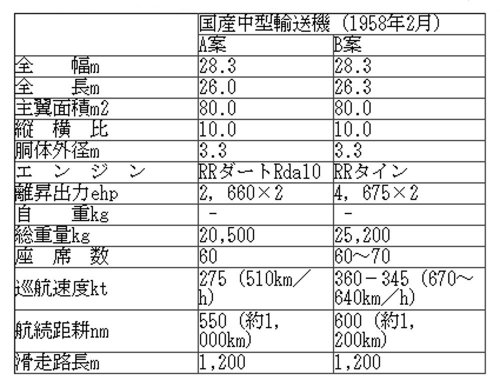

There were two plans for YS-11.

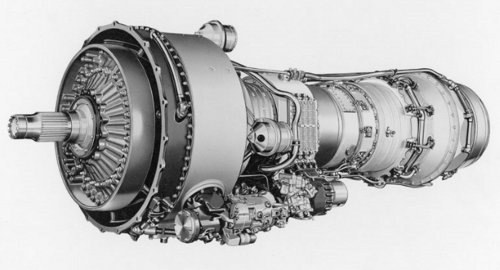

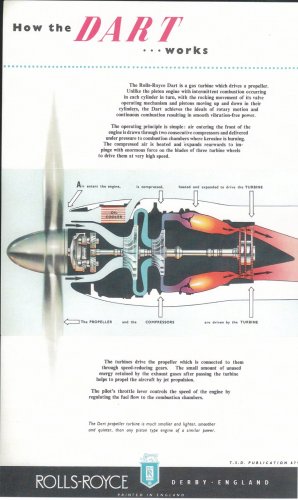

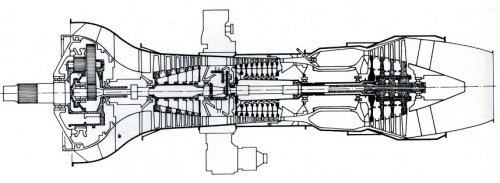

RR　タイン : Rolls-Royce Tyne, RR ダート : Rolls-Royce Dart, 全幅 : Span、全長 : Length、主翼面積 : Wing Area、縦横比 : Aspect ratio、胴体外径 : Fuselage outer diameter、エンジン : Engine、離昇出力 : Engine take off power、自重 Empty weight、総重量 : Gross Weight、座席数 Number of Seats、巡航速度 : Cruising speed、航続距離 : Range、滑走路長 : Run way length(Required length?)



[bigvlada]

I believe there is a typo in text and picture, the aircraft is Vickers Viscount. Have you been using the Cyrillic keyboard layout?



[blackkite]

Sorry for my mistake. Biscount is error. Viscount is correct.
As an apology, I send this photograph to you. ;D

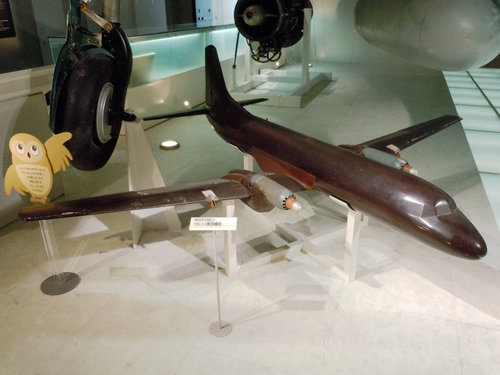

[blackkite]

Hi!



[bigvlada]

Thank you, that black wind tunnel model reminded me of the black aircraft near the end of the movie Con Air.



[hesham]

Hi,


what was the version of NAMC YS-11 to meet PX-L requirement ?.


FR 9/1963



[MaxLegroom]

It's interesting to see the evolution of this aircraft. I remember seeing them frequently and often flying into my home airport in Piedmont Airlines colors in the late '70s.



[blackkite]

Hi. YS-11 development movie. Enjoy!
You will see the Crown Prince age of the present emperor and Jiro Horikoshi.(Tall man with hat)
https://www.youtube.com/watch?v=FfRnCHSeMbw



[blackkite]

Hi,


what was the version of NAMC YS-11 to meet PX-L requirement ?.


FR 9/1963

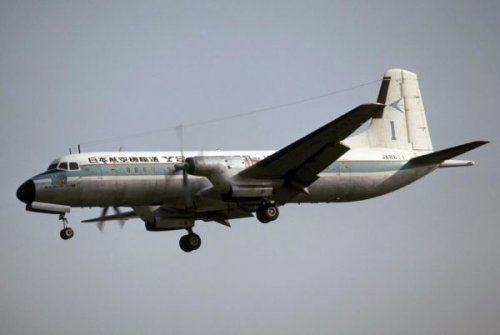

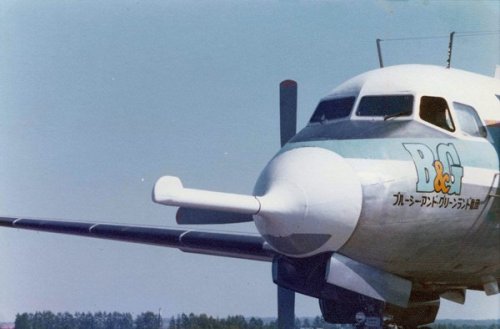

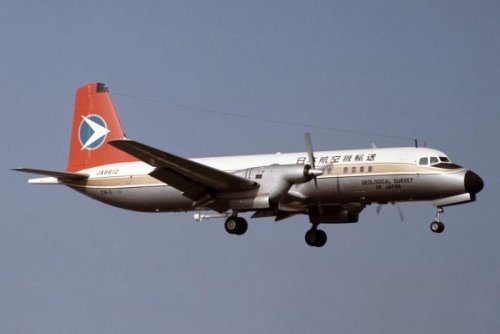

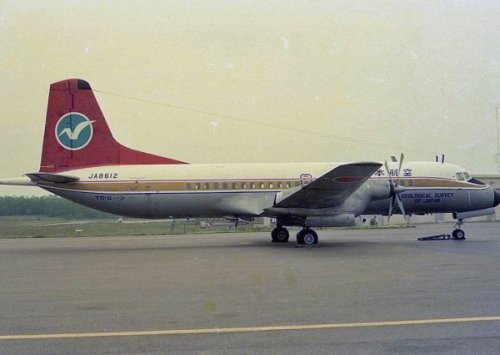

Hi! Perhaps no connection.
http://dansa.minim.ne.jp/RS-04YS-1-2Sisaku12-remortsensing.htm



[hesham]

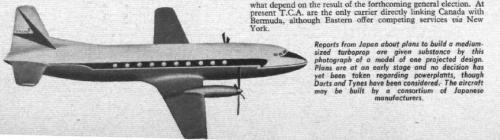

Hi,

https://www.flightglobal.com/pdfarchive/view/1958/1958%20-%200307.html



[blackkite]

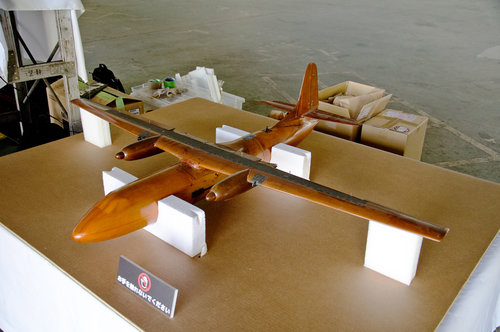

Hi! Wind tunnel test model of the early design.
https://otakei.otakuma.net/archives/2012122701.html



[blackkite]

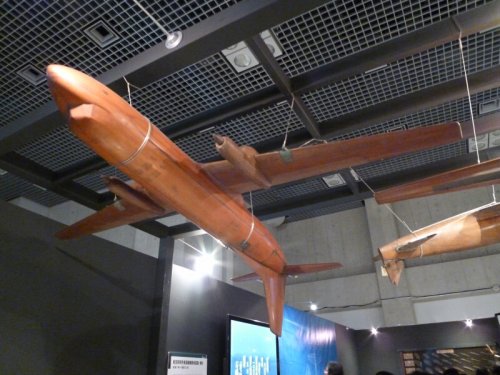

Hi! YS-11 wind tunnel test model.
You can see modification process by different color part of the model.



[hesham]

From Air Pictorial 1961.

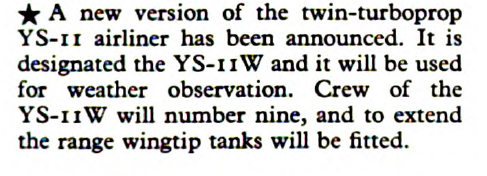

here is a small Info about YS-11W,a weather observation with minor changes.



[riggerrob]

Thank you, that black wind tunnel model reminded me of the black aircraft near the end of the movie Con Air.

As an aside, when I drove the Jet A fuel truck at Pitt Meadows (CYPK), I once had to refuel a black, chartered Jetstream full of high-risk prisoners destined for a prison near Matsqui, B.C..
