Hi again folks.
At the risk of bombarding you with unusual VTOL patents, I had to share the Carter Allen Tall V/STOL.

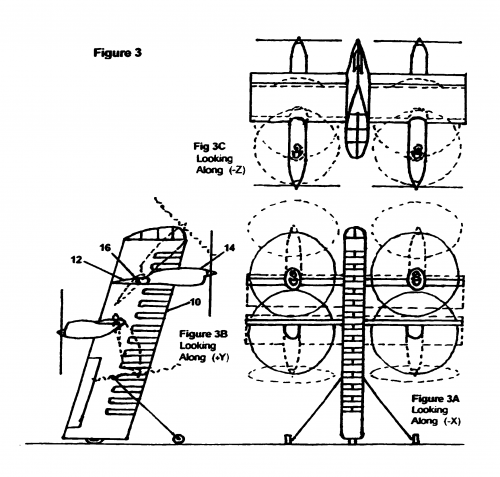

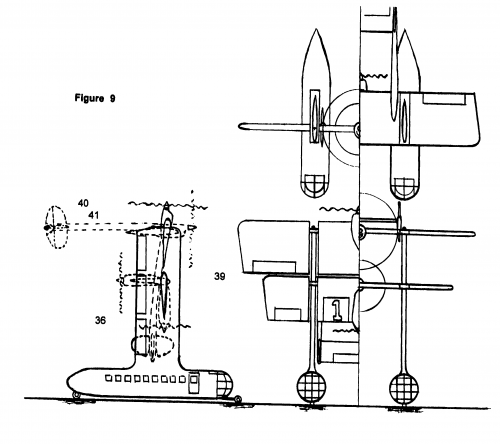

The images below are the ones I found clearest but there are several others – varying quite widely in powerplants and layouts, etc.
Cheers,
‘Wingknut’
Publication number US7118066 B2
http://www.google.com/patents/US7118066
Publication date: 10th October 2006
Filing date: 22nd July 2004
Inventor (and original assignee) Norman Carter Allen
Description: “A vertical or short takeoff and landing (V/STOL) airplane is described having a vertical form factor. Making the airplane tall has many advantages when operating in hover mode close to the ground. Several variations of the design are described. The preferred embodiment consists of two tall fuselage structures having an airfoil shape in plan view. As high above the ground as practical a “lift wing” spans the space between these fuselages. This wing may be equipped with lift augmentation systems to facilitate V/STOL flight. In the center of the span on the leading edge of the lift wing is placed a turboprop engine. Alternatively, the wing and attached engine can be made to tilt about a horizontal axis. For takeoff the wing will be tilted skyward. A second wing slightly below and behind the lift wing has a pusher engine located on the trailing edge. This lower wing and engine is also able to tilt about a horizontal axis parallel to the lift wing. During takeoff this lower engine is pointed downward toward the ground. This lower wing contains aerodynamic control surfaces to provide attitude and position control. Subsequent to liftoff the wings and engines tilt into a horizontal position to provide cruise lift and thrust. At the end of the flight the wings and attached engines are tilted back to provide vertical lift for hover, maneuvering, and soft landing.”
