CAPRA and MATRA Aircraft Designations

CAPRA and MATRA are great for unbuilt aircraft projects since not a single aircraft designed by Robert Roger was actually flown Most of this has been covered by Jacques Moulin on his Aerophile blog - http://aerophile.over-blog.com/page/4 - but I thought it should be summarized in English.

For the most part, the CAPRA designation style is simply 'R' (for designer Roger Robert) followed by a type numeral (in the usual French blocks of 10). The R.20 record aircraft was an exception, also being referred to as the RR ('Roger Robert', without numbers), the S 20 (S for 'Sport'), or even the S 200.

The only built and flown Matra aircraft were postwar designs by fighter pilot André Moynet (better known for Matra's involvement with LeMans racing cars). It seems that Société Engins MATRA was to build prototypes of Moynet's executive aircraft designs which were then to be built in series by Sud-Aviation.

The Moynet Jupiter series were assigned Moynet type numbers. The first Matra-built example was the M 360-4 (for 4 seater, presumably for Lycoming IO-360, 4-seater). The second prototype was the M 360-6 Jupiter ... presumably for 6-seater, although the engines were now IO-540s
______________________________________________________________________

CAPRA - Compagnie Anonyme de Production et Réalisation Aéronautique - 1937-1942
Aircraft Designs by Roger Robert

Capra R.10 - (Hypothetical designation) Poss. never applied, or ...
- R.10: Poss. racers* to be built for Établissements V. Vermorel**
-- *Poss. two separate designs for the 1939 Deutsch de la Meurthe
-- ** Better-known for autos, Édouard Vermorel intro'd racing cars
-- See reply #5 for Jacques Moulin's speculative view on the R.10

Capra R.20 - 1939 record aircraft, span 6 m, built but not flown
- R.20: Mid-wing monoplane, retr. u/c, mostly wooden constr'n
- R.20: 1 x 400 hp Béarn 12A 6.5L H-12 (engine never delivered)
-- aka RR (for 'Roger Robert'), S 20 (S for 'Sport'), or S 200
-- 5v: http://www.secretprojects.co.uk/forum/index.php/topic,3982.msg76174.html#msg76174

Capra R.30 - [Project] 1939 light fighter/fighter trainer R.20 deriv.
- R.30: 1 x 350 hp Bearn 6C-1, low/mid-wing, aft-set cockpit
-- Some parts completed, aka Capra R.300 or, erroneously, 'R.46'
-- 3v: http://www.secretprojects.co.uk/forum/index.php/topic,3982.msg2590.html#msg2590

Capra R.40 - [Project] 1939 2-seat,* twin-engined fighter, span 13.90 m
-- * Initial 1938 concept was for twin-engined single-seater (C1)
- R.40: Mid-wing monoplane of mixed constr.,** twin fin/rudders
-- ** Wing: welded SS box girder, wood ribs, plywood covered
-- ** Fuselage: Dural monocoque fore/aft, centre welded steel-tube
- R.40 to be powered by 800 hp*** Hispano-Suiza HS-12Y-50/51
-- *** The rating for HS-12Y-50/51 is usually given as 1,000 hp
-- R.40 off. armament: 6 x 7.5 mm MAC 34/39 + 2 x 20 mm HS 404 cannons
-- R.40 def. armament: 5 x MAC 34/39 (x 3 on SAMM 170bis mount)
-- aka Capra R.40 C2 (Armée de l'air role/seat designation)
-- 3v: http://www.secretprojects.co.uk/forum/index.php/topic,3982.msg245878.html#msg245878

Capra R.41 - [Project] 1939 2-seat, twin-engined fighter, span 14.20 m
- R.41: R.40 with HS-12Z-89 engines and wider wing centre section
-- aka Capra R.41 C2 (Armée de l'air role/seat designation)

Capra R.46 - [Project] Possibly a single-seat R.40 deriv. design*
- * NB: 'R.46' desig. often misapplied to Capra R.30 (above)

Capra R.50 - [Project] No details

Capra R.60 - [Project] No details

Capra R.70 - [Hypothetical designation] Poss origin of R.74 & R.75

Capra R.71 - [Project] No details (poss. 'Matra R.71')

Capra R.72 - [Project] No details (poss. 'Matra R.72')

Capra R.73 - [Hypothetical designation] (poss. 'Matra R.73')

______________________________________________________________________

MATRA - Mécanique Aviation Traction - formed 1942 from the CAPRA Group
Aircraft Designs by Roger Robert

Matra R.74 - [Project] 194? twin-boom single-engine* tourer, span [??]
- R.74: High wing 4-seat [??], tricycle u/c, Robert patented tail
-- * Unspecified 150 hp inverted 6-cyl inline in rear of central pod
-- 3v: http://www.secretprojects.co.uk/forum/index.php/topic,3982.msg31247.html#msg31247

Matra R.75 - [Project] 1945 twin-boom 2-engine* tourer, span 12 m
- R.75: High wing 4-seater, tricycle u/c, Robert patented tail
-- * 160-175 hp Mathis Gr 7 in nose of each boom drive pusher prop
-- R.75 was also likely a study to cloak R-80 attack a/c project
-- https://www.secretprojects.co.uk/threads/capra-matra-projects.3982/page-2#post-483625

Matra R.80 - [Project] 1942 transatlantic postal a/c, span 24.83 m
- R.80: 3 x HS-12Z or Allison V-1710 (total power ~3,700 hp)*
-- * 2 engines drive nose contraprops, 1 drives tail pusher prop
-- Intended for Lisbon-New York postal flights, crew of 4
-- T/O 60m Penhoët catapult, glide to land, retr. stab. floats
-- 3v: http://www.secretprojects.co.uk/forum/index.php/topic,3982.msg111378.html#msg111378
-- Robert also drew a landplane version with same drive system
-- http://a407.idata.over-blog.com/600x371/1/95/07/94/Capra-Matra/Capra-80/File7743_WEB.jpg

Matra R.90 - [Project] 1942 twin-fuselage version of R.80
- R.90: Transatlantic postal a/c, 2 x nose contraprops*
-- * 4 x HS-12Z or Allison V-1710 (total power ~5,000 hp)
-- R.90 dispensed with R.80's pusher prop, glide to land
-- http://aerophile.over-blog.com/article-capra-r-90-63333663.html

Matra R.100 - [Project] 1948 twin-boom pusher attack a/c, span 15 m
- R.100: Derived from R.75 tourer (R.75 also used as design cover)
- R.100: 2 x Rolls-Royce Merlins (or Griffins), counter-rotating props
- R.110: 1 x 2400-3600 hp Hispano-Suiza HS 24Z, counter-rotating props
-- http://www.secretprojects.co.uk/forum/index.php/topic,1149.msg111377.html#msg111377

Matra R.120 - [??] Prob. a jet devel. study of Matra R.110 (above)
-- Jacques Moulin suggests single-seat fighter with HS-built RR Nene
-- http://aerophile.over-blog.com/article-matra-r-120-63334943.html

Matra R.130 - [Project] 1948 ramjet-powered research a/c, span 12 m
-- Cruciform tail and wings (longer span set retr. after take-off)*
-- * Fuselage section to rotate 90° after T/O, then delta wings only
-- http://www.secretprojects.co.uk/forum/index.php/topic,3982.msg2547.html#msg2547
-- 5v: http://a142.idata.over-blog.com/600x450/1/95/07/94/Capra-Matra/Matra-130/File7981_WEB.jpg

______________________________________________________________________

MATRA Aircraft Designs by other Designers

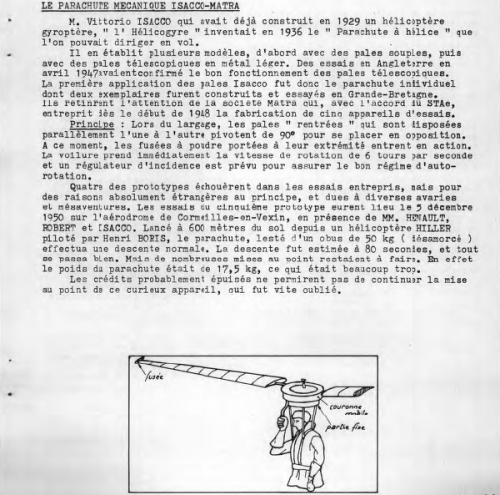

Isacco-Matra - 1948 'parachute mécanique', telescoping 1-man gyrocopter
-- aka Parachute-autogire and Rotachute (usually assoc. w/ Raoul Hafner)
-- NB: UK's Bevan Bros. built Isacco rotating-wing parachute in 1947
-- http://126840.activeboard.com/t43730957/isacco-rotachute/

Rey R1 - 1949 experimental twin-engined articulated wing* aircraft
- Rey R1: 2 x 240 hp Renault 6Q-10a 6-cyl, fixed spatted main undercarriage
-- * Wooden wings' elastic sleeves reduced loads, F-WFDX flew 16 Dec 1949,
-- https://www.flightglobal.com/pdfarchive/view/1951/1951 - 1321.html

______________________________________________________________________

MATRA Aircraft Designs by Jean Cantinieau

Cantinieau, an engineer with (SNCASO), designed his C.100 in cooperation with M. Decroze.

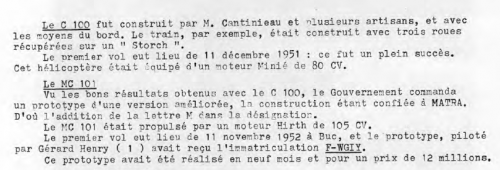

Matra-Cantinieau MC.100 - 1951 open-framed single-seat light helicopter
- MC.100: 1 x 80 hp Minié 4.DC.32 HO4, rotor diameter 6.85 m, x 1
-- Test-flown by Gérard Henry (later at SNCASE), aka Cantinieau C.100
-- Designed by Sud Ouest engineer Cantinieau with a M. Decroze
-- http://www.aviastar.org/helicopters_eng/matra_mc-100.php
-- http://www.aviafrance.com/cantinieau-c-100-aviation-france-9650.htm
-- https://sites.google.com/site/stingrayslistofrotorcraft/matra-cantinieau-mc100

Matra-Cantinieau MC.101 - 1952 open-framed 2-seat light helicopter
- MC.101: 1 x 105 hp Hirth HM.504, main rotor diameter: 8.0 m
-- 2 x MC.101 prototypes (F-WGIX/F-WGIY), first flew 11 Nov 1952
-- Development continued by Cantinieau at Aerotécnica SA in Spain*
-- * See Aerotécnica-Cantinieau 'AC' designation in reply #3
-- http://www.aviastar.org/helicopters_eng/matra_cant.php
-- https://sites.google.com/site/stingrayslistofrotorcraft/matra-cantinieau-mc101

______________________________________________________________________

Société Engins MATRA - Aircraft Designs by André Moynet

Matra Moynet Jupiter - 1962 push-pull executive trans., span 11.49 m, x 2
- M 57 : 1st study, pusher cabin a/c, retr. tricycle u/c, not built
- M 360-4 Jupiter: 4–5 seater, 2 x 200 hp Lycoming IO-360, x 1 (F-WLKE)
-- 3v: http://aviadejavu.ru/Images6/HI/HI-2/105-1.jpg
- M 360-6 Jupiter: 7-seater, 2 x 290 hp Lycoming IO-540, x 1 (F-WLKY)*
-- * M 360-6 span increased tos 11.87 m, fuselage stretched by 0·61 m
-- Photo http://aviadejavu.ru/Images6/HI/HI-2/102-1.jpg
- M 360-6P: [Project] Pressurised M 360-6, 2 x 340 hp Lycoming O-480
- M 2000: [Project] Enlarged pressurized vers, nose contraprops**
-- ** Poss. the same as proposed Sud-Aviation Présidence
-- http://www.secretprojects.co.uk/forum/index.php/topic,2249.msg245892.html#msg245892
______________________________________________________________________



[hesham]

Excellent my dear Apophenia,

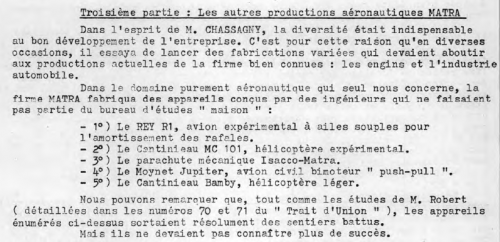

and I can add from TU issue 73;



[Apophenia]

Many thanks for that, Hesham.

I'm attaching an Aerotécnica designation list here. It is off-topic for CAPRA/MATRA but Jean Cantinieau was employed at Aerotecnica until the firm's collapse in 1962. Cantinieau was involved with the design of all of these Spanish helicopters.

Aerotécnica SA Designations

AC.11 - Spanish redesignation of existing Matra-Cantinieau MC.101
- AC.11: Re-engined MC.101; 1 x 150 hp Lycoming O-320 HO4*
-- * More power required for Madrid's hot-and-high environment

AC.12 - 1954-56 Pepo 2-seat light military helicopter; x 12*
- AC.12: Refined AC.11 design; cabin+ boom rear fuselage
- AC.12: 1 x 170 hp Lycoming O-360-B2A; rotor diam. 8.50 m
-- https://sites.google.com/site/stingrayslistofrotorcraft/aerotecnica-ac-12
-- http://www.aviastar.org/helicopters_eng/aerotecnica_ac-12.php
- (Project) Turboshaft-powered AC.12; (??) confusion with AC.13A?

AC.13 - Spanish redesignation of existing Nord N.1750 Noreife
-- Nord-Aviation sold N.1750 prototypes and rights to Aerotécnica
- AC.13A: 3-seat turboshaft type; developed in parallel with AC.12*
-- * Differed in rear-mounted turbine & an early form of NOTAR tail
- AC.13A: Continued refinement by Jean Cantinieau at Aerotécnica
- AC-13A: 1 x 260 shp Turboméca Artouste I; rotor diameter 9.1 m

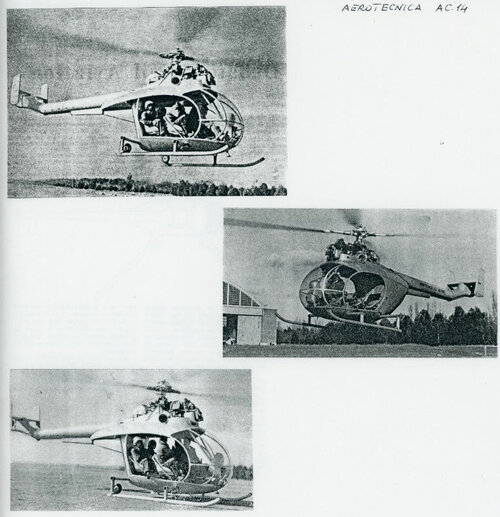

AC.14 - 1957 AC.13A evolution into 5-seat utility helicopter; x 6*
- AC.14: Rearward extended cabin (pilot in front + 2 x rows pax)
- AC.14: 1 x 400 shp Turboméca Artouste IIB; rotor diam. 9.60 m
- AC.14: Spanish Ejército del Aire designation was Z.4 (EC-XZ-4)
-- * Some sources claim x 10 (poss. clumping w/ AC.11 & AC.13A?)
-- https://sites.google.com/site/stingrayslistofrotorcraft/Aerotecnica-AC14

AC.15 Bamby-Faon* - 1963 2-seat light helicopter prototype
- AC.15: Prototype purchased by Sud-Aviation for evaluation; x 1
- AC.15: 1 x 180 hp Lycoming O-435-V; ducted tail; rotor diam. 7.40 m
-- * 'Bambi-Fawn'; reported Disney complaint led to name change
-- http://www.secretprojects.co.uk/forum/index.php?topic=12359.0
-- http://www.aviastar.org/helicopters_eng/matra_bamby.php
-- http://www.aviafrance.com/matra-cantinieau-faon--aviation-france-9727.htm
-- https://sites.google.com/site/stingrayslistofrotorcraft/matra-cantinieau-bamby

AC.16 - AC.20: (hypothetical designations)

AC.21 : (Project) 12-14 seat transport, 2 x Turboméca Turmo III*
-- * AC.21 had AC.14-style ducted tail-boom, devel. ended in 1962
-- https://sites.google.com/site/stingrayslistofrotorcraft/aerotecnica-ac21



[steelpillow]

Many CAPRA/MATRA designs were patented under Robert's name. Go to Espacenet and do a quick search for ROGER AIME ROBERT - you will truly boggle at the amazing aircraft mixed in among the detailed plumbing.



[hesham]

Capra R.10 - [Hypothetical designation] poss. never applied, or ...
- R.10: Poss. racers* to be built for Etablissements Vermorel
-- ** Poss two sep. designs for the 1939 Deutsch de la Meurthe

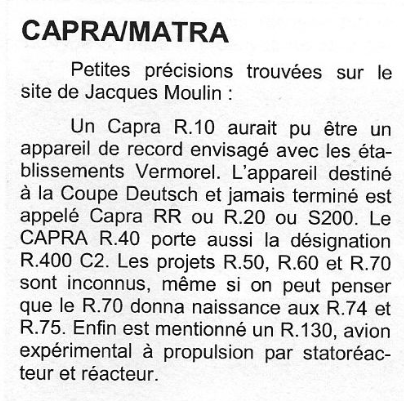

From TU magazine.



[Apophenia]

Thanks hesham. Jacques Moulin's mention of the R.130 refers, of course, to the ramjet-powered Matra R.130.



[PhR]

AC.13A: [Andre Bruel-designed Nord N.1750 Noreife sold on by SNCAN]

AC.15 : [Project] AC.14 devel. powered by 1 x 260 hp Lycoming O-435-V

Hello Apophenia,

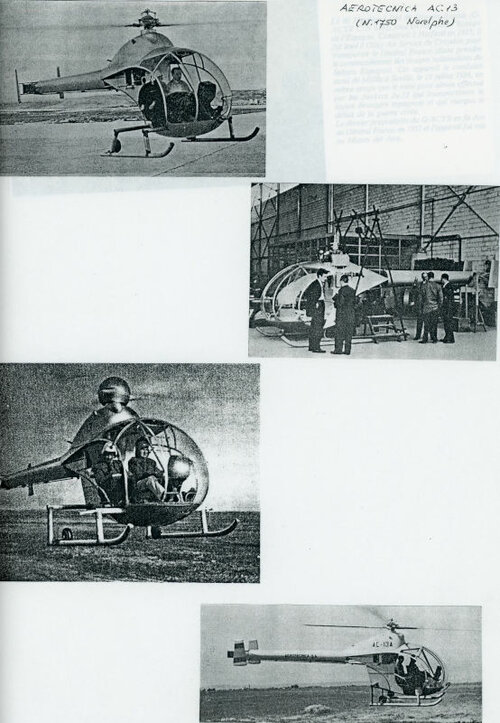

For me, I agree that the AC.13 was initially the Norelfe, but Cantiniau continued to test it on his side after the cancellation by SNCAN/Sud-Aviation.

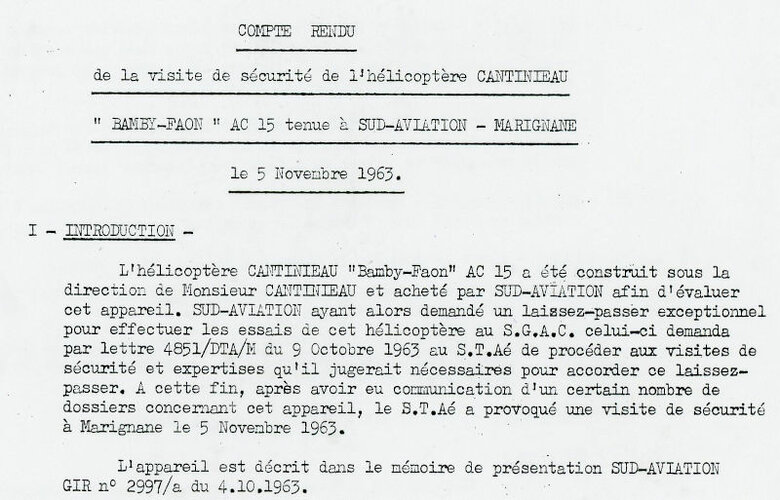

And the AC.15 is simply the "Bamby-Faon", as you can see in the attached document.



[Apophenia]

Many thanks, Philippe! That clear up several things which had me confused.

Based on your information, I have now revised/corrected the thread opener and reply #3



[hesham]

There are a theory about R.50 & R.60,or we can say,it's just a speculations.
