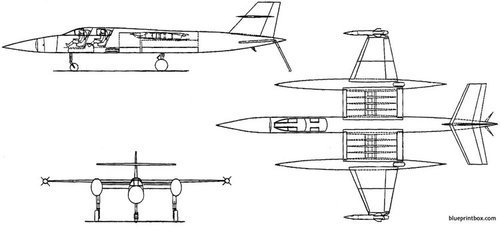

vickers supermarine type 582 single Plans Free Download - AeroFred.com - Download and Share Free Model Airplane and Boat Plans.

aerofred.com

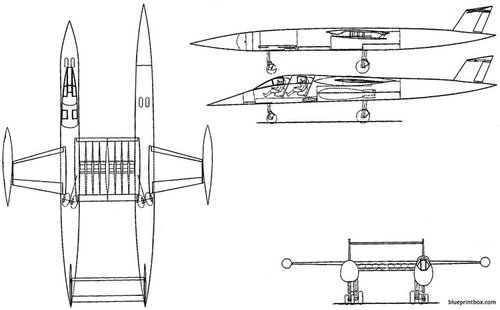

vickers supermarine type 582 twin Plans Free Download - AeroFred.com - Download and Share Free Model Airplane and Boat Plans.

aerofred.com



[blackkite]

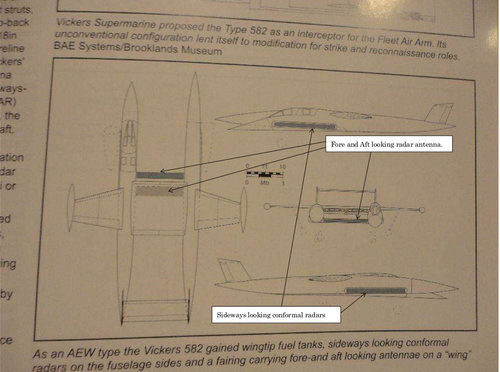

Vickers Type 582

The search to design a replacement for the Bucaneer proceeded after the 581 proved a dead-end for the Navy. Conventional designs based on the 571 / TSR2 could not satisfy the long range and exacting take off and landing requirements for the navy. Variable geometry was not yet mature. Against...

ukx-dev.fandom.com

"The search to design a replacement for the Bucaneer proceeded after the 581 proved a dead-end for the Navy. Conventional designs based on the 571 / TSR2 could not satisfy the long range and exacting take off and landing requirements for the navy. Variable geometry was not yet mature.

Against this background, Vickers-Supermarine designed the unusual looking pair of 582 aircraft. The Hunting H.126 research aircraft had taken blown flaps to the extreme enabling flight at speeds as low as 30 mph. The 582 built on this thinking by incorporating 8 miniturised RB.163 engines into the wing so that the exhaust could be blown down the flaps to give lift at slow speeds. To maintain pitch stability at slow approach speeds the tail plane was also blown with engine exhaust.

The 582 layout enabled estimated slow speed performance of 115 mph take off and 122 mph landing whilst not impinging on a 60,000 feet mach 2.5 ceiling and a 4 hour patrol endurance with a 8,000lb munitions load.

The starboard fuselage enabled the internal storage of weapons and munitions and the housing of large and powerful radar equipment. The single fuselage layout was also studied, but found to have greater drag. Wind tunnel tests revealed that the aerodynamic performance in steady flight and in gusts was inferior to the TSR.2 derived 577. This work concluded that Vickers-Supermarine had developed an interesting simpler alternative to variable geometry, however this design was dependent on the still theoretical small engines."



[blackkite]

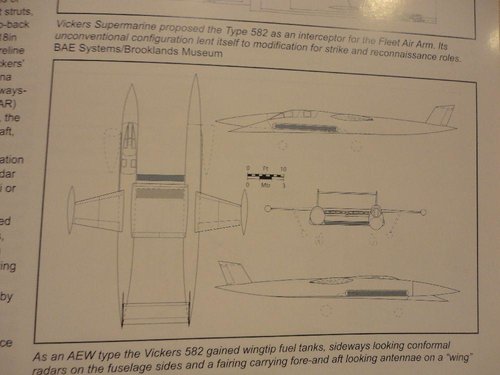

AEW type. I'm not sure the source book of this photo.

Media Tweets by かーねる・ちゃっぷ (@colonel_chap) | Twitter

The latest media Tweets from かーねる・ちゃっぷ (@colonel_chap). ロイヤル・ヒロシマ連隊連隊長。不定期に呟くかもしれない。. 日本 広島

twitter.com



[hesham]

Hi,

https://www.secretprojects.co.uk/threads/vickers-supermarine-type-582.5704/



[blackkite]

Sorry for off topic. I'm not sure the source book of this photo. But I thought that it's a interesting design which worth to post.

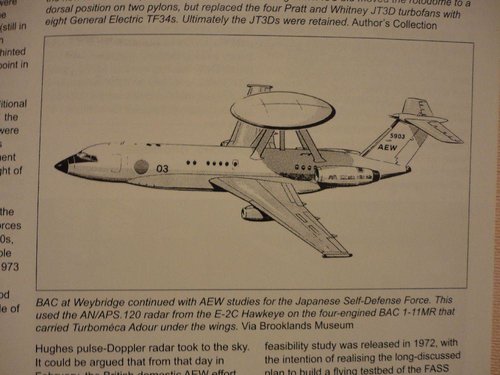

Four engined BAC-111 AEW type for the JSDF.



[blackkite]

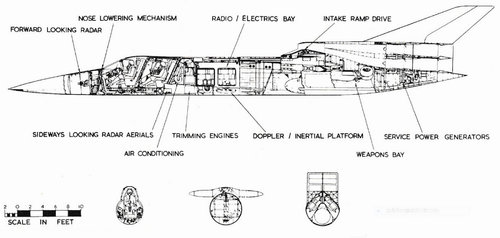

Vickers Type 581 ER.206/3 images.

https://twitter.com/x/status/1125650072404942848

Type 581 ER.206/2.
To cancelle head down moment which generated by blown flaps at low speed, two Rolls-Royce lift-enignes were located behind two men cockpit as trimming engine.

https://www.secretprojects.co.uk/threads/vickers-interim-type-581-er-206-2-bomber.15574/



[blackkite]

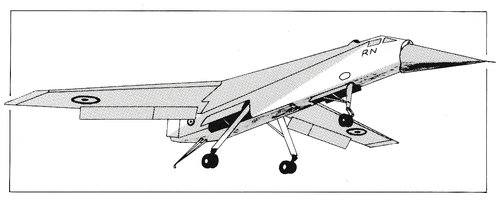

Hi! Type 581 ER.206/2.
Source : PROJECT CANCELLED.



[CJGibson]

'Four engined BAC-111 AEW type for the JSDF. '

Got a source for that?

Chris



[A Tentative Fleet Plan]

'Four engined BAC-111 AEW type for the JSDF. '

Got a source for that?

Chris

Speaking of images from your publications, could you post the cutaway of the Type 589 that appeared in the Aeroplane November 2019 issue?



[blackkite]

Vickers type 589 is here.

https://www.secretprojects.co.uk/threads/bac-vickers-type-589-variable-sweep-bomber.3500/

https://www.secretprojects.co.uk/threads/from-581-to-589-vickers-to-bac-swing-wingers.30145/

Challenge: Keep Britain's forces under budget.

But, let's say that UK indeed buys F-111 and scraps the TSR-2. Is there a need to buy Vulcan B.3 if we have F-111? :confused: Depends upon the role. If it is a "Stealth Vulcan" then the roles would be somewhat different. It would depends on government policy but would most likley not be...

www.alternatehistory.com



[CJGibson]

Not my publication, Ben Dunnell's so better ask him.

Chris



[blackkite]

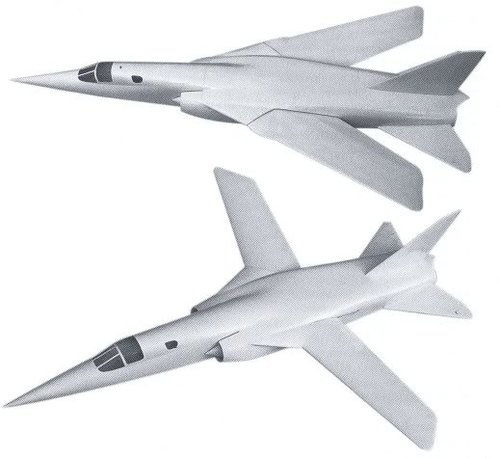

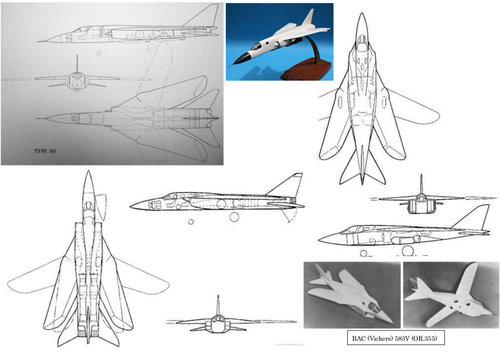

Hi! We have some BAC(Vickers) 583 VG aircraft drawings and images.
1.The type which has one dimentional air intake with shock cone. (Source : SPF)
2.The type which has two dimentional air intake.
3. The type which has lift engine.(583V). (Source : SPF)
Wing plan form of these types are almost same.

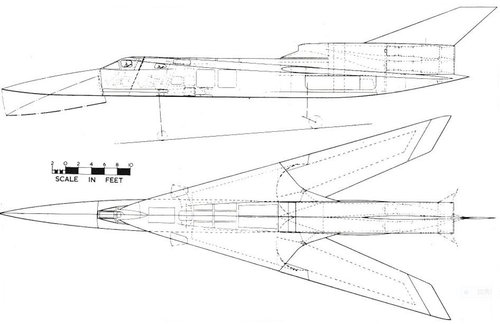

Blueprints > Modern airplanes > Vickers > Vickers-Supermarine 583V

www.the-blueprints.com

Blueprints > Modern airplanes > Vickers > Vickers-Supermarine 583

www.the-blueprints.com
