British Little Known Civil Aircraft,Helicopters and Gyroplanes

[hesham]

That's from lesser known designers only,

the Aircopta was a British rotorcraft Project of 1964,designed by Mr. N.
Dunmow and Mr. B. Coleman of Leytonstone London,has anyone a
drawing to it ?.



[hesham]

Hi,

the Bird Gyrocopter was a single seat autogyro of 1969,designed by Gerald Bird at
Keighley,Yorks,also drawing and more Info wanted ?.



[hesham]

Hi,

Mr. G. Griffiths designed a single seat gyroplane in 1965,built it at Normanton,Derby,
called GH.4.

http://www.airport-data.com/aircraft/G-ATGZ.html



[hesham]

Hi,

here is a gyroplane,designed and built by D. J. Penn-Smith at Markfield,Leicester.



[hesham]

Hi,

Houston Gyroplane Projected single seat gyroplane designed by P.J.Houston as an advance on similar contemporary types. It was to have been constructed at South Nutfield, Surrey and the registration
G-ARSZ was allocated to the designer in September 1961, but the scheme was eventually shelved.



[hesham]

Hi,

Mr. John Murray designed a light coaxial rotor helicopter in 1952.

http://kulturserver-nds.de/home/hubtest/medien/Typenkartei3953xGUN7x9T3Z7.pdf



[hesham]

Hi,

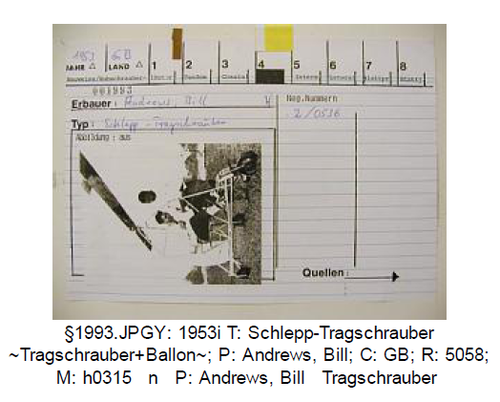

here is a towed autogyro of 1953,designed by Bill Andrews.

http://kulturserver-nds.de/home/hubtest/medien/Typenkartei3953xGUN7x9T3Z7.pdf



[hesham]

Hi,

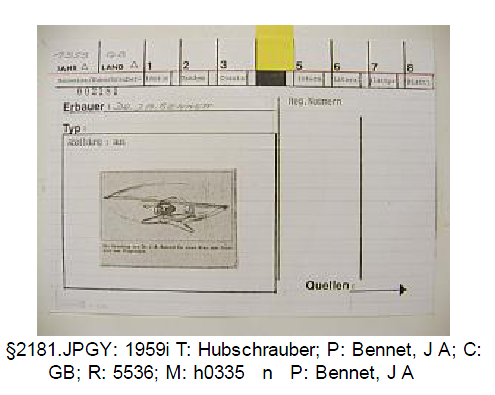

here is a strange helicopter Project,maybe a convertiplane,designed by Mr. J. A. Bennet ?.

http://kulturserver-nds.de/home/hubtest/medien/Typenkartei3953xGUN7x9T3Z7.pdf



[Apophenia]

Mr. John Murray designed a light coaxial rotor helicopter in 1952...

For a photo and description of the preserved co-axial Murray M.1 helicopter (post #6), see: http://helimuseum.com/heli.php?ident=m1



[Apophenia]

here is a gyroplane,designed and built by D. J. Penn-Smith at Markfield,Leicester.

Derek Penn-Smith's autogyro was preserved - at least until recently. It was in the collection the now-shuttered Stondon Transport Museum at Henlow. In 2015 the autogyro was auctioned off by Brightwells with an estimated value of £600. Quote below come from the auction bumf:

"There was only one aircraft built: G-AXOM and this was first flown at Wymeswold airfield on 5th April 1970. The Penn-Smith gyrocopter made its first public appearance (non-flying) at Sywell aerodrome on 11th July 1970 and a Permit to Fly (a type of certificate of airworthiness) was issued on 25th August 1970... Retired from use in 1974, G-AXOM was aquired for the Stondon Collection in 1994."

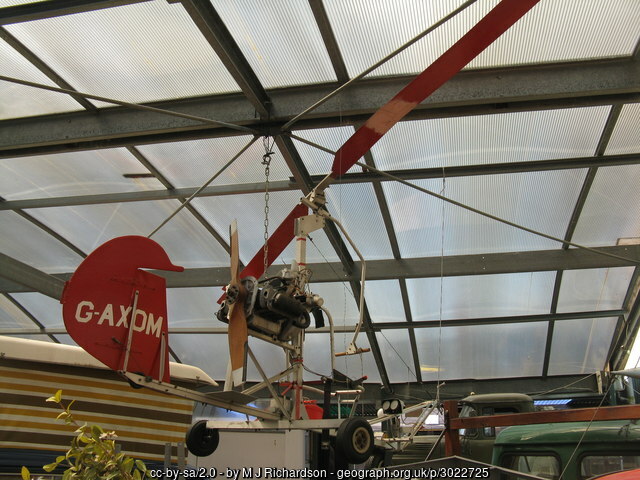

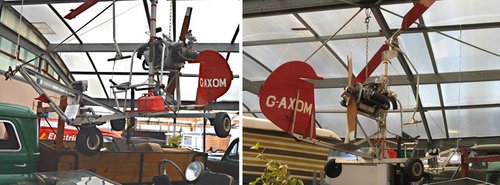

Penn-Smith gyroplane G-AXOM © M J Richardson

One of the non-motoring exhibits at the Stondon Transport Museum. With a 20ft [6.1m] diameter rotor it first flew in 1970, and was the only one of its type, designed by D.J.Penn-Smith at Leicester.

www.geograph.org.uk

http://classiccars.brightwells.com/viewdetails.php?id=5474



[Apophenia]

here is a strange helicopter Project,maybe a convertiplane,designed by Mr. J. A. Bennet ?

That could be J.A.J. Bennett (James Allan Jamieson Bennett). Perhaps a follow-on from his 1944 US Patent - US 2,344,967 'Helicopters and Gyroplanes' - and his British application 32,731 dated November 26, 1937?

US2344967A - Helicopter and gyroplane - Google Patents

The 1944 US patent (applied for in 1937) is better-known because it featured in a suit brought against Kaman in 1967 for infringement by the latter's HOK-1 design.

Cases Decided in the United States Court of Claims: October 1, 1967, to December 31, 1967, Volume CLXXXI, by United States Court of Claims, Margaret Hunter Pierce, pp 158-161



[hesham]

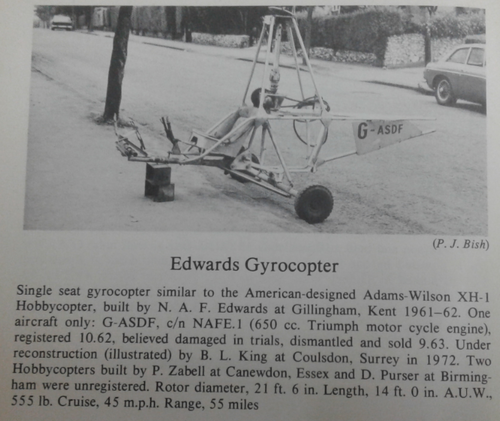

From British Civil Aircraft since 1919,

here is a Mr. Edwards Gyrocopter.



[hesham]

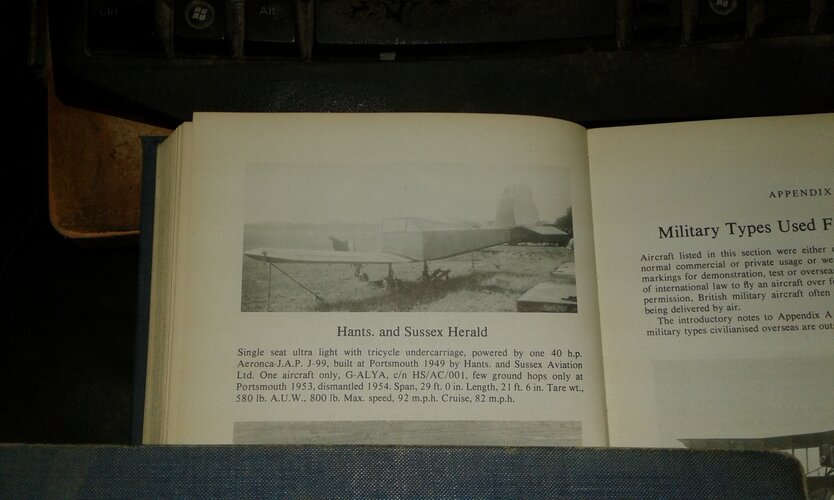

From British Civil Aircraft from 1919,Vol. 2,

here is a Hants and Sussex Herald.



[hesham]

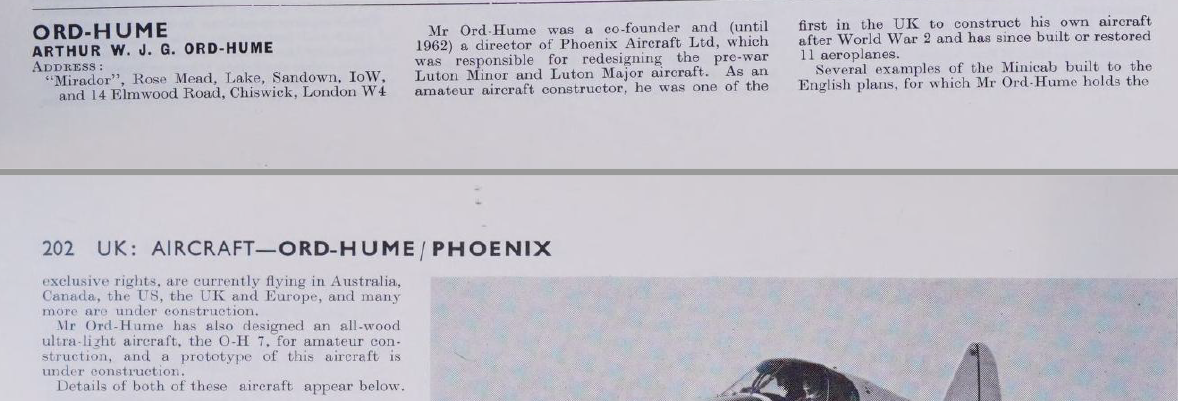

In my files,

Mr. Ord-Hume designed aircraft,called OH-5,we know only OH-7 ?!.

JAWA 1972



[hesham]

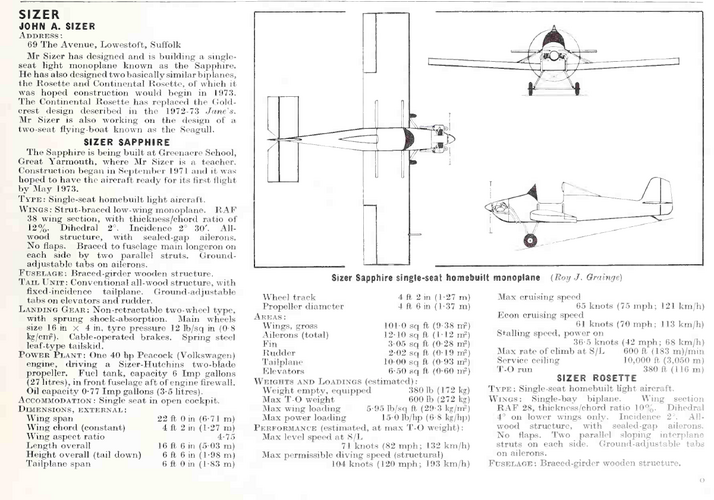

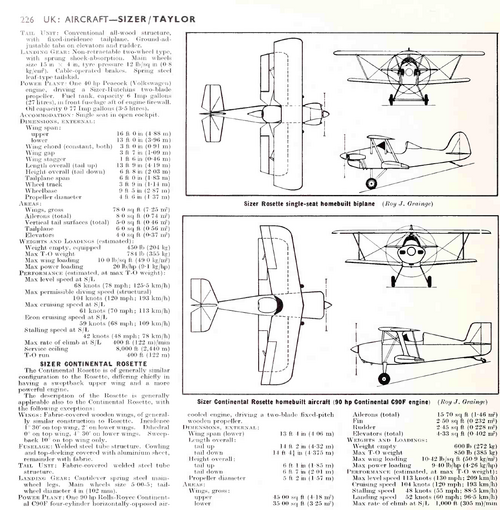

From JAWA 1974,

the Sizer aircraft.



[hesham]

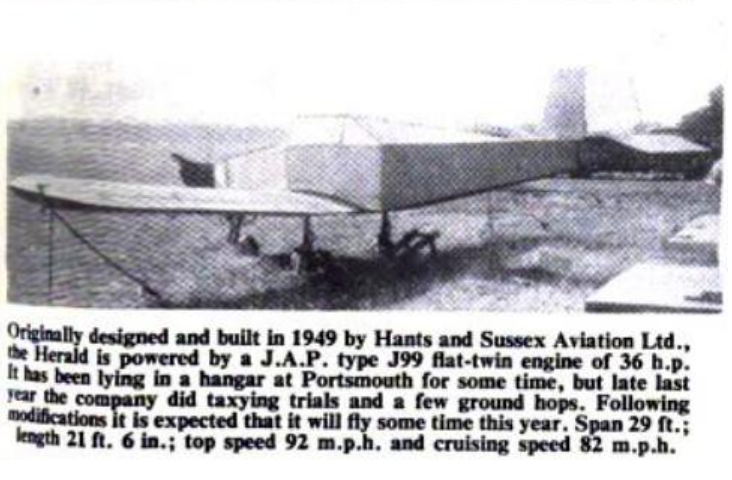

From British Civil Aircraft from 1919,Vol. 2,

here is a Hants and Sussex Herald.

From Aeroplane magazine 1953.



[hesham]

From Aeroplane 1955,

what was this King Aircraft Corp. Aand its helicopter ?.



[hesham]

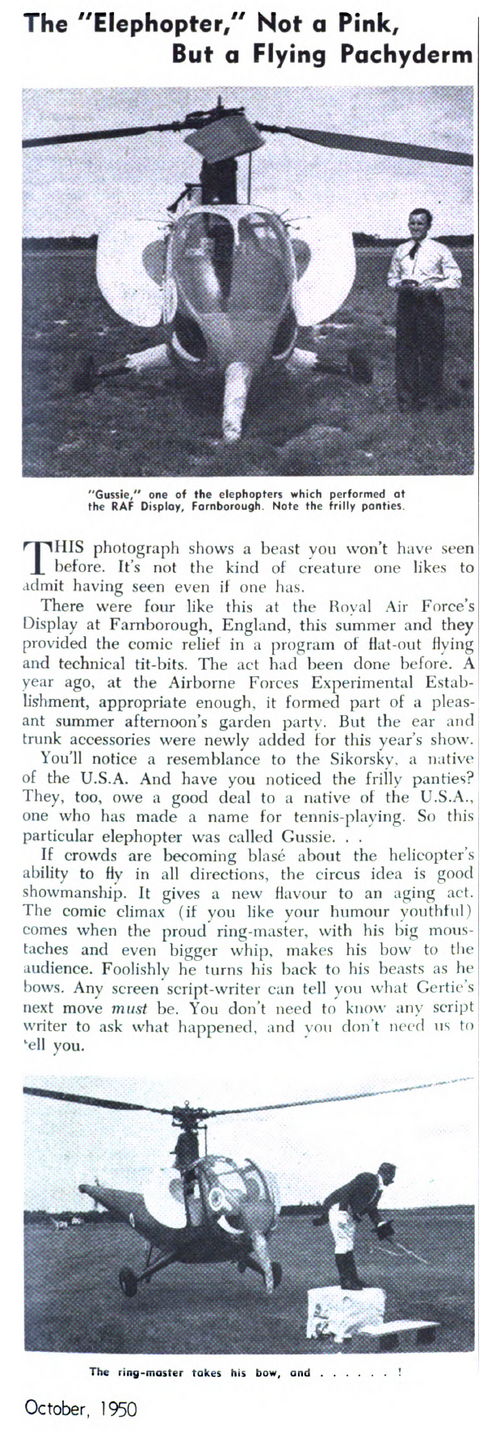

From Aviation Age 1950,

what was this (Elephoter)?, just a joke ?!,if it's,we can transfer it to a
proper section..



[Arjen]

A Sikorsky R-6 / Hoverfly in a party frock. US made. The helicopter, not the frock.
