I have the Lost British Projects 1/72 scale resin model of the Bristol 204 which includes two small underwing pods which are shown in the drawings to be found on this esteemed site - but what are they?

Something like "Alternative xxxxx pod ... х" rocket launcher'


Attachments

  • Screenshot_20240620_012820_ReadEra.jpg
    481.1 KB · Views: 23
Last edited:

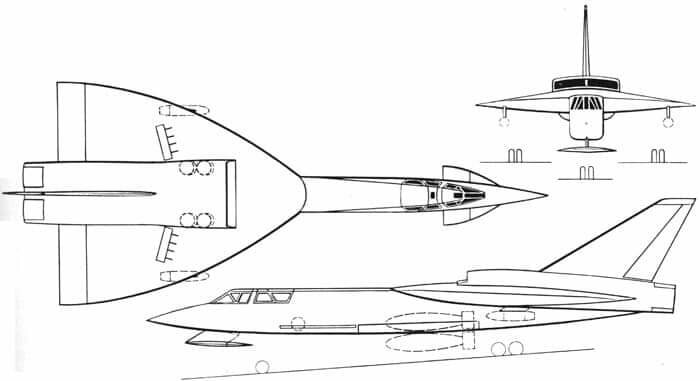

Underwing stores pylons with notional load (Microcell rocket pods)

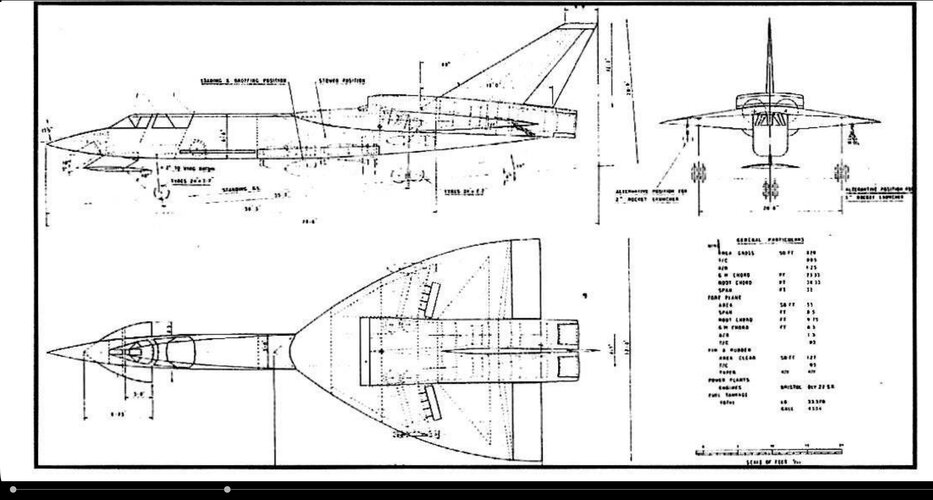

original ga. drawing depicted an asymmetric load for illustrative purposes of rocket pod on stb. pylon and twin store carrier on port side pylon (with Red Beard or 2 triple stores carriers in tandem in bomb bay)


Attachments

  • FB_IMG_1718840233720.jpg
    18.4 KB · Views: 21
Last edited:
