Brewster projects

[Jjr]

Hai
Except some drawings concerning the P-33 projects, I did not find any information concerning other Brewster projects.
The only which I earlier mentioned was the two-seat fighter, further no details etc.
Is there any material/information concerning this two-seat fighter and other not mentioned projects?
Who has more info/drawings etc concernin the Brewster B-1 (Fleet)?
Thanks
Jan



[hesham]

Hi Jjr,

generally,please look to this topic;

https://www.secretprojects.co.uk/threads/brewster-model-numbers.7780/#post-394548



[Jjr]

This are only type numbers but no details or drawings, the last to give an impression



[Grey Havoc]

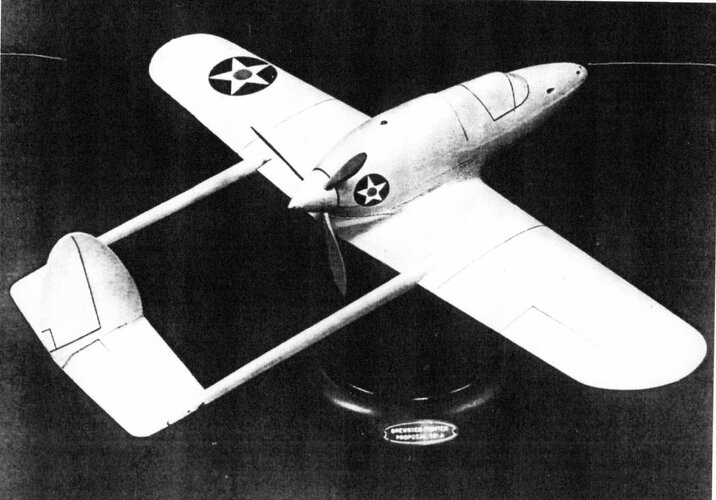

Have you seen this photo of a display model of the Brewster Model 33A, aka the P-33A, from an old thread on twin boom aircraft?

(h/t Antonio)

EDIT: Never mind, somehow I had forgotten that Maveric had already posted the same photo over in the Brewster designations topic!



[Grey Havoc]

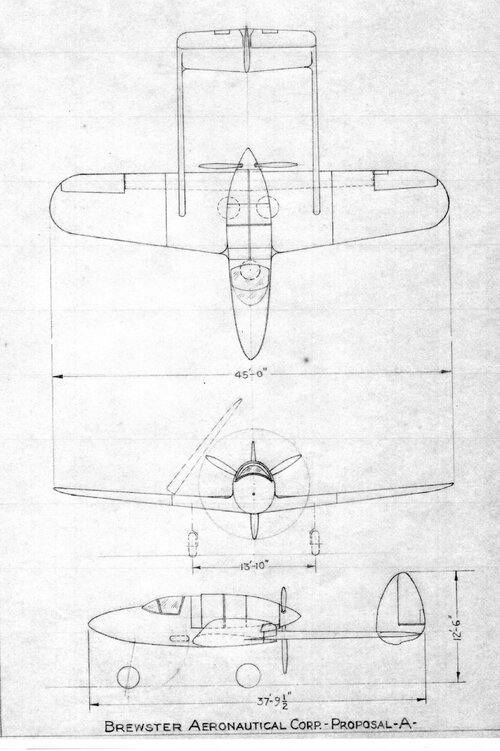

The original Brewster P-33 proposal for the USAAC seems to have had a different tail design. The later Brewster 33D proposal to the USN's 1942 SD-112-18 requirement you probably already have come across.



[Stargazer]

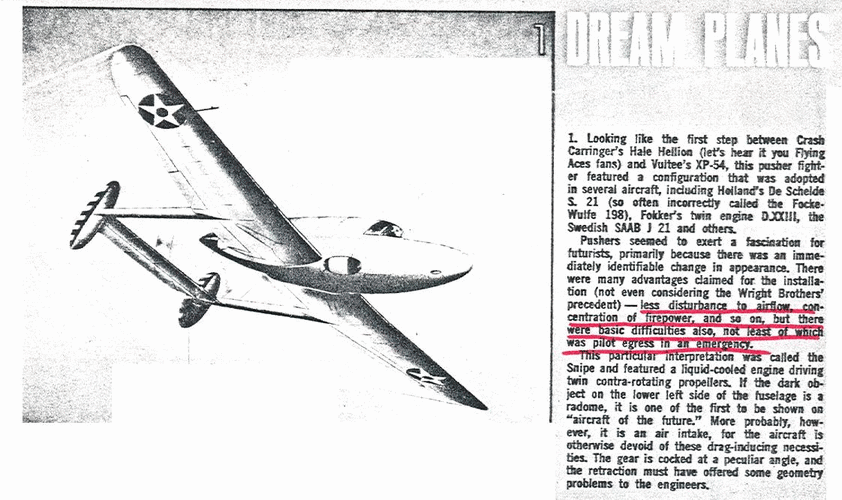

This very well-known image, which appeared in several magazines of the 1930s as the "Snipe", is now confirmed as being a depiction of the Brewster P-33 design: « Brewster P-33 proposal sketch for Air Corps ».



[Justo Miranda]

Brewster XP-33



[Stargazer]

Brewster XP-33

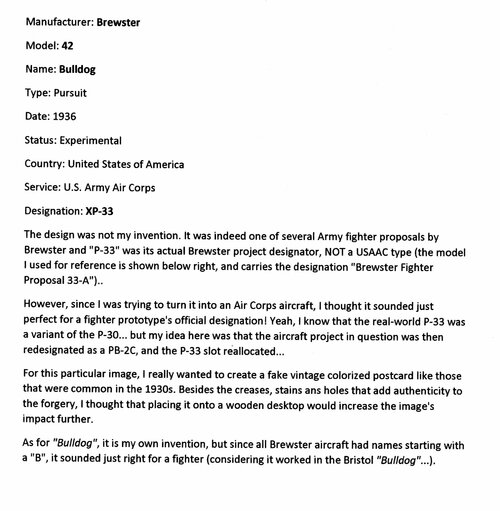

The writeup in the first image was copied from my AviaDesign website...

Stargazer's imaginary aircraft gallery ! © AviaDesign 2009-2010

The designation "Model 42" and the name "Bulldog" were my own inventions!
