Bréguet 800 floatplane scout

[toura]

Hi all,
Who know the "Breguet 800", a 2 floats plane of 1938.
Span 16.00m. lenght 11.2m
I don't know more...HELP !
THANK YOU



[Tophe]

A 3-view and little text are in the Trait d'Union N°172 of 1997. I may scan and post them if you have no access to this collection.



[Tophe]

I translate the French text, as a start:
"Designed in 1937, the Br 800 was a reco float-plane with three seats and two floats. With a span of 16m, it was single-engined Gnôme-Rhone 14 M4 of 680hp. Using a Hispano 12 Xirs-1 engine of 690hp, it became Br 801. The Br 802 seems to be a variant, unknown, while the Br 803 was twin-boom (holding tail), also with two floats, and with a pusher engine Hispano 12 Xirs-1. None of these machines has been built."



[Maveric]

Please toura,

we need the 3view ;D



[Tophe]

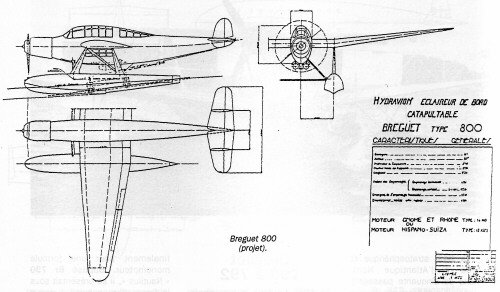

Here it is:



[Tophe]

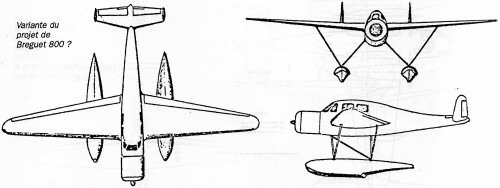

In the same Trait d'Union issue, an unconfirmed variant of the Br 800 (maybe Br 802?):



[Tophe]

Zooming as much as I can on the data (difficult to read, sorry):



[toura]

HI tophe.
All this is very well ! I thank you very much.
Thanks. Bye



[Maveric]

Sorry,I´m a little bit confused...

...thanks Tophe



[Jemiba]

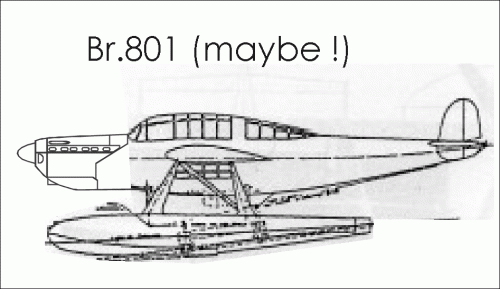

Just a quick and dirty imagination of the Br.801 (sorry, the best I could
do in the moment). A contender to the Laté 298 maybe ?



[toura]

Thanks, JENS



[Tophe]

;D Yes, thanks for the (possible) 802. Drawing the twin-boom pusher 803 would be even more difficult...



[Tophe]

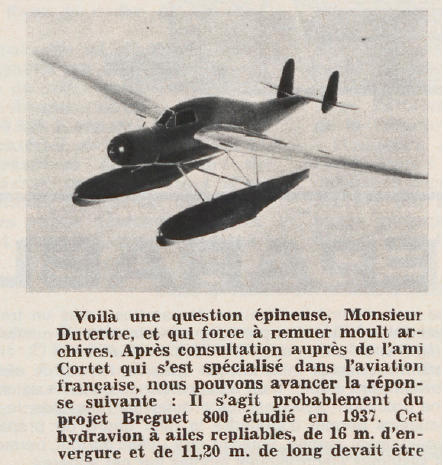

Dear Lark found this picture of the Br 800 (wind tunnel model):
- from what seems to be "Aviation Magazine" 15 October 1964 -



[hesham]

Just a quick and dirty imagination of the Br.801 (sorry, the best I could
do in the moment). A contender to the Laté 298 maybe ?

My dear Jemiba,

the Br.801 as you displayed it,I think it was for 1937 in order to
meet a French Navy requirement for a light catapult-launched
observation aircraft,the main tenders were; Gourdou G-120 and
Dewoitine HD.730.



[hesham]

Dear Lark found this picture of the Br 800 (wind tunnel model):
- from what seems to be "Aviation Magazine" 15 October 1964 -

A clearer view to the same drawing.



[PhR]

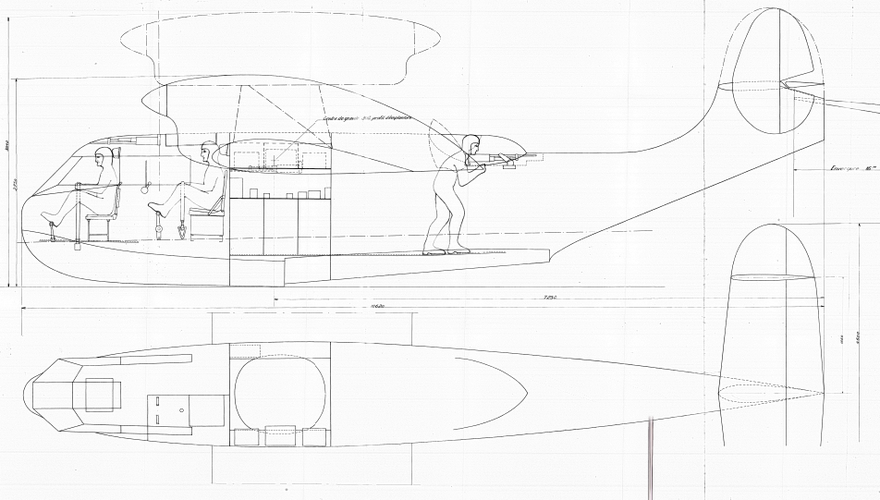

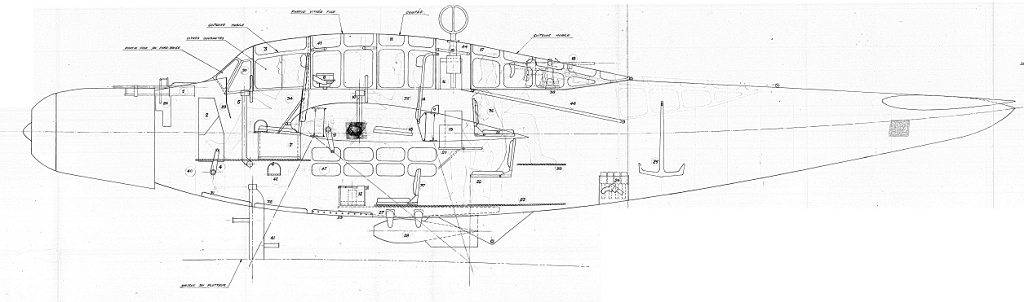

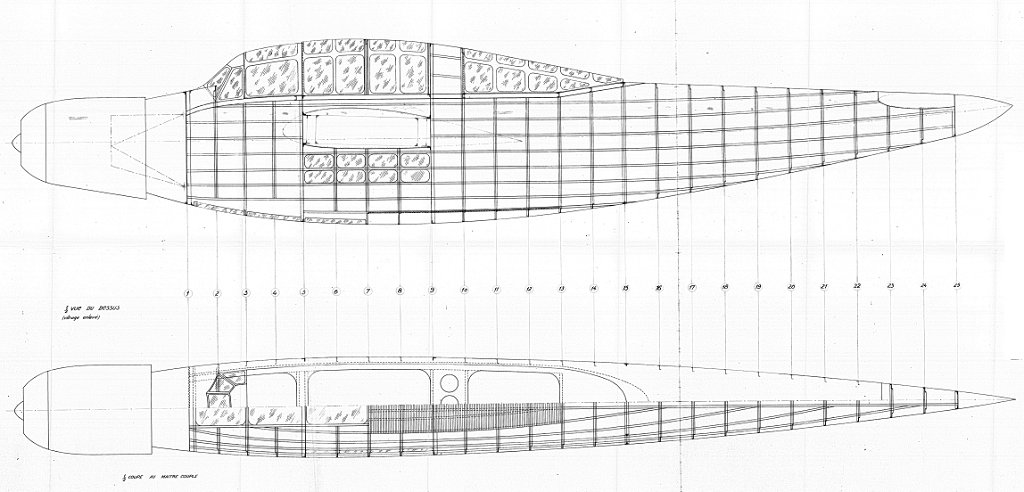

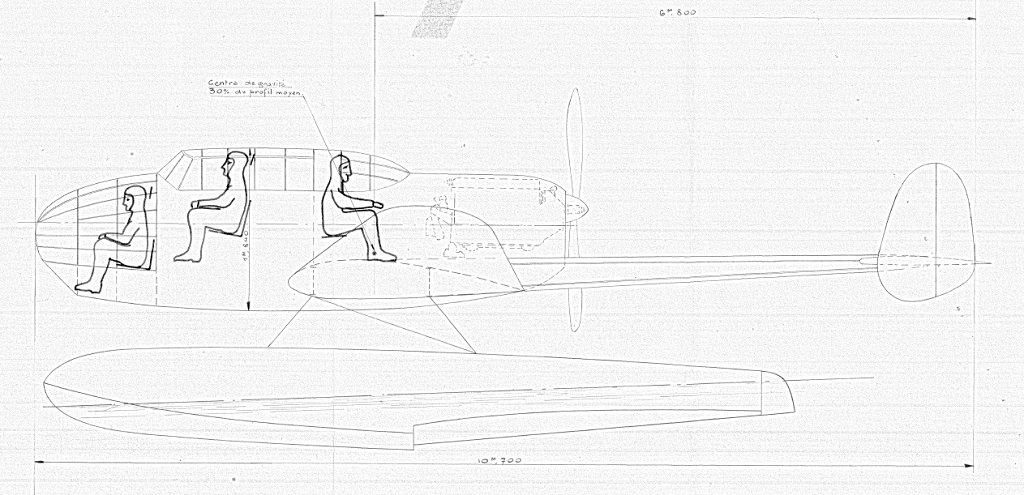

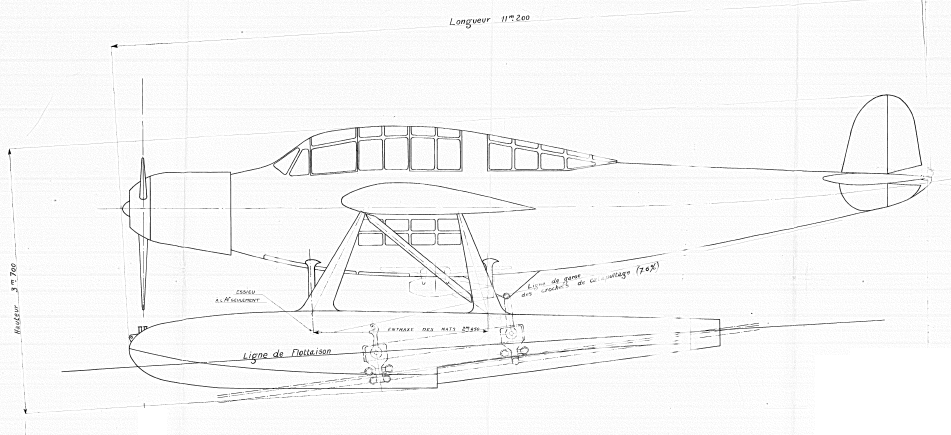

Some extracts of original blueprints of Breguet 800, 801/802 and 803.
The differences between Breguet 801 and 802 are mainly in the position of the engines (dotted line for the model 802).
