Everyone knows this oddball observation aircraft, and yet it never had a dedicated topic here until today.

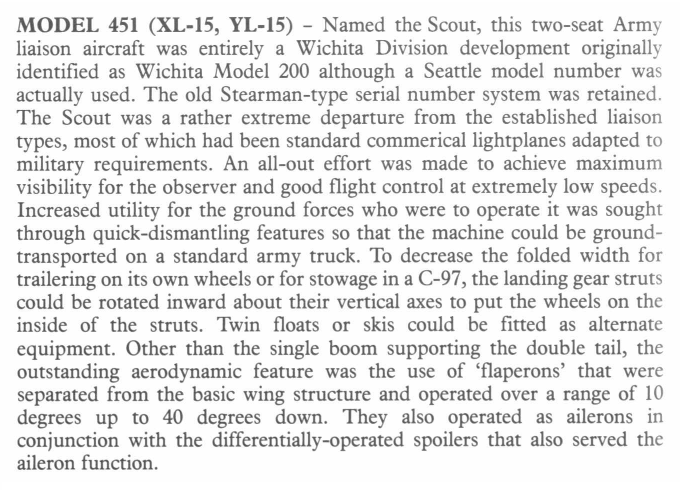

The Boeing Wichita (formerly Stearman division) Model 200 "Scout" was also known as the Model 451. It was a high-wing, single-engine all-metal two-seater, with conventional gear. The inverted vertical stabilizer was meant to provide good spin damping and to reduce the overall height of the airplane. The rudder and elevator were fabric-covered. The configuration chosen provided maximum visibility for the observer and good flight control at low speed. It could also be disassembled and transported by truck.
The Model 451-2 was presented on March 1, 1946 by Boeing in response to a letter dated February 4 from Colonel George E. Price of the A.T.S.C., announcing an informal design competition for a field artillery observation aircraft, and requesting bids. The program received the designation MX-848.

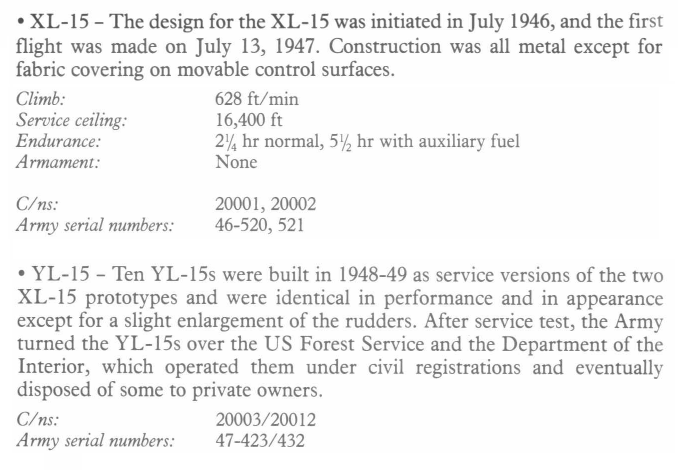

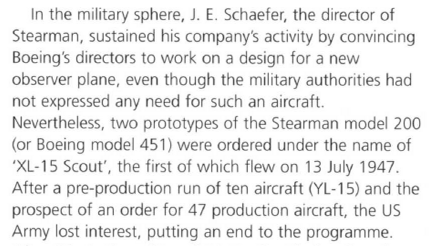

Boeing received an order as per contract W33-038-ac-15054. Two XL-15 prototype was built and ten more YL-15 preseries aircraft followed, but on completion of the test phase, the Army rejected the design. The ten YL-15s were consequently transfered to the U.S. Forest Service and the Department of the Interior, which operated them with civil registrations.
As a result, the subsequent order for 47 production L-15-BW aircraft was cancelled.
The Boeing Wichita (formerly Stearman division) Model 200 "Scout" was also known as the Model 451. It was a high-wing, single-engine all-metal two-seater, with conventional gear. The inverted vertical stabilizer was meant to provide good spin damping and to reduce the overall height of the airplane. The rudder and elevator were fabric-covered. The configuration chosen provided maximum visibility for the observer and good flight control at low speed. It could also be disassembled and transported by truck.
The Model 451-2 was presented on March 1, 1946 by Boeing in response to a letter dated February 4 from Colonel George E. Price of the A.T.S.C., announcing an informal design competition for a field artillery observation aircraft, and requesting bids. The program received the designation MX-848.
Boeing received an order as per contract W33-038-ac-15054. Two XL-15 prototype was built and ten more YL-15 preseries aircraft followed, but on completion of the test phase, the Army rejected the design. The ten YL-15s were consequently transfered to the U.S. Forest Service and the Department of the Interior, which operated them with civil registrations.
As a result, the subsequent order for 47 production L-15-BW aircraft was cancelled.
![1714071168957.png 1714071168957.png](https://www.secretprojects.co.uk/data/attachments/262/262587-ff23312cc06ad735f29b3547c7487a53.jpg)
![1714071897977.png 1714071897977.png](https://www.secretprojects.co.uk/data/attachments/262/262588-51e464bcfa7f8382c69b4279b0c17634.jpg)
![1714071913776.png 1714071913776.png](https://www.secretprojects.co.uk/data/attachments/262/262589-9444f745ca608648351491c5a66960e1.jpg)
![1714071992092.png 1714071992092.png](https://www.secretprojects.co.uk/data/attachments/262/262592-65c2025e9e2c00ecf2b43f6a1cb53b06.jpg)
![1714071940001.png 1714071940001.png](https://www.secretprojects.co.uk/data/attachments/262/262590-20e51fdbb0e59d7d01a7fee6d4c793c0.jpg)
![1714071958845.png 1714071958845.png](https://www.secretprojects.co.uk/data/attachments/262/262591-efd4166baf373503b55ab7cbf55cecb8.jpg)
