Boeing Model 763-032 Tailless Airliner Project

[hesham]

Hi,

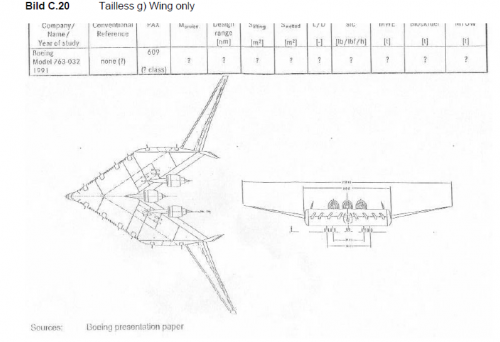

here is a Boeing Model 763-032 tailless airliner project,powered by three engined,never
saw something like it before,design of 1991.

Studiendepartment Fahrzeugtechnik und Flugzeugbau
Recherche zu patentierten Flugzeugkonfigurationen
Verfasser: Stephan Müller



[TomS]

Maybe related to the Blended Wing-Body studies? The v-shaped section notched out of the aft end might limit the length of the escape routes for passengers.



[Avimimus]

I don't understand this - a high subsonic spanloader??? That is quite a thick inner wingelage considering the amount of sweep on the outer wings! Or are they swept for stability reasons (re:'taillessness')?
