Boeing Model 733-606-12 / 733-605-11 Supercruise Projects

[Orionblamblam]

I'm still convinced that a patent drawing is not an illustration of a project.
It's only a drawing made for the better understanding of an invention...

Sometimes yes, sometimes no. This patent, for example... http://www.google.com/patents?id=T1wtAAAAEBAJ&printsec=abstract&zoom=4&dq=4828204&num=100

.... shows the Boeing Model 733-606-12 supercrusie demonstrator project from about 1977. It is a rare patent in that it is quite detailed and the accuracy jives with what I have from other sources.



[lark]

In this case : agree...

It could have been on the Boeing drawing board as a corporate SST proposal.



[smurf]

It is a rare patent in that it is quite detailed

and to that extent , as a patent seeking to protect an invention, it is quite baffling. How can its early claims stand? Most of its various features individually are surely by 1983 subject to prior publication, or obvious. Taken together they are so restricted in scope that moderate variations in design would circumvent the patent. Perhaps its purpose was to act itself as 'prior publication' held in secret during the application period to prevent other patentees interfering with Boeing's line of development?
But this is a long way from the subject of the thread.



[Orionblamblam]

In this case : agree...

It could have been on the Boeing drawing board as a corporate SST proposal.

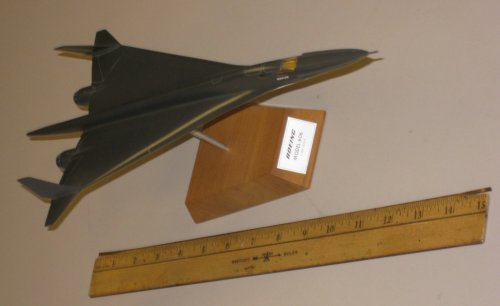

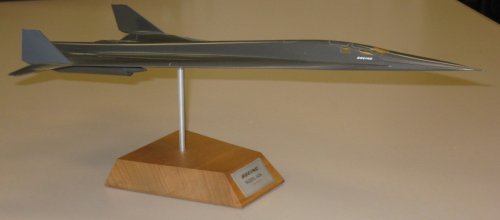

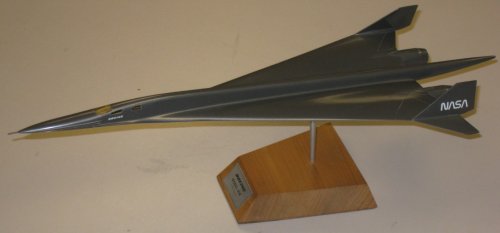

It was a proposal (designed at least in part under NASA contract) for a supercruise demonstrator for supersonic transports. but I've seen it in USAF colors in a lot of artwork and at the Bopeing archive in model form, so I've little doubt that an interceptor variant or possibly strike, or possibly recon, or possibly highpriority transport) was also proposed. I think it'd be just way too big and expensive to be a commercial/corporate passenger plane.



[Sundog]

When I was in college, my Senior Aircraft Design Class had some very high quality blueprints of this design, about eleven and one half inches high by about two and a half feet long. In fact, we had high quality drawings for most of the SST drawings/design studies as well. We weren't allowed to make copies of them, but I wish I would have anyway. :-\



[Stargazer]

Is the Model 733-606-12 the same as the so-called "Model 606" shown here? Certainly looks it.



[Tuomasn]

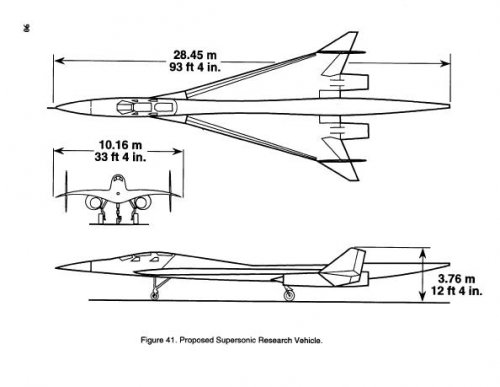

Probable Boeing 733-606 image from "Aeronautical Technology 2000: A Projection of Advanced Vehicle Concepts" (http://hdl.handle.net/2060/19860003767), titled Advanced Fighter Aircraft.



[hesham]

Hi,

Potential impacts of advanced aerodynamic technology on air transportation system productivity

Potential impacts of advanced aerodynamic technology on air transportation system productivity - NASA Technical Reports Server (NTRS)

Summaries of a workshop held at NASA Langley Research Center in 1993 to explore the application of advanced aerodynamics to airport productivity improvement are discussed. Sessions included discussions of terminal area productivity problems and advanced aerodynamic technologies for enhanced high...

ntrs.nasa.gov



[blackkite]

Hi!

Boeing Model 733-606-12 scale model | Chad Slattery Aviation Photography

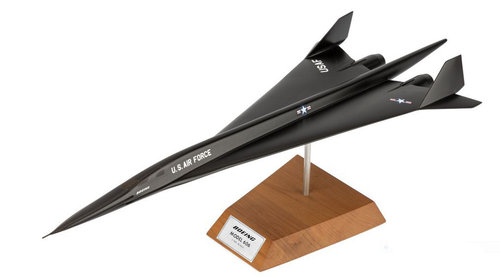

Factory model in 1/100 scale of Boeing 733-606-12 supercruise concept.

chadslattery.com



[archipeppe]

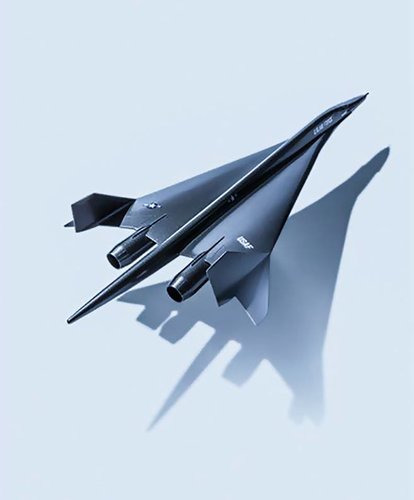

Could it be a Boeing 733-606 model variant?
Despite the huge vertical stabilizer this one has several point of contacts.



[Dew]

I think this goes here, but I'm not entirely sure

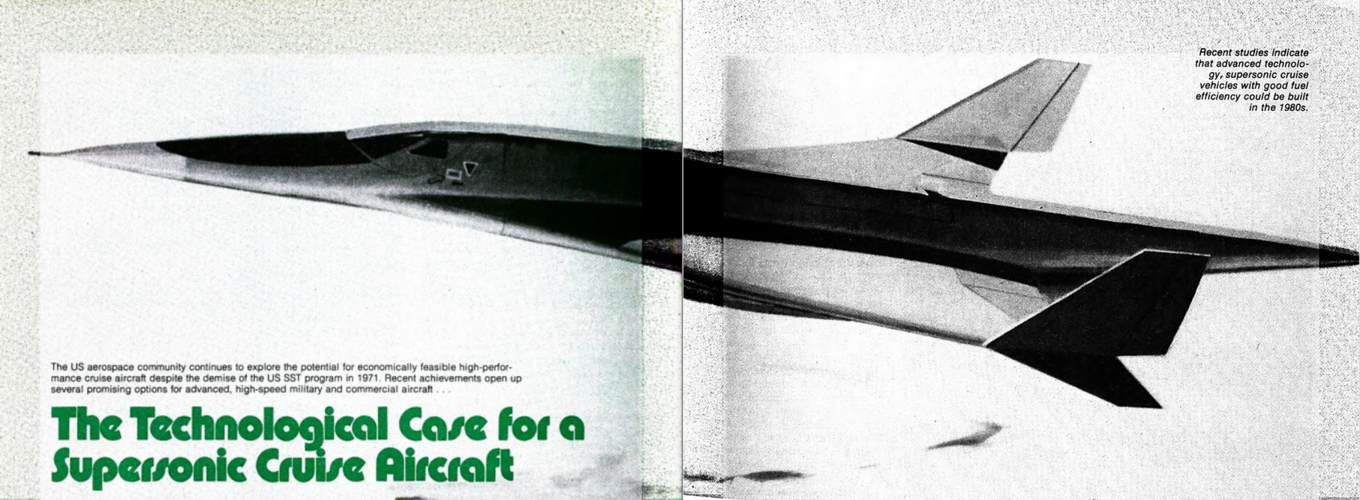

from Airforce Magazine June '76 pp.34-35



[Dew]

Stumbled across same, but in glorious techincolor from 'Supersonic Cruise Technology', F. Edward McLean (p.144)



[Stargazer]

A better quality image of the Model 733-605-11 supersonic fighter of 1976.
Very high resolution image can be found here: https://catalog.archives.gov/id/354377114



[Scott Kenny]

Could it be a Boeing 733-606 model variant?
Despite the huge vertical stabilizer this one has several point of contacts.View attachment 629159

I think the model is at an angle to the camera here, so we're seeing most of the underside of it.
