Boeing CCV-100-2 Bomber study

[RAP]

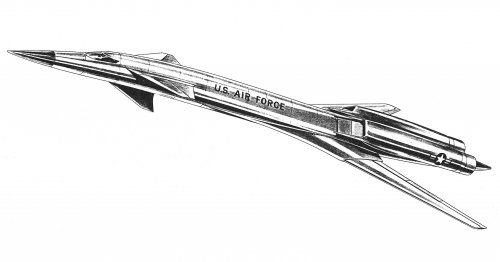

An unknown from my files. There is something familiar about the first one but I have not been able to find anything about it. Maybe its fan art.



[GeorgeA]

1st one is a Boeing CCV bomber concept. Scott provided a nicer color rendering on the APR blog in the recent past.



[Orionblamblam]

1st one is a Boeing CCV bomber concept. Scott provided a nicer color rendering on the APR blog in the recent past.

Yup:

CCV bomber – Aerospace Projects Review Blog

www.aerospaceprojectsreview.com

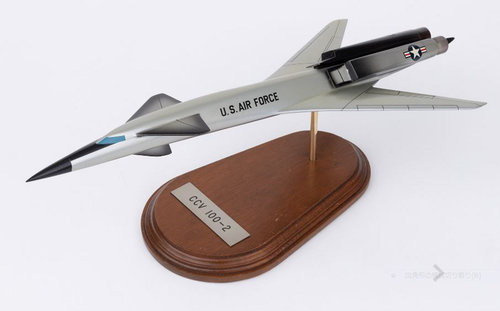

The Boeing "CCV 100-2" concept, though apart from artists renderings, a display model and some design patent drawings, data on this has remained elusive.



[RAP]

The Boeing is awesome. Thanks!



[blackkite]

Hi!

https://chadslattery.com/X-Planes/128



[taildragger]

Does anyone know of a sensible definition of "control-configured"? Aren't all aircraft that don't pivot and dig a crater immediately after takeoff control-configured? Perhaps this is 70s aviation's counterpart to that other innovation of the decade - the Sports Bar. Before the development of the Sports Bar, most beers were consumed while watching sitcoms but the Sports Bar has now put most Sitcom Bars out of business.



[overscan (PaulMM)]

Control configured vehicle means that inherent stability / controllability factors aren't designed into the aircraft configuration but it will instead rely on control surfaces to artificially maintain stability, via fly-by-wire controls / stability augmentation devices. Relaxed static stability is listed as a type of CCV, along with active feedback control of flutter, direct lift etc.



[overscan (PaulMM)]

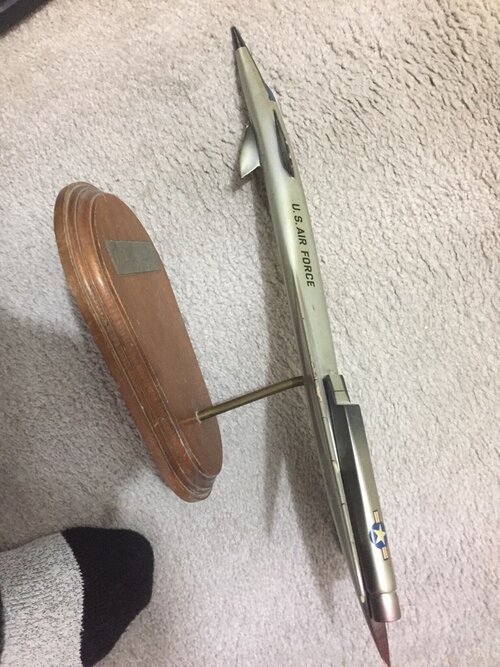

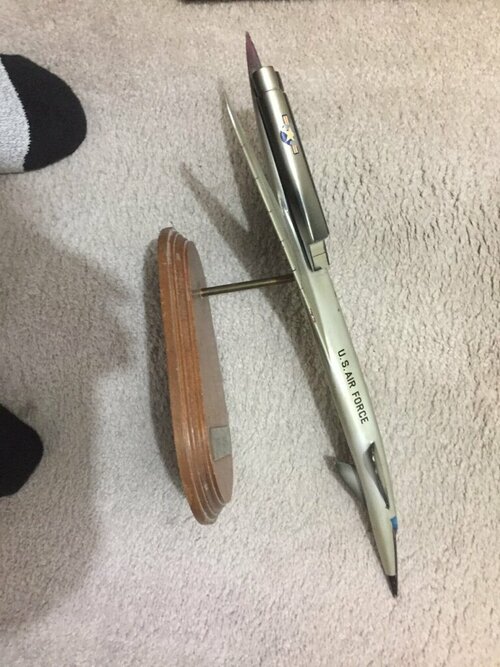

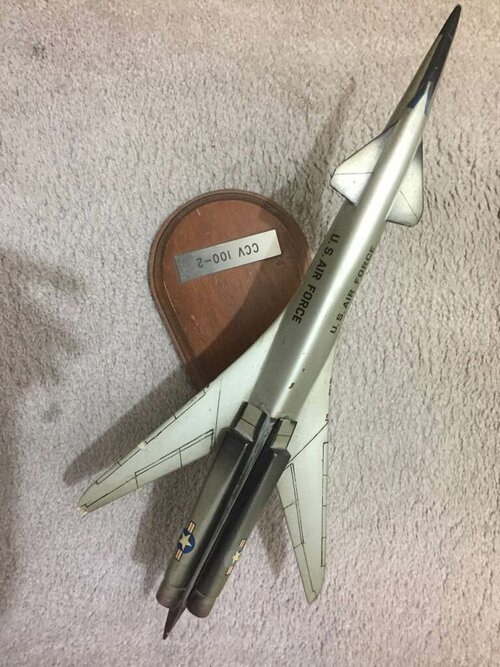

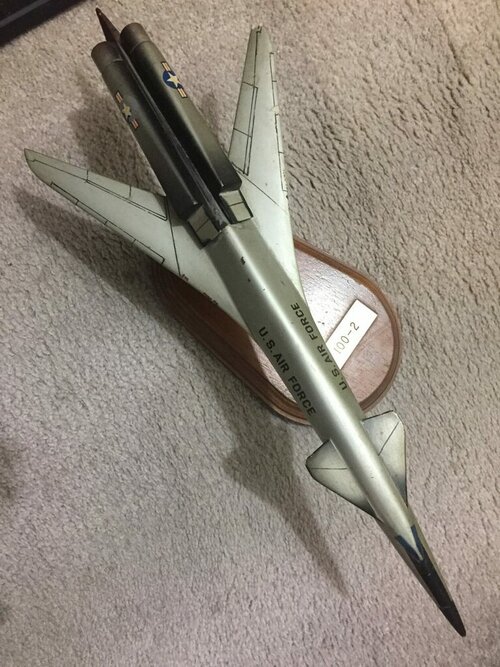

CCV-100 Model – Aerospace Projects Review Blog

www.aerospaceprojectsreview.com



[overscan (PaulMM)]

h/t to @Orionblamblam for the patent.

USD231094S - Supersonic airplane - Google Patents

patents.google.com
