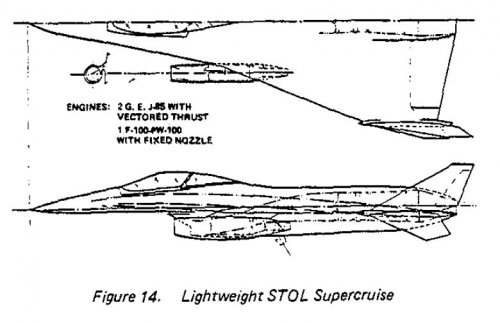

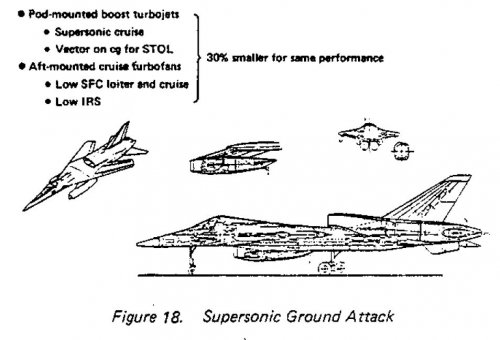

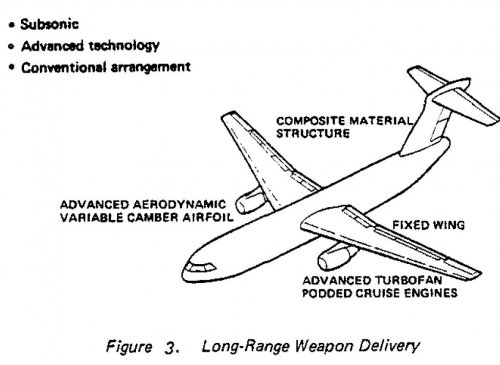

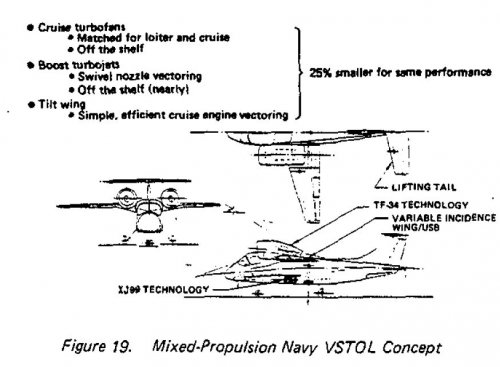

While bad quality, but still interesting Boeing late 1970s concepts using 'boost engines' to achieve "...minimum airplane size and cost".

AIAA 1980-0190
The Innovative Application of Boost Engine Technology to the Design of a Variety of Tactical and Strategic Aircraft
Richard C. Sutton and Paul G. Osterbeck
Boeing Military Airplane Company, Seattle, Washington
18th AEROSPACE SCIENCES MEETING
Pasadena, California
January 14-1 6, 1980


Attachments

  • 1980_Boeing_boostengine_01.jpg
    54.5 KB · Views: 186
  • 1980_Boeing_boostengine_02.jpg
    87 KB · Views: 169
  • 1980_Boeing_boostengine_03.jpg
    76.1 KB · Views: 173
  • 1980_Boeing_boostengine_04.jpg
    73.7 KB · Views: 153
  • 1980_Boeing_boostengine_05.jpg
    79.2 KB · Views: 140
