Blue Water 1/35th

[mecanix]

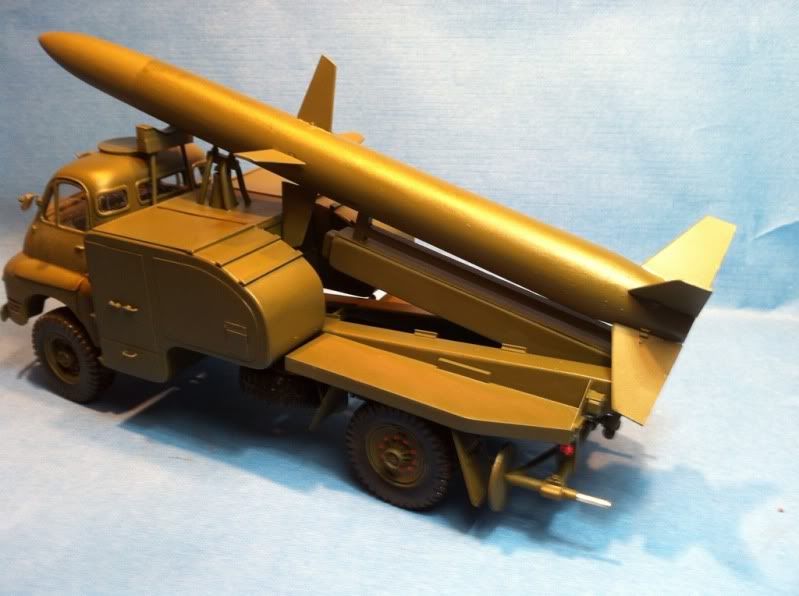

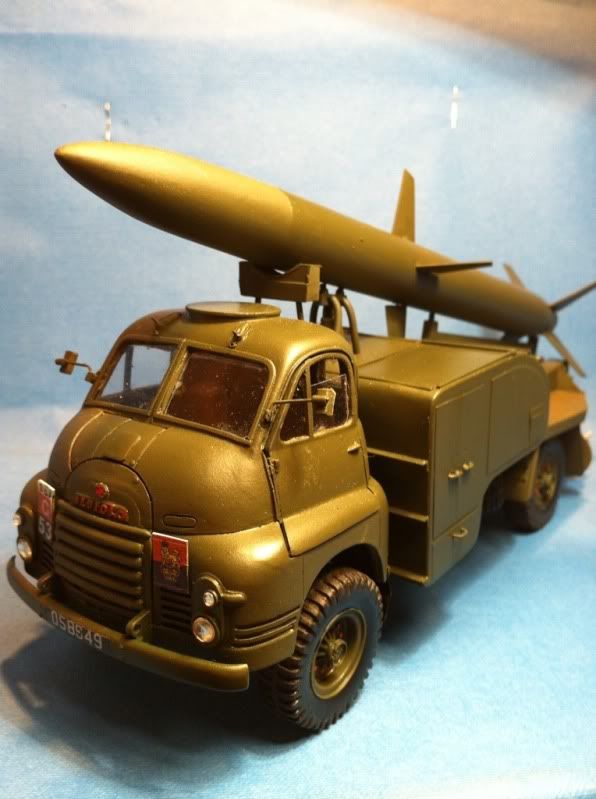

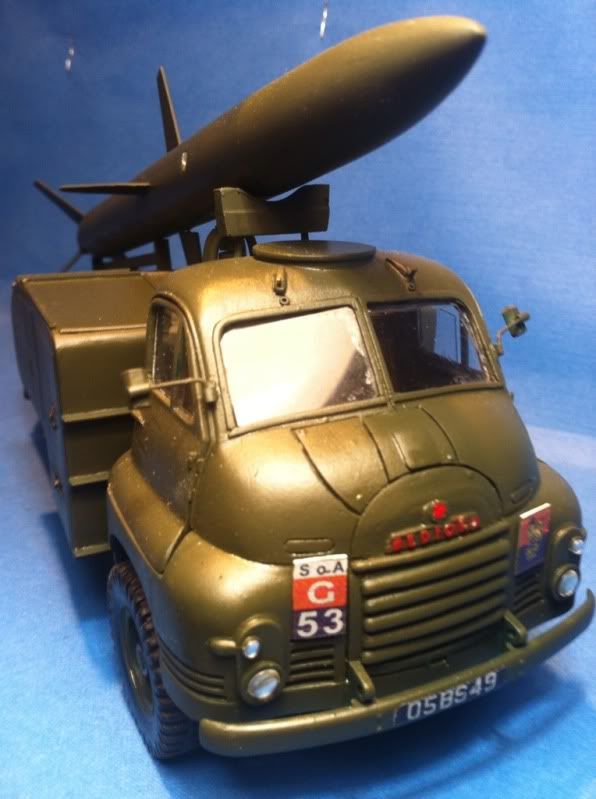

After a couple of years planning and stop/start working,I finally finished.

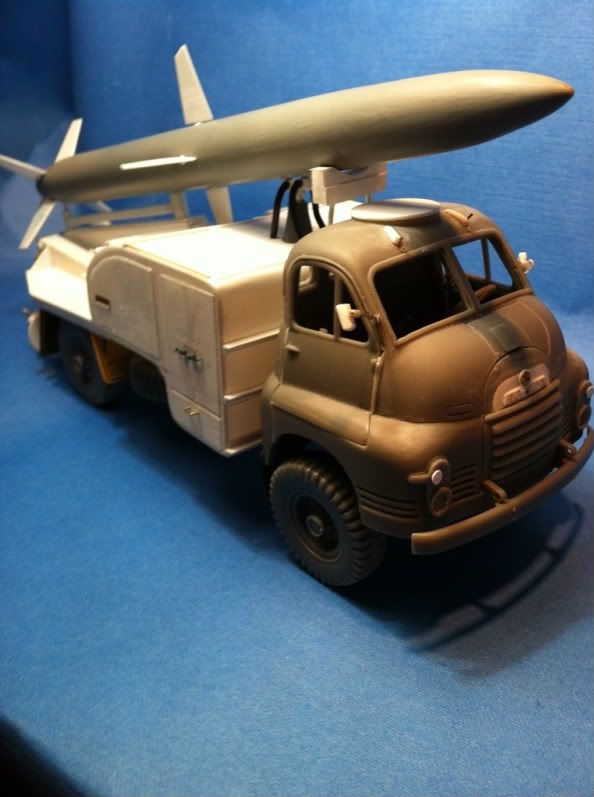

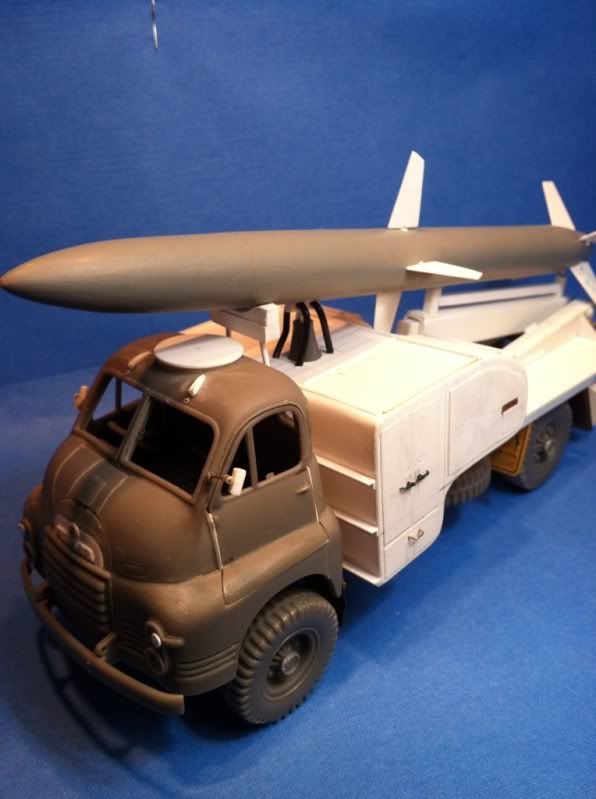

Its basically a conversion of the Accurate Armour Bedford RL.

regards,



[Overkiller]

Very Nice!

May I ask, how did you go about creating the Blue Water missile? The fins look like sanded plasticard, but I'm not sure about the body?

cheers

Duncan



[robunos]

Oooh, very nice.....................................

Do you have drawings, and are they available, (hint, hint...)..?

cheers,
Robin.



[TsrJoe]

very nice modelling indeed B) the clean finish really suits it too, beautiful

are you planning to build the hardtop Land Rover control vehicle too (Italeri basis?)

cheers, Joe



[mecanix]

Thank you all for your kind comments.

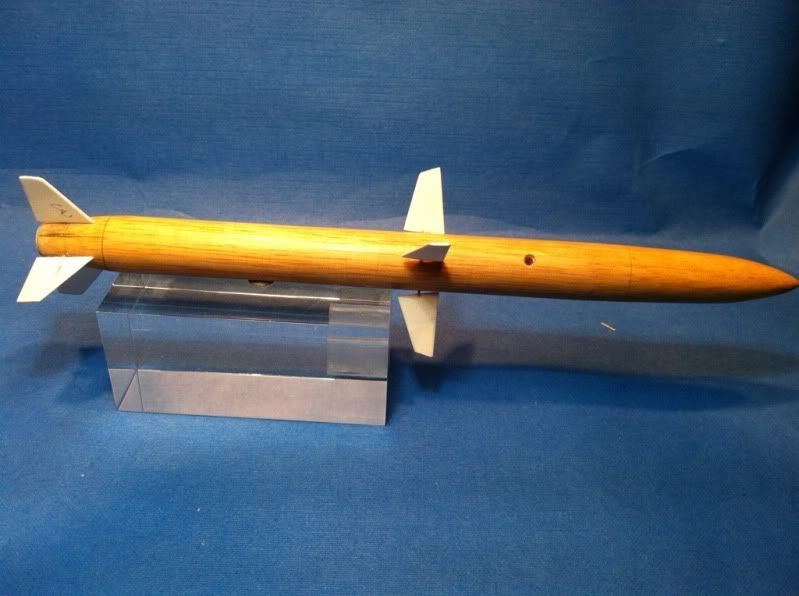

Duncan; the fins are indeed plasticard. The body is pine I think, it was scrap in the workshop.

I am in the process of building a 1/35th Thor IRBM TEL so I have to admit to practising for that on the lathe with Blue Water. This was the 4th or 5th attempt!


It was just covered in a wood filler a friend uses for his balsa kits, several Halfords primer coats and sanded smooth.


Robin: I used the drawings in Smith's British Army Equipment and BSP 4 enlarged to 1/35th and I have been collecting bits for over 30 years for this.


John Church was planning a set of drawings but never got around to it. He did lend me his copy of the EE Blue Water sales brochure circa 1960 but he had little else.


Joe; yes I have several Land Rover 1/35th kits and numberplate decals to bash together into the control vehicle but it will have to wait for 2 other projects further up the production line.


I was lucky that there appears to be only 2 built vehicles and although I believe that there were some small changes as it went along


it was a tidy, simple sales demonstator/proof of concept vehicle so then fairly straightforward to replicate.


I plan to bring it to Telford, if I get the time to attend.


regards



[robunos]

Thanks for that. I've been giving thought to building a Braille Scale Blue Water and launcher. There's a Bedford RL truck model available, and I have BSP4. It's the shape of the launch truck platform at the rear end that I'm having trouble deducing.

cheers,
Robin.



[mecanix]

If I can help, please ask.


regards



[robunos]

Thanks, Mecanix. I'm trying to work out the true shape of the rear of the truck bed, where it tapers in to the base of the launcher arm. Ideally, what I need is a top view of the vehicle...


cheers,
Robin.



[mecanix]

Robin,
I don't think I have ever seen a top view myself.


I will look through my files and see what I can find.


regards



[robunos]

Thanks again, anything would be a help...

cheers,
Robin.



[Barrington Bond]

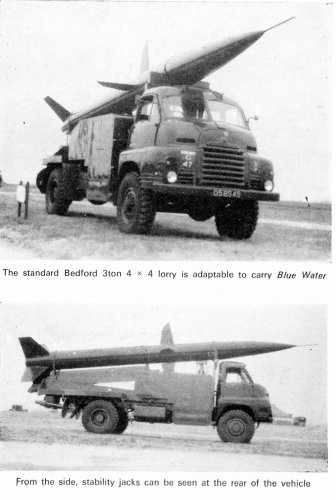

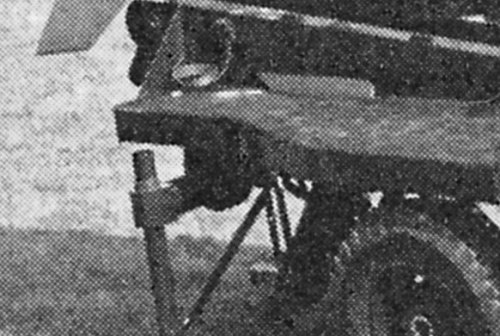

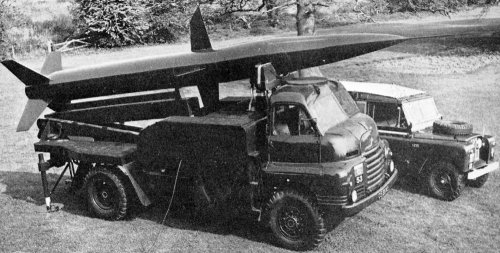

Looks to me that it tapers after the rear wheel and then goes straight.



[Barrington Bond]



[robunos]

thanks, BB...

cheers,
Robin.



[Rickshaw]

Thanks for that. I've been giving thought to building a Braille Scale Blue Water and launcher. There's a Bedford RL truck model available, and I have BSP4. It's the shape of the launch truck platform at the rear end that I'm having trouble deducing.

cheers,
Robin.

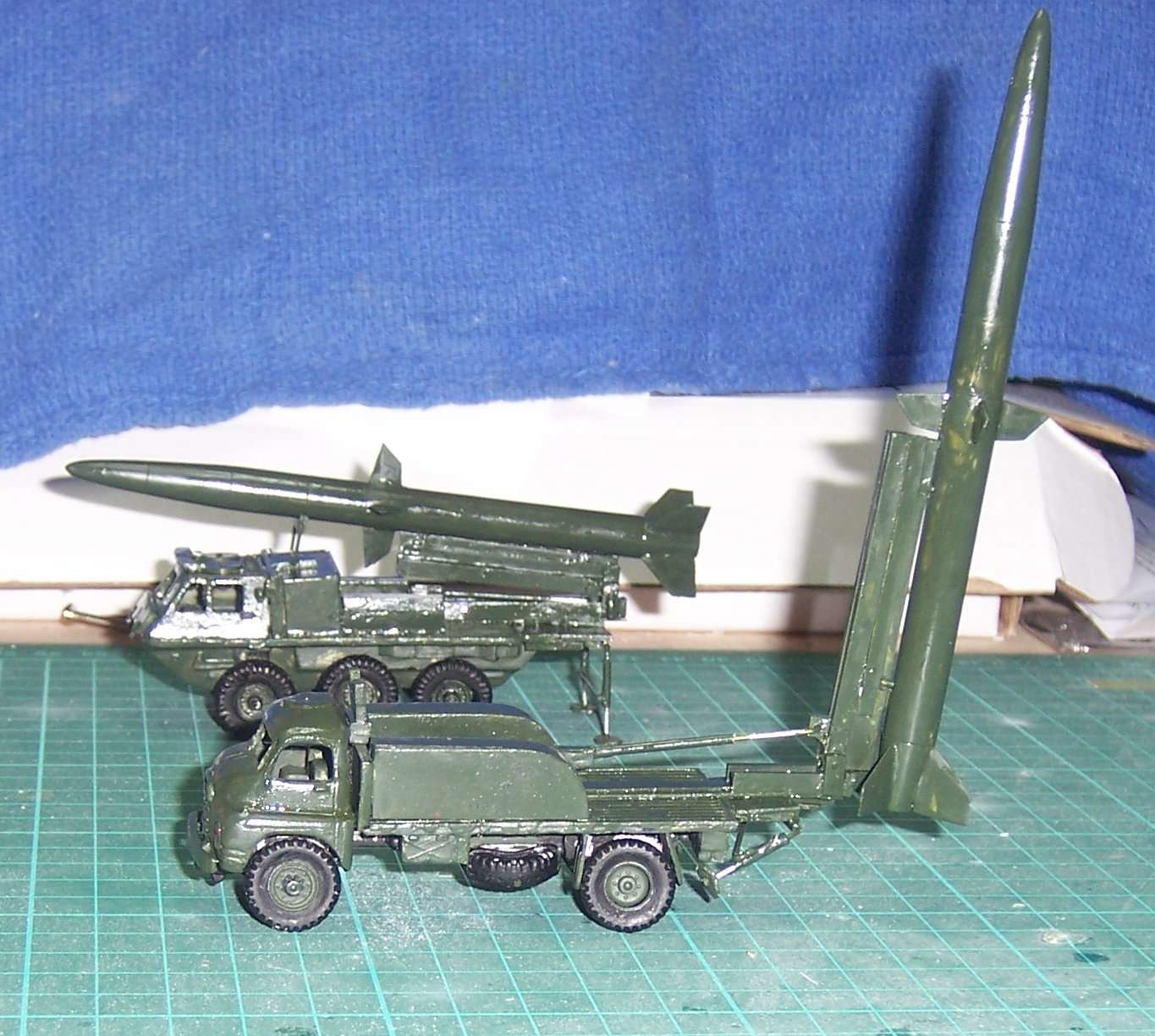

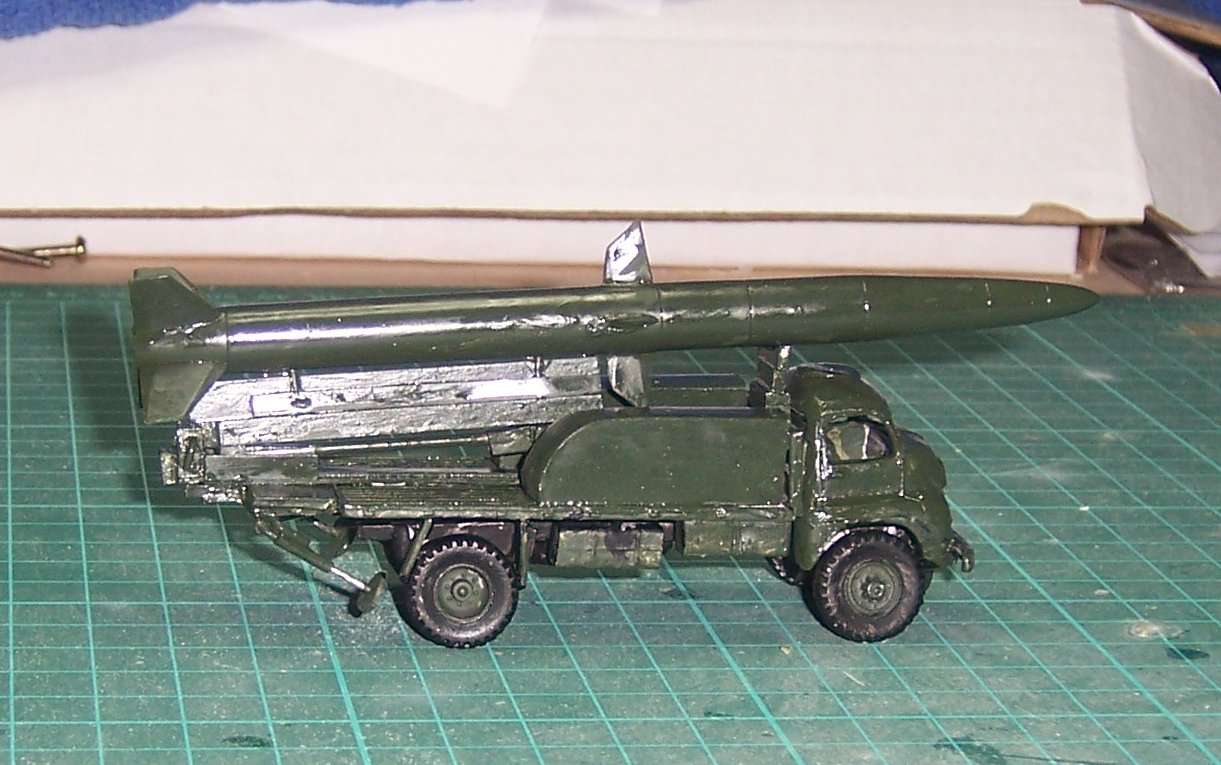

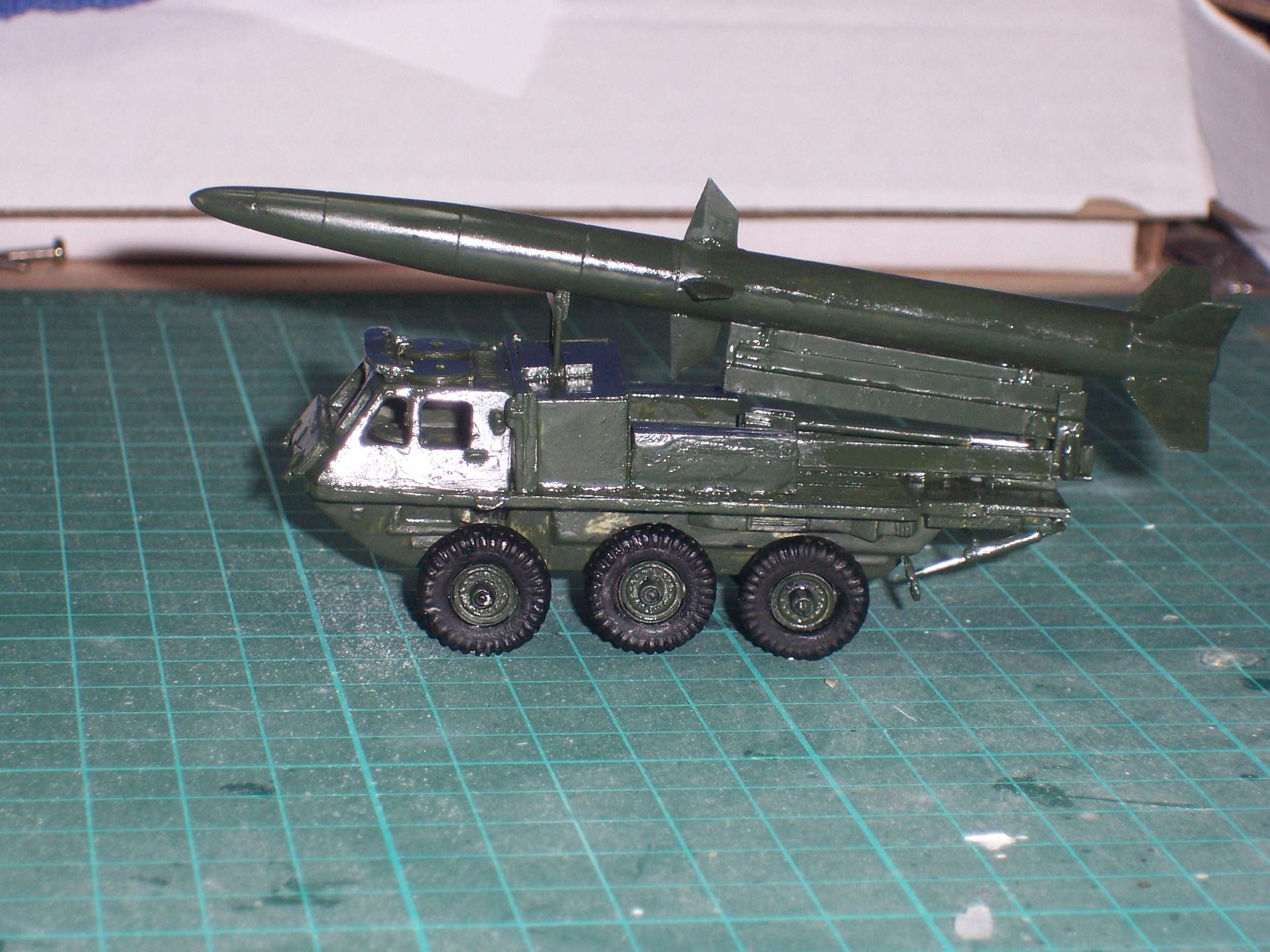

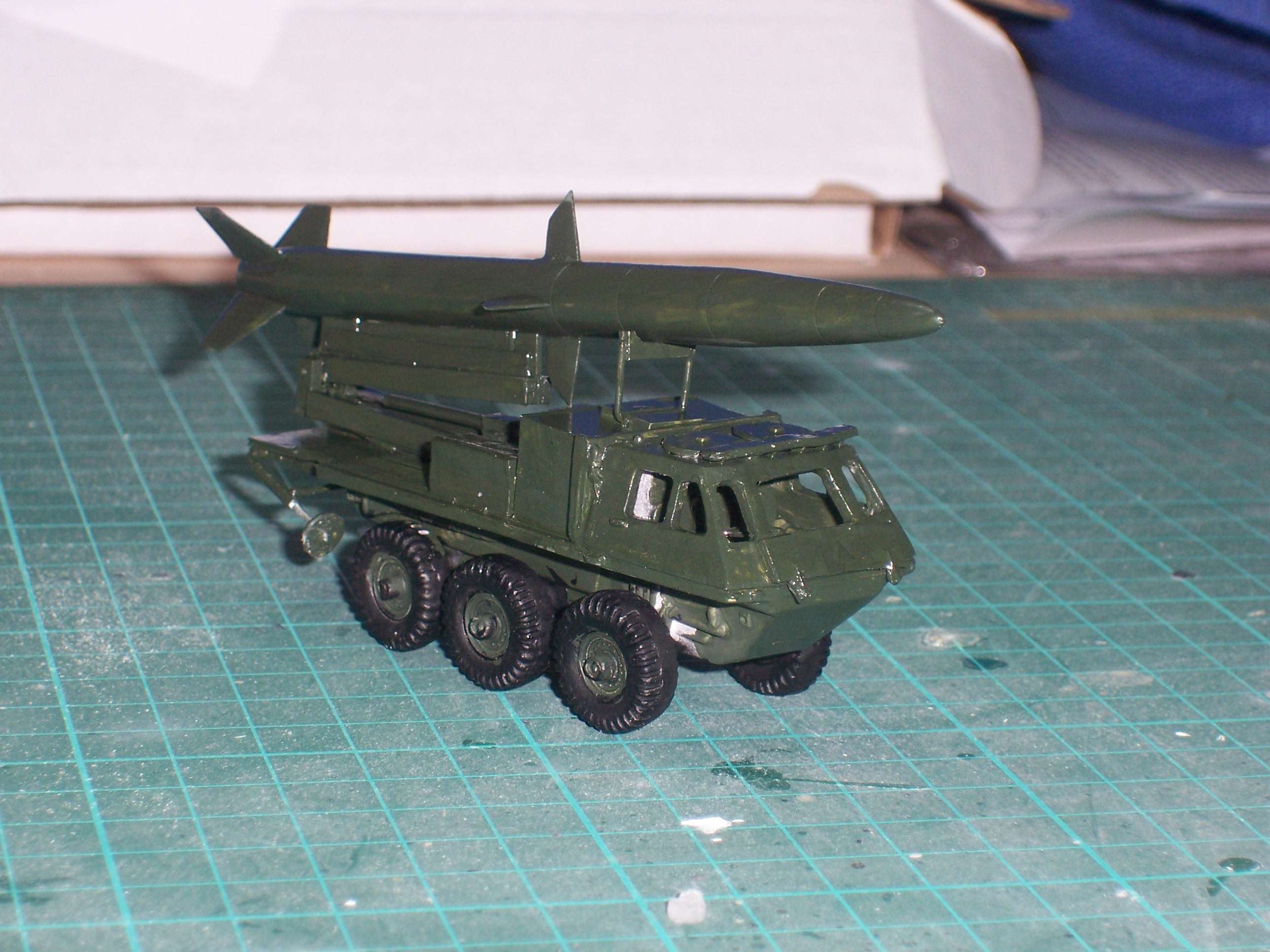

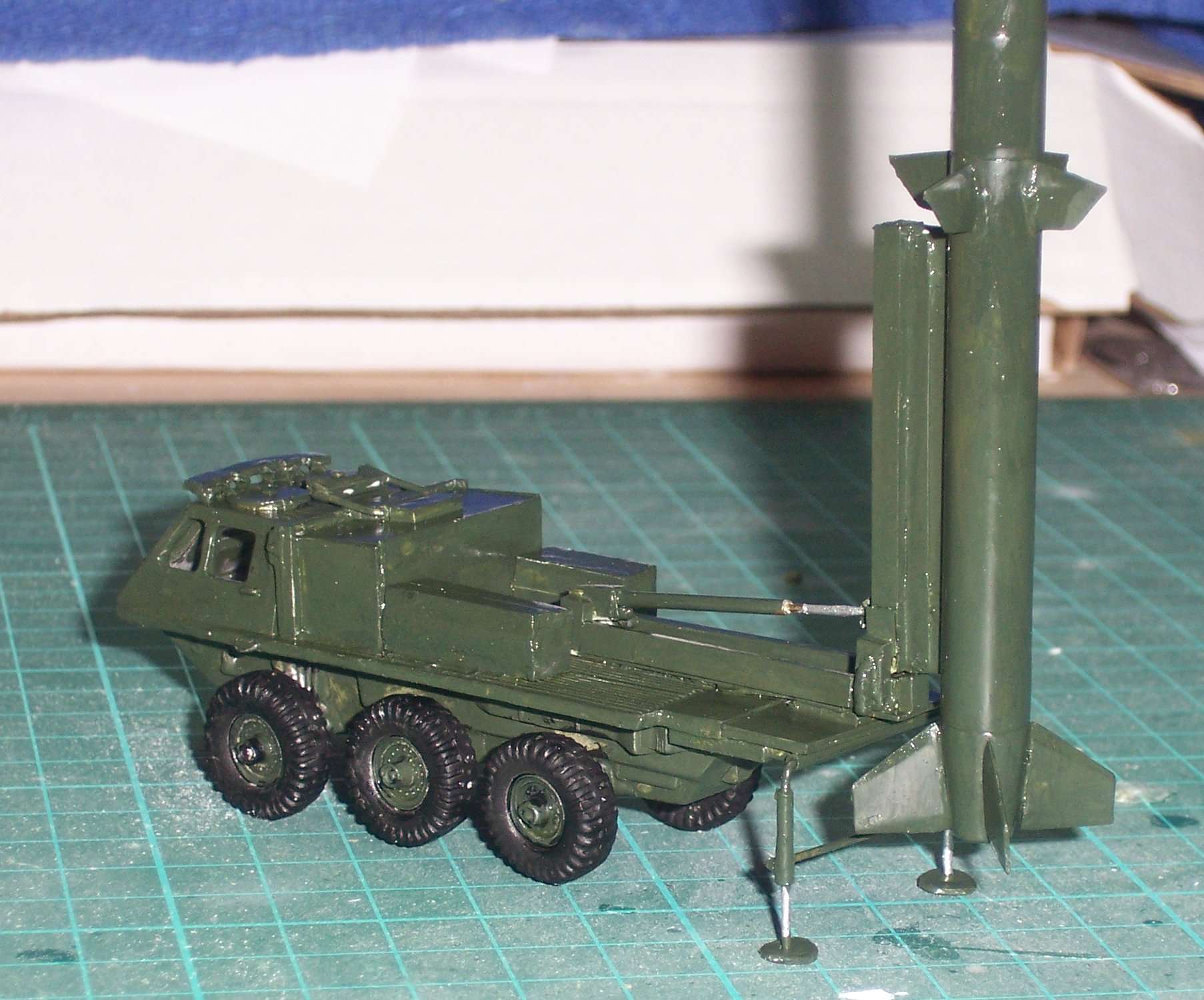

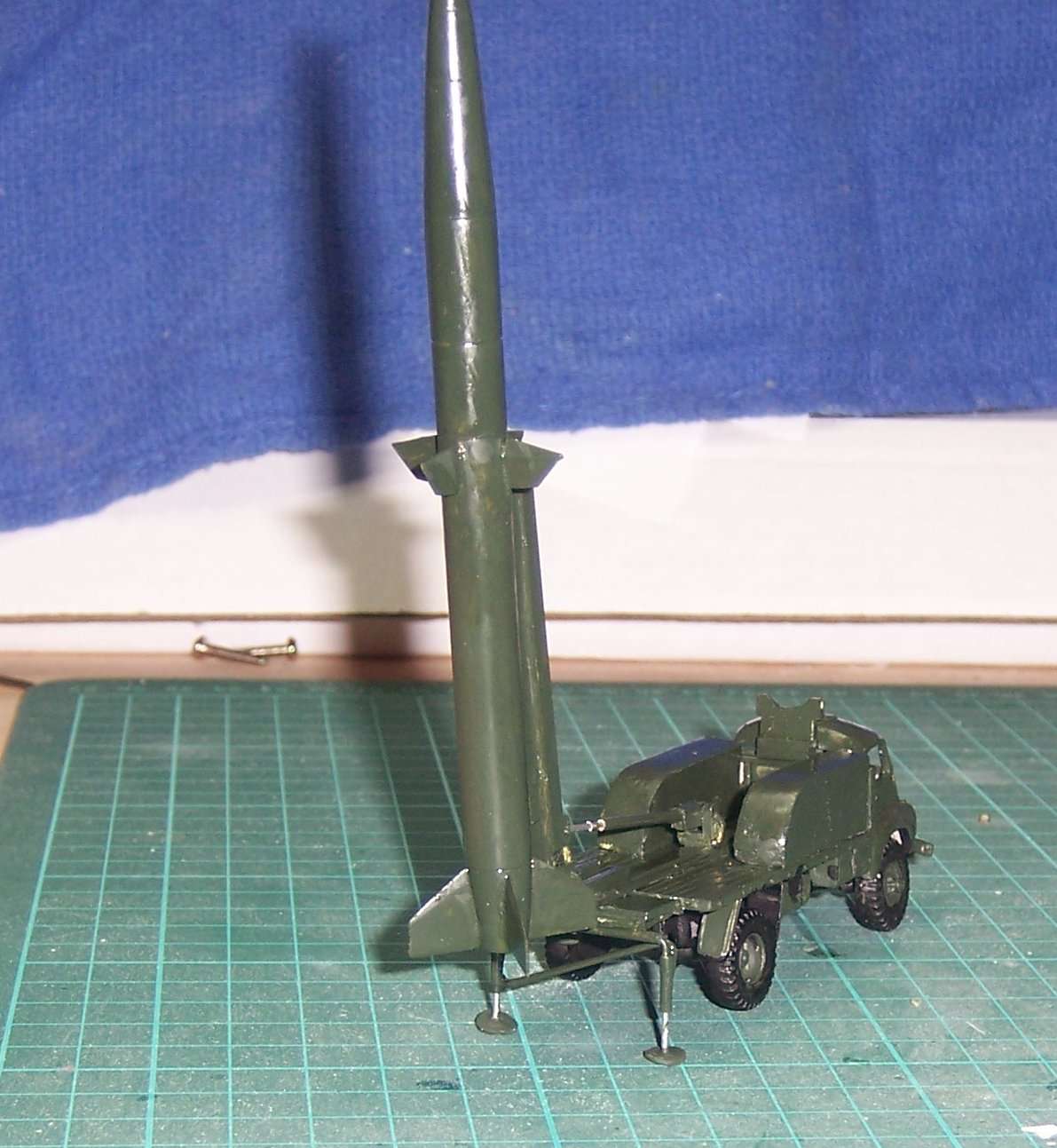

I built two. One on a Bedford truck, the other on a Stalwart.



[uk 75]

I love that Stalwart version. I have also seen reference to a launcher on the FV 432 chassis but no pictures are available. Had the Germans bought Blue Water as hoped they would have used their Man trucks (see pictures of German Sergeants)



[robunos]

Kadija_Man, nice builds, liking the Stolly version...(shame about the glossy finish, though... : )

their Man trucks

Hmm, got one of those in my stash, the 8X8 version...

cheers,
Robin.



[uk 75]

Robunos

If one assumes that Blue Water would have entered service in the mid 60s and served until the end of the Cold War with the British Army of the Rhine and Federal German Army (Heer), and possibly as a NATO system with Belgium, Netherlands as well. a number of carrying options become possible

BAOR Most likely to have been deployed with the Bedford TK style cab and possibly later on the Foden chassis like the FH 70 system vehicles. Tracked and amphibious vehicles like those used to carry Pershing in US Army and W German Luftwaffe service fell out of favour early on and British Stalwarts were rarely used in their intended role. The MAN vehicles (now also used by the British) did not enter service with the Germans until the 70s so initial systems trucks would have been the Magirus Deutz (see the Roco Minitanks 1-87 range).

British Army used gloss green vehicles until the 70s when the matt green and black camo finish took over, though UK based vehicles took longer to go camo than those in BAOR.



[robunos]

BAOR Most likely to have been deployed with the Bedford TK style cab

Apart from the cab, is it known whether the production vehicle have been the same as the RL based demonstrator?

Foden chassis like the FH 70 system vehicles

Is this the same chassis as used by the DROPS vehicle? As there is a kit of this available, too.

British Army used gloss green vehicles until the 70s

Ooops........... :-[
But had hostilities broken out, they wouldn't have deployed in this scheme, surely...
Also, had the Heer used the MAN trucks, which version? 4x4, 6x6, or 8x8?

cheers,
Robin.



[uk 75]

I am afraid my comments are all guesswork. The only source for an alternative Blue Water launcher is the Alvis ad for the Stalwart. Reference is made to a version mounted on FV 432 but no image seen.

My comments on the German launcher are based purely on what they did with Sergeant.

At a guess the launcher on the MAN chassis would be 6X6 like that used for Roland.



[Rickshaw]

British Army used gloss green vehicles until the 70s

Ooops........... :-[
But had hostilities broken out, they wouldn't have deployed in this scheme, surely...

Do you think they'd have repainted them in the four minutes? Would the colour have really mattered?



[robunos]

Do you think they'd have repainted them in the four minutes? Would the colour have really mattered?

Well obviously, if the first sign of war was the Four Minute Warning, then no, but there may have been a period of escalating tension, ala the Cuban Missile Crisis. This would have given time for the missiles to be dispersed from their peacetime bases, to forward operating locations.
I would have thought that commanders would have wanted to hide this movement from Soviet reconnaissance, so at the very least would have ordered a flatting down of the gloss finish, maybe also a coat of seasonal (e.g. winter whitewash) camoflage...

cheers,
Robin.



[Rickshaw]

I rather think the long, cylinderical missile on top would have been more of a give away than the sheen of the gloss paint. The gloss paint would only have been important if you consider the period of tension or conflict to have been extended. Sure, if its longer than a few days , whack a load of mud on it. If it lasts a month, you might have time to get them repainted. Otherwise you're out on deployment, constantly moving.
