Hi Blackburn B-54 and B-88 shipborne, anti-submarine aircraft, Fairey Gannet competitor.
https://www.baesystems.com/en/heritage/blackburn-b-54-and-b-88
"The first design in this series was the Blackburn B54 or YA5. This type was designed around the proposed Napier Double-Naiad turbo-prop engine, driving co-axial contra-rotating propellers. A deep fuselage contained a weapons bay and a radar system with a retractable radome under the rear fuselage.
The monoplane design featured a tricycle undercarriage and an inverted gull-wing, fitted with an effective high-lift flap system drawing upon experience with the Blackburn B-48 Firecrest. The crew sat in tandem under a long cockpit enclosure. Not wanting to depend on a different, untried powerplant, the design was similar in its general concept to the Fairey Gannet.
When development of the Napier Double Naiad was cancelled, the first prototype (WB781) was completed with a 2,000 hp Rolls-Royce Griffon 56 engine, driving two, three-blade contra-rotating propellers. At the same time, the type designation was updated from YA5 to YA7."
View: https://www.flickr.com/photos/27862259@N02/6003502923/in/photostream/lightbox/
https://www.baesystems.com/en/heritage/blackburn-b-54-and-b-88
"The first design in this series was the Blackburn B54 or YA5. This type was designed around the proposed Napier Double-Naiad turbo-prop engine, driving co-axial contra-rotating propellers. A deep fuselage contained a weapons bay and a radar system with a retractable radome under the rear fuselage.
The monoplane design featured a tricycle undercarriage and an inverted gull-wing, fitted with an effective high-lift flap system drawing upon experience with the Blackburn B-48 Firecrest. The crew sat in tandem under a long cockpit enclosure. Not wanting to depend on a different, untried powerplant, the design was similar in its general concept to the Fairey Gannet.
When development of the Napier Double Naiad was cancelled, the first prototype (WB781) was completed with a 2,000 hp Rolls-Royce Griffon 56 engine, driving two, three-blade contra-rotating propellers. At the same time, the type designation was updated from YA5 to YA7."
View: https://www.flickr.com/photos/27862259@N02/6003502923/in/photostream/lightbox/
Attachments
-
b88-1.jpg104.3 KB · Views: 215
-

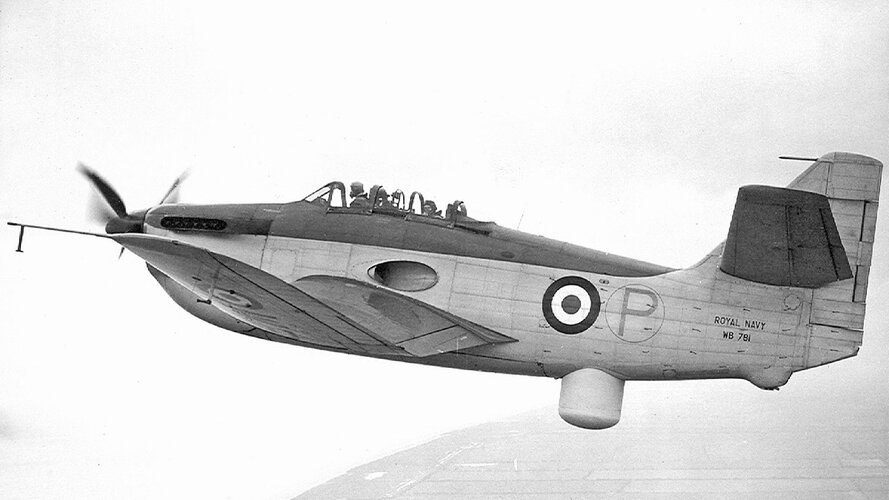

The Blackburn B-54 (YA7) WB781 flying with the revised fin and rudder.jpg305.5 KB · Views: 179
-

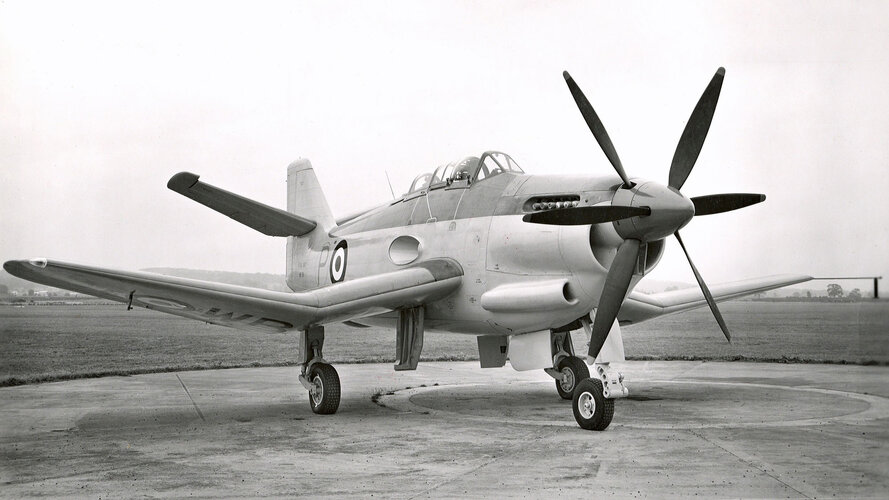

The Blackburn B-54 YA-7 WB781 in September 1949.jpg407.5 KB · Views: 156
-

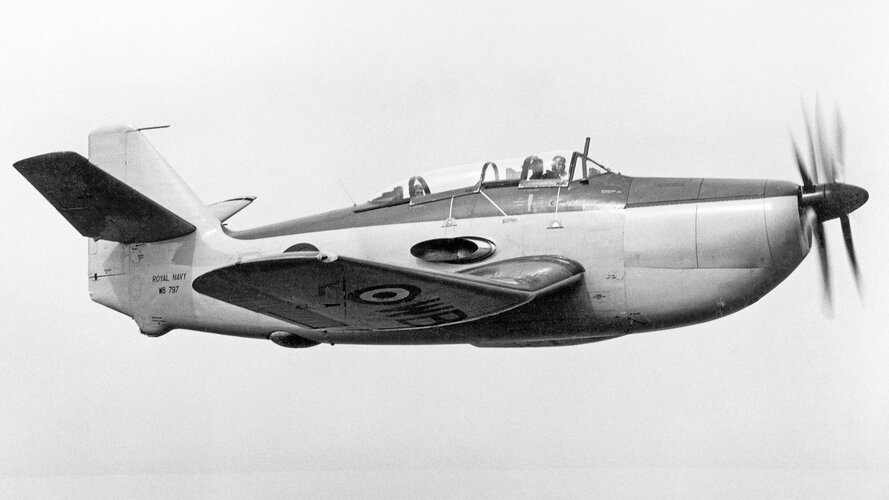

The turboprop Blackburn B-88 (YB1) WB797 photographed on 20th July 1950.jpg331 KB · Views: 164
-

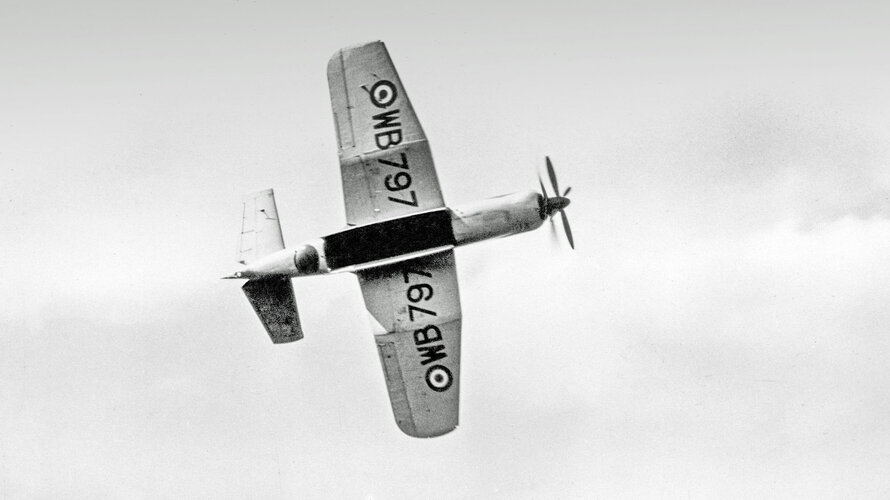

The Blackburn B-88 (YB1) WB797 displays its manoeuvrability and its large weapons bay at the 1...jpg291.7 KB · Views: 173
-

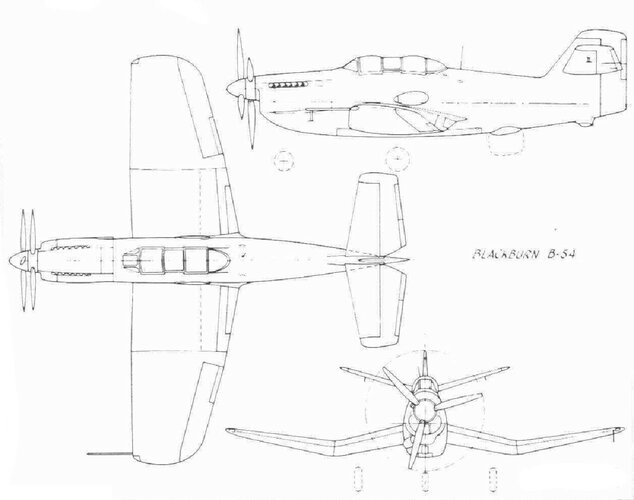

B-54 and B-88.JPG52.4 KB · Views: 196
