BepiColombo-Mercury Space Probe


Published on 13 Apr 2020

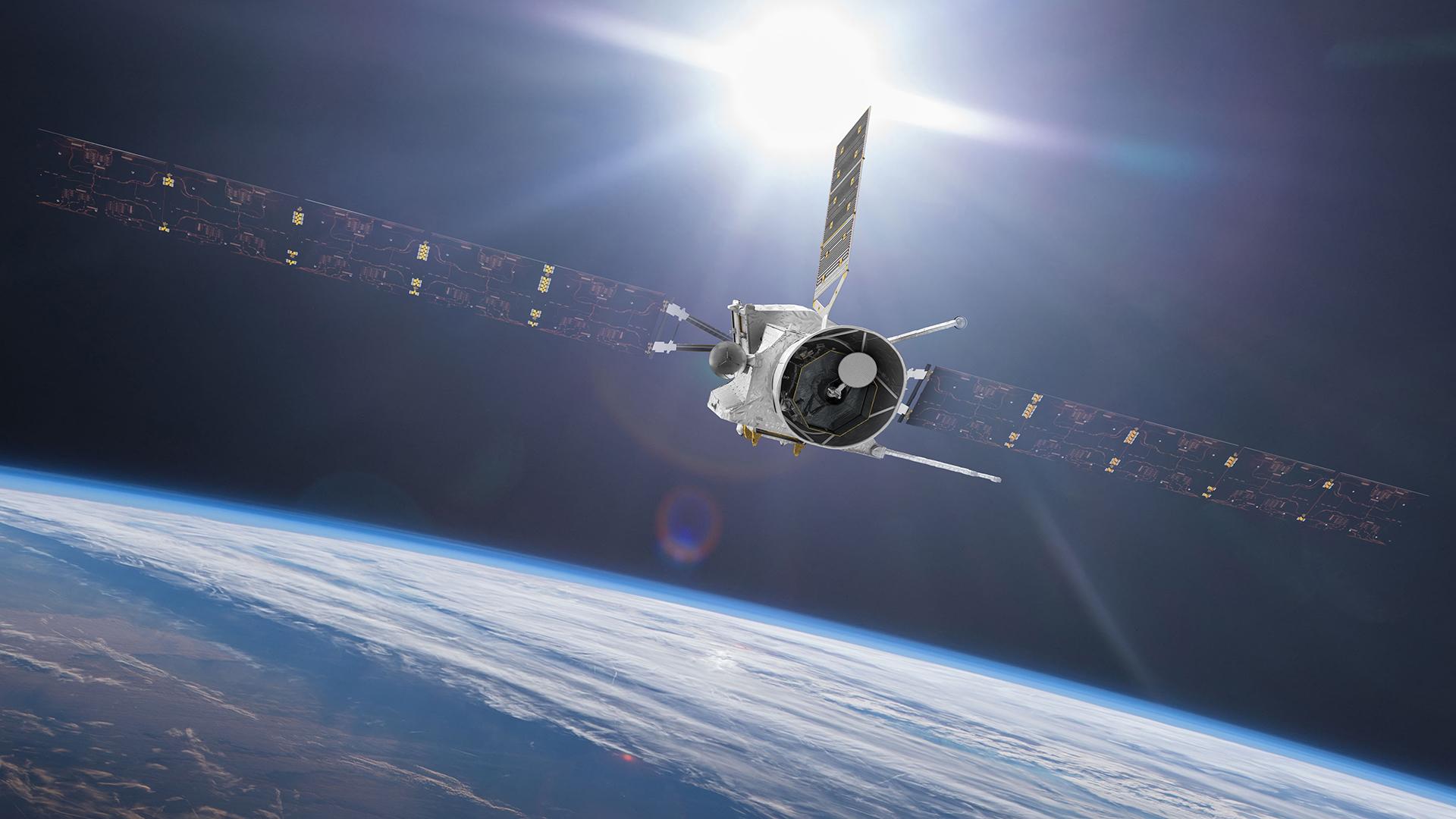

With a simple Google Cardboard-style virtual reality (VR) viewer, you can experience how it feels to be a spacecraft hurtling past Earth. This 360-degree VR simulation of a flyby manoeuvre performed by ESA’s Mercury-bound BepiColombo spacecraft takes you on a trip past Earth at the distance of only 12 700 km, closer than the orbit of Europe’s navigational satellites Galileo.

The simulation displays the field of view of two of BepiColombo’s science instruments (MERTIS and PHEBUS) and two of its three MCAM selfie cameras during the gravity-assist flyby at Earth on 10 April 2020.

The simulation was created using the SPICE software developed by NASA’s Jet Propulsion Laboratory and data generated by the European Space and Astronomy Centre (ESAC)in Spain.

BepiColombo, a joint mission of ESA and the Japan Aerospace Exploration Agency (JAXA), is on a seven-year cruise to Mercury, the smallest and innermost planet of the Solar System. Launched in October 2018, BepiColombo follows an intricate trajectory that involves nine gravity-assist flyby manoeuvres. In addition to the flyby at Earth, BepiColombo will perform two flybys at Venus and six at Mercury, its target planet. The manoeuvres slow down the spacecraft as it needs to constantly brake against the gravitational pull of the Sun in order to be able to enter the correct orbit around Mercury in 2025, ahead of commencing science operations in early 2026.

Credit: ESA SPICE Service/RHEA Group.


Published on 13 Apr 2020
With a simple Google Cardboard-style virtual reality (VR) viewer, you can experience how it feels to be a spacecraft hurtling past Earth. This 360-degree VR simulation of a flyby manoeuvre performed by ESA’s Mercury-bound BepiColombo spacecraft takes you on a trip past Earth at the distance of only 12 700 km, closer than the orbit of Europe’s navigational satellites Galileo.

The simulation displays the field of view of two of BepiColombo’s science instruments (MERTIS and PHEBUS) and two of its three MCAM selfie cameras during the gravity-assist flyby at Earth on 10 April 2020.

The simulation was created using the SPICE software developed by NASA’s Jet Propulsion Laboratory and data generated by the European Space and Astronomy Centre (ESAC)in Spain.

BepiColombo, a joint mission of ESA and the Japan Aerospace Exploration Agency (JAXA), is on a seven-year cruise to Mercury, the smallest and innermost planet of the Solar System. Launched in October 2018, BepiColombo follows an intricate trajectory that involves nine gravity-assist flyby manoeuvres. In addition to the flyby at Earth, BepiColombo will perform two flybys at Venus and six at Mercury, its target planet. The manoeuvres slow down the spacecraft as it needs to constantly brake against the gravitational pull of the Sun in order to be able to enter the correct orbit around Mercury in 2025, ahead of commencing science operations in early 2026.

Credit: ESA SPICE Service/RHEA Group.

An interesting find Flyaway. That is something I will be trying later.

Could you let me know how it looks as I don’t have the setup to view it properly, and it just looks odd on my television. Even on my phone I wasn’t really getting the full effect.

The topic name has a typo: is Bepi Colombo and not "Columbo"...

Just found out how to delete the typo, sorry about that guys, that was down to my old computers highly sensitive keyboard. Thankfully my new computers keyboard is much better.

View: https://twitter.com/esa_bepi/status/1315946307866025985


I'm still a couple of days from closest approach but I've started collecting #data while in #Venus neighbourhood! Will be trying some of these observations... and maybe have some time for solar wind surfing?! ☀〰〰‍♂

#BepiColomboVenusFlyby

esa.int/ESA_Multimedia…

The solar wind surfing sounds like it is going to be interesting, as I have an avid interest in all things Sol related. I cannot wait until the data gets released.

View: https://twitter.com/esa_bepi/status/1315946307866025985


I'm still a couple of days from closest approach but I've started collecting #data while in #Venus neighbourhood! Will be trying some of these observations... and maybe have some time for solar wind surfing?! ☀〰〰‍♂

#BepiColomboVenusFlyby

esa.int/ESA_Multimedia…

The solar wind surfing sounds like it is going to be interesting, as I have an avid interest in all things Sol related. I cannot wait until the data gets released.

That's a coincidence - I have an avid interest in all things wind surfing related! I haven't actually sailed in years but it was my No. 1 pastime back in 2009 when I briefly worked on the Bepi Colombo project at Astrium in Stevenage

Sights and sounds of a Venus flyby
13/08/2021

ESA’s Solar Orbiter and BepiColombo spacecraft made a historic Venus flyby earlier this week, passing by the planet within 33 hours of each other and capturing unique imagery and data during the encounter.

Solar Orbiter flew past Venus on 9 August at a distance of 7995 km, while BepiColombo skimmed past at just 552 km from the planet’s surface on 10 August. The flybys were needed to give the spacecraft a gravity assist to help them reach their next destinations. BepiColombo will make the first of six flybys at Mercury during the night of 1-2 October, before entering orbit in 2025. Solar Orbiter will make a close Earth flyby on 27 November, before further Venus slingshots will tilt its inclination in order to get the first-ever views of the Sun’s poles.

The Venus flybys required extremely precise deep-space navigation work, ensuring that the spacecraft were on the correct approach trajectories accurate to within just a few kilometres at a distance of 187.7 million km from Earth.


Feeling the heat

As expected during BepiColombo’s close flyby, the spacecraft modules felt a rapid increase of heat as it passed from the nightside to dayside of the planet. The JAXA Mercury Magnetospheric Orbiter (MMO), situated inside the sunshield, recorded an increase of 110 degrees Celsius on one of its eight solar panels, from -100ºC to +10ºC. Within the spacecraft itself only an increase of 2-3 degrees was observed, demonstrating the effectiveness of the insulation.

On the European Mercury Transfer Module, a temperature increase of 50 degrees was observed on the spacecraft radiator, while the Mercury Planetary Orbiter (MPO) recorded a change of about 20 degrees.

Gravity tug

Both Solar Orbiter and BepiColombo also felt the immense gravitational pull of the planet in the angular momentum of their reaction wheels, which are used to maintain spacecraft attitude, keeping it pointing on course.

The Italian Spring Accelerometer (ISA) onboard the BepiColombo MPO recorded the accelerations measured by the spacecraft with great sensitivity. The ISA team then translated the acceleration data into frequency to make them audible to the human ear. The resulting sound is rich with interesting effects due to the planet’s gravity acting on the spacecraft structure, the response of the spacecraft to the rapid temperature changes, and the reaction wheels that are working hard to compensate for these effects.

The accelerometer also felt the tidal effects acting on the spacecraft as it flew at different distances past Venus. The very small difference in gravitational attraction between BepiColombo’s centre of mass and ISA relative to Venus could be detected, the first time an accelerometer recorded this effect at another planet. The team is analysing this precious data and will use the measurement as a reference to fine-tune the instrument ahead of the scientific phase at Mercury.

Multipoint science

Many of the science instruments were on during the flybys, using the opportunity to collect data on the Venusian magnetic, plasma and particle environment around the spacecraft. Moreover, the unique aspect of the dual flyby is that the two datasets can be compared from locations not usually sampled by a planetary orbiter.

The magnetometer teams from both spacecraft report they saw the effects of the flyby in their data, allowing a rare glimpse into the solar wind interaction with a planetary atmosphere.

The BepiColombo MPO magnetometer team created a simple sonification of the variability of the total magnetic field as they flew past Venus. The audio captures low-frequency wind-like noises caused by the solar wind and its interaction with Venus. The sudden transition of the spacecraft into the very calm solar wind at the bow shock (the location where the planet’s magnetosphere meets the solar wind) is clearly recorded.

The Solar Orbiter magnetometer team also describes the magnetic field increasing in magnitude due to the compression of the field as they travelled past the flanks of the planet, and then a sharp drop as they crossed the bow shock back into the solar wind again.

And while Solar Orbiter crossed through the tail of the magnetosphere and out of the bow shock into the solar wind, BepiColombo was ‘upstream’, so the teams will know the input magnetic field conditions throughout the encounter to see how Venus has affected the solar wind downstream. It will take many weeks to make a detailed analysis of the two datasets.

Sensors on both BepiColombo MPO and MMO were also monitoring for ions circulating in the magnetosphere and in the close vicinity of Venus. Particles follow electromagnetic fields, and are also strongly related to processes in the ionosphere and atmosphere. For example, the SERENA/PICAM ion particle detector on MPO clearly measured a peak in hydrogen ion density during the closest approach. SERENA is the Search for Exospheric Refilling and Emitted Natural Abundances instrument suite and PICAM is the Planetary Ion Camera.

With the close encounter, MPO’s MErcury Radiometer and Thermal infrared Imaging Spectrometer (MERTIS) could capture spectra of the Venus atmosphere while the planet completely filled its field of view. Such high resolution spectra of Venus have not been obtained since the Venera 15 mission in the early 1980s. A first look at the MERTIS data shows the expected band of carbon dioxide and hints of more spectral features. The detailed analysis revealing the thermal structure in the atmosphere and potentially sulphur dioxide abundance will take many weeks. Apart from the scientific value of this data, it will also help to verify the instrument calibration in preparation for the first thermal infrared observations of Mercury by a spacecraft.

Venus photobomb

It was not possible to take high-resolution imagery of Venus with the science cameras onboard either mission, but both could use other instruments to capture black-and-white imagery.

Solar Orbiter’s SoloHI imager observed the nightside of Venus in the days before closest approach. SoloHI usually takes images of the solar wind – the stream of charged particles constantly released from the Sun – by capturing the light scattered by electrons in the wind. In the days leading up to the Venus flyby, the telescope caught the dramatic glare of the planet’s dayside. The footage shows Venus moving across the field of view from the left, while the Sun is off camera to the upper right. The planet's nightside, the part hidden from the Sun, appears as a dark semicircle surrounded by a bright crescent of light.

BepiColombo’s three monitoring cameras captured a series of black-and-white snapshots, starting from the approach over the nightside, through closest approach and in the days after as the planet faded from view. The full set of images from the flyby is available in the Planetary Science Archive.


Where to next?

Solar Orbiter and BepiColombo both have one more flyby this year.

During the night of 1-2 October BepiColombo will see its destination for the first time, making its first of six flybys of Mercury at a distance of just 200 km distance. The two planetary orbiters will be delivered into Mercury orbit in late 2025, tasked with studying all aspects of this mysterious inner planet from its core to surface processes, magnetic field, and exosphere, to better understand the origin and evolution of a planet close to its parent star.

On 27 November, Solar Orbiter will make a final flyby of Earth at 460 km, kicking off the start of its main mission. It will continue to make regular flybys of Venus to progressively increase its orbit inclination to best observe the Sun’s uncharted polar regions, which is key to understanding the Sun’s 11 year activity cycle.



View: https://youtu.be/OwBCBWJLrmY


View: https://youtu.be/RyvqmHo0JSk


View: https://youtu.be/j_RJyaqLkuY

First flyby to Mercury

View: https://twitter.com/ESA_Bepi/status/1441392336521482252


One week 'til our first #MercuryFlyby! Closest approach of about 200 km will be at 23:34 UTC on 1 October. I'll tell you more details about it next week, as we get closer!
#StayTuned #ExploreFarther

Excellent news Flyaway, 1 October cannot come fast enough the first flyby has been a long time coming. I wonder if BepiColombo will do any science on the first flyby? I certainly hope so.


BepiColombo’s second Mercury flyby

Key moments during BepiColombo’s second Mercury flyby on 23 June 2022. The spacecraft will skim the surface at an altitude of about 200 km at its closest approach, at 09:44 UTC (11:44 CEST).

Many of the in situ instruments will be on and collecting data as usual, and BepiColombo’s three monitoring cameras will also be activated. The images will be downlinked during the afternoon of 23 June and released over the following days.

Related article: BepiColombo lines up for second Mercury flyby


BepiColombo’s second Mercury flyby

Key moments during BepiColombo’s second Mercury flyby on 23 June 2022. The spacecraft will skim the surface at an altitude of about 200 km at its closest approach, at 09:44 UTC (11:44 CEST).

Many of the in situ instruments will be on and collecting data as usual, and BepiColombo’s three monitoring cameras will also be activated. The images will be downlinked during the afternoon of 23 June and released over the following days.

Related article: BepiColombo lines up for second Mercury flyby


Looking good Flyaway, cannot wait for the data to be downloaded. Only three days to wait. I wonder how the images will compare with NASAs Messenger probe, hopefully a lot clearer considering how long it has been since Messenger visited Mercury.

BepiColombo surveys Mercury’s rich geology

The ESA/JAXA BepiColombo mission captured this beautiful view of Mercury’s rich geological landscape on 23 June 2022 as the spacecraft flew past the planet for a gravity assist manoeuvre.

The image was taken at 09:49:22 UTC by the Mercury Transfer Module’s Monitoring Camera 2, when the spacecraft was within about 920 km from the surface of Mercury. Closest approach of about 200 km took place shortly before, at 09:44 UTC. In this view, north is roughly towards the top right.

The cameras provide black-and-white snapshots in 1024 x 1024 pixel resolution. The image has been interpolated to 2048 x 2048 pixels to sharpen the details. Some imaging artefacts such as horizontal striping are also visible.

Parts of the Mercury Planetary Orbiter can also be seen, notably the magnetometer boom running from bottom left to top right, and a small part of the medium-gain antenna at bottom right. The magnetometer boom roughly follows the ‘terminator’– the boundary between the night and day side of the planet. The lighting conditions in this image are different to any recorded by NASA’s MESSENGER mission to Mercury for this region, enhancing the differences between smooth terrains and older rough terrains. Large impact craters, including a 200 km wide multi-ringed basin partly hidden by the magnetometer boom can also clearly be made out along with other geological features.

View: https://twitter.com/BepiColombo/status/1539973407852269570

View: https://twitter.com/BepiColombo/status/1540259362345832448

BepiColombo surveys Mercury’s rich geology

The ESA/JAXA BepiColombo mission captured this beautiful view of Mercury’s rich geological landscape on 23 June 2022 as the spacecraft flew past the planet for a gravity assist manoeuvre.

The image was taken at 09:49:22 UTC by the Mercury Transfer Module’s Monitoring Camera 2, when the spacecraft was within about 920 km from the surface of Mercury. Closest approach of about 200 km took place shortly before, at 09:44 UTC. In this view, north is roughly towards the top right.

The cameras provide black-and-white snapshots in 1024 x 1024 pixel resolution. The image has been interpolated to 2048 x 2048 pixels to sharpen the details. Some imaging artefacts such as horizontal striping are also visible.

Parts of the Mercury Planetary Orbiter can also be seen, notably the magnetometer boom running from bottom left to top right, and a small part of the medium-gain antenna at bottom right. The magnetometer boom roughly follows the ‘terminator’– the boundary between the night and day side of the planet. The lighting conditions in this image are different to any recorded by NASA’s MESSENGER mission to Mercury for this region, enhancing the differences between smooth terrains and older rough terrains. Large impact craters, including a 200 km wide multi-ringed basin partly hidden by the magnetometer boom can also clearly be made out along with other geological features.

View: https://twitter.com/BepiColombo/status/1539973407852269570

View: https://twitter.com/BepiColombo/status/1540259362345832448

Truly spectacular images Flyaway, and to also see a candidate volcano as well, not bad for the first flyby. Looking forward to seeing many more images as BepiColombo gets closer into Mercury. :cool:

Darmstadt we have problem

The ESA/JAXA BepiColombo mission to Mercury has experienced a technical issue
that is preventing its thrusters from operating at full power.
Top spaceflight experts from ESA and its partners are working the problem, but the long-term impact on the mission is uncertain.

If they lucky BepiColombo enter years later into Mercury orbit
in worst case it stuck on flyby orbit around Sun Mercury

Source ESA
