Benes-Mraz Prototypes and Projects

[hesham]

Hi,

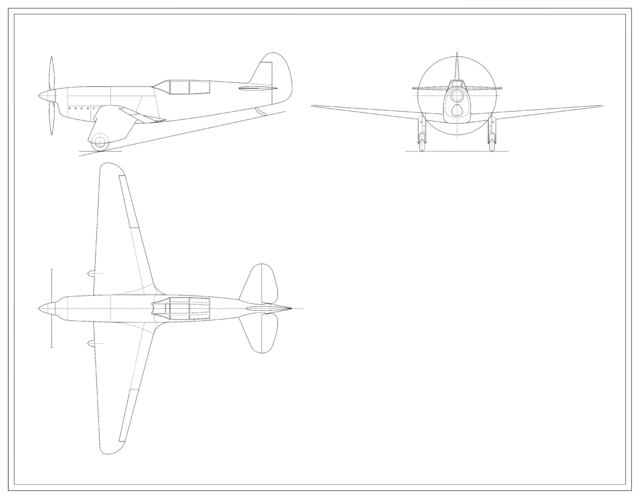

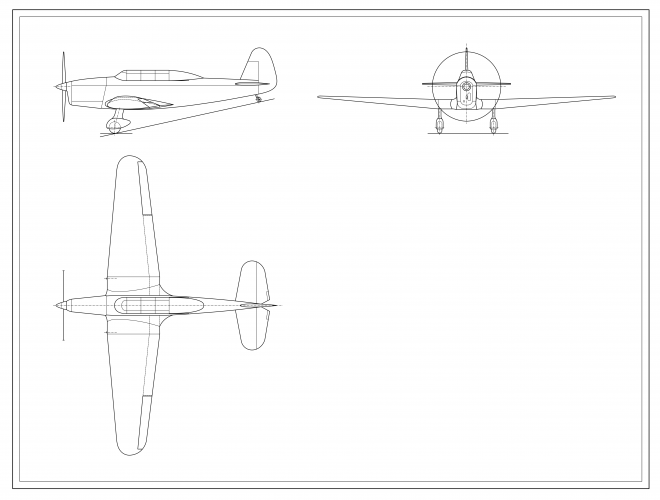

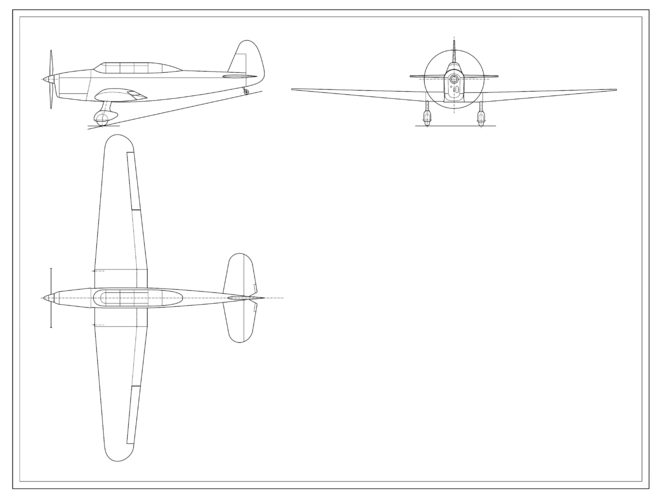

has anyone a more info or drawing about Benes-Mraz Be.352 light
aircraft project of 1939 ?.


http://de.wikipedia.org/wiki/Beneš-Mráz



[redstar72]

Re: Benes-Mraz Be.352 Light Aircraft Project

Hi Hesham!

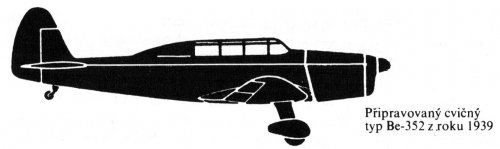

From V. Němeček. Československa letadla (I) 1918-1945. - Praha, Naše vojsko, 1983. - P.201.
Engine: Walter Major 6 (190/205 hp). Maximum speed (estimated): 300 km/h.



[hesham]

Excellent my dear Redstar72,


thank you.



[hesham]

Here is some Benes-Marz Projects;

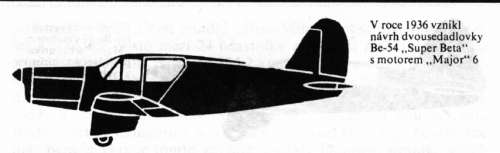

Be-54 was two-seat low-wing fixed landing gear light aircraft project of 1936,called
Super Beta,powered by one Major 6 engine.

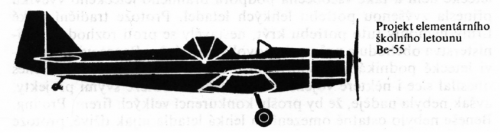

Be-55 was two-seat elementary school trainer low-wing aircraft project,with retractable
landing gear.

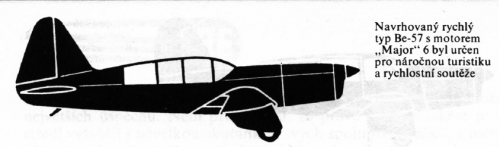

Be-57 was a high-speed tourist low-wing aircraft project,with fixed landing gear and
powered by one Major 6 engine.

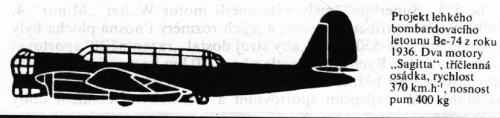

Be-74 was a twin engined low-wing medium bomber project of 1936,with retractable
landing gear,estimated speed of 370 km/h,and powered by two Walter Sagitta
engines.

Be-75 was a high-speed low-wing mail carrier aircraft project of 1936,with retractable
landing gear,estimated speed 500 km/h and powered by two Walter Sagitta
engines.

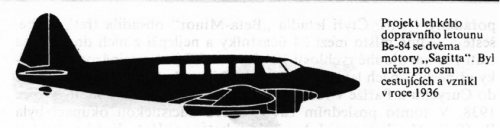

Be-84 was a low-wing eight-seat light transport aircraft project of 1936,with retractable
landing gear and powered by two Walter Sagitta engines.

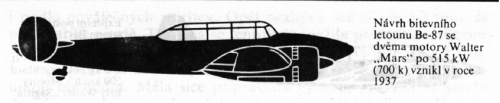

Be-87 was a low-wing light bomber aircraft project of 1937,with retractable landing gear
and powered by two 515 hp Walter mars engines.

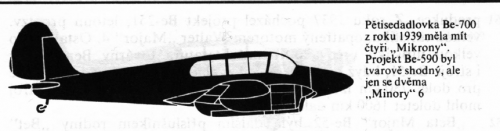

Be-700 & Be-590 was a four engined low-wing light transport aircraft projects of 1939,with
retractable landing gear and powered by four Mikrony (700) or Minory (590)
engines.

Ceskoslovenska Letadla 1



[LAW]

Be-700 & Be-590 was a four engined low-wing light transport aircraft projects of 1939,with
retractable landing gear and powered by four Mikrony (700) or Minory (590)
engines.

To be exact:

Be-700 -- five seat light transport, four Walter Mikron engines

Be-590 -- the same airframe, two Walter Minor engines

Regards,

LAW



[hesham]

Thank you LAW.



[hesham]

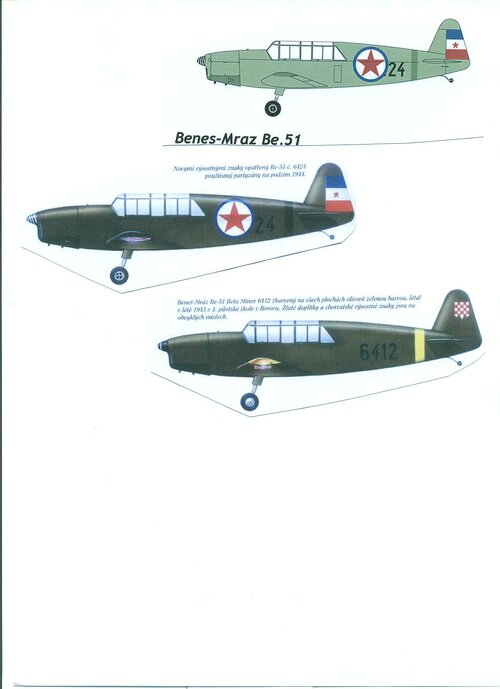

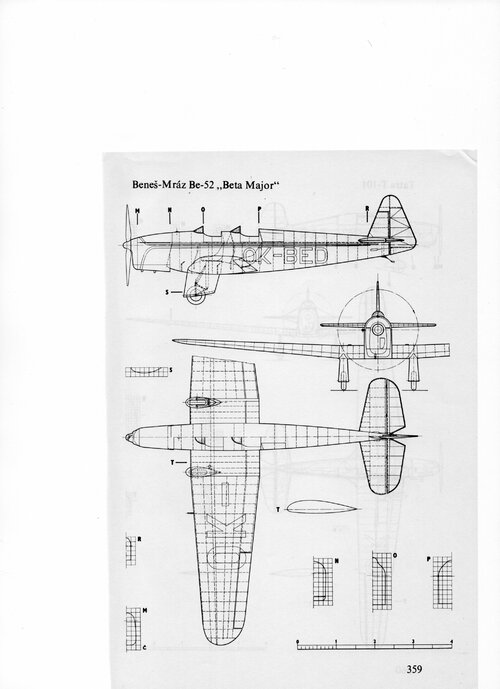

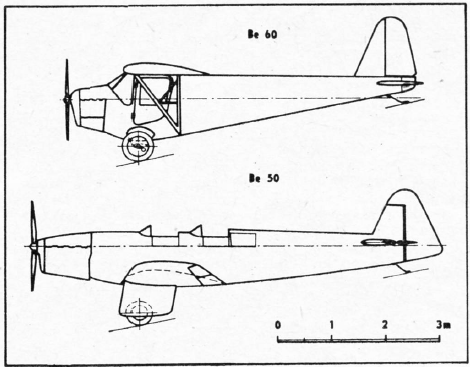

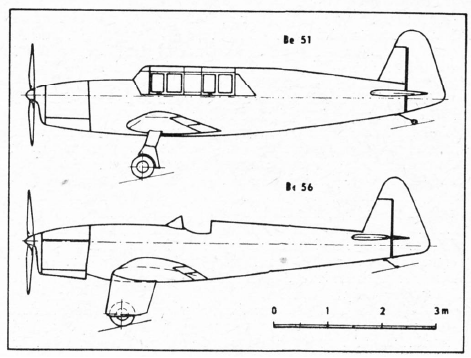

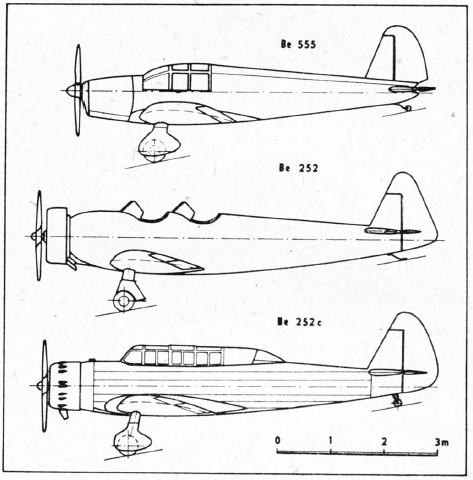

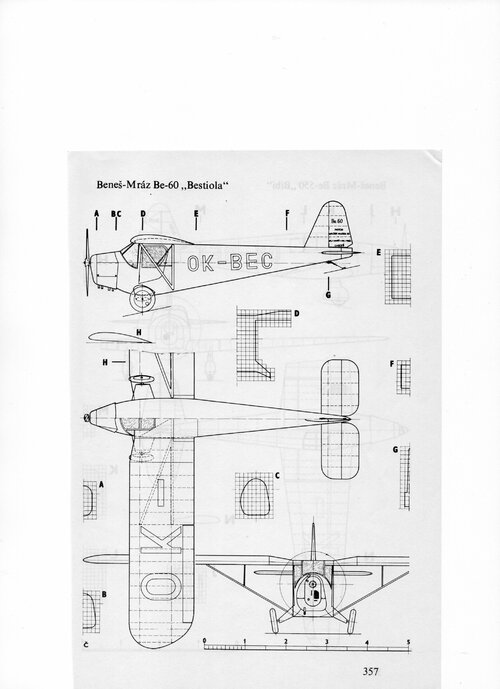

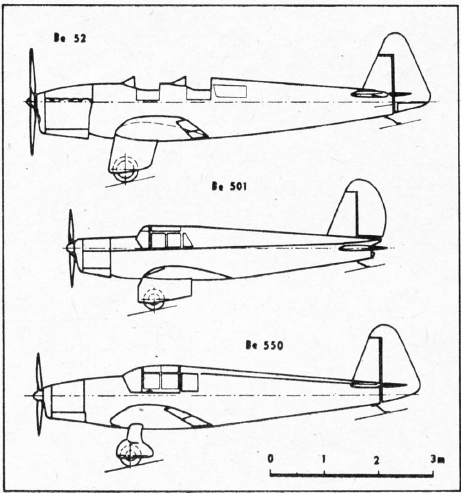

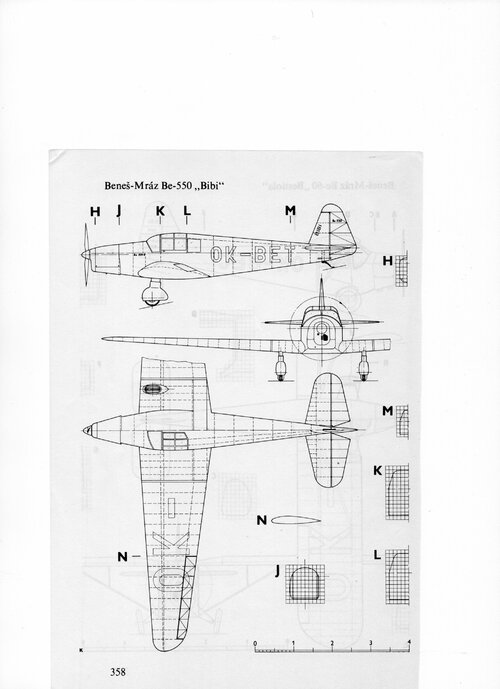

Some of its light aircraft drawings.

L+K 4/1975



[hesham]

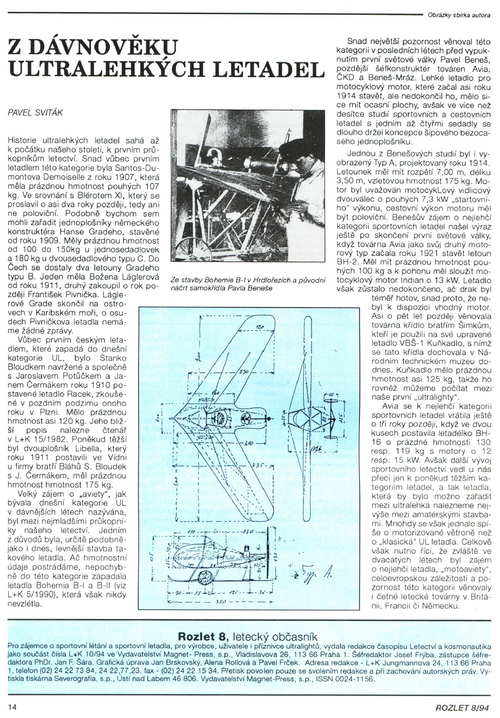

From L+K 10/1994,

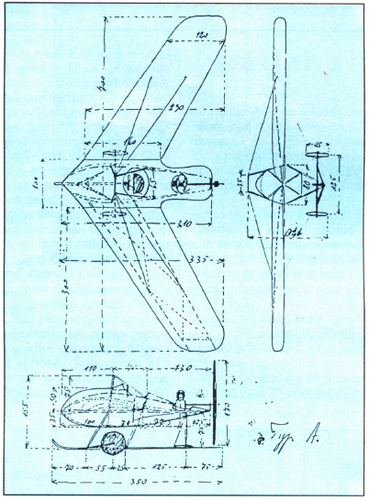

here is a Type-A Tailless ultra-light monoplane,designed by Mr. Benes in 1914,never finished.



[hesham]

From L+K 10/1994,

here is a Type-A Tailless ultra-light monoplane,designed by Mr. Benes in 1914,never finished.

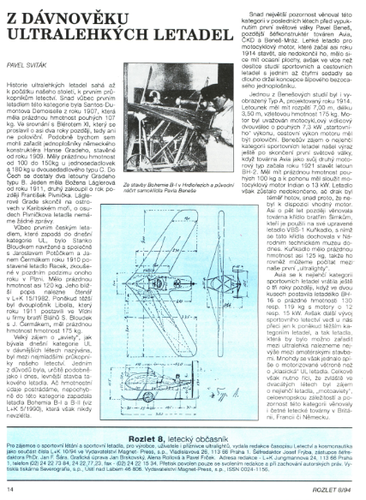

A large view to the page.



[Aubi]

"Pavel Beneš made around 1914 more than ten different studies of various sporting and passenger airplanes with one to four seats, most of them as tailless arrow-shaped monoplanes. One of those studies was the Type A from 1914 with the span of 7 m / 23 ft, lenght 3,5 m / 11 ft 6 in and take-off weight of 175 kg / 386 lb. Projected engine was a motorcycle V2 with 7,3 kW / 9.9 hp take-off power, cruising powere would be half of that. "



[Sarastro]

Hi,
at the beginning of 1935 ing. Benes (after previous work in Avia and CKD-Praga) founded the aviation department in the company of ing. Mraz. Ing. Mraz owned a company where he manufactured refrigeration equipment and decided to expand his business portfolio. Their joint venture was successful and within four years (until March 1939, when the occupation of Czechoslovakia by Nazi Germany began) the company built a total of thirteen prototype aircraft and delivered nearly one hundred aircraft to customers. In addition to serial aircraft, many projects were created by this company, let's imagine those that have been preserved in the NTM aviation archive...

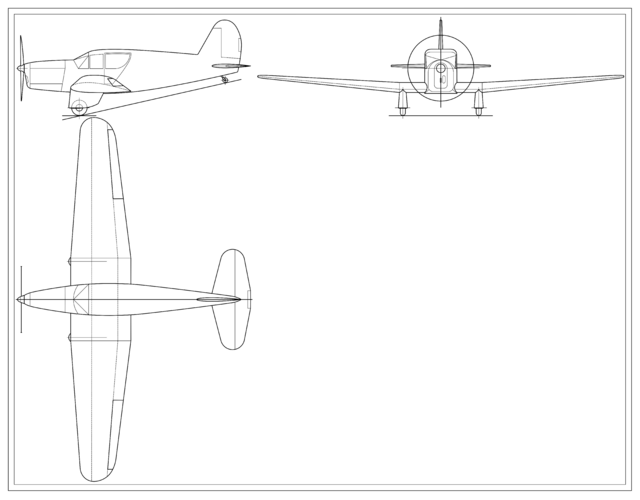

The study of the all-wood four-seater Be-54 "Super-Beta" dates from April 1936. Apart from the drawing, the NTM archive does not preserve even the basic dimensions of this aircraft. It was to be powered by a 190 hp Walter Major 6 engine.



Source: aeronautical archive NTM Prague



[Sarastro]

Hi,

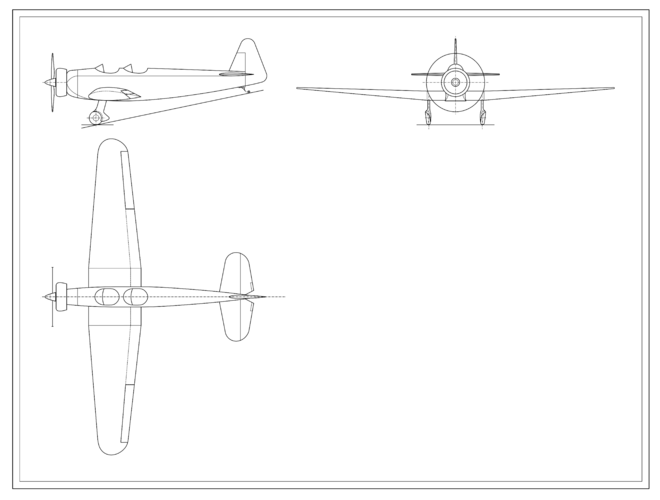

project of the Benes-Mraz Be-55 „Beta-Minor" trainer aircraft. Even for this project the dimensions are not shown on the original drawing. The scale of the drawing is also missing... Engine: Walter Minor 85 hp.


Source: aeronautical archive NTM Prague



[Sarastro]

Hi,

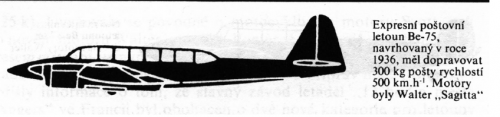

the Benes-Mraz Be-75 was a project for a two-seater aircraft for the transport of express mail (300 kg) from the turn of 1936/37.
Engine: 2*Walter Sagitta 450 hp, wingspan: 17 m, length: 11,25 m, height: 2,6 m, empty weight 2 600 kg, standard gross weight 3 900 kg, maximum speed: 500 km/h, cruising speed 410 km/h, service ceiling 9 000 m, range 1 700 km.

Source: aeronautical archive NTM Prague



[Sarastro]

Hi,

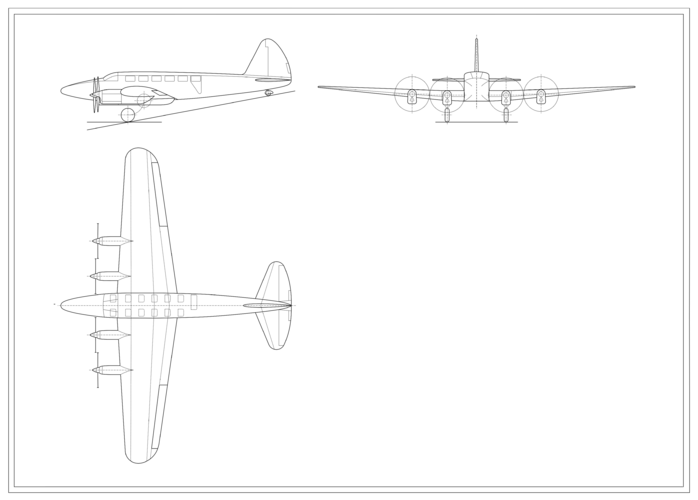

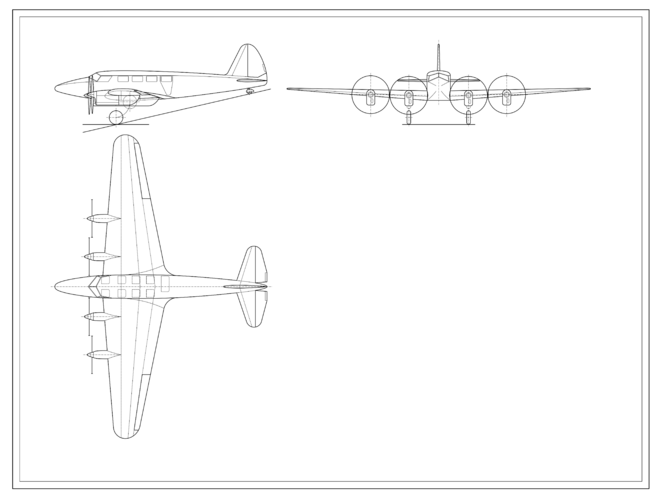

the project of the Benes-Mraz Be-82 all-wooden ten-seater aeroplane from 1937. There are no dimensions or scale on the original drawing... Engine: 4*Walter Major 6 190hp.

Source: aeronautical archive NTM Prague
