Belyayev pusher fighter?

Wurger

ACCESS: Top Secret
Senior Member
Joined
25 October 2007
Messages
1,093
Reaction score
352

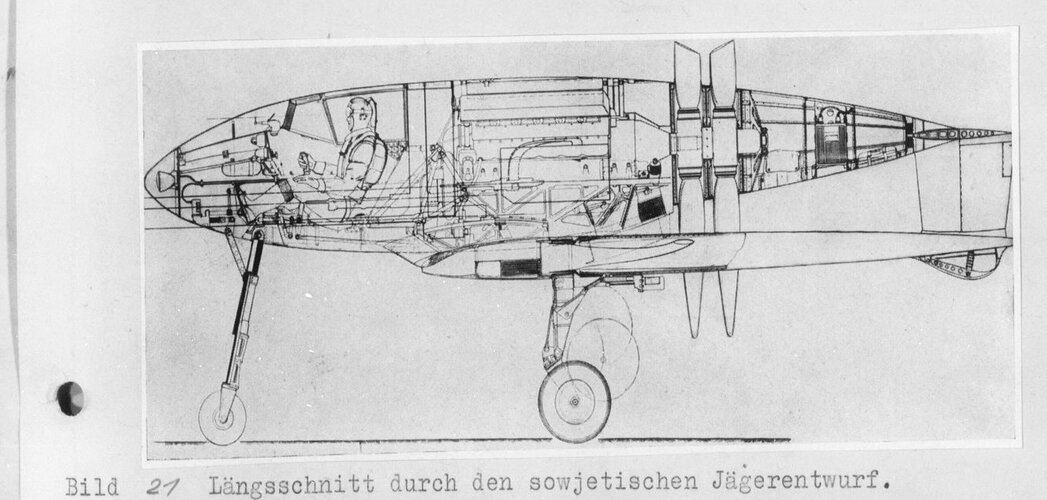

A German report on Allied aircraft discovered by Gregory D. Heuer at NARA and published at the Luft46 Facebook public group,
https://www.facebook.com/groups/678300375530524?locale=pt_PT, showing what I believe is a Soviet Belyayev design, sharing many "EOI" or "PBI" features. Comments are appreciated.


Attachments

  • B1.jpg
    212.2 KB · Views: 101
  • B2.jpg
    248.3 KB · Views: 99
That huge “spinner” might also negate some of the problems with boundary layer separation suffering by other low-winged pushers.

Last edited:

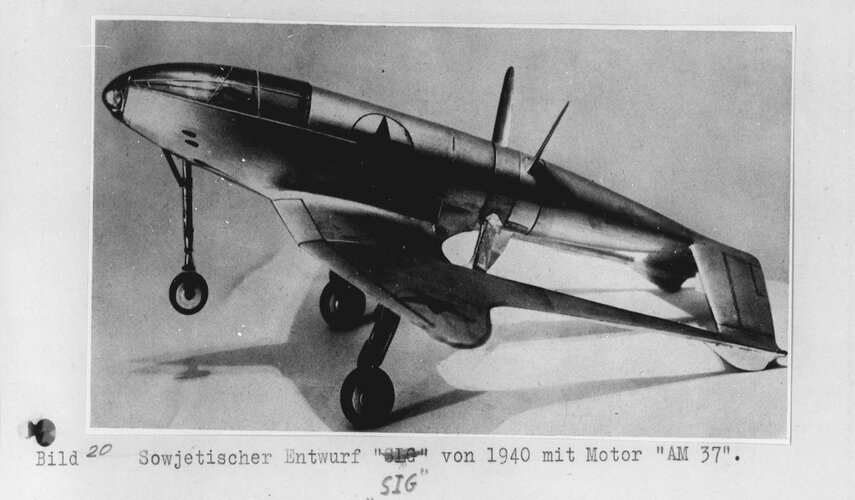

As the legend implies, it was called "SIG" (Skorostnii Istrebitel ...?), dating from 1940, intended to have a Mikulin AM-37 engine.
