Bellanca C-24-100-M & C-24-100-P Projects of 1938

[hesham]

A big Surprise,

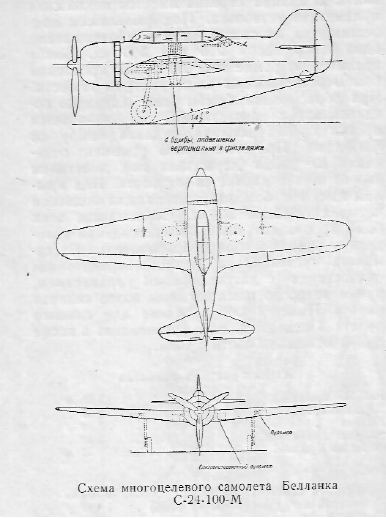

here is a drawing and all Info about Bellanca C-24-100-P and C-24-100-M,generally it was a single or two-seat fighter,observation,light bomber and attack airplane Project,developed from Model 28-90.

I don't know for which competition it was purposed,and if it was estimated to used by USA Navy or Army in 1938 ?,can anyone help in to find it ?.

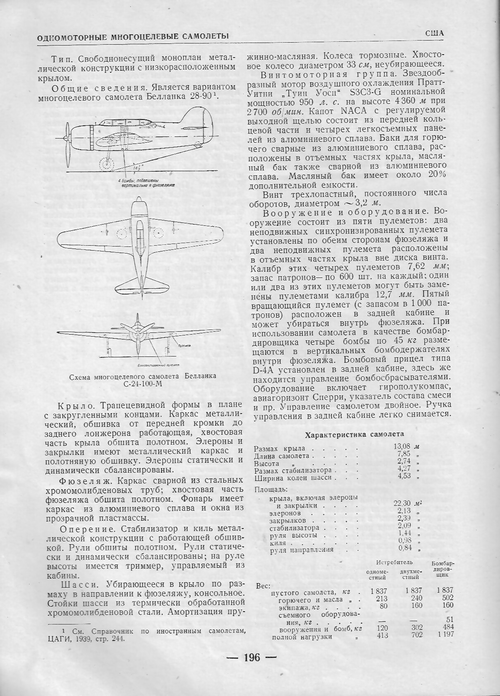

Справочник по иностранным самолетам 1940

Slideshow | NASM.1993.0055_ref745

edan.si.edu



[hesham]

As I translate in Russian book,it was a scout bomber,

and maybe it was intended for the same contest as Chance Vought V-169 ?.



[lucamax]

Nice found!



[Aubi]

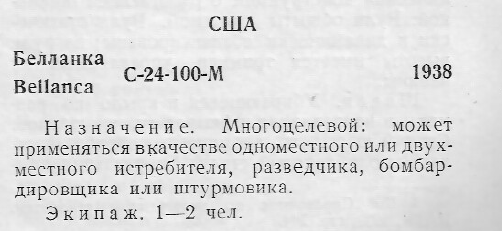

"MIght be modified as one- or two-seat fighter, scout, bomber or attack plane".



[hesham]

I think that,it was related to those contests;

https://www.secretprojects.co.uk/threads/us-carrier-torpedo-and-bomber-aircraft.4302/#post-547396



[papacavy]

Was it designated the C-24? Reading the Russian, C = S.

Could it have been the S-24?



[hesham]

Was it designated the C-24? Reading the Russian, C = S.

Could it have been the S-24?

Hi Papacavy,

I know that,but here,they wrote the designation as in the company,you can check at
this topic (it's C-24 and not S-24),

https://www.secretprojects.co.uk/threads/bellanca-jungle.9830/
