Bell D182 tilt duct and associated programs

M

masher47

Yesterdays dreams...
Senior Member
Joined
16 February 2013
Messages
132
Reaction score
595

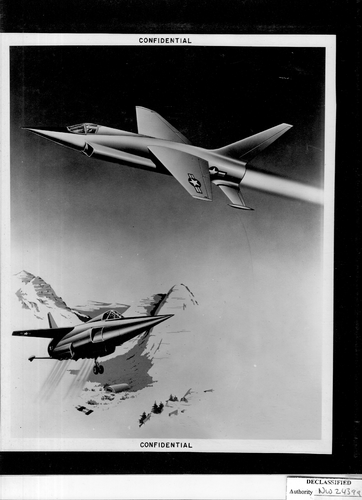

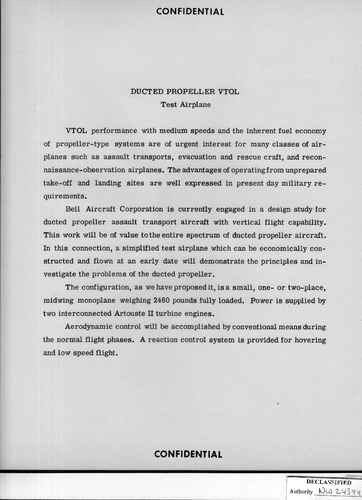

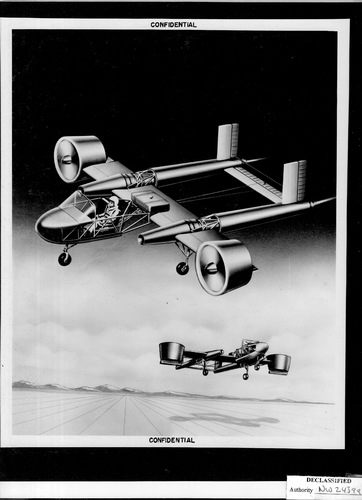

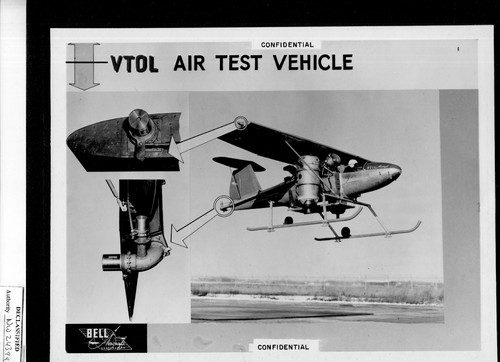

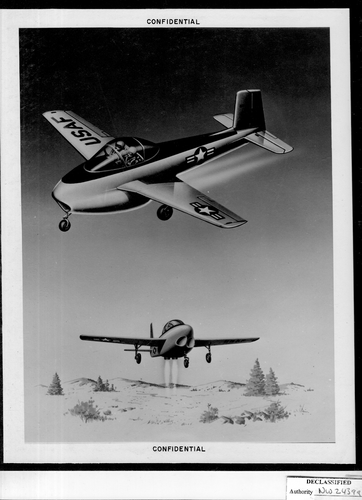

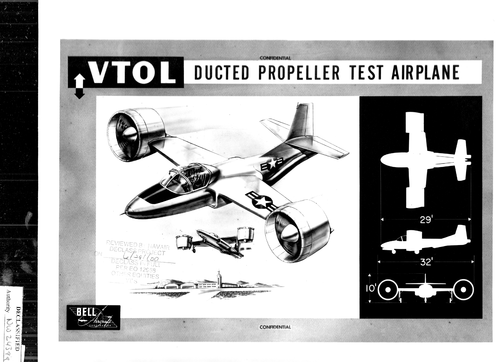

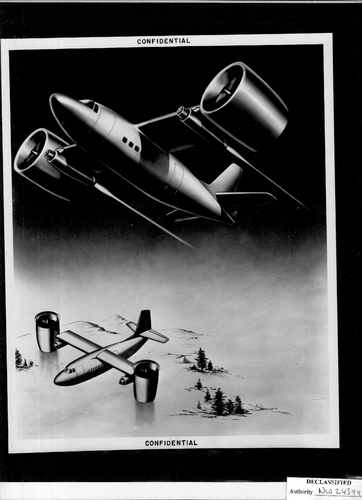

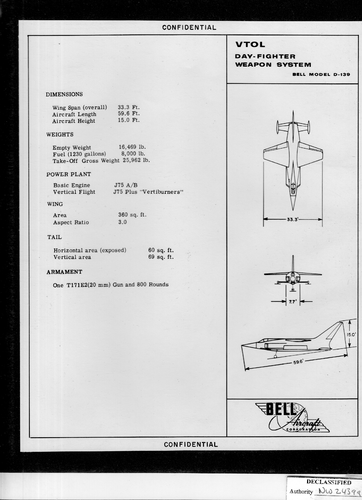

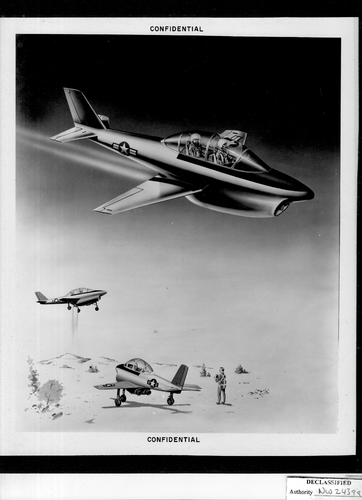

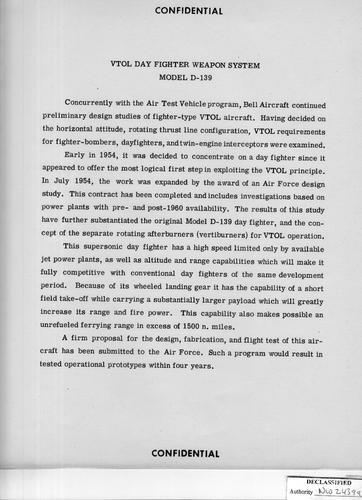

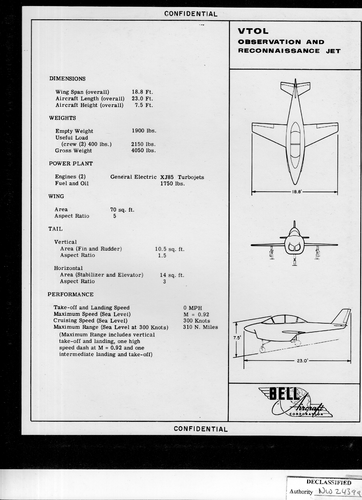

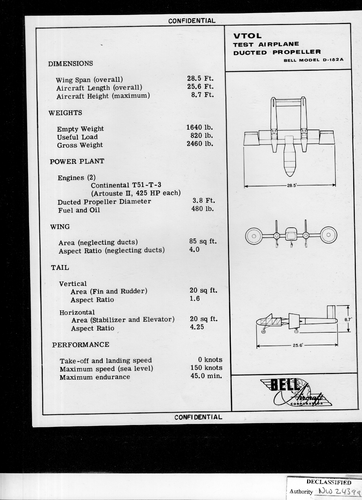

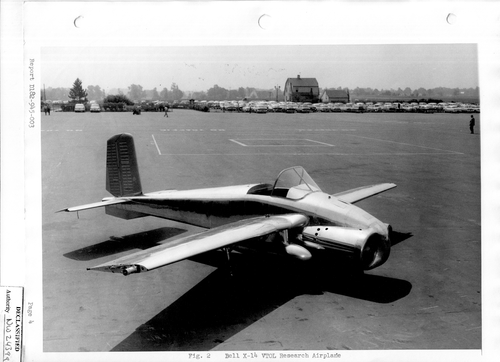

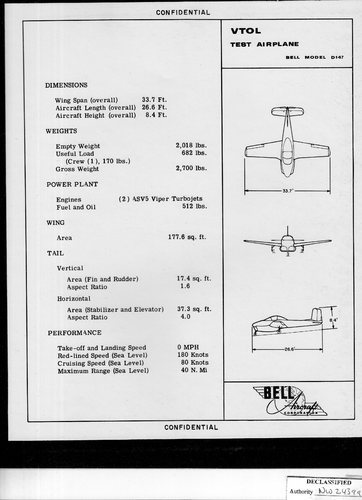

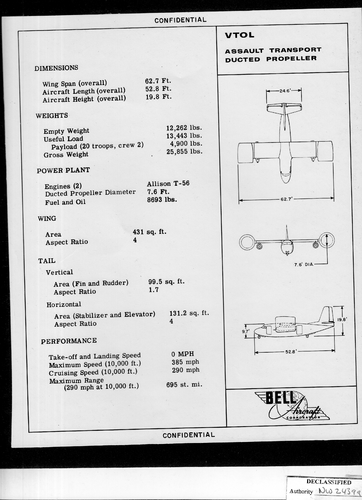

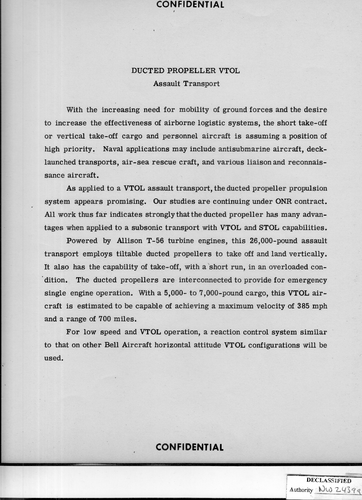

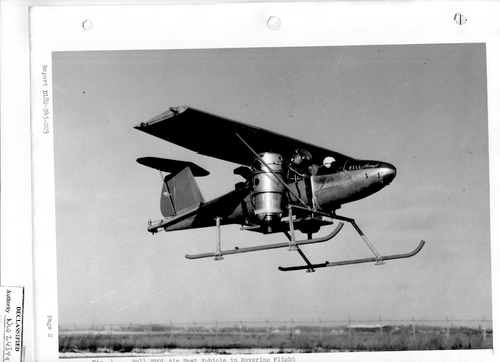

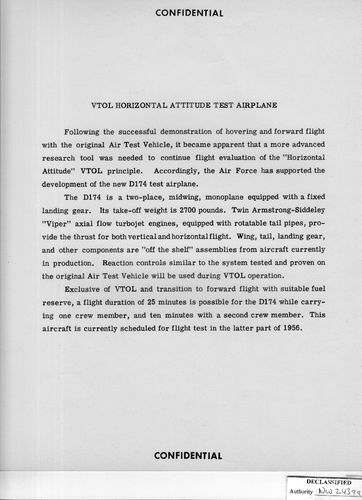

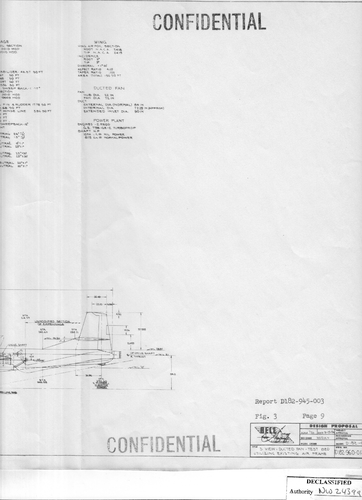

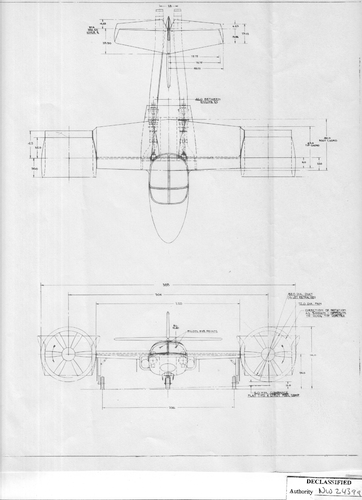

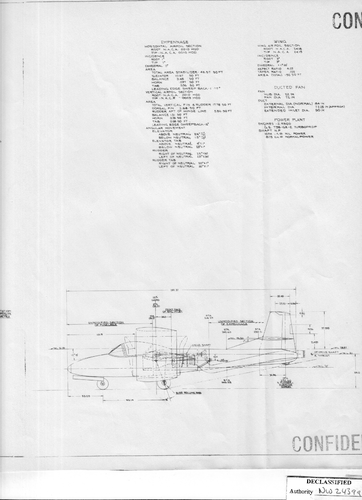

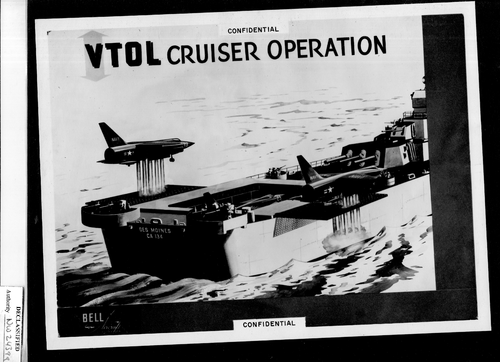

The following booklet traces a number of Bell vtol projects...good art work. Read bottom to top


Attachments

  • -000`0010.png
    4.7 MB · Views: 35
  • -000`0009.png
    7.8 MB · Views: 45
  • -000`0008.png
    6.5 MB · Views: 45
  • -000`0007.png
    4.1 MB · Views: 55
  • -000`0006.png
    4.8 MB · Views: 52
  • -000`0005.png
    4.8 MB · Views: 47
  • -000`0004.png
    4.7 MB · Views: 43
  • -000`0003.png
    7.1 MB · Views: 40
  • -000`0002.png
    7 MB · Views: 54
  • -000`0001.png
    3.5 MB · Views: 56
Part 2


Attachments

  • -000`0020.png
    3.9 MB · Views: 53
  • -000`0019.png
    2.9 MB · Views: 45
  • -000`0018.png
    4.7 MB · Views: 47
  • -000`0017.png
    4 MB · Views: 49
  • -000`0016.png
    3.6 MB · Views: 51
  • -000`0015.png
    4.7 MB · Views: 45
  • -000`0014.png
    4.1 MB · Views: 44
  • -000`0013.png
    4.2 MB · Views: 46
  • -000`0012.png
    4.7 MB · Views: 40
  • -000`0011.png
    6.6 MB · Views: 42
