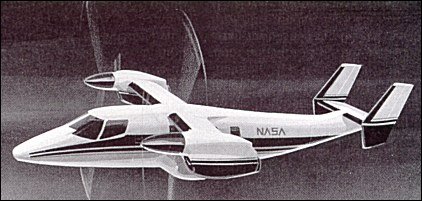

Bell CTR-800

[Triton]

The Bell CTR-800 was based on the XV-15 tilt-rotor and could carry eight passengers. It had a pressurized fuselage and uprated 2100shp Rolls-Royce/Turbomeca RTM-322 engines.

Technical data for Bell CTR-800:

Wing span: 9.81m, rotor diameter: 7.92m, overall length: 12.65m, take-off weight: 7135kg, cruising speed: 506km/h, range: 1110km

Source:
http://www.aviastar.org/helicopters_eng/bell_ctr-800.php



[Stargazer]

To the best of my knowledge, the CTR designs emanated from NASA, not from Bell. However, this is a point that surely needs clarification, as there seem to be contradictory sources on the subject.



[Triton]

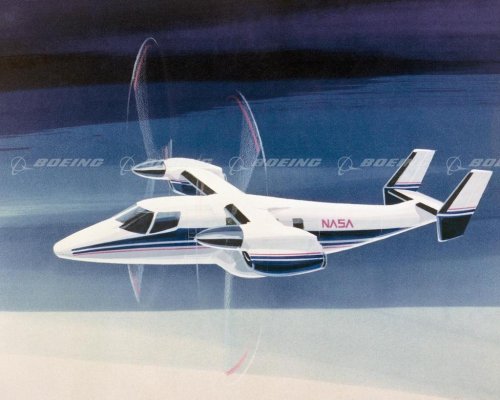

Artist's impression of Bell Boeing NASA CTR-800 concept.

Source:
http://www.boeingimages.com/C.aspx?VP3=SearchResult&VBID=2JRSN2PXP22NNW



[yasotay]

Triton - thanks for the great images!
