This history of the BAe Hawk, written by those who designed it at Kingston for the Royal Aeronautical Society, contains a number of projected variants:


http://aerosociety.com/Assets/Docs/Publications/The%20Journal%20of%20Aeronautical%20History/2013-01_HawkStory-Fraser-Mitchell.pdf


Well worth a read in this, the year of the Hawk's 40th birthday.



[hesham]

Excellent my dear Harrier,


amazing report,and we can put those drawings here;



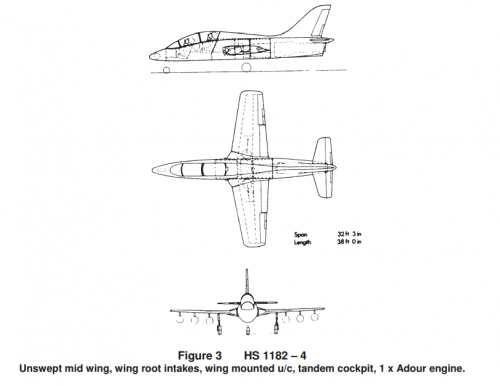

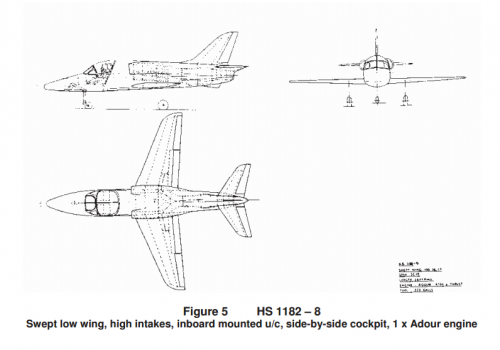

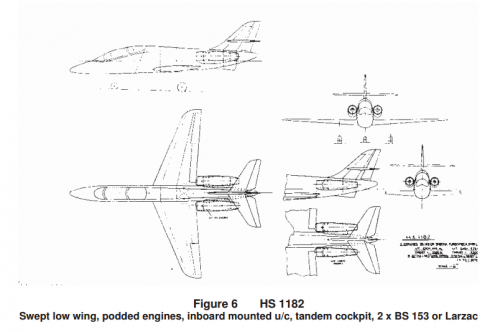

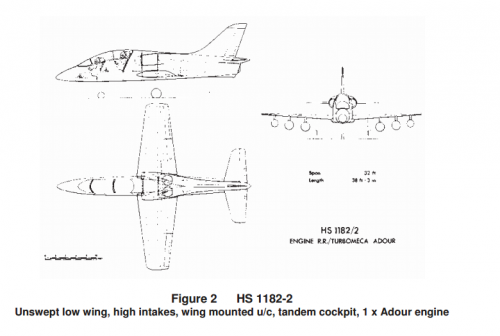

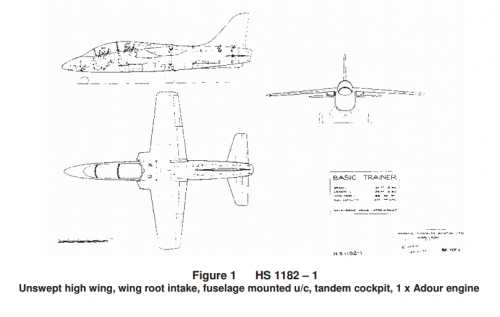

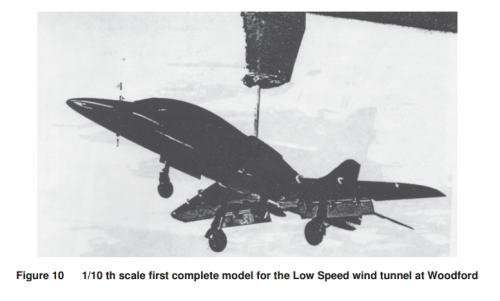

[hesham]

And;



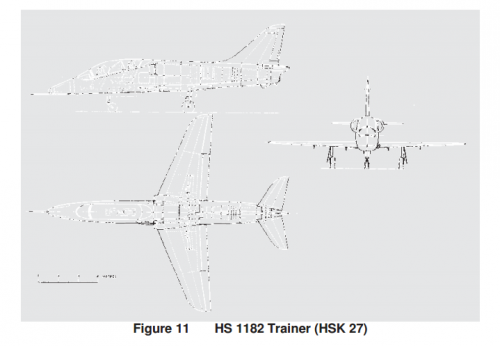

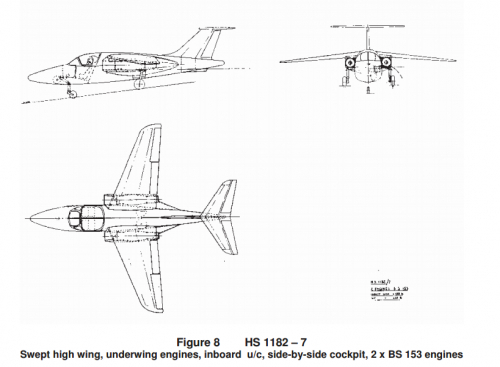

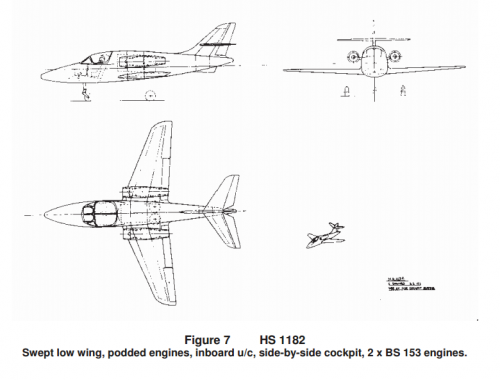

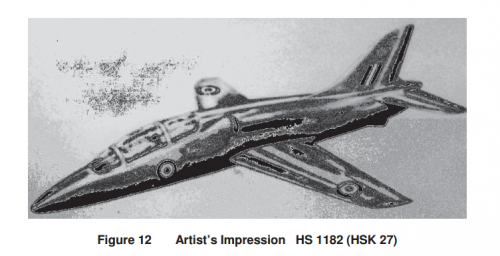

[Kiltonge]

Great article!

Pages 27 through 30 descibe the aerodynamic reasons behind the various protuberences and vanes that seem to cover the Hawk.

It would be interesting to read a similar account of the Alpha Jet's development as that airframe seems to manage without those 'bits'.



[Kiltonge]

Crazy theoretical load-out on page 46!

I think those actually Sky Flash rather than AMRAAM. Body diameter seems too large and fins are in revsered order of span compared to AMRAAM.



[overscan (PaulMM)]

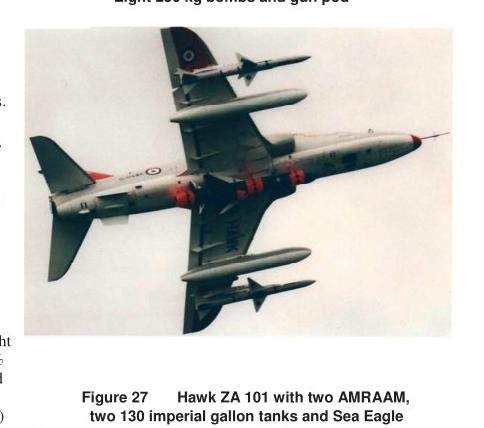

Crazy theoretical load-out on page 46!

I think those actually Sky Flash rather than AMRAAM. Body diameter seems too large and fins are in revsered order of span compared to AMRAAM.

Yep. Sky Flash.



[gwiz]

Pages 27 through 30 descibe the aerodynamic reasons behind the various protuberences and vanes that seem to cover the Hawk.

Re the TCVs mentioned, these were actually known as SMURFs (side-mounted unit - rear fuselage). Barry Pegram, as their originator, inevitably became Papa Smurf.



[damian2]

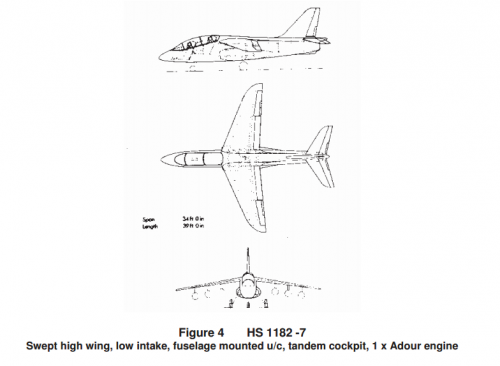

Hesham, any chance of getting better scans of the various layouts for future art projects? Having them slightly clearer makes one's life so much easier!



[hesham]

Sorry Damian2,


but you can download the PDF file,and may be you could make better;here it's again;

http://aerosociety.com/Assets/Docs/Publications/The%20Journal%20of%20Aeronautical%20History/2013-01_HawkStory-Fraser-Mitchell.pdf
