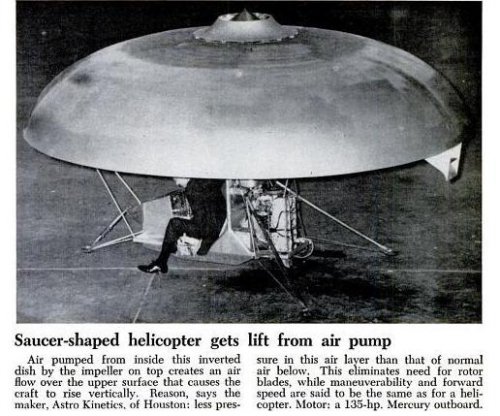

Astro Kinetics "Aero Kinetic Lift" and "Dynafan" umbrella-shaped VTOL craft
- Thread starter hesham
- Start date
- Joined
- 13 August 2007
- Messages
- 7,813
- Reaction score
- 8,822
http://www.youtube.com/watch?v=iMhdksPFhCM
at second 40 it show also air pumping "helicopter"
at second 40 it show also air pumping "helicopter"

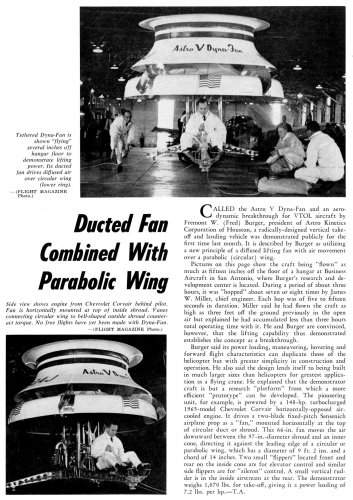

Also see the Astro V Dynafan:
https://sites.google.com/site/stingrayslistofrotorcraft/astro-kinetics-dynafan
https://sites.google.com/site/stingrayslistofrotorcraft/astro-kinetics-dynafan
brunobardini
ACCESS: Restricted
- Joined
- 29 August 2008
- Messages
- 39
- Reaction score
- 19
The most simply and interesting project i think.
http://www.secretprojects.co.uk/forum/index.php/topic,4836.msg2855.html#msg2855

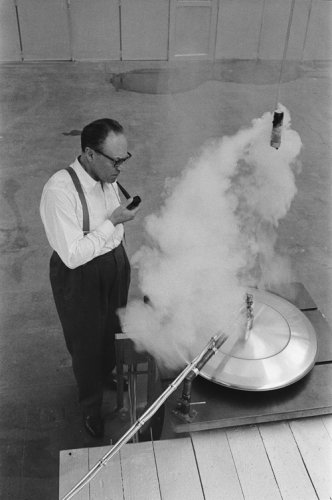

RC-360 COUZINET
and it flies very well like you can see on the rig model, the phenomenon of aspiration and rejection of the air is clearly observable like an helicopter, that's why after this concluding test (time is money) a biggest model in wood, would be built for integration systems, like all the planes in the world.
http://www.secretprojects.co.uk/forum/index.php/topic,4836.msg2855.html#msg2855
RC-360 COUZINET
and it flies very well like you can see on the rig model, the phenomenon of aspiration and rejection of the air is clearly observable like an helicopter, that's why after this concluding test (time is money) a biggest model in wood, would be built for integration systems, like all the planes in the world.
Attachments
- Joined
- 17 October 2006
- Messages
- 2,354
- Reaction score
- 988
The Last Starfighter said:
I will make ze perfect moules a vapeur, or I die in ze attempt!
brunobardini
ACCESS: Restricted
- Joined
- 29 August 2008
- Messages
- 39
- Reaction score
- 19
Please in good english your sentence can't be translated!
thank's
thank's
- Joined
- 11 March 2006
- Messages
- 8,665
- Reaction score
- 3,524
Interesting coincidence, as I've found such "umbrella shapes" just today in Hamzalippischhs sketches, too.
Same principle ? (http://www.secretprojects.co.uk/forum/index.php/topic,15673.msg168244.html#new , #9)

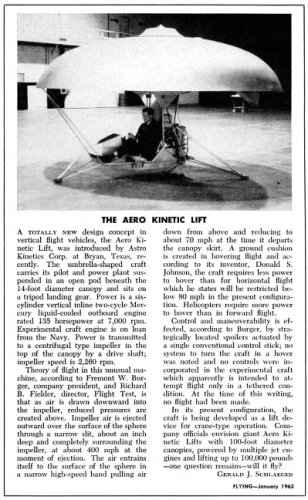

The caption brings up a question to me: Why does a helicopter need more power in the hover, than in
forward flight, as long, as it doesn't feature wings to support the rotor ? Principally, the rotor has to produce
the same amount of lift, either during cruising flight or in the hover, I think. Forward flight then requires additional
power, as long as we aren't considering ground effect or, as said before, lift produced by wings.
For the Astro Kinetics vehicle, hovering in ground effect may have been normal flight regime and when moving forward
this support may have been lessened considerably, but generally principles should be the same, as for a helicopter.
Same principle ? (http://www.secretprojects.co.uk/forum/index.php/topic,15673.msg168244.html#new , #9)
The caption brings up a question to me: Why does a helicopter need more power in the hover, than in
forward flight, as long, as it doesn't feature wings to support the rotor ? Principally, the rotor has to produce
the same amount of lift, either during cruising flight or in the hover, I think. Forward flight then requires additional
power, as long as we aren't considering ground effect or, as said before, lift produced by wings.
For the Astro Kinetics vehicle, hovering in ground effect may have been normal flight regime and when moving forward
this support may have been lessened considerably, but generally principles should be the same, as for a helicopter.
Bill Walker
Per Ardua ad Nauseum
Jembia, here is a great simplification of your helicopter query. Apologies to all the serious helicopter engineers out there, I can't make equations or draw graphs and free body diagrams here
The rotor needs to move as much air, vertically, in the hover or in forward flight, as it takes to support its weight. In the hover, the only source of moving air is the turning blades, which takes engine power. Air with no vertical velocity gets sucked in the top of the disc, and blown out the bottom with some velocity.
Once even a little forward speed is reached, the rotor (which had to be tipped slightly forward to produce the forward speed) also entraps air due to the forward velocity of the tilted disc. The mass flow of air out of the bottom of the disc is now some air moved by the blades (and therefore the engines) and some extra air trapped from the forward motion. This extra air arrives with some velocity, and thus takes less power to be accelerated to the required speed when it comes out of the bottom of the disc. At a very low speed, usually about 3 or 4 knots, this extra air starts to take some portion of the weight of the helicopter, and you need to throttle back if you don't want to climb.
At this very low speed there is very little airframe drag to overcome, so the power required to maintain altitude continues to drop as the forward speed increases. Somewhere around 60 to 80 knots the drag does become significant, and now extra power must be added back to the rotor (from the engines) to keep the total mass of air deflected downwards big enough and fast enough to keep the helicopter from falling AND overcome drag. This continues until you run out of power to add, and you are then at the maximum forward speed of the helicopter - without diving.
WARNING - what is going on with the tail rotor, and the power required to spin a rotor moving at at an angle to the velocity, complicates this simple explanation a bit. But only a bit. ;D
Added in edit: looking at the flying umbrella, the downward moving mass of air is a thin ring coming off the perimeter of the umbrella, while in a helicopter the moving mass of air is a cylinder as big in diameter as the rotor disc. The blades take up a small portion of this disc area, while the umbrella surface area is huge - and heavy. This may explain why the skies are not full of these things today.
Maybe somebody out there with experience in ducted fans can tell us if the same thing happens with a fan buried inside structure?
The rotor needs to move as much air, vertically, in the hover or in forward flight, as it takes to support its weight. In the hover, the only source of moving air is the turning blades, which takes engine power. Air with no vertical velocity gets sucked in the top of the disc, and blown out the bottom with some velocity.
Once even a little forward speed is reached, the rotor (which had to be tipped slightly forward to produce the forward speed) also entraps air due to the forward velocity of the tilted disc. The mass flow of air out of the bottom of the disc is now some air moved by the blades (and therefore the engines) and some extra air trapped from the forward motion. This extra air arrives with some velocity, and thus takes less power to be accelerated to the required speed when it comes out of the bottom of the disc. At a very low speed, usually about 3 or 4 knots, this extra air starts to take some portion of the weight of the helicopter, and you need to throttle back if you don't want to climb.
At this very low speed there is very little airframe drag to overcome, so the power required to maintain altitude continues to drop as the forward speed increases. Somewhere around 60 to 80 knots the drag does become significant, and now extra power must be added back to the rotor (from the engines) to keep the total mass of air deflected downwards big enough and fast enough to keep the helicopter from falling AND overcome drag. This continues until you run out of power to add, and you are then at the maximum forward speed of the helicopter - without diving.
WARNING - what is going on with the tail rotor, and the power required to spin a rotor moving at at an angle to the velocity, complicates this simple explanation a bit. But only a bit. ;D
Added in edit: looking at the flying umbrella, the downward moving mass of air is a thin ring coming off the perimeter of the umbrella, while in a helicopter the moving mass of air is a cylinder as big in diameter as the rotor disc. The blades take up a small portion of this disc area, while the umbrella surface area is huge - and heavy. This may explain why the skies are not full of these things today.
Maybe somebody out there with experience in ducted fans can tell us if the same thing happens with a fan buried inside structure?
- Joined
- 11 March 2006
- Messages
- 8,665
- Reaction score
- 3,524
Bill, many thanks for this explanation ! Moving forward probably will bring only a very small amount of additional
air into massflow, as it has to enter via the top opening of the "umbrella". And there the massflow has to be
accelerated to higher speeds, so the gain by forward movement is even smaller.
The "flying umbrella" simply cannot make use of the "pre-accelerated" air in forward flight, so, what is stated
to be an advantage is more a disadvantage !
air into massflow, as it has to enter via the top opening of the "umbrella". And there the massflow has to be
accelerated to higher speeds, so the gain by forward movement is even smaller.
The "flying umbrella" simply cannot make use of the "pre-accelerated" air in forward flight, so, what is stated
to be an advantage is more a disadvantage !
