Arthur Locust Fighter

masher47

Yesterdays dreams...
Senior Member
Joined
16 February 2013
Messages
132
Reaction score
595

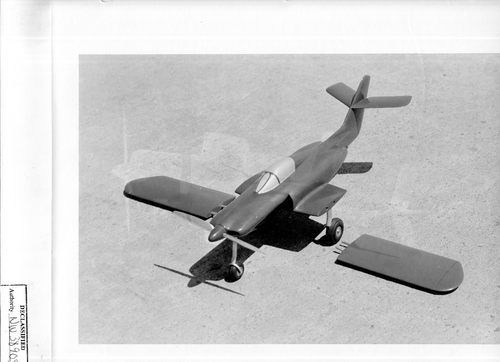

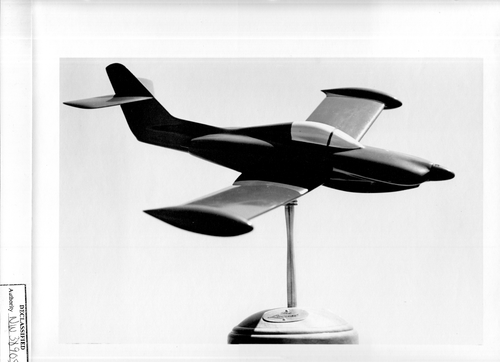

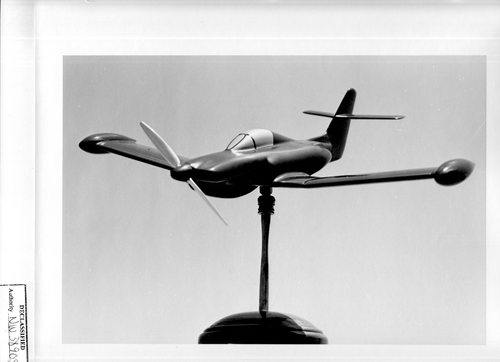

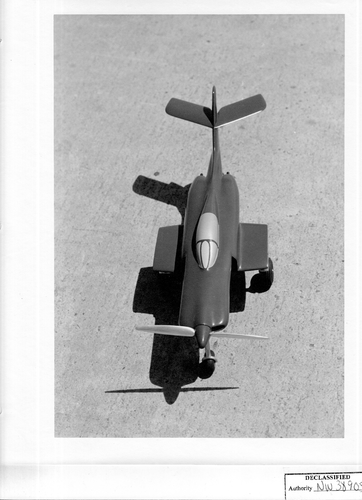

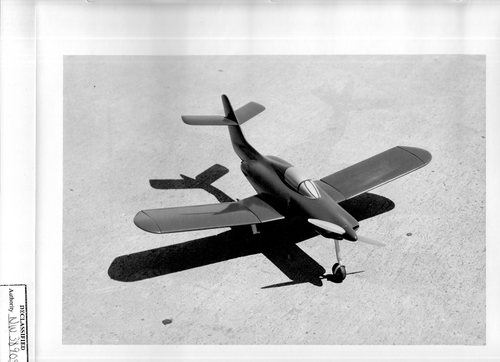

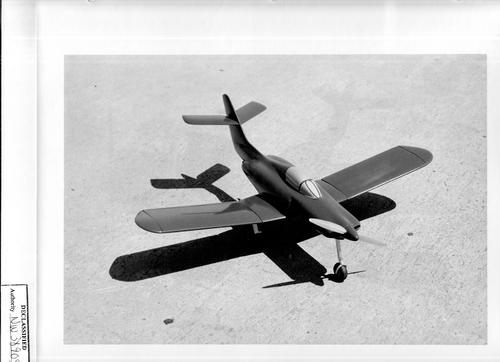

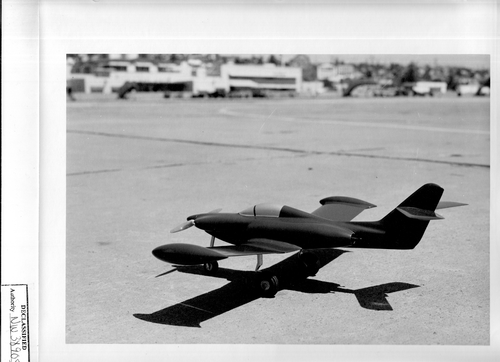

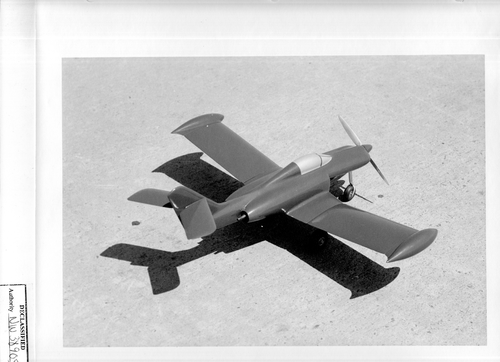

Buried in NARA: Coin fighter proposal to Navy. photos of model.


Attachments

  • -000`0001.png
    7.8 MB · Views: 121
  • -000`0010.png
    4.6 MB · Views: 116
  • -000`0009.png
    7.3 MB · Views: 98
  • -000`0008.png
    7.2 MB · Views: 86
  • -000`0007.png
    7.1 MB · Views: 84
  • -000`0006.png
    7.2 MB · Views: 80
  • -000`0005.png
    6.7 MB · Views: 87
  • -000`0004.png
    6.5 MB · Views: 86
  • -000`0003.png
    7.2 MB · Views: 88
Judging from the number of cylinders, the front engine is a Lycoming IO-720 capable of producing 400 horsepower.

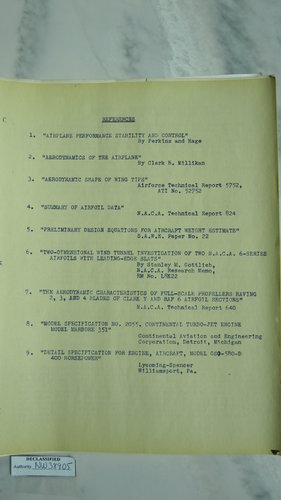

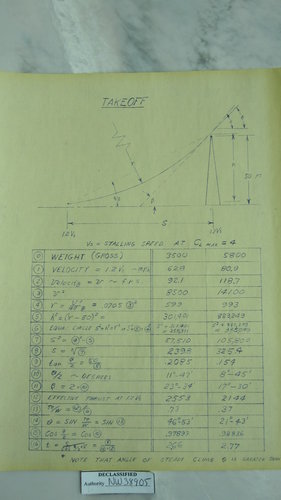

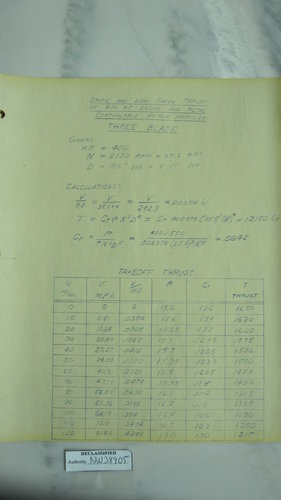

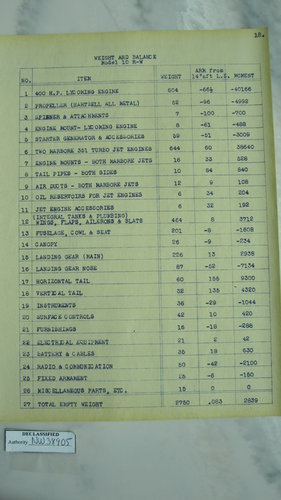

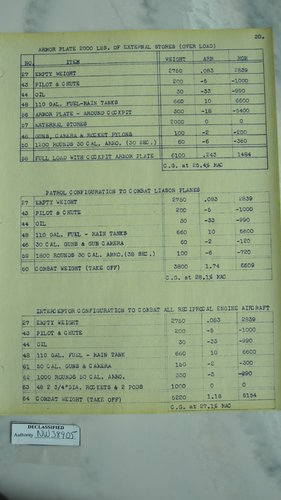

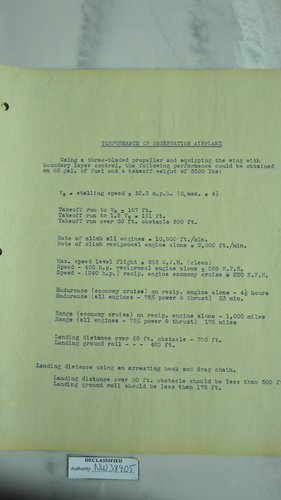

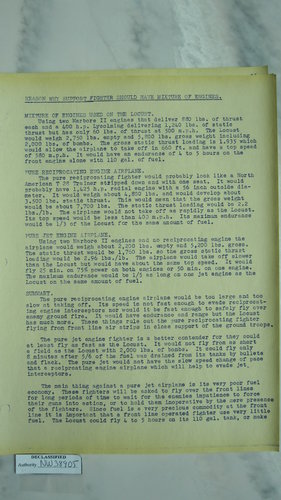

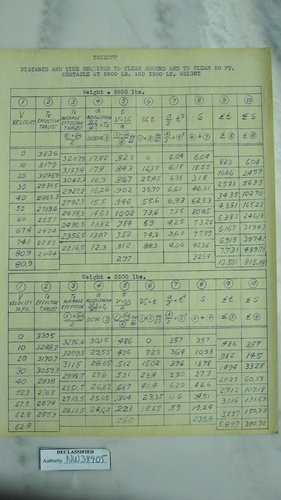

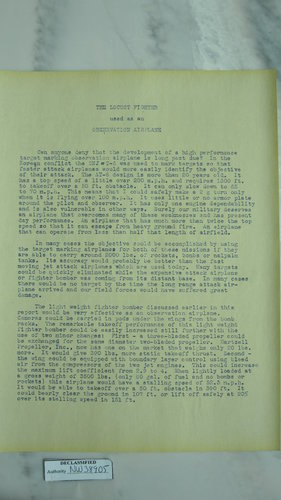

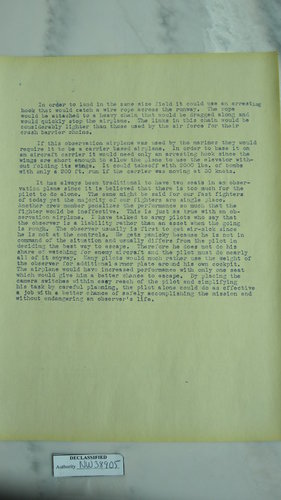

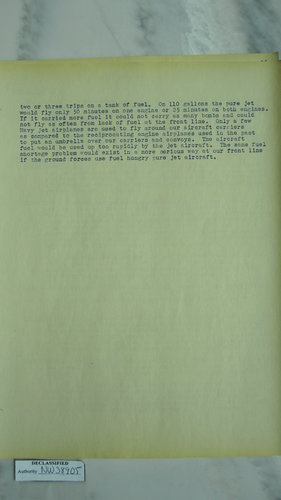

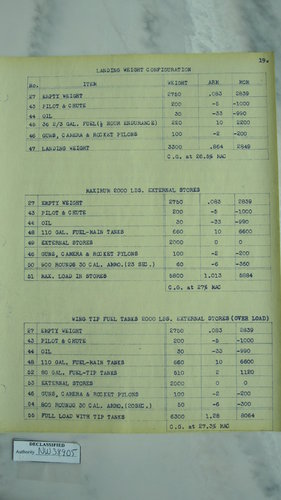

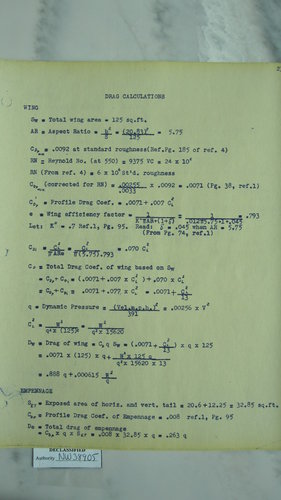

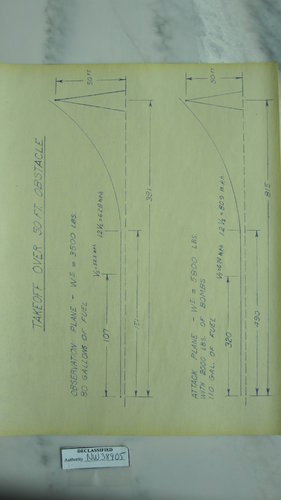

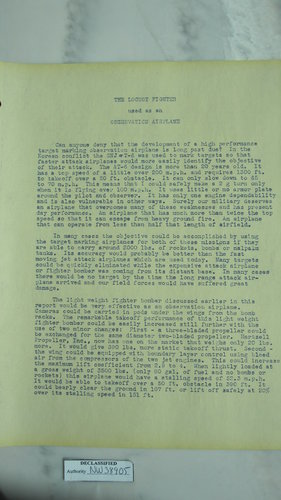

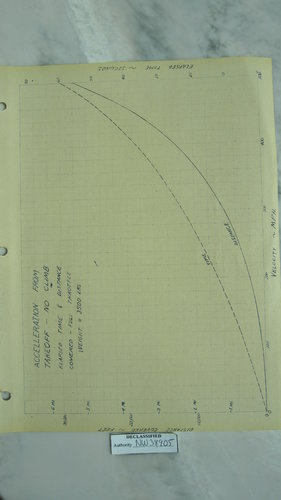

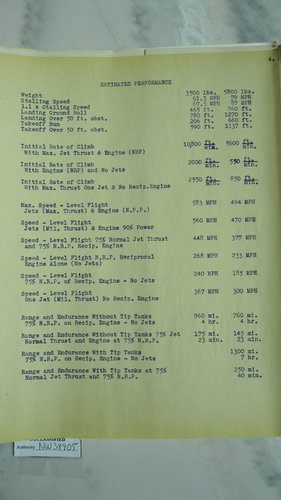

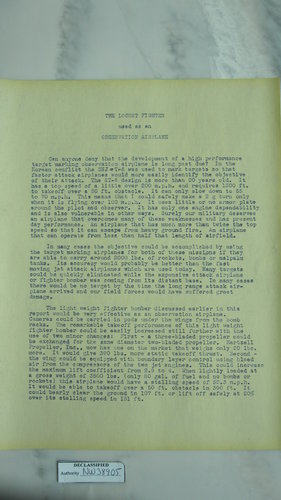

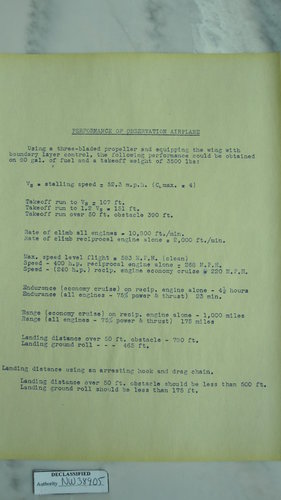

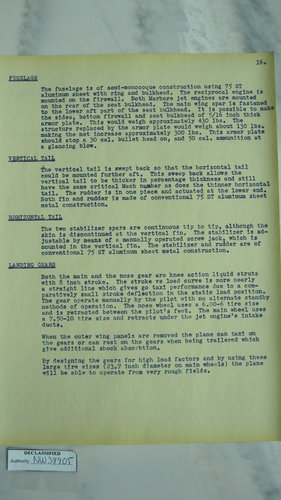

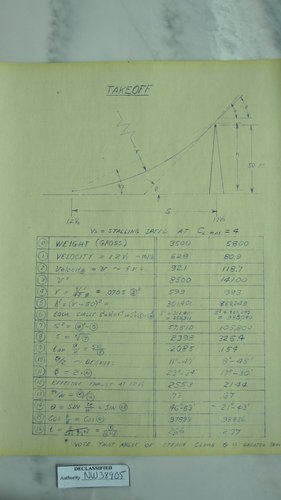

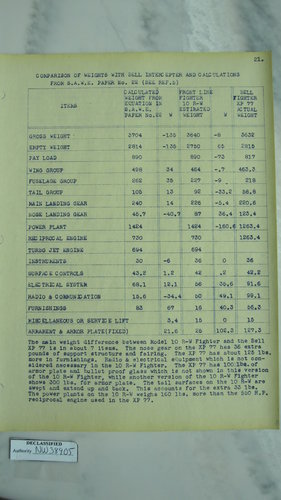

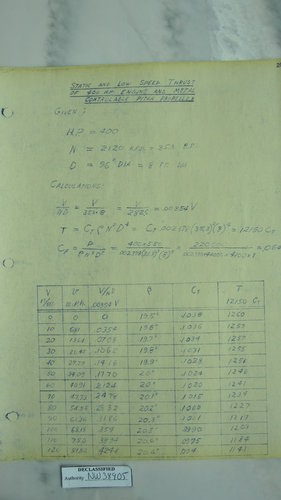

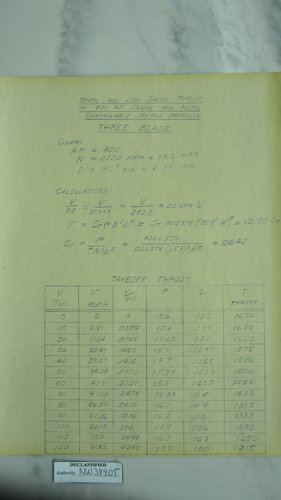

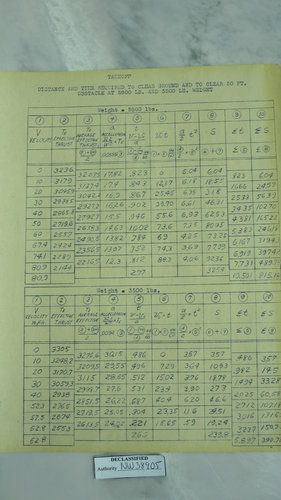

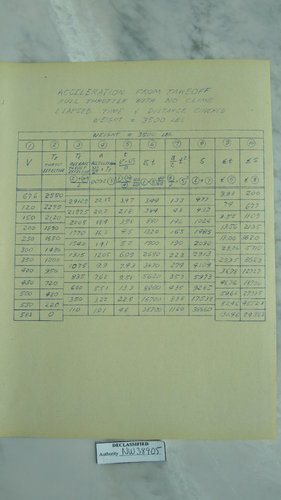

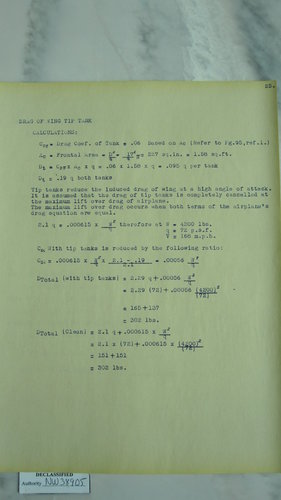

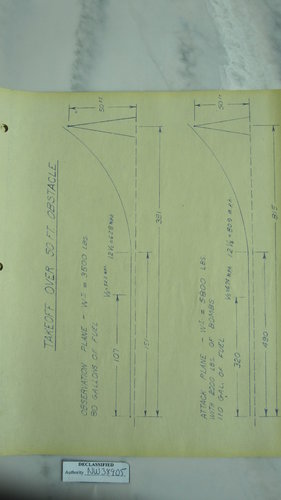

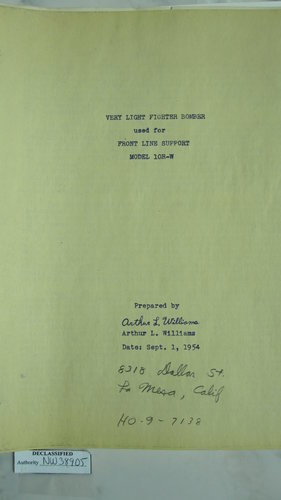

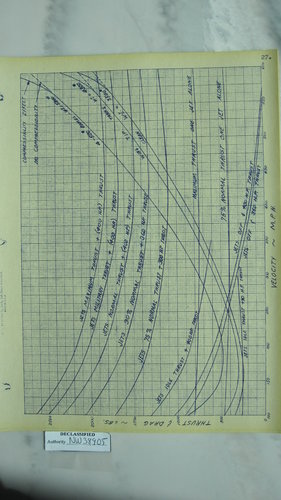

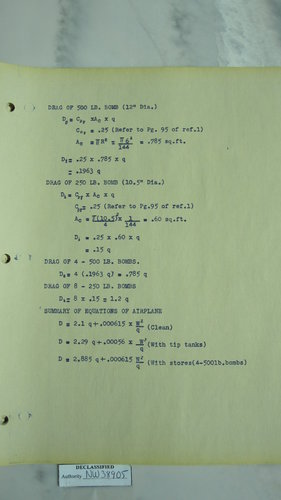

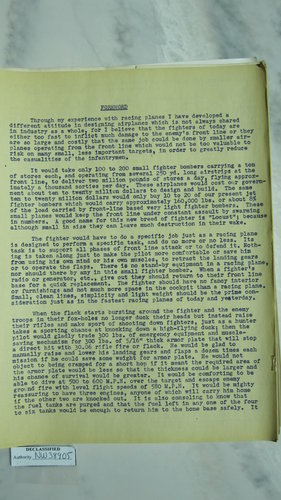

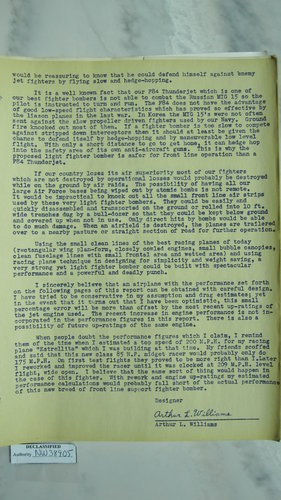

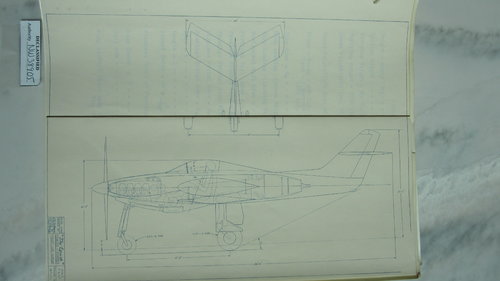

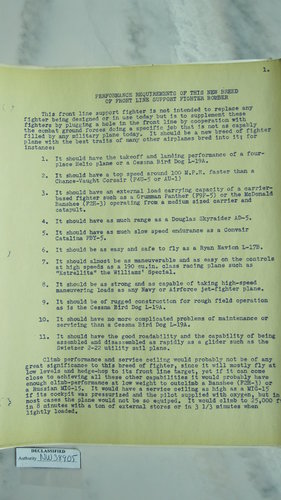

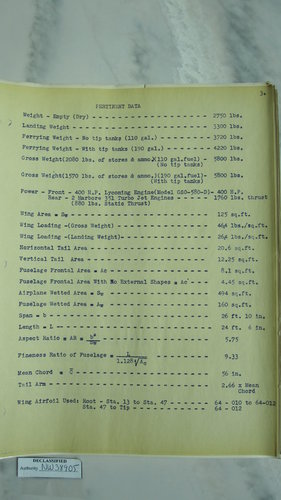

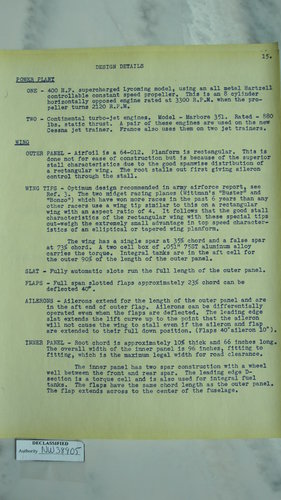

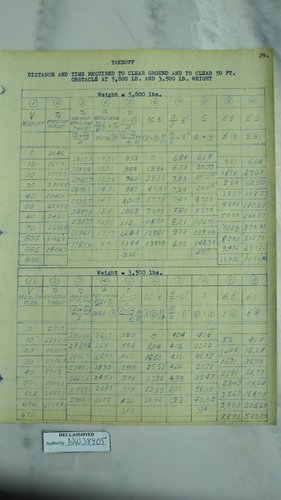

Found my file of data on the Locust.. Should answer all your questions. It's ALL data no drawing..


Attachments

  • IMG_5912.JPG
    2.3 MB · Views: 46
  • IMG_5911.JPG
    1.9 MB · Views: 39
  • IMG_5910.JPG
    1.9 MB · Views: 42
  • IMG_5909.JPG
    1.6 MB · Views: 32
  • IMG_5908.JPG
    2.1 MB · Views: 33
  • IMG_5907.JPG
    1.8 MB · Views: 22
  • IMG_5906.JPG
    2.5 MB · Views: 20
  • IMG_5905.JPG
    2.5 MB · Views: 20
  • IMG_5904.JPG
    1.6 MB · Views: 20
Post -2 of data


Attachments

  • IMG_5922.JPG
    1.8 MB · Views: 20
  • IMG_5921.JPG
    2.1 MB · Views: 18
  • IMG_5920.JPG
    2.1 MB · Views: 16
  • IMG_5919.JPG
    2 MB · Views: 17
  • IMG_5918.JPG
    2 MB · Views: 17
  • IMG_5917.JPG
    2 MB · Views: 15
  • IMG_5916.JPG
    1.7 MB · Views: 17
  • IMG_5915.JPG
    2.1 MB · Views: 17
  • IMG_5914.JPG
    2.2 MB · Views: 17
  • IMG_5913.JPG
    1.7 MB · Views: 18
Post-3 ofdata


Attachments

  • IMG_5932.JPG
    1.7 MB · Views: 19
  • IMG_5931.JPG
    1.8 MB · Views: 18
  • IMG_5930.JPG
    2 MB · Views: 16
  • IMG_5929.JPG
    2.1 MB · Views: 15
  • IMG_5928.JPG
    2.1 MB · Views: 15
  • IMG_5927.JPG
    1.8 MB · Views: 15
  • IMG_5926.JPG
    2.9 MB · Views: 16
  • IMG_5925.JPG
    1.7 MB · Views: 17
  • IMG_5924.JPG
    1.7 MB · Views: 17
  • IMG_5923.JPG
    1.8 MB · Views: 17
Post-4 of data


Attachments

  • IMG_5941.JPG
    1.8 MB · Views: 19
  • IMG_5940.JPG
    1.6 MB · Views: 17
  • IMG_5939.JPG
    1.8 MB · Views: 17
  • IMG_5938.JPG
    2 MB · Views: 16
  • IMG_5937.JPG
    2.1 MB · Views: 16
  • IMG_5936.JPG
    2.1 MB · Views: 17
  • IMG_5935.JPG
    2.2 MB · Views: 15
  • IMG_5934.JPG
    1.8 MB · Views: 16
  • IMG_5933.JPG
    1.8 MB · Views: 16
Why would the Navy need a COIN aircraft?
To stay relevant where it's at, from V-nam to A-stan?
Actually, since the Navy procures aircraft for the Marine Corps, they have been in the COIN aircraft business as long as anyone, starting with DH.4s in Nicaragua in the 1920s. Later, the Marines and Navy were the only users of OV-10s in the original COIN role.

Last edited by a moderator:
Why would the Navy need a COIN aircraft?
To stay relevant where it's at, from V-nam to A-stan?
Actually, since the Navy procures aircraft for the Marine Corps, they have been in the COIN aircraft business as long as anyone, starting with DH.4s in Nicaragua in the 1920s. Later, the Marines and Navy were the only users of OV-10s in the original COIN role.


Thanks for the information guys, I never knew that.
