Armstrong Whitworth AWP.22 M Wing SST

Mike Pryce

ACCESS: Top Secret
Senior Member
Joined
21 December 2006
Messages
1,147
Reaction score
740

Attachments

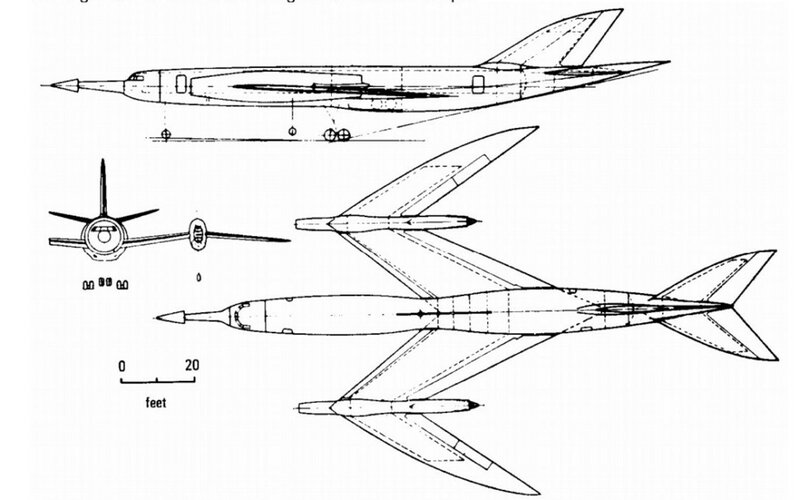

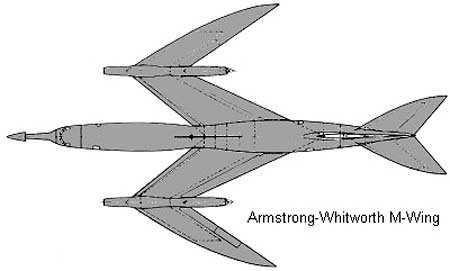

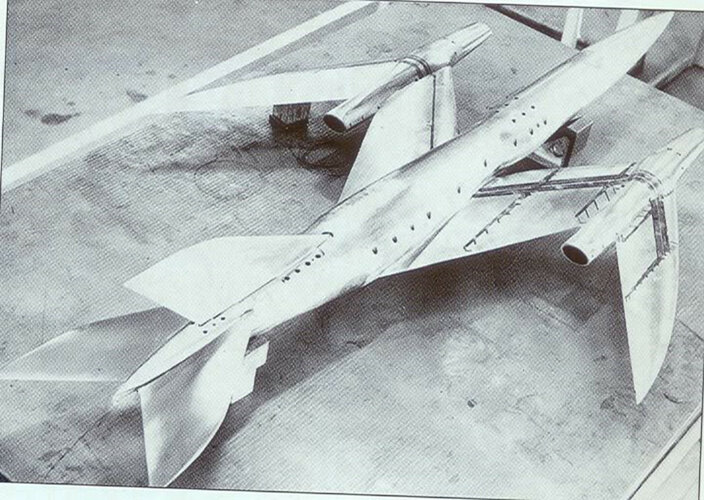

  • sst1.jpg
    14.8 KB · Views: 811

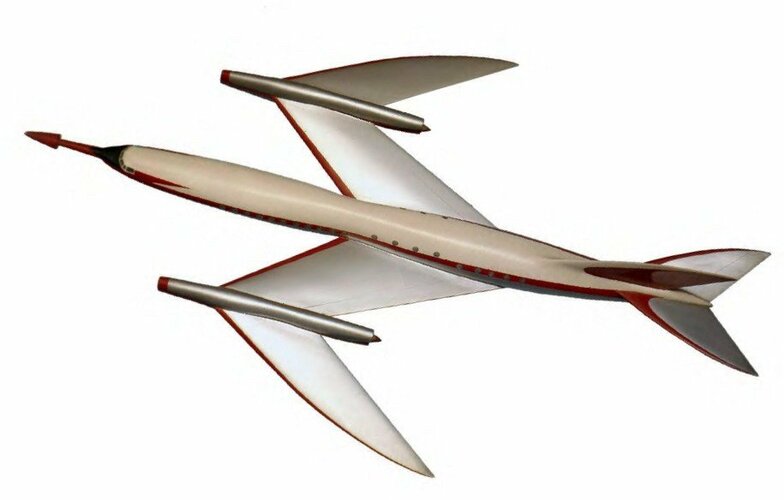

  • sst2.jpg
    108 KB · Views: 808
Re: Armstrong Whitworth AWP.22 M-Wing SST

That is an astonishing design !!


I was going to ask where the wheels were, when the PDF finally opened. Despite appearances, the wing is entirely in one plane-- I thought it was gull-winged, or the outer panels cranked per Valkyrie...

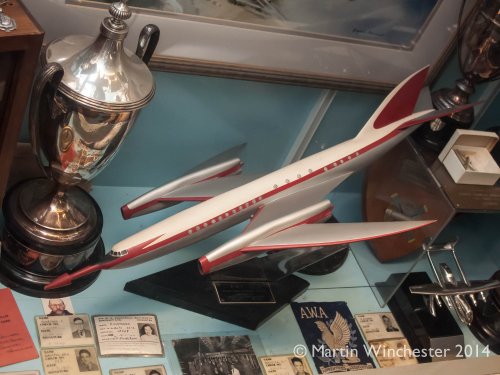

You got to my flickr page before me Paul... ;)


Its my own fault... I've been meaning to post it and 'some other stuff' for ages... :)

Zeb

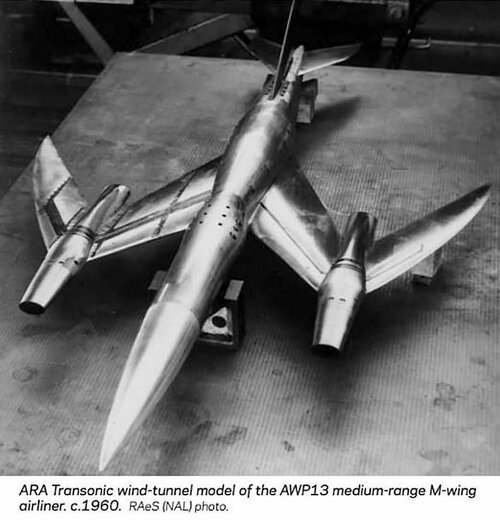

What benefits did the M-wing bring? My guess is that it brought good performance in all speed regimes, but I could be wrong.

Hi!
Free-Flight Measurements of the Drag and Longitudinal Stability of a Transonic M-Wing Aircraft bY j. B. W. Edward


Attachments

  • arc-cp-0773.pdf
    1.9 MB · Views: 27

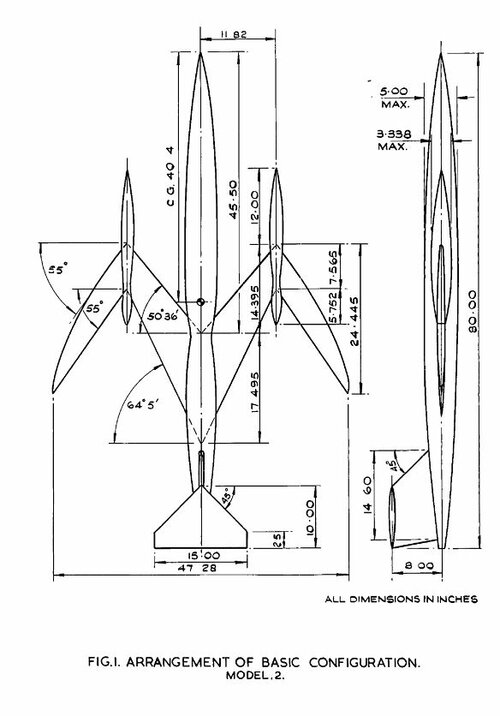

  • fig 1.jpg
    fig 1.jpg
    55.4 KB · Views: 78

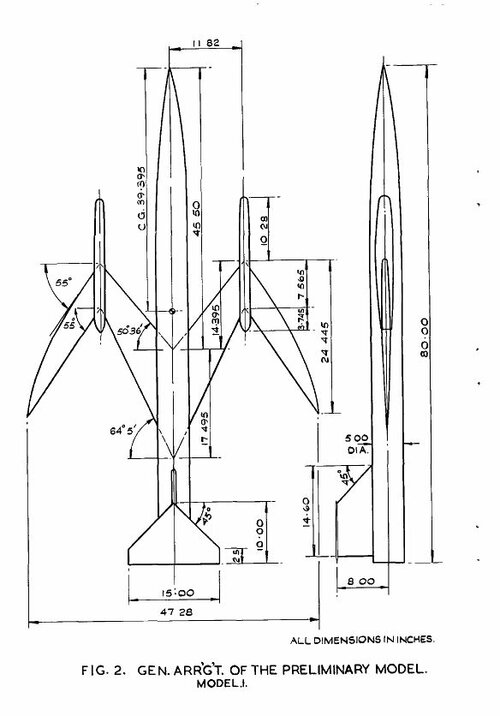

  • fig 2.jpg
    fig 2.jpg
    52.2 KB · Views: 74

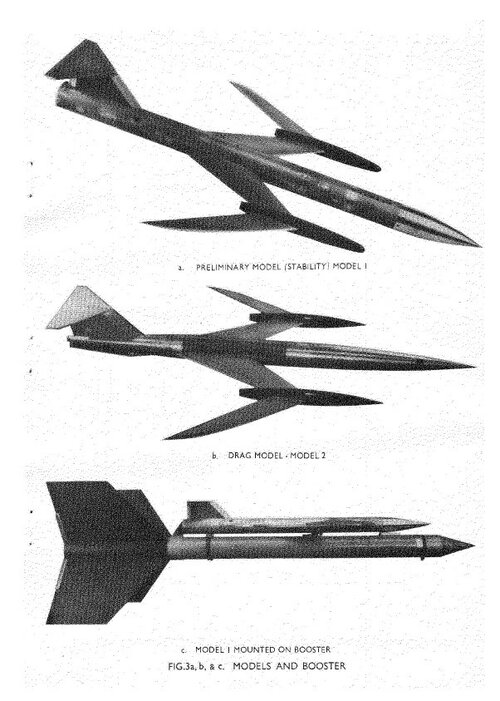

  • fig 3.jpg
    fig 3.jpg
    137.5 KB · Views: 76

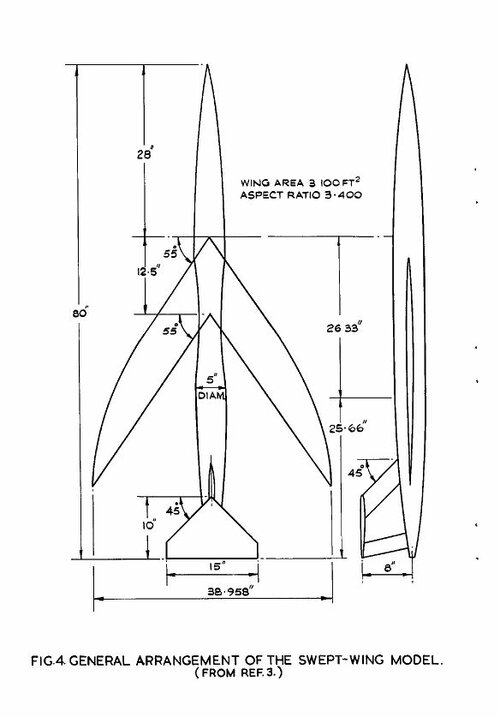

  • fig 4.jpg
    fig 4.jpg
    42.4 KB · Views: 95
5 CONCLUSIONS

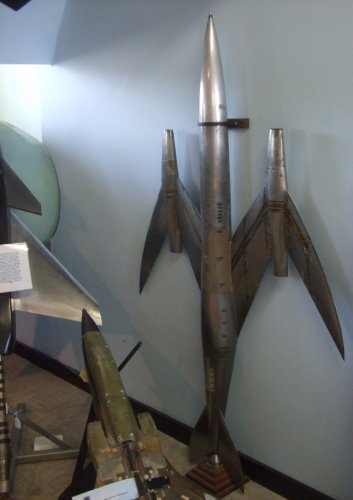

Free-flight tests have been made on two models of an M-wing aircraft configuration, deslgned to maintain a subsonic type of flow over the ning surfaces with no shook waves occurring on the wings, at speeds up to a Mach number of 1.3. Results on the longitudinal stability elf the configuration have been obtained from a simplified preliminary model and measurements of the total drag and the wing root pressure distribution were made on a second fully representative model. From these latter results it has proved possible to deduce that the design principles have been achieved. Comparisons with results from freeflight tests on a swept-wing configuration designed in a similar way have been made.
The main conclusions are:-
(1) The pressure measurements in the wing root, although partially unsuccessful, were adequate to show at the highest Mlach numbers that a subsonic type of flow was established there and that no evidence of shook waves existed.

(2) The zero-lift wave drag of the wing-body-nacelle combination has been evaluated from the measured total drag by subtracting the contributions from skin friction and the fin and tailplane, and is shown to be lower than that of the sum of the wave drags of the components in isolation. This indicates that some suppression of the wing wave drag expected from the design has occurred. It is not possible to calculate the body and nacelle drag as installed; so one cannot deduce whether all the wing wave drag was suppressed,

(3) The wave drag factor K is 2.4 at the design Mach number of 1'2. This is considered reasonably low for a first attempt at such a configuration. It is roughly twice that of a comparable swept-wing-body combination but the contribution from the nucolles that are included in the M-wing drag factor is probably responsible for the major part of this increase.

(4) The M-wing model has a somewhat higher lift-curve slope than the sweptwing model owing to its higher aspect ratio. The shift in aerodynamic centre position through transonlc speeds was about 0'1 s compared with 0'2 s for the swept-wing model. If subsequent tests confirm this latter result the easing of the problem of trimming that it implies could prove to be an important additional advantage of the M-wing design.

(5) No undesirable damping characteristics in the damping-in-pitch were observed betuecn M = 0.95 - 1.3.

Last edited:
Very pretty Speedbird that would make, but aeroelastic divergence is still a thing. Maybe the engines are where they are to help with that.
Wouldn't the back sweep on the out panels and the forward-mounted engines at the join counter this?
