Hi folks!

I'm looking for drawings of the Arado Ar "68 F" - I found only drawings of the "68 E".

Many thanks!



[Jemiba]

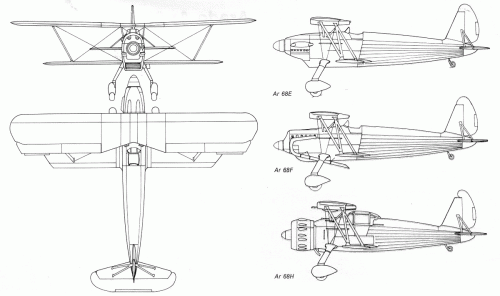

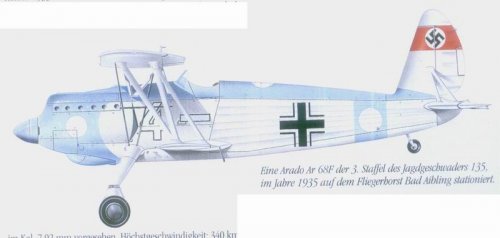

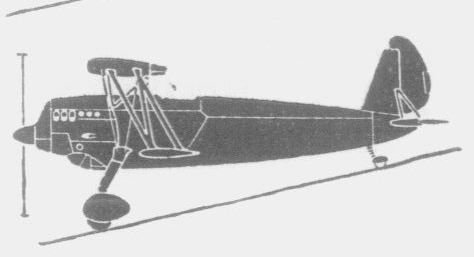

The F- version was identical to the E, with the exception of the BMW VI engine, instead of
Jumo 210. Two side views (from Kens/Novarra and Green/Swanborough "Jagdflugzeuge der Welt"),
or here :
http://www.warbirdinformationexchange.org/phpBB3/viewtopic.php?f=3&t=19649
http://forum.politicainrete.net/aerei-e-tecnologia-militare/30281-categoria-anni-20-30-a.html
http://www.jg27.de/gruppen.htm



[redstar72]

http://www.airwar.ru/enc/fww2/ar68.html



[baja]

He, thank you Jemiba and redstar72!
The Links are great.

But i'm looking for a front view of the "68 F". I think the Jumo 210 is smaller and have a different cooling?!



[Justo Miranda]

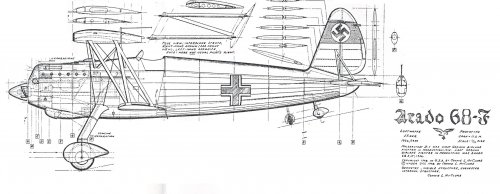

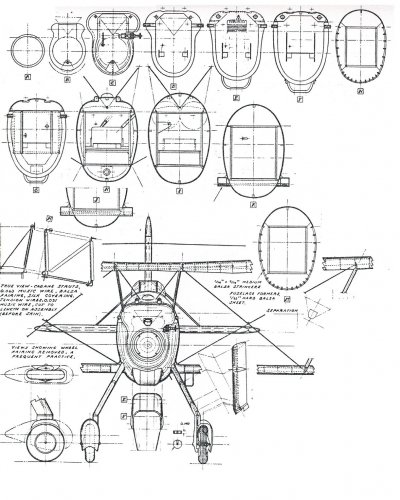

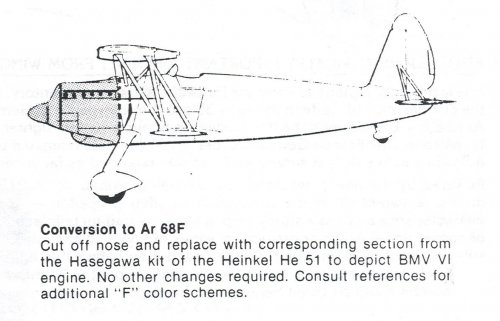

Ar 68 F drawings here...



[baja]

Thank you Justo Miranda! That's what i'm looking for.
