Antonov An-75 AWACS

[Maveric]

Hi all,

I search for pics, drawings and technical details of the russian AWACS-project Antonov An.75. Thanks for your help!

Servus, Maveric



[hesham]

Hi,


it seemed to be that,the Antonov An.75 differs from An.71 only in under-wing
engines mounted instead off above.


http://en.wikipedia.org/wiki/Antonov_An-71



[Pioneer]

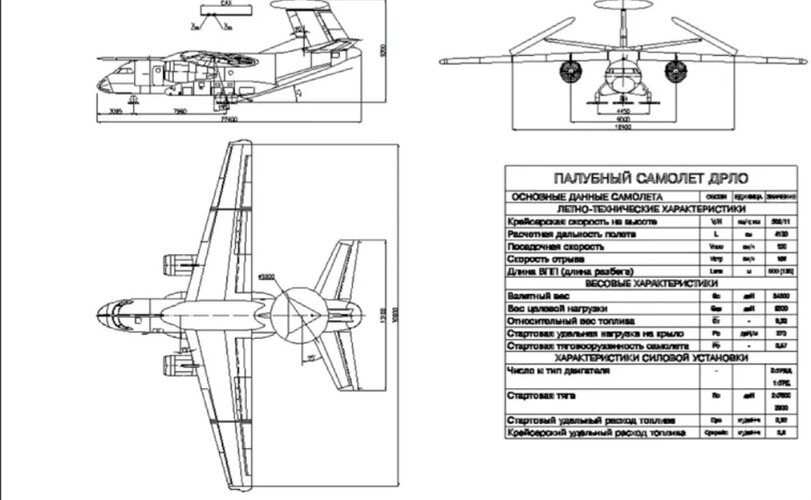

I've just finished listening to the following excellent presentation on the An-71 Madcap and in this informative video, they mentioned and showed the following 3-view drawing of the proposed An-75 carrier-based AWACS:

View: https://youtu.be/BRDbHvmTdr0?si=PAYOlqtsah6UoRbe


Regards
Pioneer



[flateric]

I've just finished listening to the following excellent presentation on the An-71 Madcap and in this informative video, they mentioned and showed the following 3-view drawing of the proposed An-75 carrier-based AWACS:

Actually, this is MAI student gradiate project of a deck-based AWACS aircraft from 1998 I found back in 2012, author - Yankovsky D.V., project manager - Gennady Sergeevich Panatov



[Pioneer]

Actually, this is MAI student gradiate project of a deck-based AWACS aircraft from 1998 I found back in 2012, author - Yankovsky D.V., project manager - Gennady Sergeevich Panatov

In which case, thank you flateric for the additional information and credit.

Regards
Pioneer



[Filip7370]

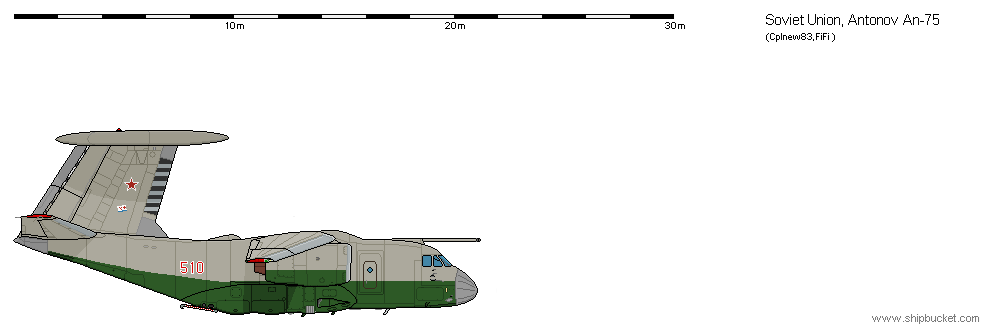

Hi There, I've prepared a PD scale drawing of the An-75 based on the 3-view provided by Pioneer. Maybe not much, but at least in this way we can "see it in colour".
I took some creatives liberties but retained D-36 engines necell from An74. Livery is a variation that would be possible in very late 80s, early 90s.
