Antonov An-180
Type: Twin propfan medium-range passenger transport.

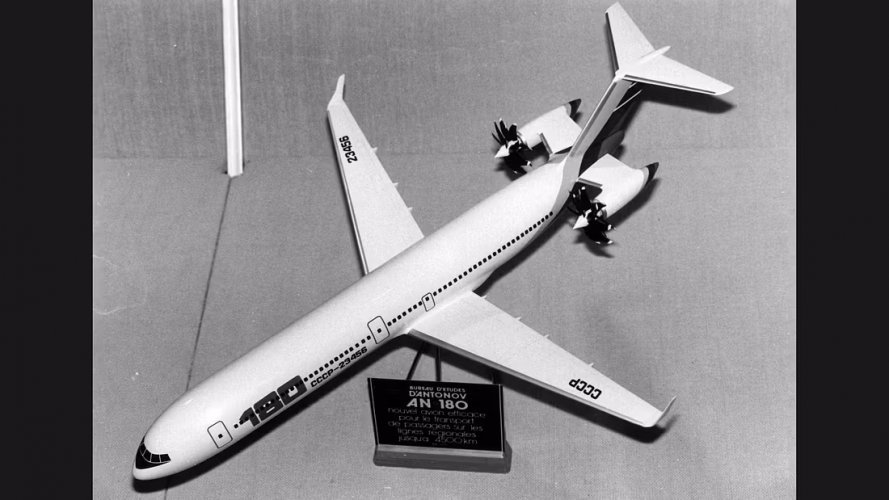

Program: Company funded program; first details, and model, at 1991 Paris Air Show; configuration changed, with engines on tailplane tips, 1992.

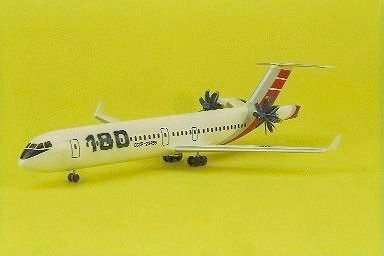

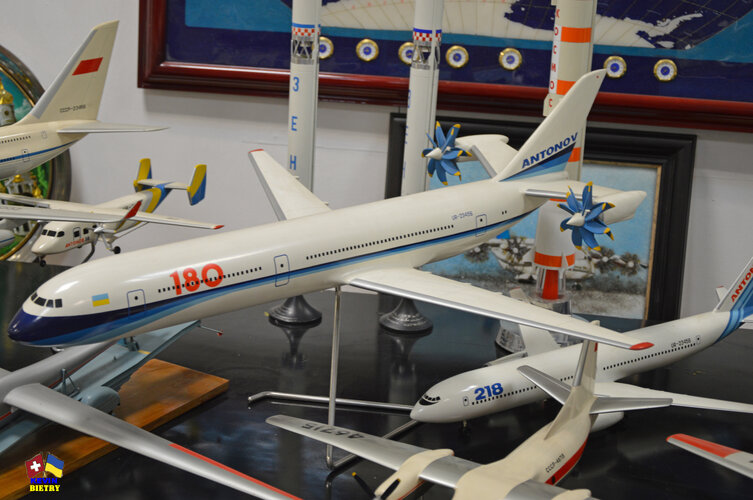

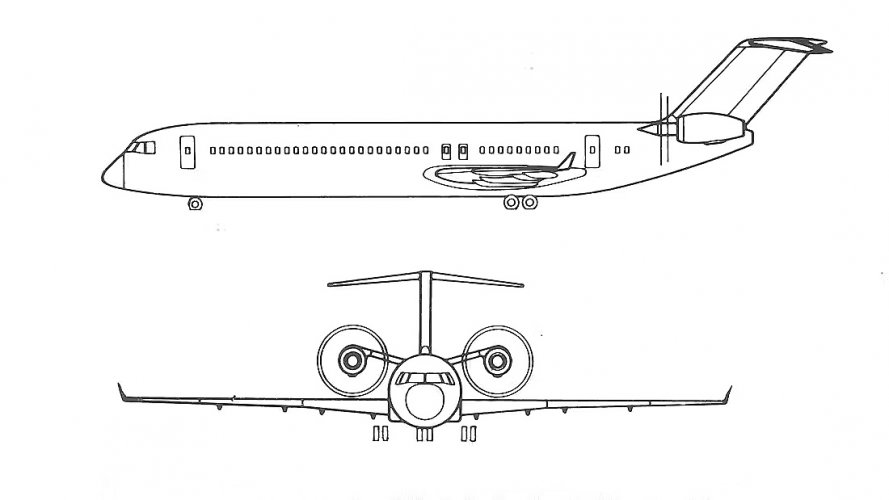

Design features: Unique configuration, with propfans at tips of dihedral tailplane; low-mounted sweptback wings, circular-section fuselage and all-sweptback tail surfaces. Designed to equal, or exceed, highest Western standards, burning less fuel per passenger-km per engine than equivalent Western aircraft; equiped for automated navigation at all flight stages, and for ICAO Cat. IIIa automatic landings. Airframe design life 60,000 flying hours.
Power plant: Two ZMKB Progress D-27 tractor propfans, each rated at 10,305 kW (13,830 shp), mounted on tips of tailplane.

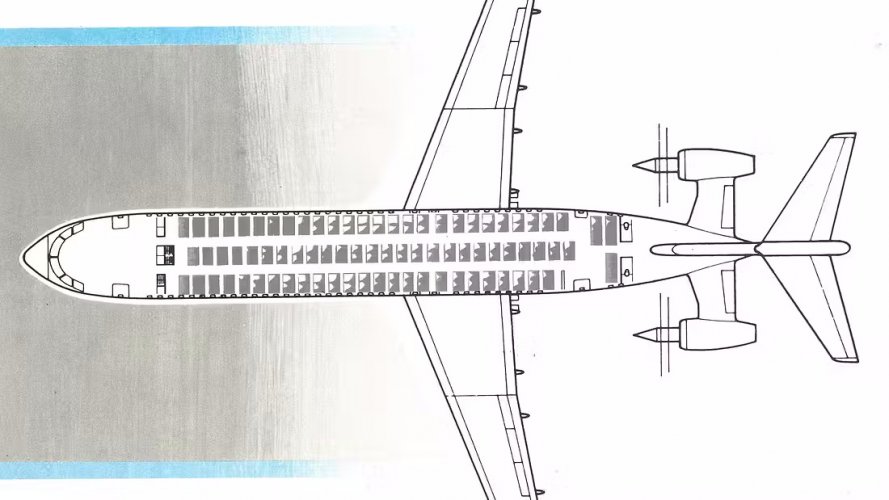

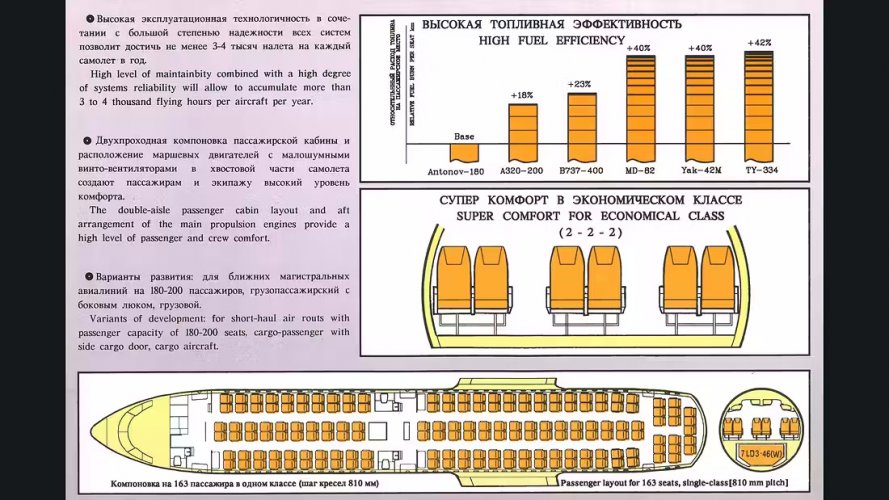

Accommodation: Two or three crew; single-class seating for 163 to 175 passengers or mixed class seating for 150 to 156, in pairs, six-abreast with two aisles; seven LD3 containers underfloor; four seats for cabin attendants by passenger doors (port side) and service doors (starboard); one toilet at front, two at rear. Available in 180/200-passenger, mixed passenger/freight, and all-freight versions with side-loading door. Emergency exit over each wing.

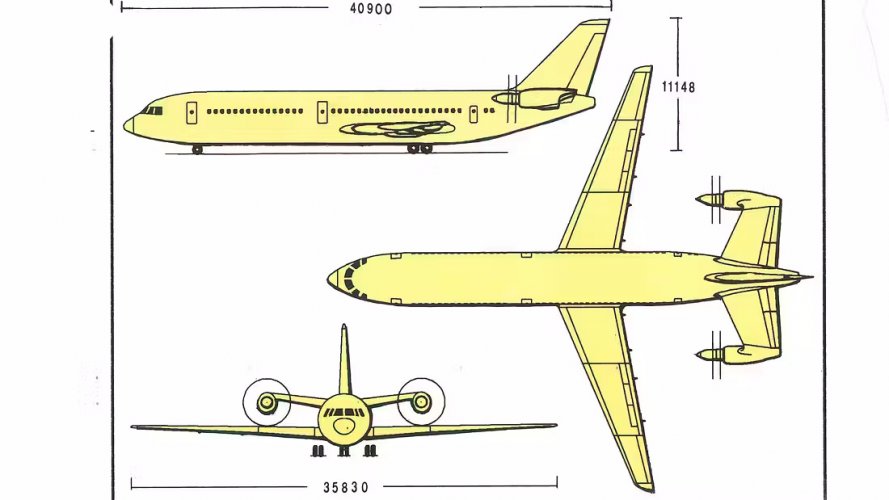

Dimensions external
Wing span: 35.83 m (117 ft 6.75 in)
Length overall: 40.90 m (134 ft 2.25 in)
Height overall: 11.15 m (36 ft 7 in)
Weights and loadings
Max payload: 18,000 kg (39,680 lb)
Max T-O weight: 67,500 kg (148,810 lb)
Performance estimated
Nominal cruising speed: 432 kt (800 km/h; 497 mph)
Nominal cruising height: 9,100-10,100 m (29,850-33,135 ft)
Nominal field length: 2,200-2,600 m (7,220-8,530 ft)
Range with reserves from 2,200 m (7,220 ft) field with max payload: 971 n miles (1,800 km; 1,118 miles)
Range with reserves from 2,200 m (7,220 ft) field with max fuel: 4,155 n miles (7,700 km; 4,785 miles)
Range with reserves from 2,600 m (8,530 ft) field with max payload: 1,780 n miles (3,300 km; 2,050 miles)
Range with reserves from 2,600 m (8,530 ft) field with max fuel: 4,047 n miles (7,500 km; 4,660 miles)
Source: Jackson, Paul ed. Jane's All the World's Aircraft 1995-96 Jane's Information Group Ltd 1995 p. 443.
