The German engineer Alois Riedly had filed a patent (N°709077) in 1937 for a helicopter
using two pairs of intersecting rotors, the two pairs fitted with different rotor shaft angles.
Riedl later worked for the Henschel Flugzeugwerke and maybe a project for a helicopter
with intersecting rotors was actually started there (possible designation P.77), but not
proceeded with.
(From "Helicopters Of The Third Reich" by Steve Coates)


Attachments

  • Riedl-patent.jpg
    52.9 KB · Views: 79

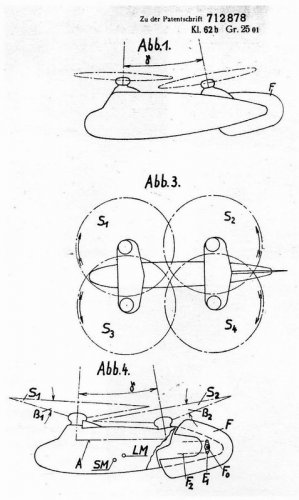

Ah, yes, this patent drawing is shown in the mentioned book, too, described as
"helicopter with lowest glide ratio" but without further explanation. Interesting to read,
that it was assigned to Henschel .
As I understand, the aim of this one as to reduce drag, whereas the other one (with
four rotors) was about a method to achieve stability.
