Alexey Georgievich Annenkov and his seaplanes

Stargazer

ACCESS: USAP
Top Contributor
Joined
25 June 2009
Messages
14,108
Reaction score
4,239

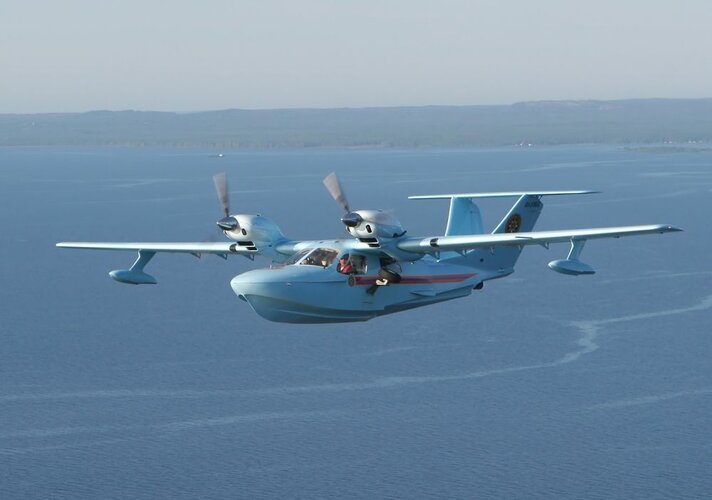

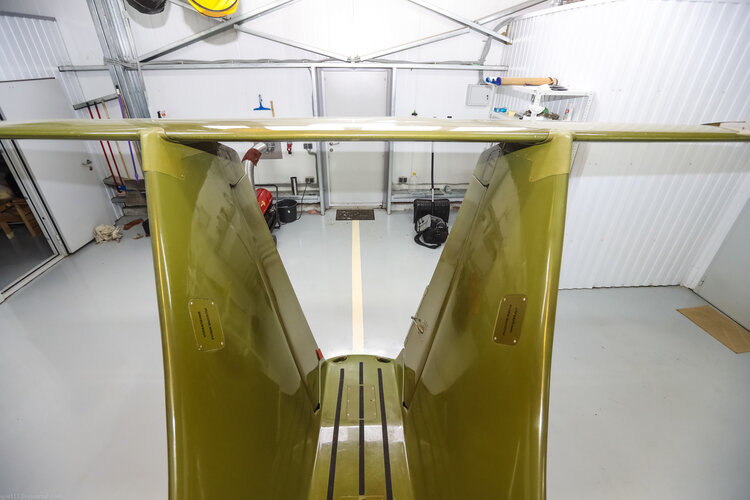

Annenkov-pilot.JPG Starting in 1996, aircraft designer Alexey Annenkov and his team developed and built an entire line of seaplanes, both flying boats and amphibians. The story of "two-keel" amphibian aircraft by Annenkov began with the "Vera" amphibious aircraft, the first flight of which took place in February 1996. Contrary to other Russian startup directors who embraced the Western corporate values and business processes, full of "motivations" and "bonuses", Annenkov kept a very simple, no-nonsense approach to aircraft making: an idea, a common goal, and cooperative work driven by enthusiasm and a human attitude throughout. Annenkov and his team enjoyed working together, but also relaxing and spending off-time together. Money was always a means, never a goal. In total, more than 30 aircraft of various types and modifications were custom-built, nearly all along the same basic design: flying boats with twin fins surmounted by a horizontal tail (a configuration allowing for rear access to the cabin between the fins). The basic "Vera" led to the L-6, L-4 and La-8 designs (the digits indicating the number of passengers), and apart from the La-8 (which had a T-tail) and the one-off S-44F and S-72 landplanes, all of Annenkov's designs followed the same unique pattern.

It can be misleading that Annenkov's aircraft appear as produced under different company names. In fact, he founded or co-founded them all for the production of his design: Chaika for the L-4 and L-6 families of aircraft (L-3, L-4, L-42, L-44, L-6, S-44F, S-72), Aerovolga (for the L-6M and La-8) and Aviatech (for the L-42M/L142, L-72/L162) — the brand Seabear Aircraft being merely a rebadging of Chaika for foreign markets (L-44M, L-45, L-65). And despite being produced in small quantities, all of those designs enjoyed tremendous popularity in the seaplane community on an international level.

Sadly, G. A. Annenkov lost his life on August 7, 2014, along with three passengers, in the crash of an L-42 which he was piloting, on the territory of the Podosinovsky district of the Kirov region.. The aircraft was flying for tourism purposes in tandem with a similar aircraft on the route Samara-Kazan-Arkhangelsk, which also made an emergency landing on the Northern Dvina River after witnessing the emergency landing of the first. The Volga Region Transport Investigation Department of the Investigative Committee of the Russian Federation conducted a pre-investigation check into the disappearance of the L-42 aircraft in the Kirov region. According to preliminary data, the L-42 had flown from Kazan to Arkhangelsk without notification of the flight or escort from air traffic controllers, and crashed in a failed emergency landing.

At the AOPA-2015 Volzhanka Conference, A.G. Annenkov received posthumously the “Silver Wings” in the category Design Engineer of the Year, in recognition for his contribution to Russian general aviation. It is worthy to note that American legend Burt Rutan liked Annenkov and his designs, and signed him an autograph as a souvenir, wishing good luck to the staff of the enterprise. There is little doubt that his appreciation of Annenkov's "Seagull" seaplanes was instrumental in Rutan's designing his own "SkiGull" as his final retirement project.

Research by Stéphane Beaumort for Secret Projects © 2024

A.G. Annenkov (center) & Gennady Ivanov (right) during tests of 'Vera' on the Volga, 1996.jpg
A.G. Annenkov (center) & Gennady Ivanov (right) during tests of "Vera" on the Volga, 1996

A.G. Annenkov and the Aviatech team in the assembly shop.jpg
A.G. Annenkov and the Aviatech team in the assembly shop

Last edited:

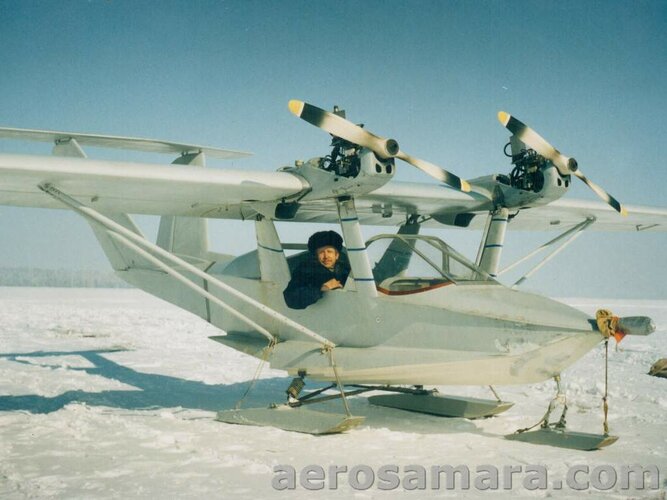

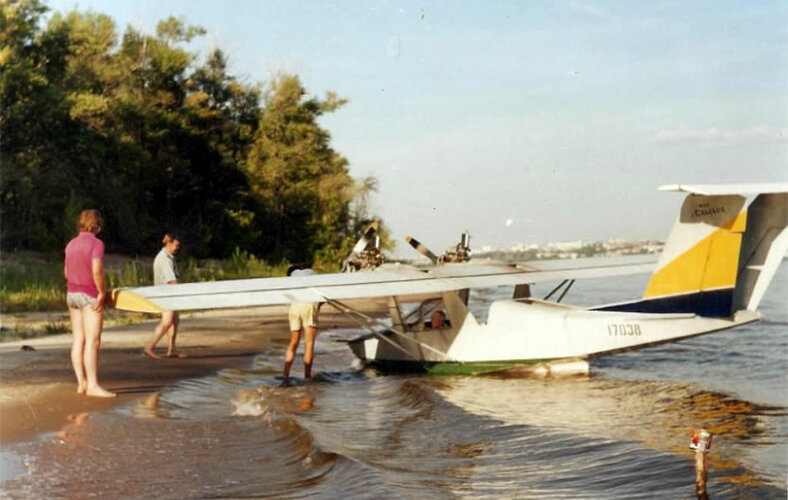

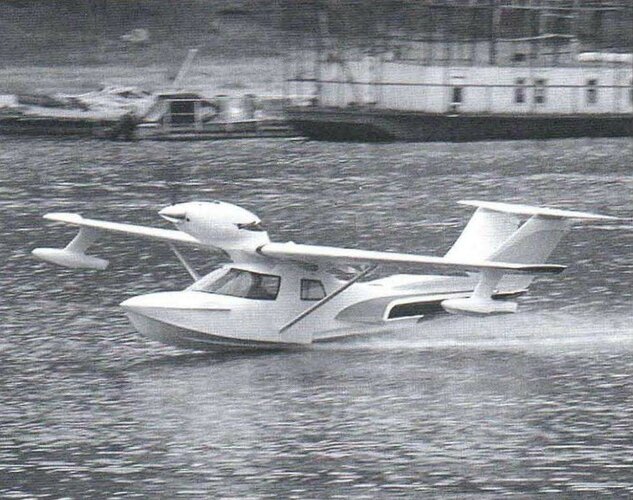

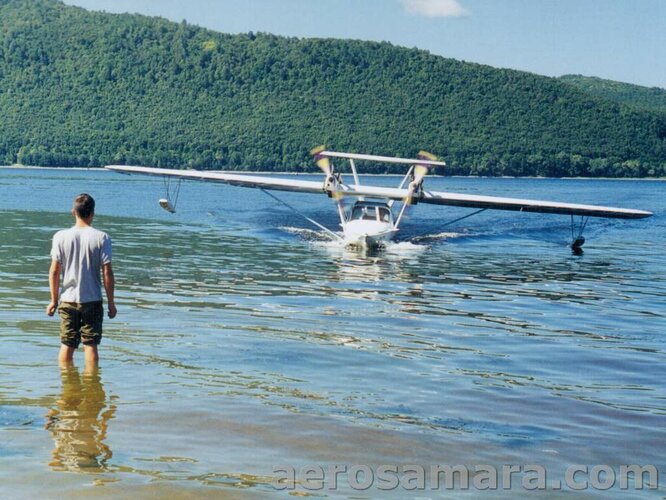

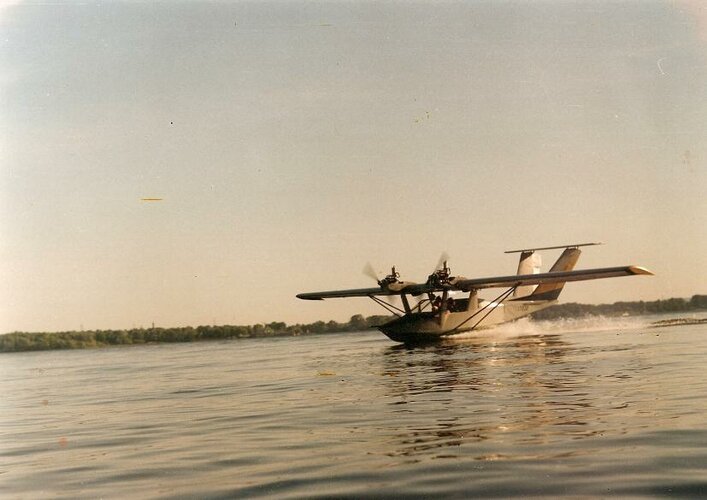

Annenkov / Chaika "Vera" (1996)
The very first, open-cockpit, two-seater version:



Attachments

  • istoria_1986foto12.JPG
    51.3 KB · Views: 1
  • 3.jpg
    113.1 KB · Views: 1
  • Two seat flying boat — L-6 and L-4 prototype.jpg
    Two seat flying boat — L-6 and L-4 prototype.jpg
    63.6 KB · Views: 3

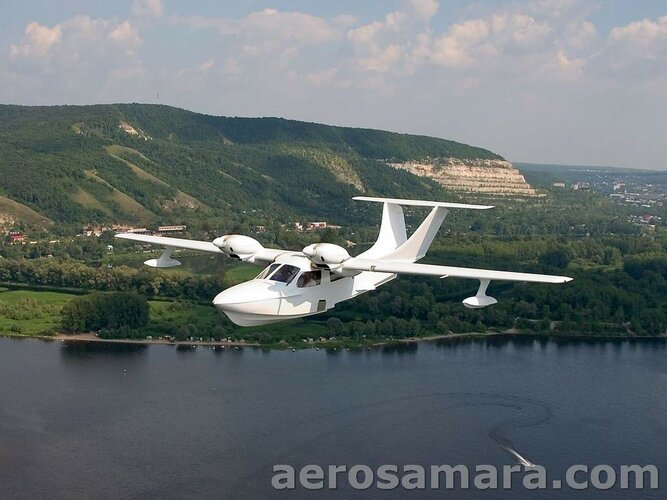

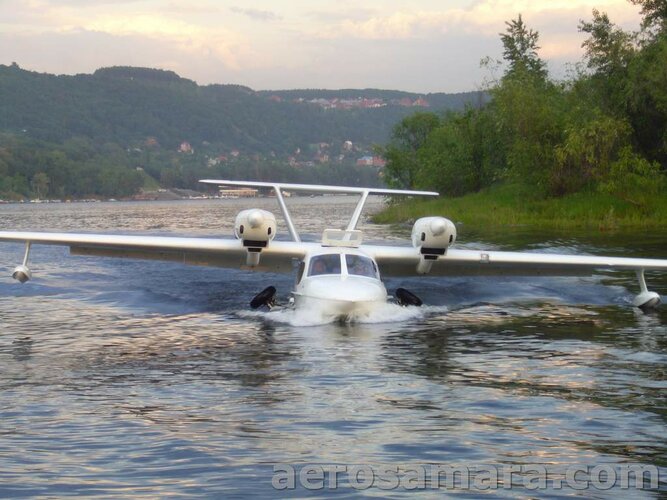

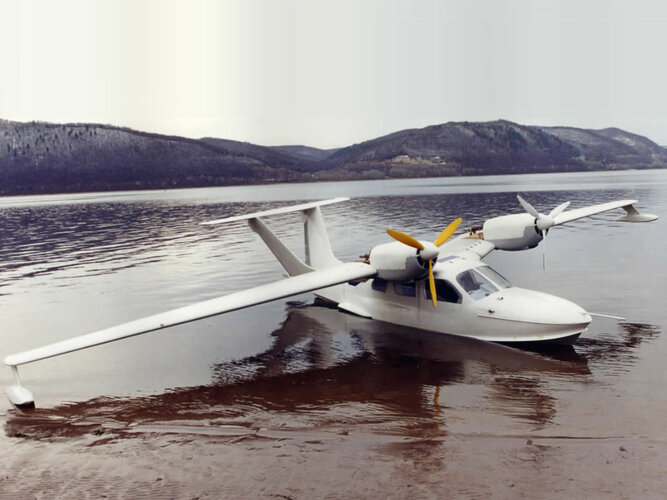

Chaika L-6 (1999)
The original six-seater design with straight wings:

01 (2).jpg


Attachments

  • 02 (2).jpg
    02 (2).jpg
    44.9 KB · Views: 3
  • 06.jpg
    122.6 KB · Views: 3
  • history_l6m.jpg
    164.4 KB · Views: 1

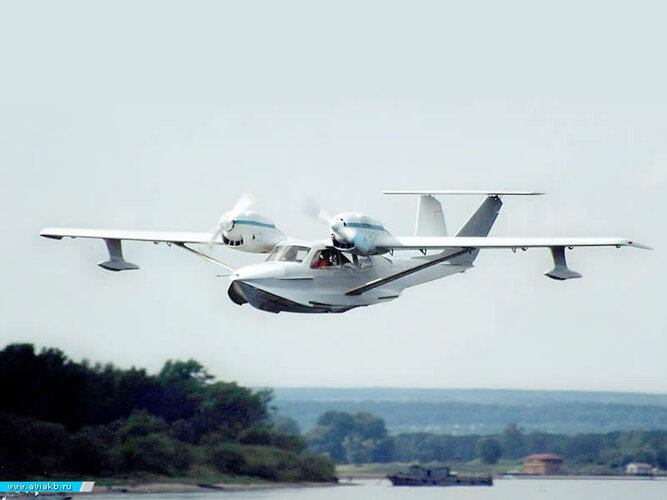

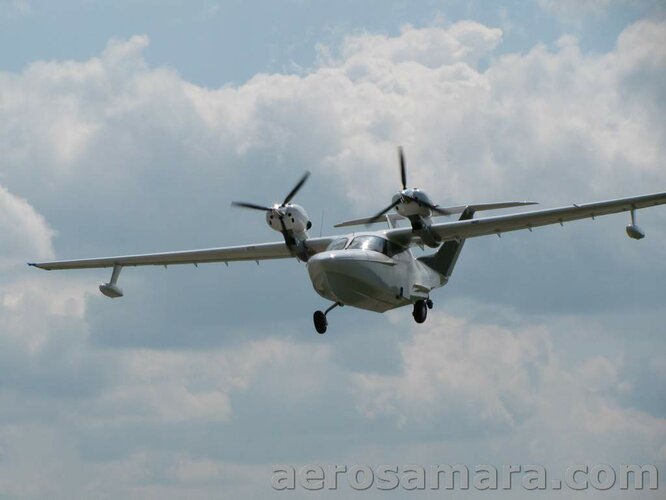

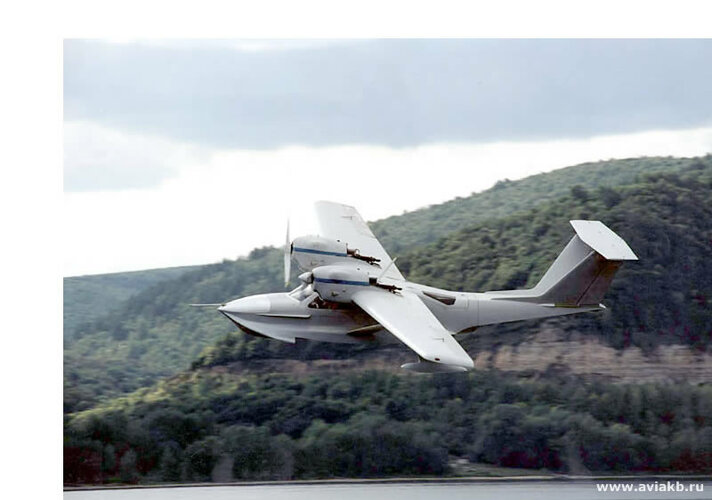

Aerovolga L-6M (2001)
Modernized version with retractable landing gear, larger wing area:


Chaika L-6SV (2003)
A major redesign with cantilever gull-wing and many improvements:



Attachments

  • 01.jpg
    54.5 KB · Views: 1
  • 06.jpg
    122.6 KB · Views: 2
  • 6.jpg
    61.8 KB · Views: 2
  • 05.jpg
    15 KB · Views: 2

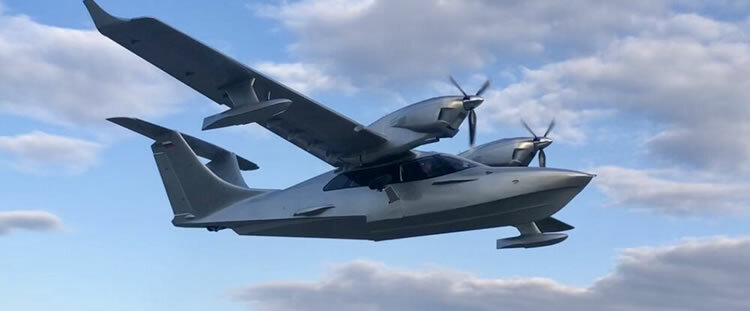

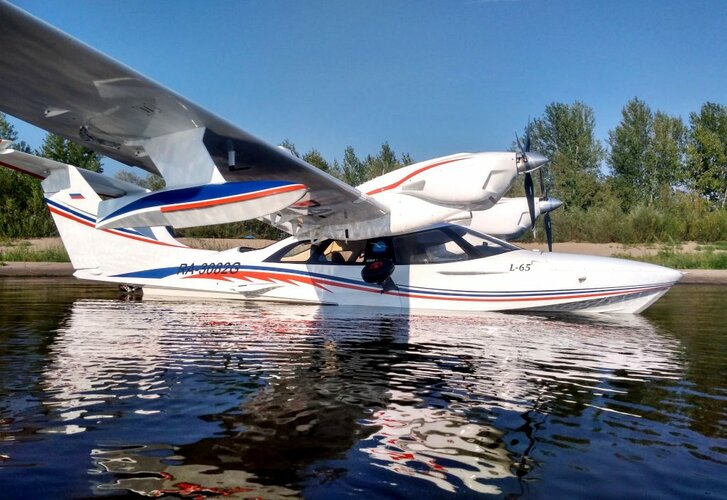

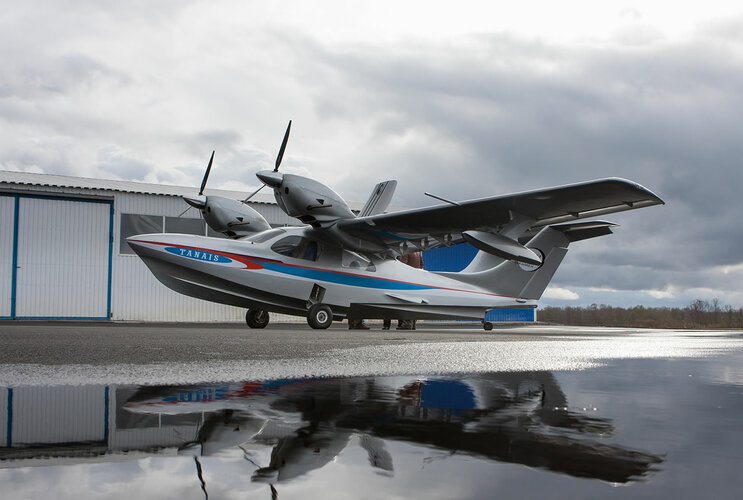

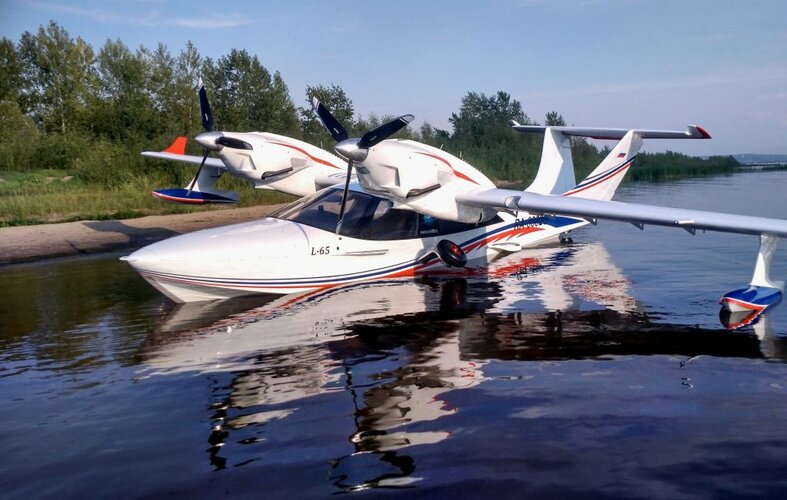

Chaika (Seabear) L-65
Latest development of the L-6 family for international markets:



Attachments

  • 81039589_1046818875710963_4754803111938228224_o.jpg
    288.7 KB · Views: 2
  • l65_ext1.jpg
    70 KB · Views: 2
  • l65_ext2.jpg
    68.2 KB · Views: 2
  • 79418238_1046818582377659_6076894131269926912_o.jpg
    327.7 KB · Views: 1
  • 76958032-620x413.jpg
    32.9 KB · Views: 1
  • 8-1536x960.jpg
    139.2 KB · Views: 1
  • 7-1024x698.jpg
    117.8 KB · Views: 1
  • 6-1024x651.jpg
    112.2 KB · Views: 1
  • 1-1-1024x705.jpg
    144.9 KB · Views: 1
Chaika L-4 (2005)
A four-seater developed from the L-6M:

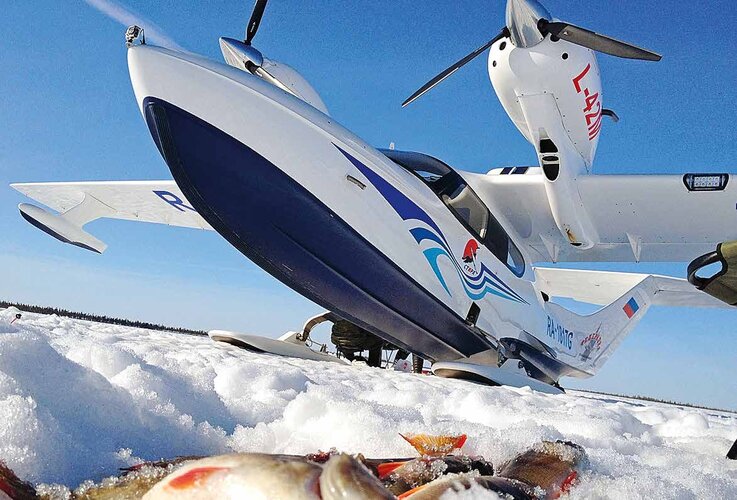

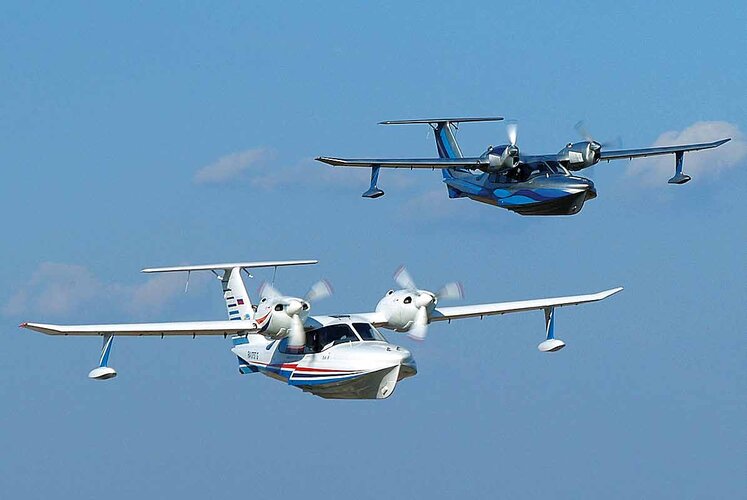

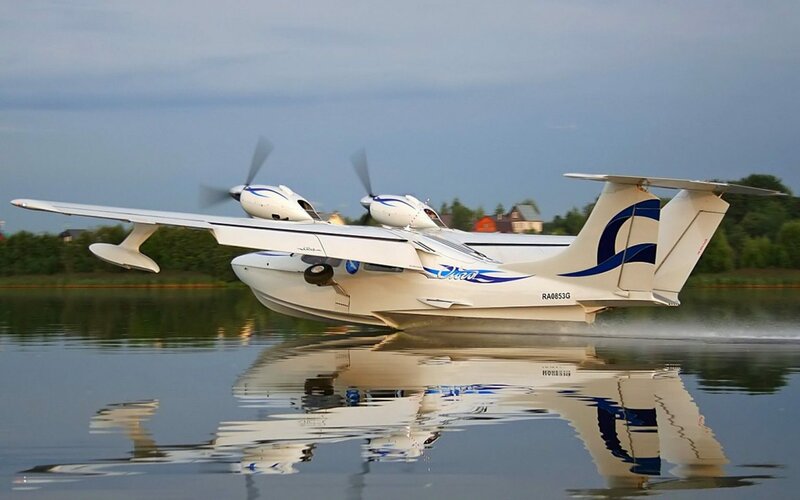

Chaika L-42 (2005)
First production version of the L-4 (the digit "2" indicates Rotax 912 engines):

zChaika L-42_RA-0786G_046.JPG


Attachments

  • 7.jpg
    75.7 KB · Views: 1
  • 47.jpg
    85.7 KB · Views: 1
  • slip.jpg
    232.4 KB · Views: 1
  • 51.jpg
    121 KB · Views: 2

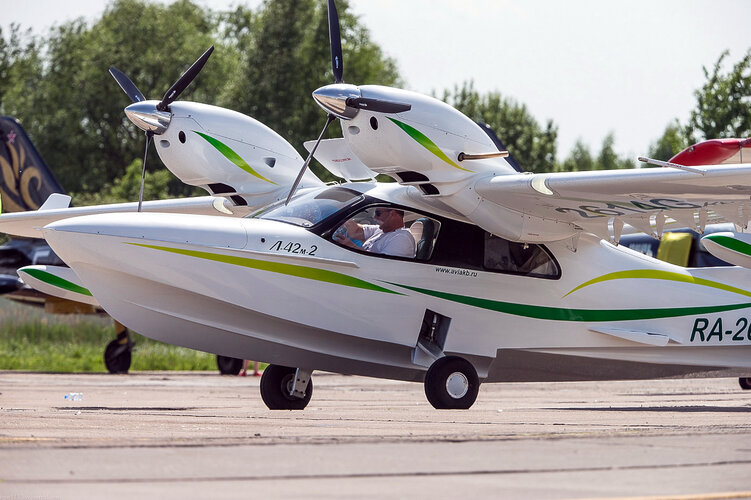

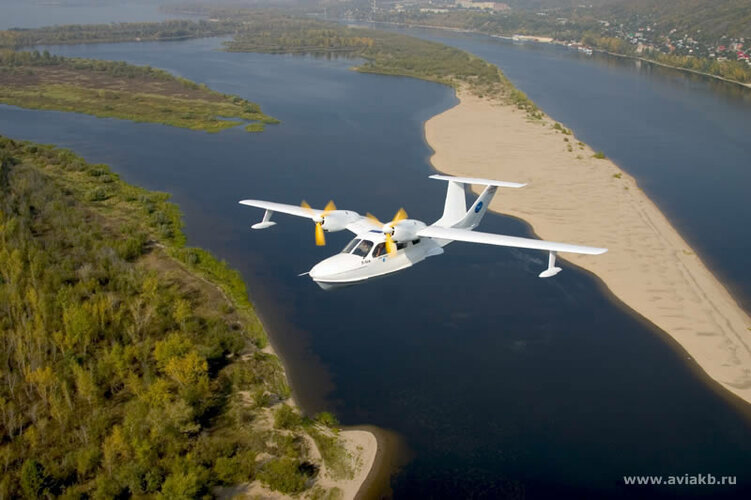

Chaika L-42M-2 (2009)
Improved version:



Attachments

  • 3041.jpg
    183.3 KB · Views: 3
  • aviaregion_2016_008.jpg
    427.3 KB · Views: 3
Beautiful aircraft indeed. Thanks for sharing this marvelously illustrated profile.
If you liked these, lo and behold... there are more beauties coming! ;)

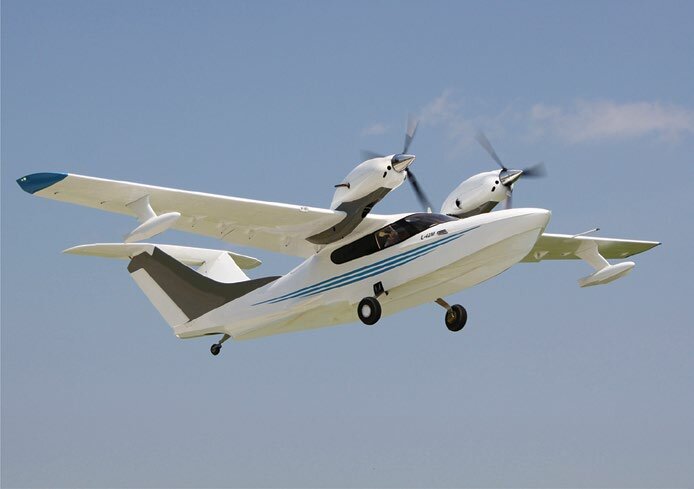

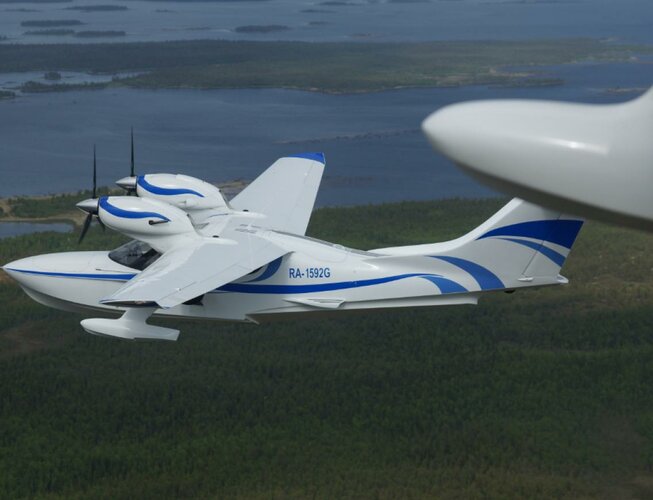

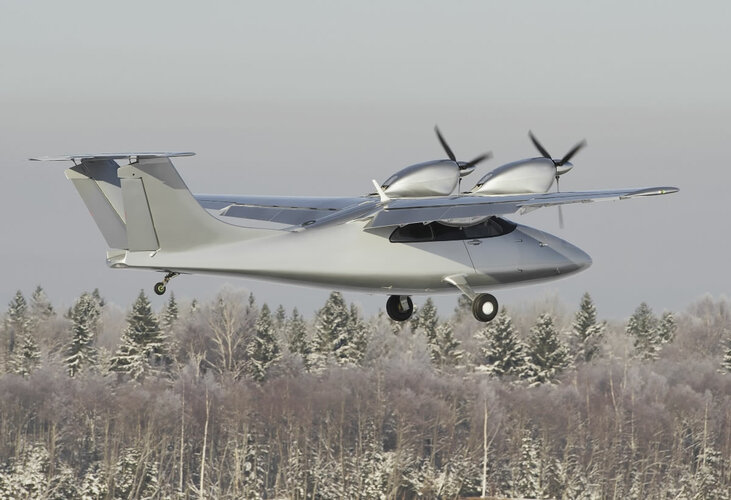

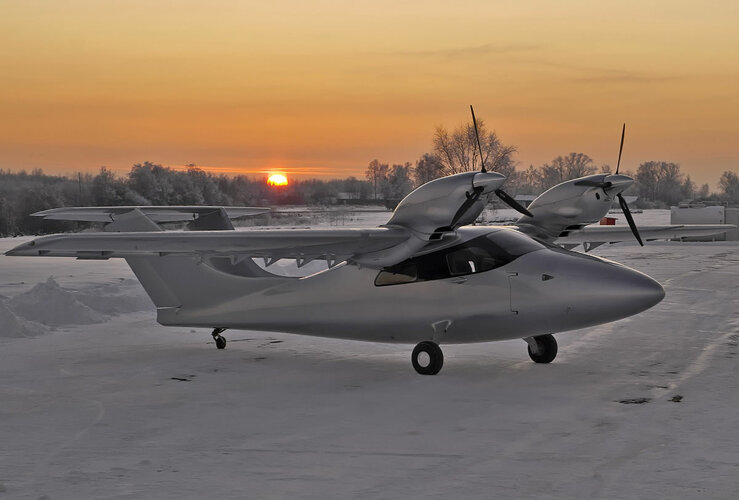

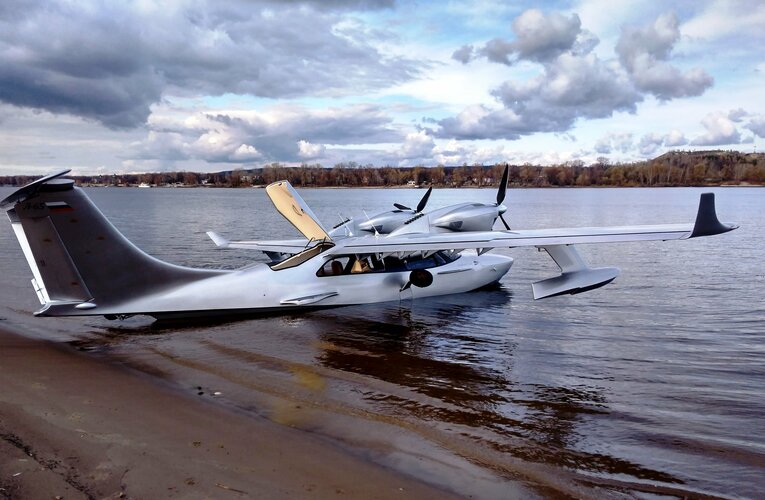

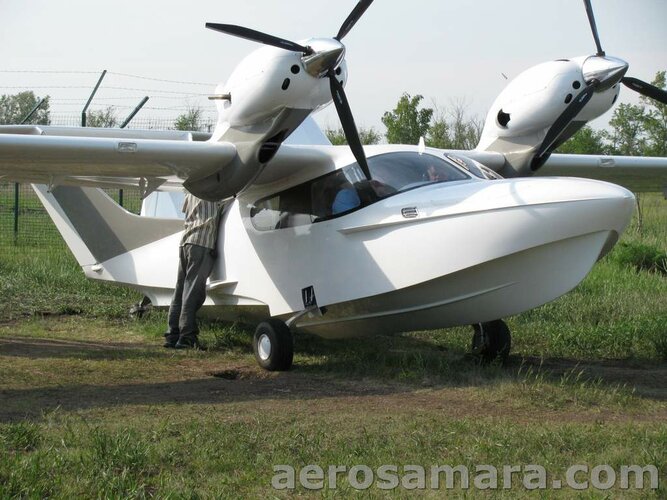

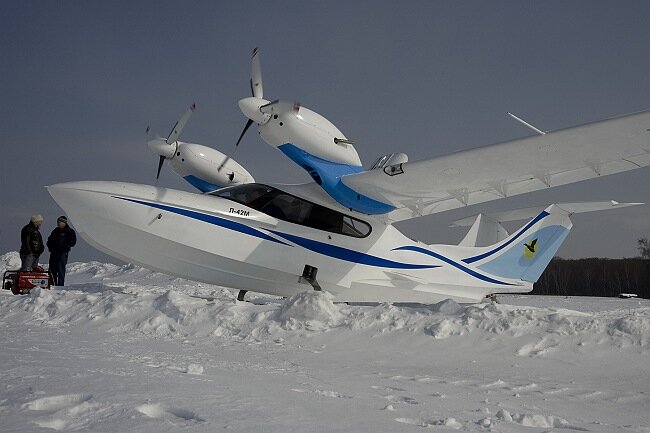

Aviatech L-42M "Samara" (2010)
Standardized modernized version:

АВИАТЕХ Л-42М «САМАРА».jpg


Attachments

  • Л-42М.jpg
    14.9 KB · Views: 3
  • sized_L-42M-WP-sm.jpg
    171.8 KB · Views: 3
  • sized_128_001_001.JPG
    91.7 KB · Views: 2

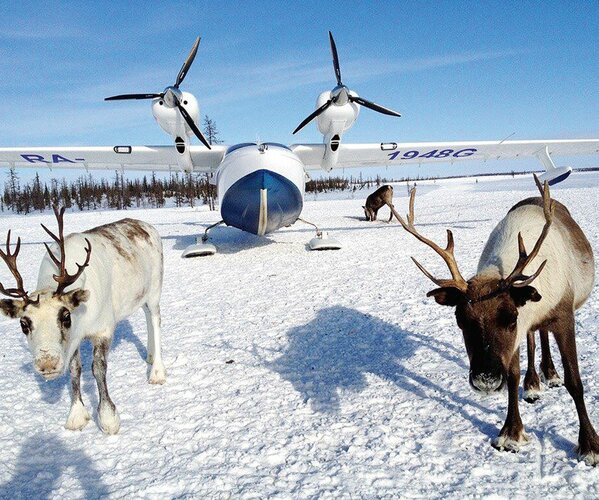

  • RA-1948G.jpg
    178.5 KB · Views: 2
  • RA-1817G.jpg
    99.1 KB · Views: 2
  • RA-1592G.jpg
    68.7 KB · Views: 1
  • 68.jpg
    39.5 KB · Views: 1
  • 65.jpg
    110.3 KB · Views: 2
  • 2.jpg
    110.9 KB · Views: 1

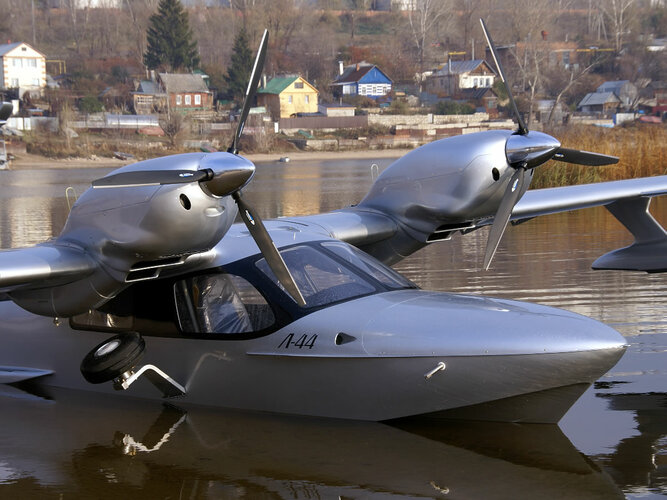

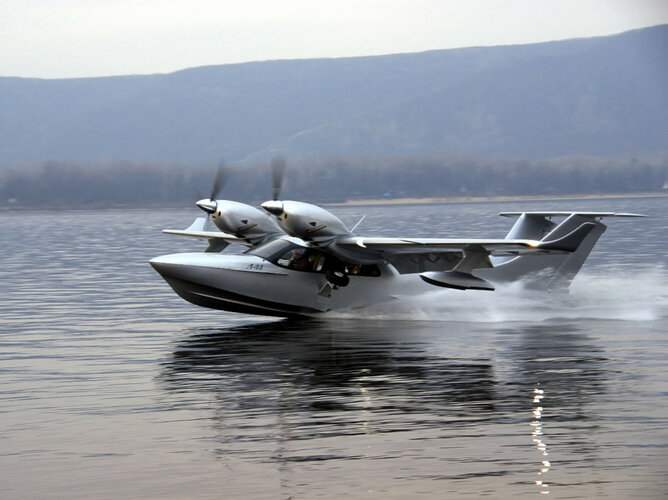

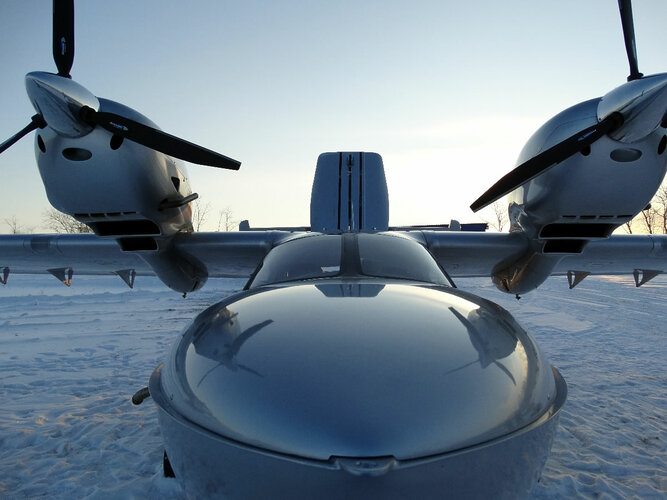

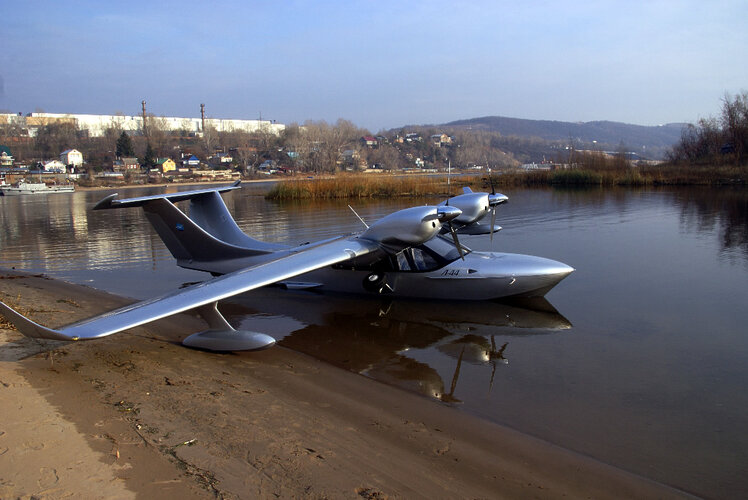

Chaika L-44 (2009):
Version of L-42 with Rotax 914 engine:



Attachments

  • 3027.jpg
    139.3 KB · Views: 0
  • 3029.jpg
    180.7 KB · Views: 1
  • 3031.jpg
    182.7 KB · Views: 1
  • 3036.jpg
    154.4 KB · Views: 1
  • 3024.jpg
    147.6 KB · Views: 1
  • 3037.jpg
    363.9 KB · Views: 0
  • 6167.jpg
    140.7 KB · Views: 2
  • 6177.jpg
    117.9 KB · Views: 3

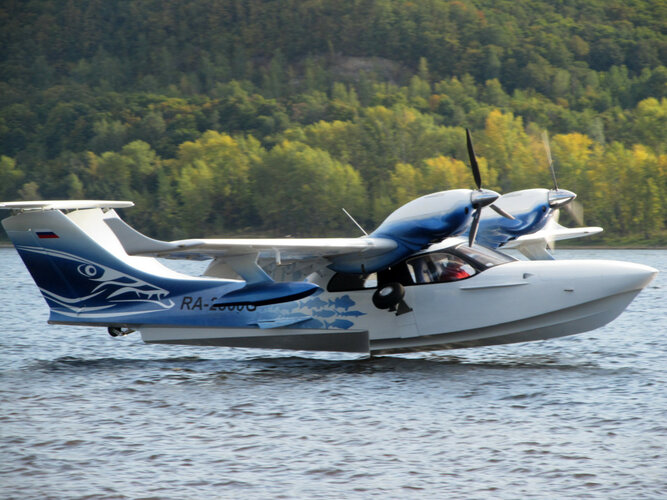

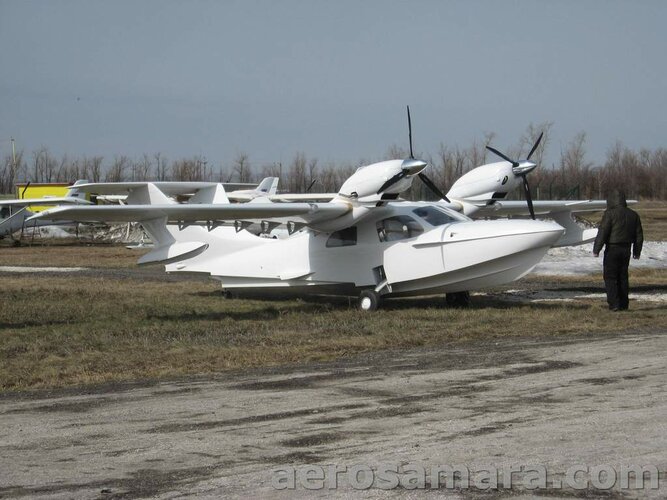

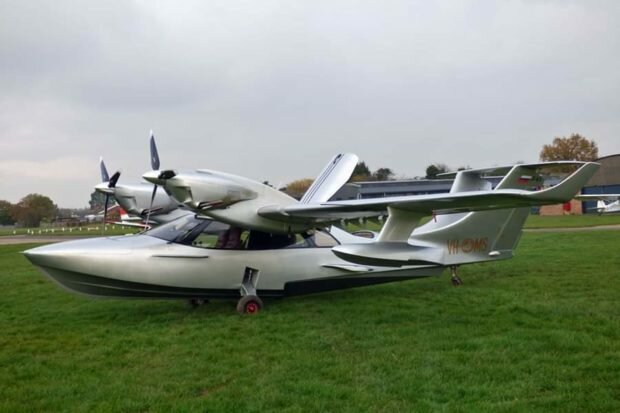

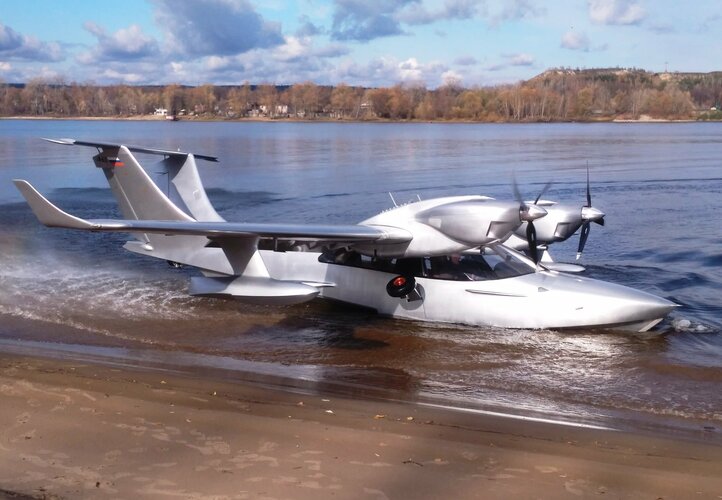

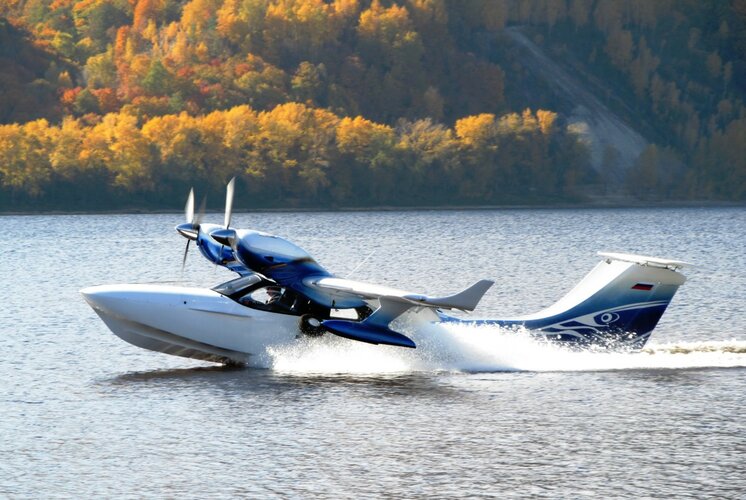

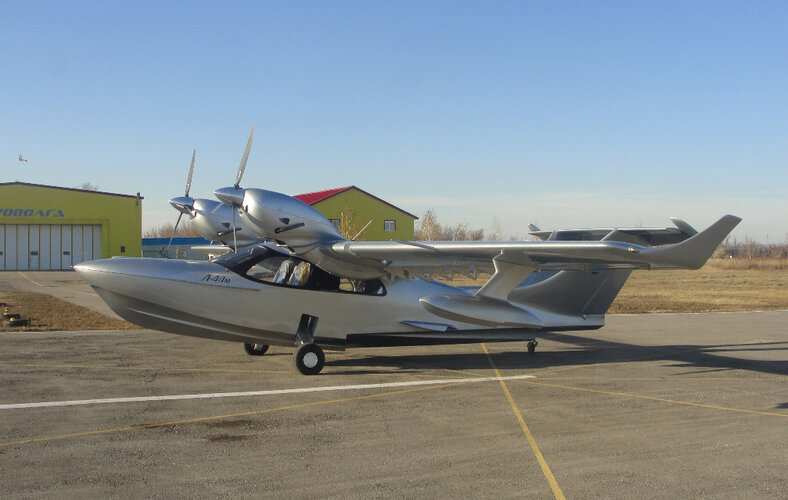

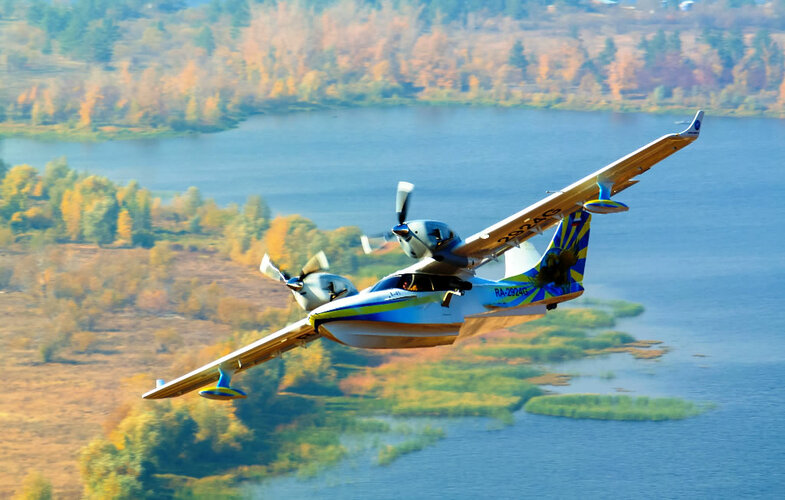

Chaika / Seabear L-44M (2010)
Modernized version:

Modern aircraft L-44M SeaBear with Rotax914.jpg


Attachments

  • IMG_20180329_125511.jpg
    150.9 KB · Views: 2
  • 4900к.jpg
    297.1 KB · Views: 1
  • 999.jpg
    241.8 KB · Views: 1
  • l44_pic.jpg
    126 KB · Views: 1
  • 2354_720.jpg
    122.3 KB · Views: 1

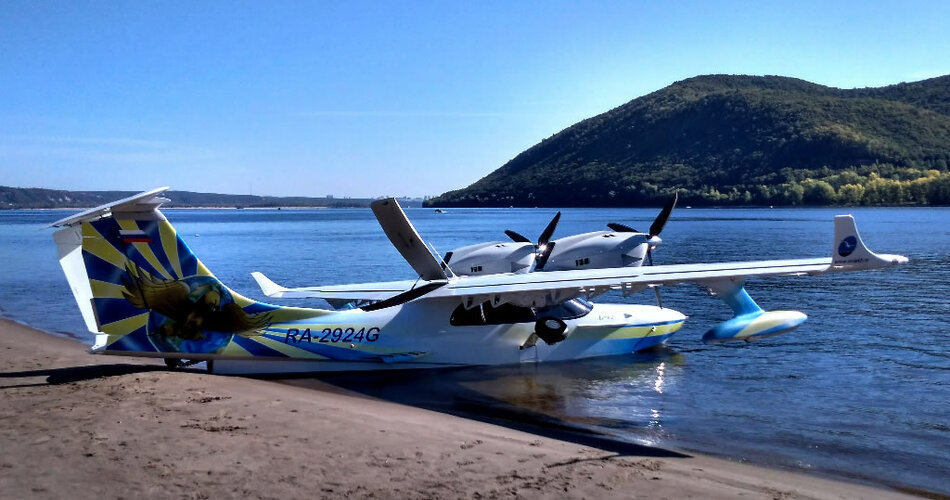

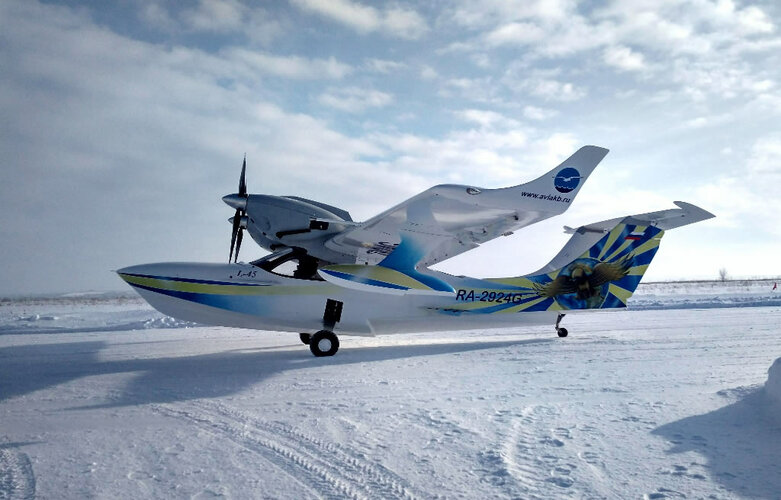

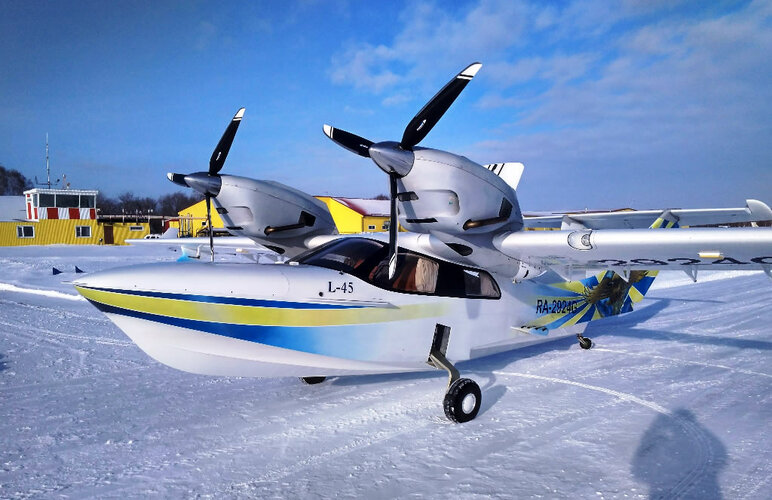

Chaika / Seabear L-45 (2016)
Version with Rotax 915iS3 engines:



Attachments

  • 131231.jpg
    103.3 KB · Views: 1
  • 5452.jpg
    104.4 KB · Views: 1
  • 1215.jpg
    71.6 KB · Views: 1
  • 1211.jpg
    124.7 KB · Views: 2

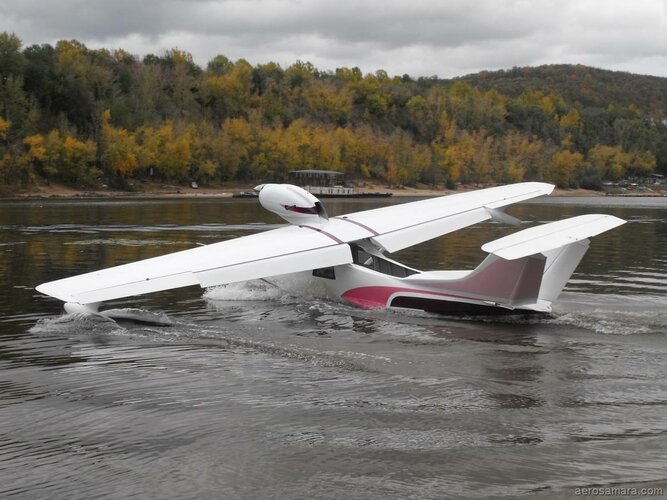

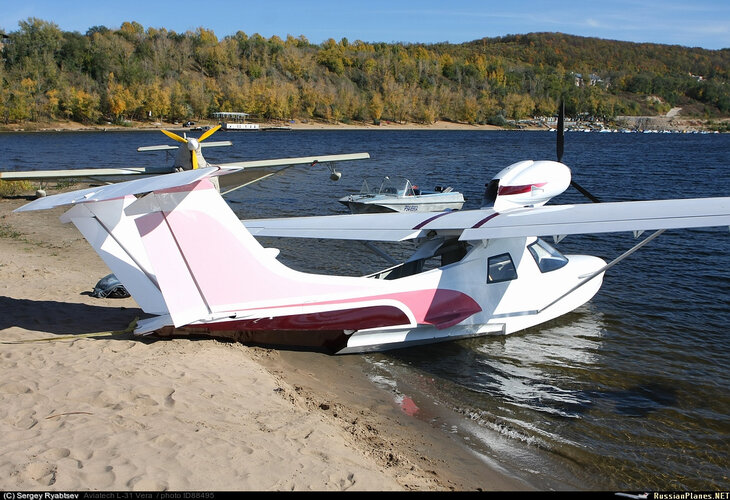

Vitovskiy-Annenkov-Lavrenov VAL-31 "Novaya Vera" (2012)
An attempt to modernize the original "Vera" concept:

zAviatech Vera_001.JPG


Attachments

  • 1-19.jpg
    114.8 KB · Views: 2
  • 16.jpg
    137.5 KB · Views: 2
  • 23.jpg
    37 KB · Views: 2
  • 088495.jpg
    597.9 KB · Views: 3

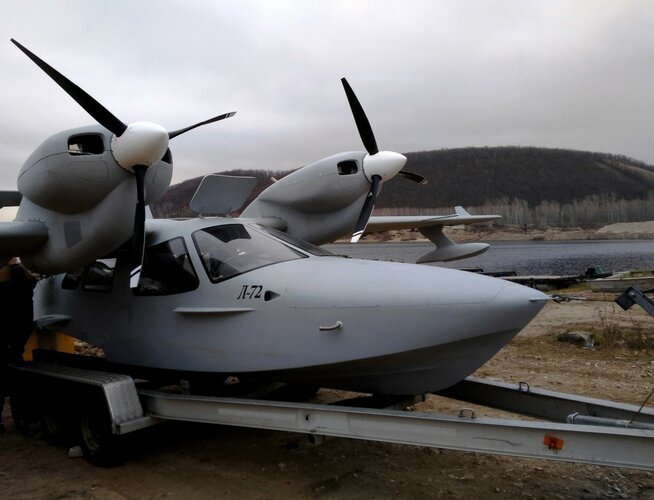

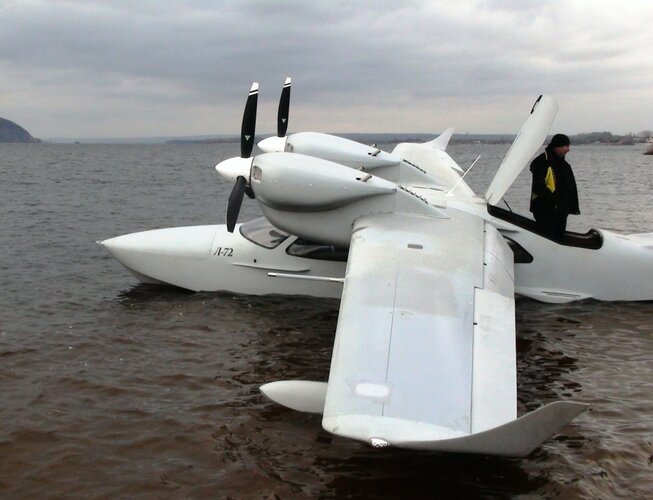

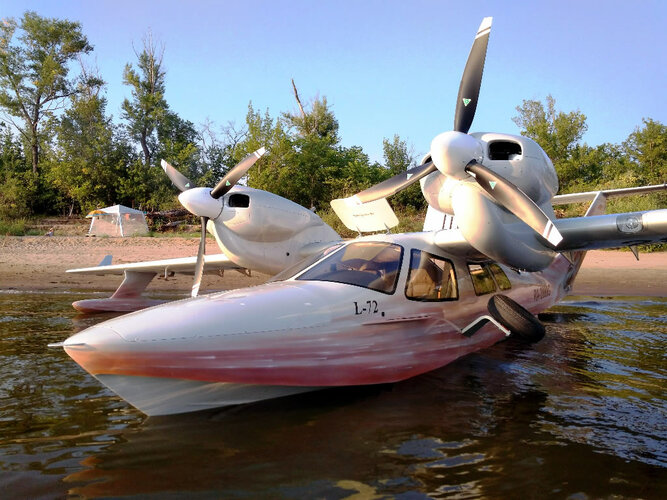

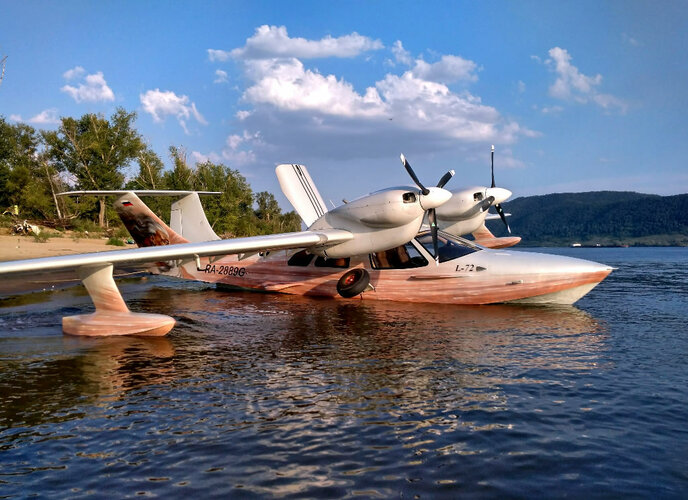

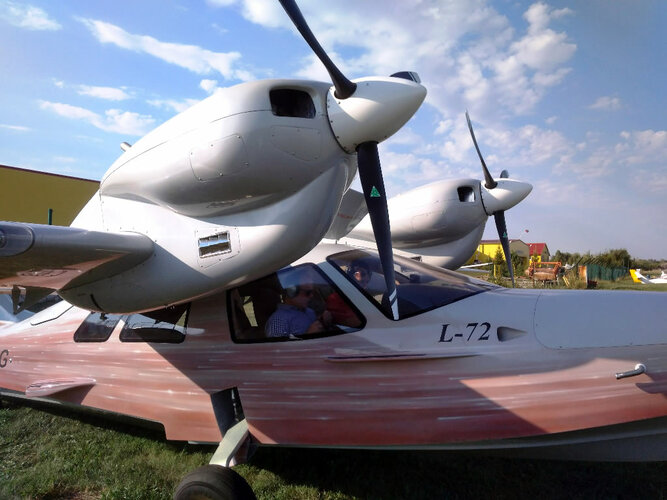

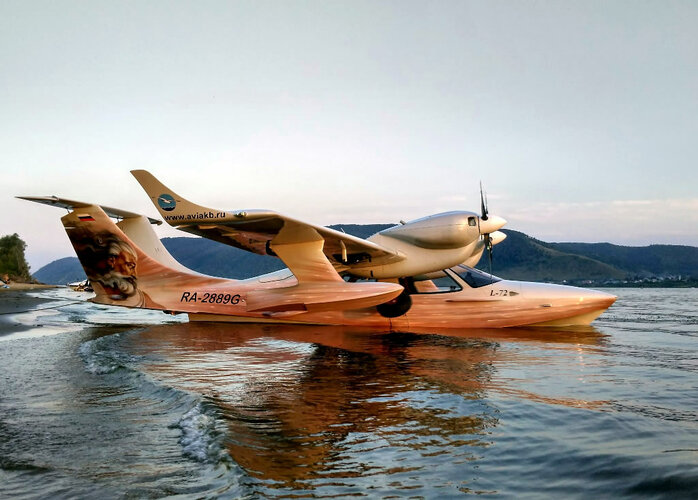

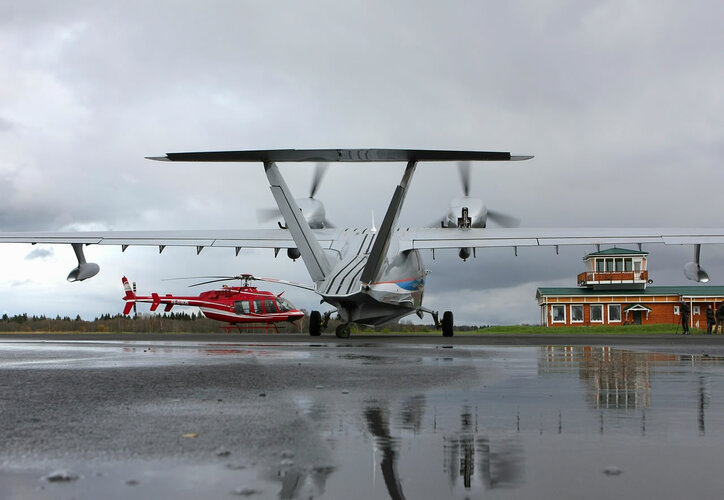

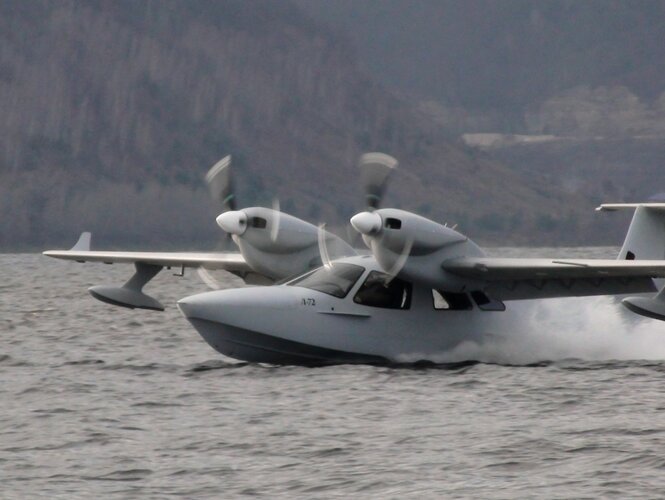

Chaika L-72 / Aviatech L162 (2012)
Five-seat development with Lycoming engines and improved performance:



Attachments

  • 724151.jpg
    112.7 KB · Views: 1
  • 195723.jpg
    131.2 KB · Views: 1
  • 185651.jpg
    159.7 KB · Views: 1
  • 184832.jpg
    190.1 KB · Views: 1
  • 1128.jpg
    130.5 KB · Views: 1
  • 5430.jpg
    145.1 KB · Views: 1
  • 3633.jpg
    156.1 KB · Views: 1
  • 622.jpg
    179.9 KB · Views: 1
  • 0596.jpg
    170.5 KB · Views: 1
  • 562.jpg
    158.9 KB · Views: 1

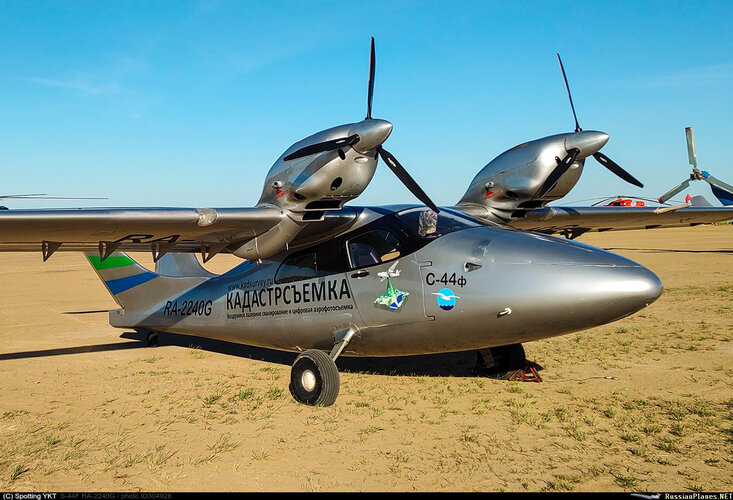

Chaika S-44F (2013)
A landplane version of the L-44, used for cadastre survey:



Attachments

  • 211_4.jpg
    89.6 KB · Views: 1
  • 206_2.jpg
    95.3 KB · Views: 1
  • 304928.jpg
    818.5 KB · Views: 1
  • 407_2.jpg
    126.7 KB · Views: 1

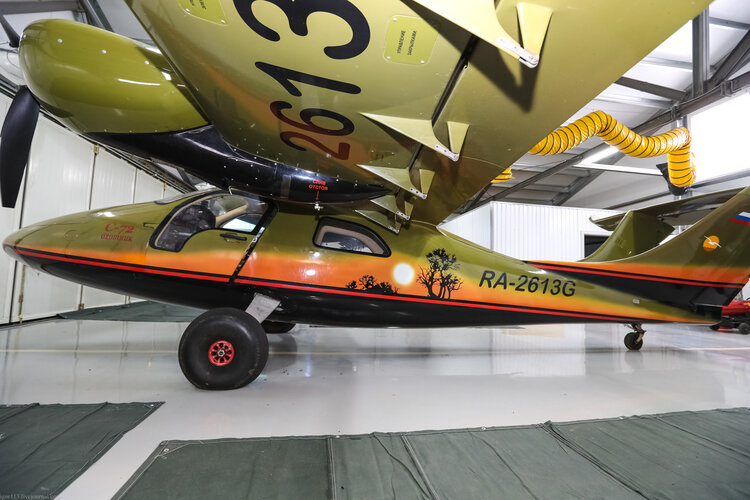

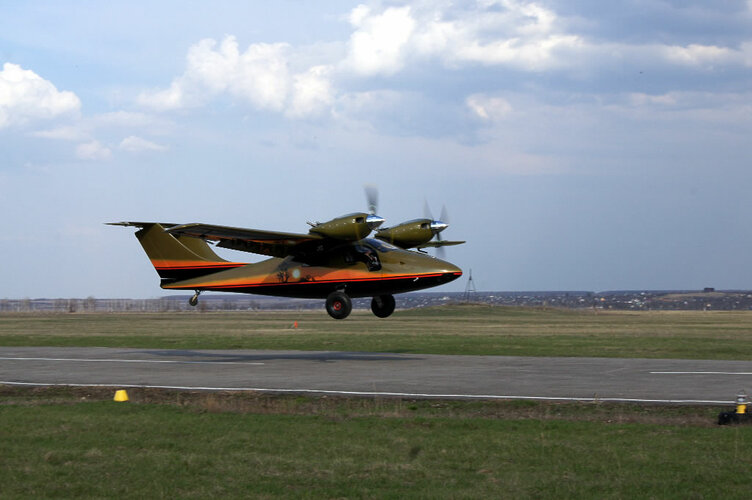

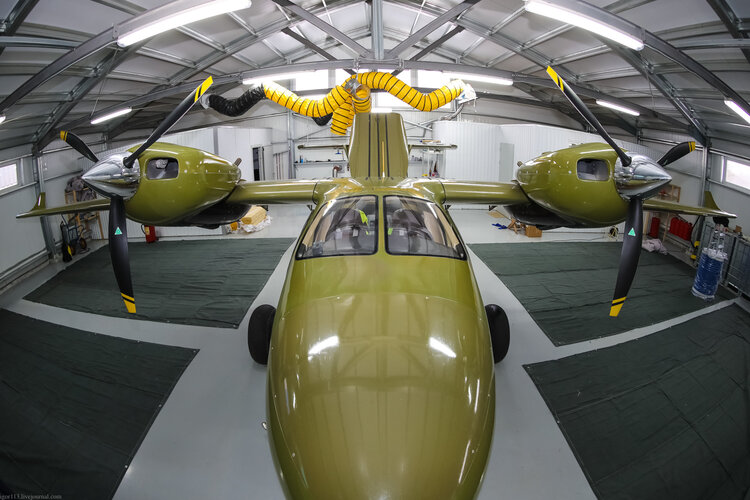

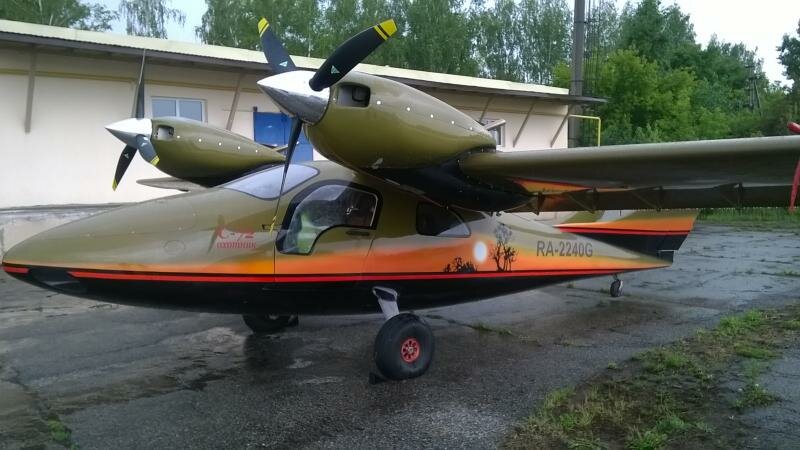

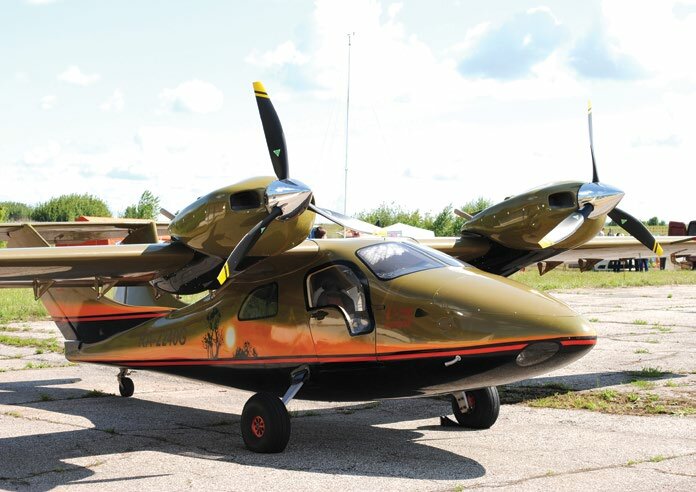

Chaika S-72 "Okhotnik" (Hunter) (2013):
A landplane version of the L-72 amphibian:

ЧАЙКА С-72.jpg


Attachments

  • web_067.jpg
    958.3 KB · Views: 1
  • web_056.jpg
    871.4 KB · Views: 1
  • web_038.jpg
    995.4 KB · Views: 1
  • web_031.jpg
    894.4 KB · Views: 1
  • web_016.jpg
    744.7 KB · Views: 1
  • web_015.jpg
    959.4 KB · Views: 1
  • 517945.jpg
    58.6 KB · Views: 1
  • 06403.jpg
    81.7 KB · Views: 1

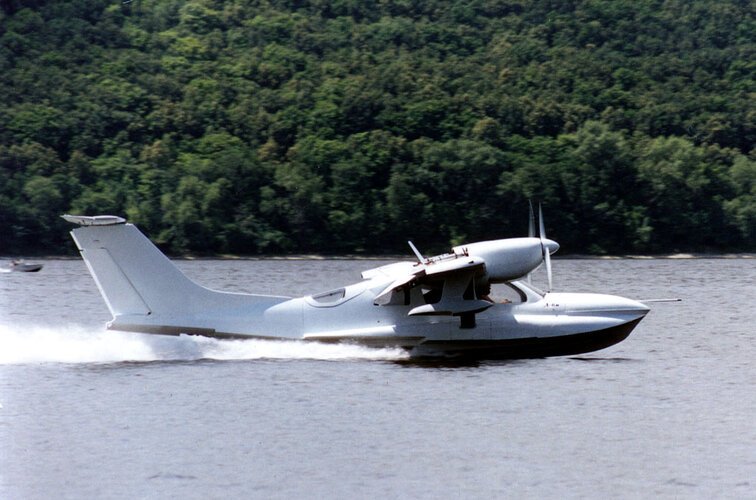

Aerovolga La-8 (2004)
Eight-seat T-tail derivative of L-6M:



Attachments

  • 4.jpg
    47.1 KB · Views: 1
  • 5.jpg
    45.5 KB · Views: 1
  • Ла-8.jpg
    15.5 KB · Views: 1
  • 1.jpg
    52.5 KB · Views: 1
That's it! Well, almost. Here is a model of the unbuilt Yamal, Annenkov's last project, which never became a reality.

Sketch of the Yamal aircraft, Annenkov’s new project.jpg

And let's close this gallery of beauties with picture proof of Burt Rutan's appreciation of Annenkov!


Such beauties ! Similar to Piaggio amphibians, also something Fio Piccolo might have designed... :D
