Aiba (Tokyo Aviation Co.) "Tsubame" series

[hesham]

Thank you my dear Blackkite,

and there is also for the Tokyo Aviation Company Ltd. which
modified the Aiba-Tsubame Model 8 trainer aircraft into Aiba-
Tsubame Model 9,but no more info about it.



[blackkite]

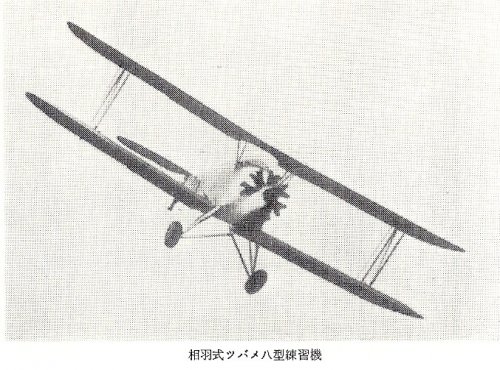

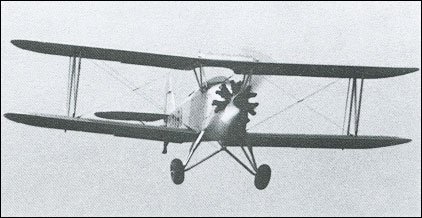

Hi my dear hesham! The Tokyo Koku Aiba Tsubame 8 trainer. Number of built:1
Engine:Gasuden Kamikaze 3-type, 160hp(take off) 7 cylinders air cooling radial engine.
Span:8.9m, Length:7m, Height:2.65m, Wing area:22m2, MTOW:900kg, Max speed:160km/h, Service ceiling:4,400m, Range:580km(4HR).
Source:same.



[Stargazer]

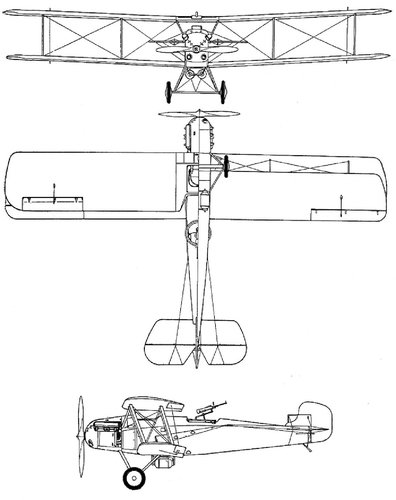

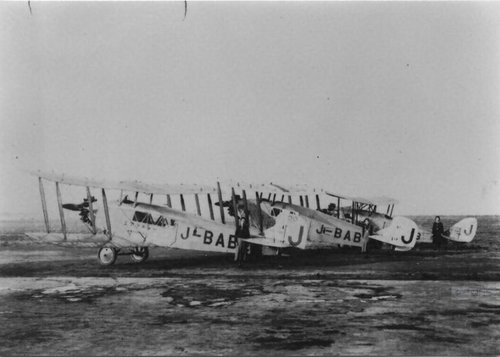

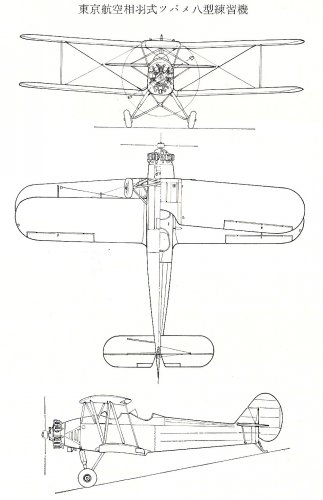

Here are pictures of the Tsubame 6 and Tsubame 7, as well as an improved front view of Tsubame 8:



[hesham]

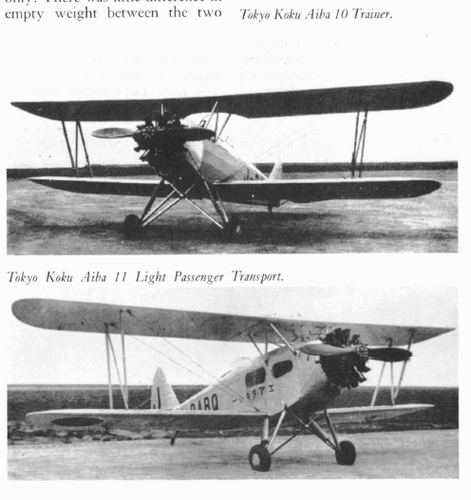

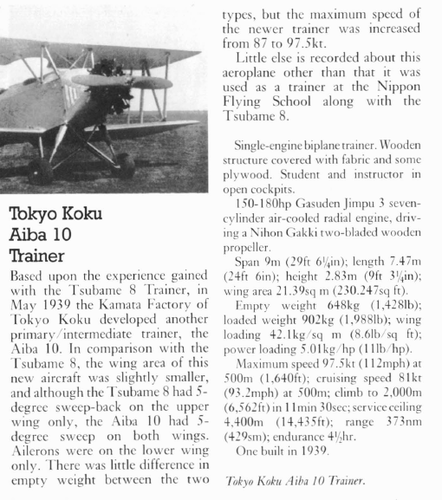

From Putnam book,

Tsubame 10 & 11.



[blackkite]

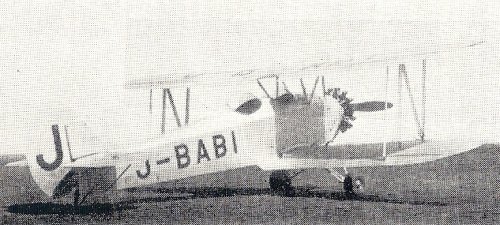

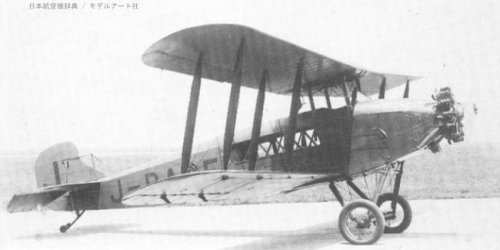

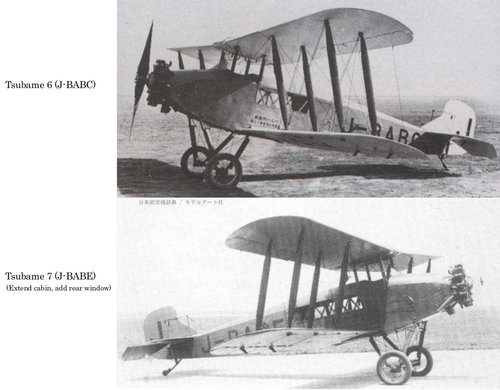

Hi! Tsubame 6 and 7.
https://bunka.nii.ac.jp/heritages/detail/251723



[blackkite]

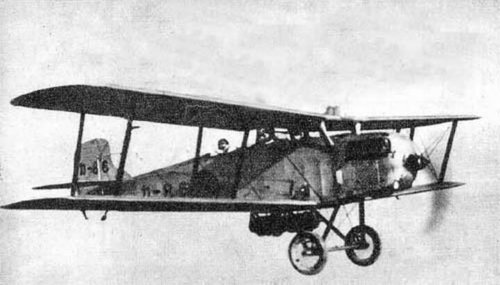

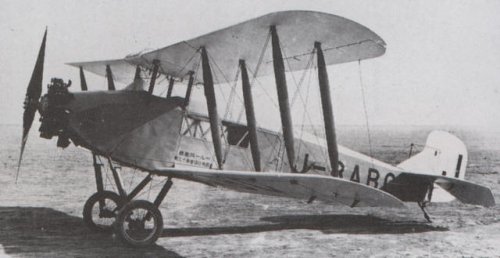

Hi! Tsubame 6 and Gasuden KR-2.



[blackkite]

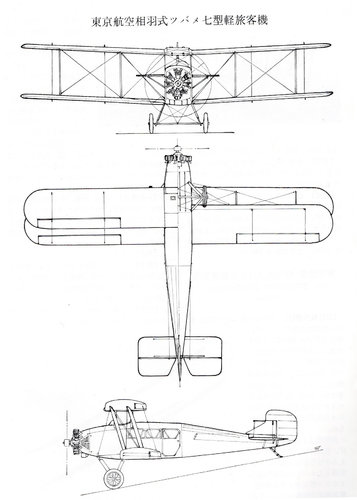

Hi! Tsubame 7 three side view drawing.



[blackkite]

Tsubame's vertical tail stabilizer was from Mitsubishi 2MR.



[hesham]

But what was from Aiba 1 to 5 ?.



[blackkite]

Nice question!!
I have no data about Aiba 1 to 5.
Do you have any information about these aircraft?



[blackkite]

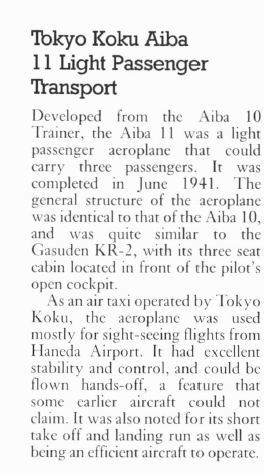

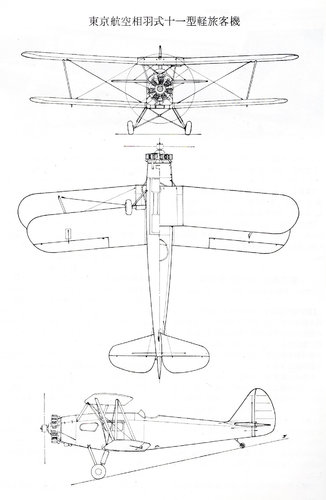

Hi! The Tokyo-koku Aiba-11 Light Passenger plane.



[hesham]

Nice question!!
I have no data about Aiba 1 to 5.
Do you have any information about these aircraft?

No I don't have,

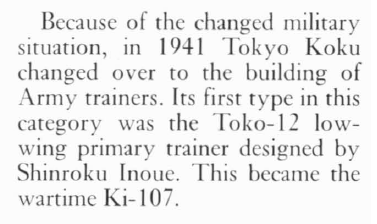

about Toko-12,or Ki-107.



[blackkite]

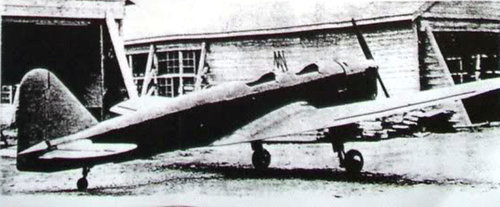

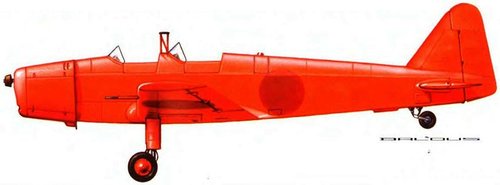

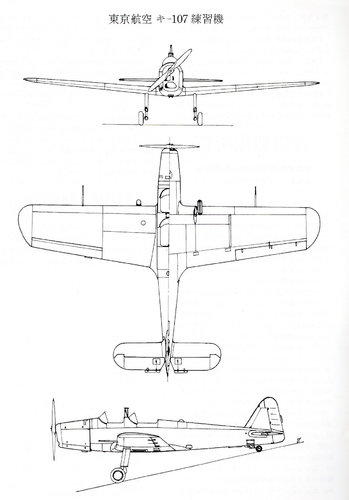

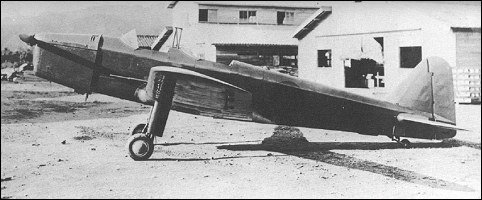

Hi! Tokyo-koku Ki-107 Trainer.
Source : ENCYCLOPEDIA OF JAPANESE AIRCRAFT VOL.8 KYUSHU CONTENTS, etc.
