Aerocar Mini-IMP Aircraft Drawings

[hesham]

Hi,


a well known company Aerocar,designed and built the Mini-IMP pusher light aircraft,here is

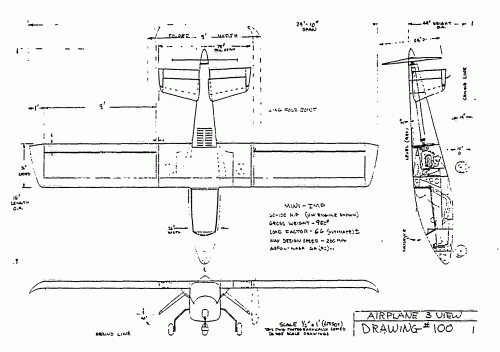

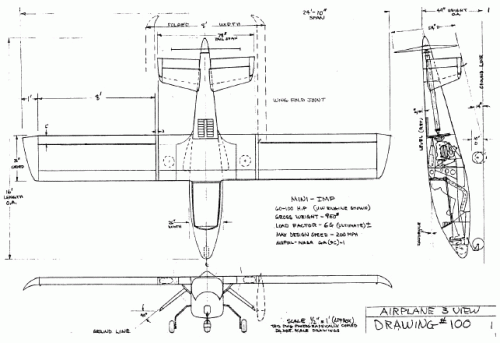

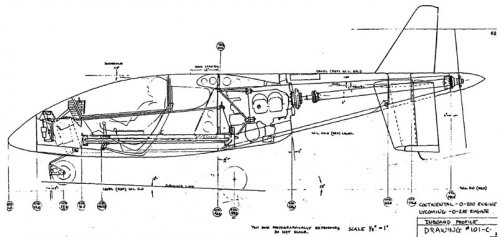

a drawings No.100 and No.101-C.


http://www.mini-imp.com/3-views.htm



[Stargazer]

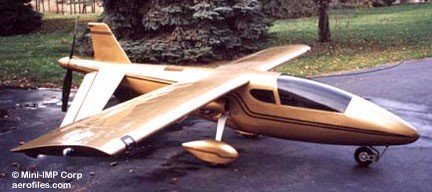

The Mini-IMP was a single-seat version of the earlier IMP four-seater ("Independently Made Plane") with a tail-mounted prop, ashoulder wing, a tricycle landing gear and a 100hp Continental pusher engine. It was marketed as plans for home-builders and over 250 examples were built.

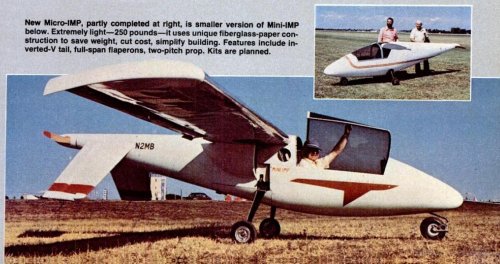

In 1981 Molt Taylor produced the Micro-IMP, which was basically similar to the Mini-IMP, but constructed mainly of fiberglass-reinforced paper and powered by a 25hp Citroën 2CV pusher engine.

The two-seat Bullet of 1982 was a mid-wing counterpart of the Micro-IMP with a 2100cc Revmaster pusher engine.

The last in the IMP family was the Ultra-IMP (also of 1982), a single-seat version of the Bullet with a 2-cylinder Cuyuna engine. This type became the Holcomb Perigee in 1987.



[AeroFranz]

Fascinating little airplane. I'm a sucker for efficient small aircraft with small engines.
Thanks for the summary of the company's designs.



[LowObservable]

I was at Molt Taylor's presentation at OSH when he outlined the Micro-Imp. The design is quite like Predator, but with a high wing and the engine farther forward, linked to the prop by a long shaft.
