A different Sherman tank rocket launcher 1944.

Scapaflow

ACCESS: Confidential
Joined
19 November 2021
Messages
52
Reaction score
69

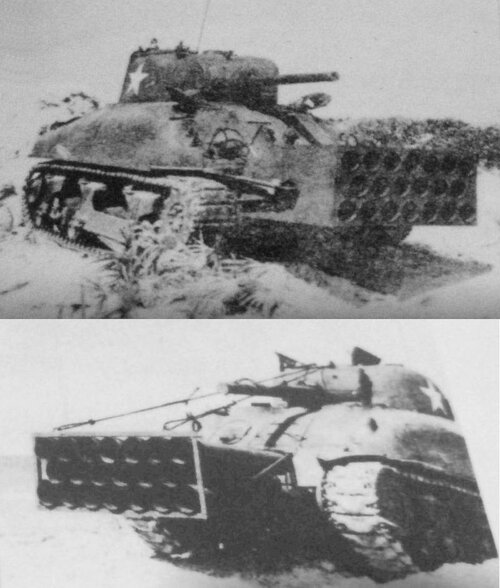

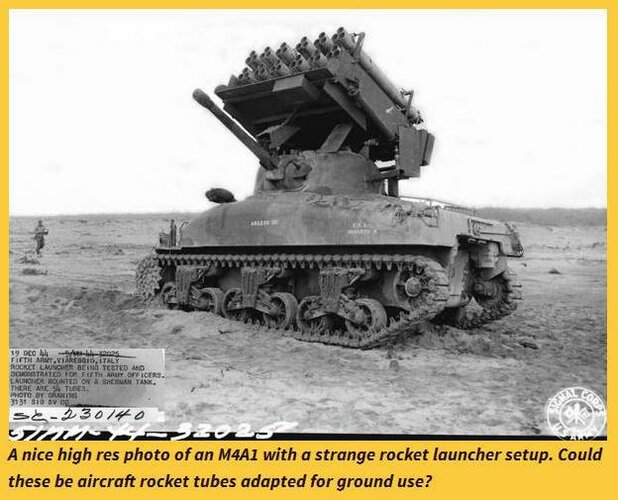

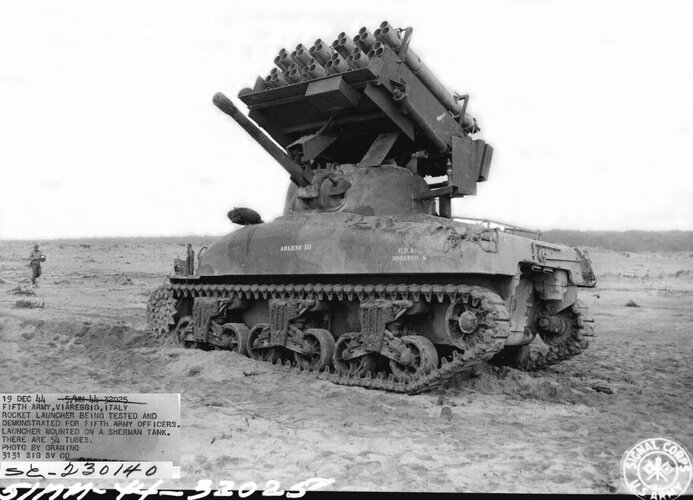

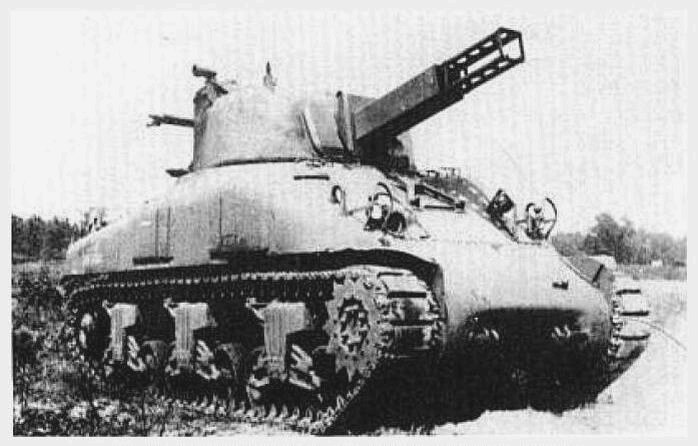

WW2 multiple rocket launcher mounted on a Sherman M4A1 for testing and demonstration in Italy.The device appears to be an almost homemade field improvisation more than a production one.The thumbnail of the picture is dates Décembre 19,1944.The inclination of the Platforms containing the tubes seems to be managed by the mouvement of the gun of the tank.(https://www.theshermantank.com/category/76mm-m1a1a2/)


Attachments

  • 01.jpg
    53.5 KB · Views: 117
  • 02.jpeg
    158.1 KB · Views: 104
  • 03.jpeg
    38.2 KB · Views: 81
Last edited:

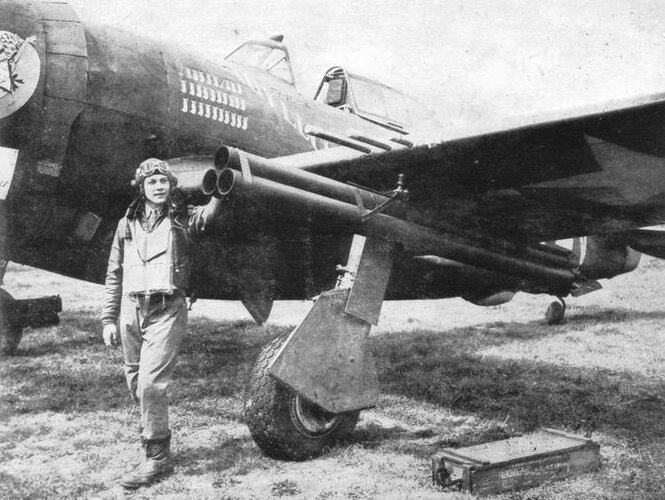

If I had to guess, those would be M10 triple-tube rocket launcher shooting 4.5 inch rockets; mainly carried by the P-47.

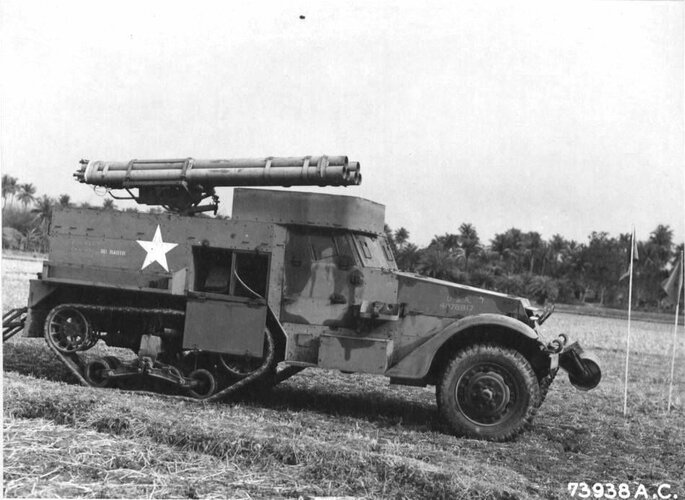

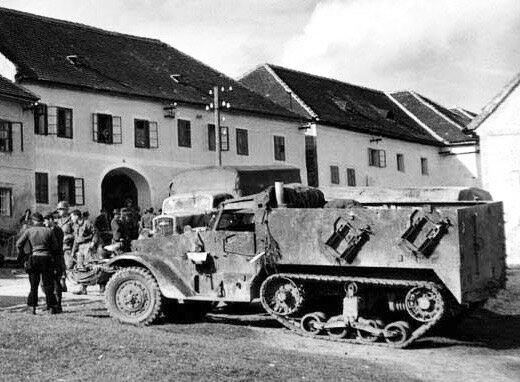

Here's a similarly modified halftrack with the same triple tubes. M3 + Rockets.jpg
View: https://www.reddit.com/r/TankPorn/comments/r8yb0p/american_m3_halftrack_equipped_with_two_triple/

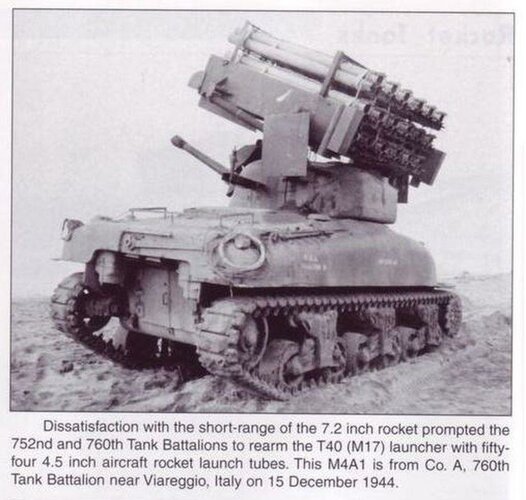

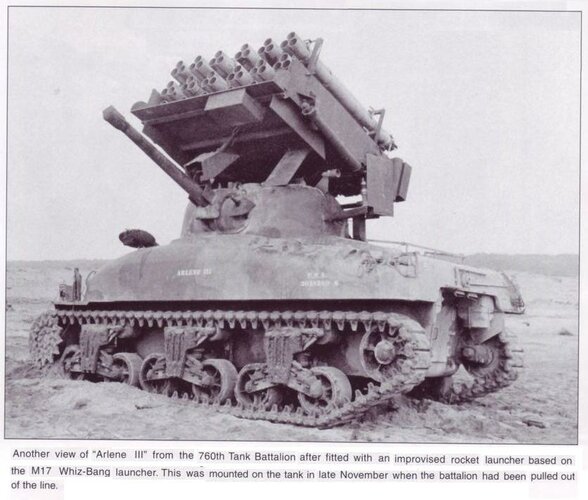

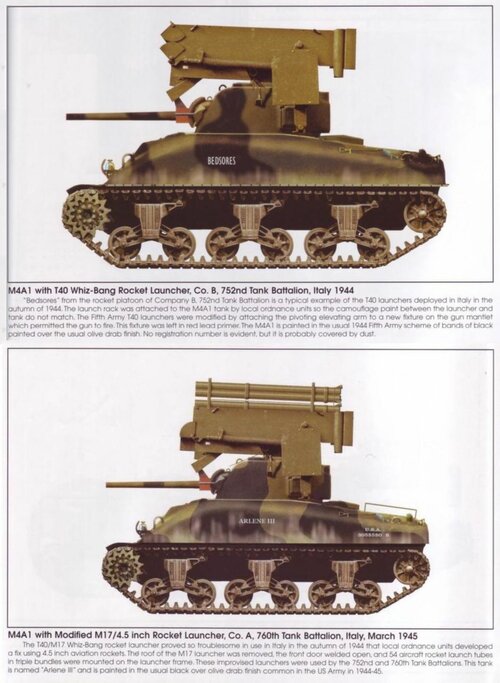

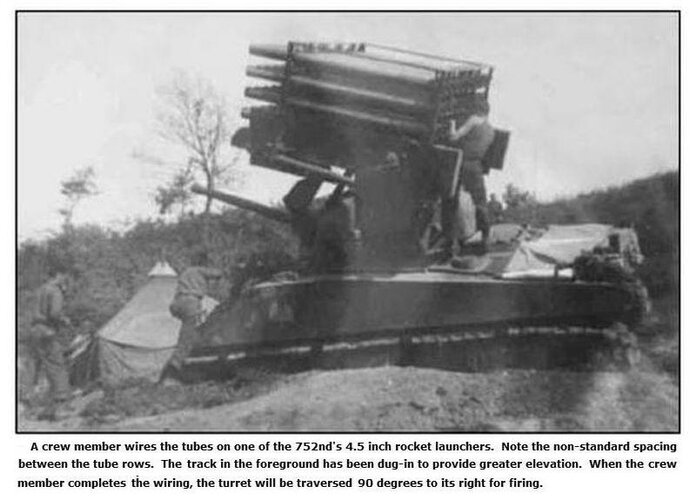

The T40/M17 Whiz-Bang rocket launcher proved so troublesome in use in Italy in the autumn of 1944 that local ordnance units developed a fix using 4.5 inch aviation rockets. The roof of the M17 launcher was removed, the front door welded open, and 54 aircraft rocket launch tubes in triple bundles were mounted on the launcher frame. These improvised launchers were used by the 752nd and 760th Tank Battalions. This tank is named "Arlene IlI" .(US Armored Funnies -Steven J. Zaloga-2005).


Attachments

  • 04.jpg
    84.3 KB · Views: 92
  • 03.jpg
    65.4 KB · Views: 88
  • 02.jpg
    91.3 KB · Views: 95
  • 01.jpg
    154.7 KB · Views: 104

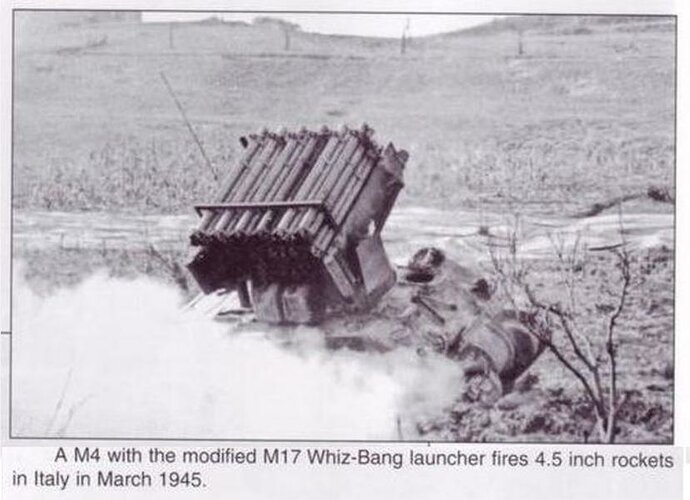

Looks like, in the third picture, the launcher has been deliberately set in a V-shaped trench to elevate the tubes and increase the range.

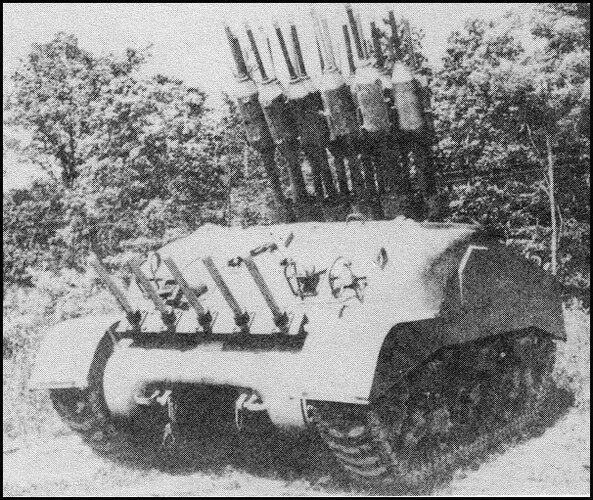

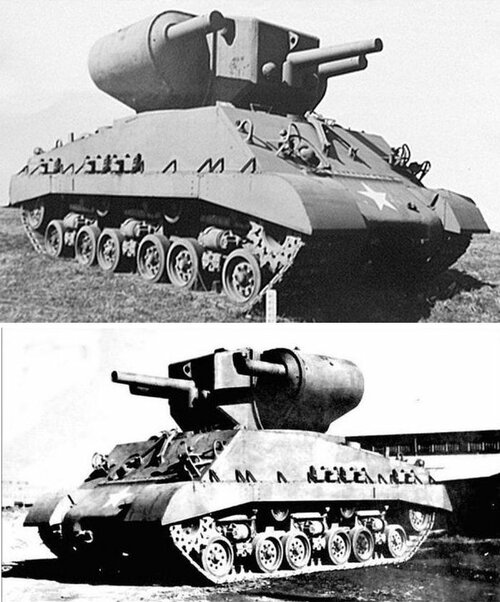

Other Sherman tank modifications .
