I ain't sure if this is the right place to put this thread, if not I am sure the Admin will find the right place.

I am requesting the assistance of the forum membership.

I am in need of 3 view drawings of the following helicopters:[list type=decimal]
[*]Hiller Model 1099 or ten99
[*]Sikorsky S-69/XH-59A or B
[*]Sikorsky S-75 ACAP
[/list]All assistance will be greatly appriciated.



[Jemiba]

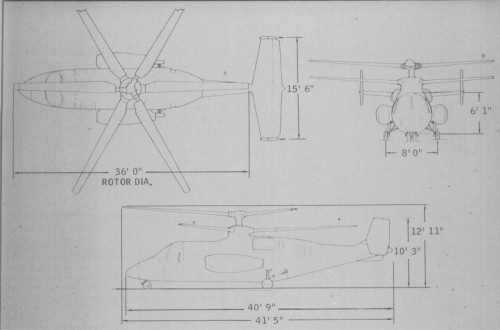

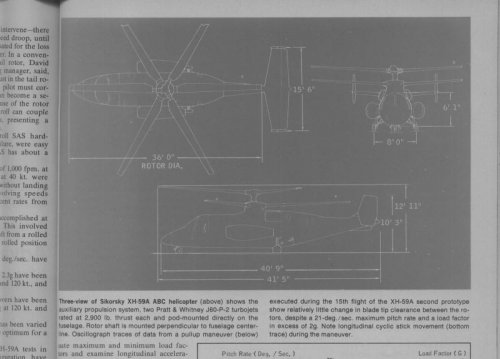

From Aviation Week 1976, 9-13 and maybe a little bit
better recognisable:



[simmie]

Those are excellent, many thanks to you jemiba!! ;D ;D ;D



[toura]

Hi Jens.
His this good for you ???
Bye



[simmie]

Thanks there Toura, that is perfect.

Now if we could have some activity on the others, that would be just super.



[Stingray]

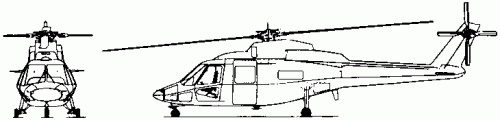

Sikorsky S-75, although this is more of a 2-view:


http://crimso.msk.ru/Site/Arts/Art4891.htm



[simmie]

Yum yum

That is just perfect

Many thanks



[Stingray]

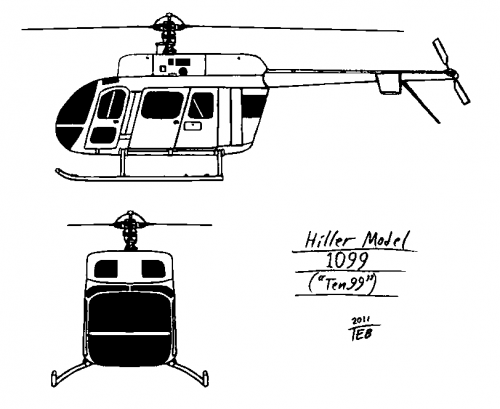

Made this crude 2-view of the Hiller Ten99 for you last night.

I couldn't make a 3-view because of lack of good source material. Which also brings me to an apology if some of the details are slightly inaccurate (rotor length, tail boom length, window/door placement, etc.) because I based it on photos that were shot at angles.

Anyway, hope this helps.



[Stargazer]

Congrats Travis on your recent profile work. It may not be 100% accurate but at least it comes in handy until we can find the real thing.



[simmie]

Many thanks for all the hard work you have put in.


I just hope that I can live up to it when I start work on 'The Project' for which it is very needed.


Keep an eye on www.whatifmodelers.com.


Simmie



[Jemiba]

Made this crude 2-view of the Hiller Ten99 for you last night.

I couldn't make a 3-view because of lack of good source material. Which also brings me to an apology if some of the details are slightly inaccurate (rotor length, tail boom length, window/door placement, etc.) because I based it on photos that were shot at angles.

Anyway, hope this helps.

Great work indeed !

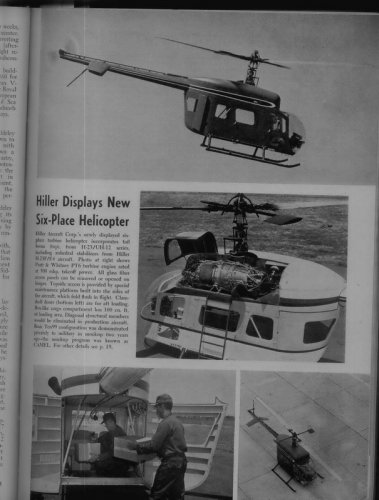

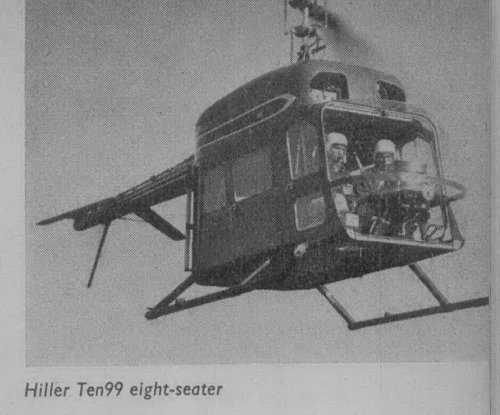

Found only these photos of the 1099 in Aviation Week 1961 and
in Flight International 1964:



[Mark Nankivil]

Greetings All!

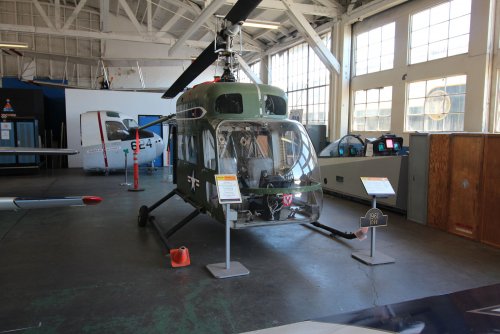

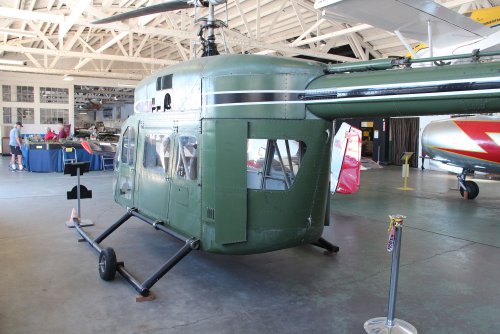

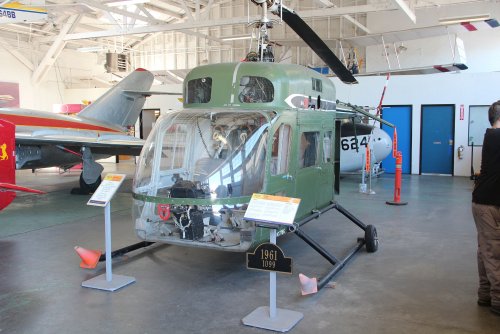

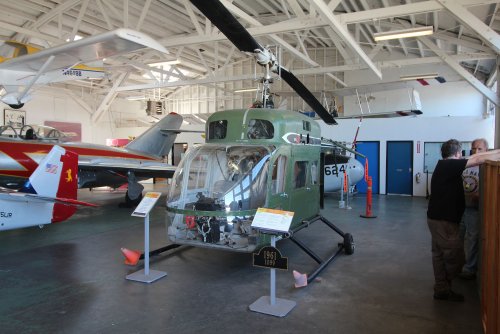

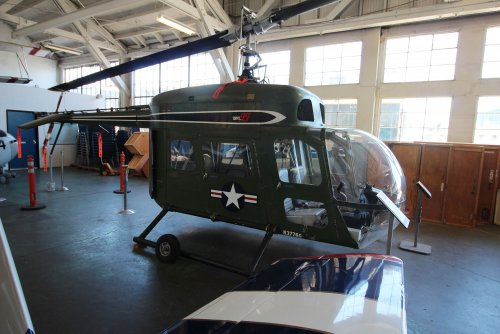

The Ten99 still exists - came across it at the Oakland Aviation Museum in Oakland, California. The photos might help tweek the drawing.

Enjoy the Day! Mark



[VictorXL188]

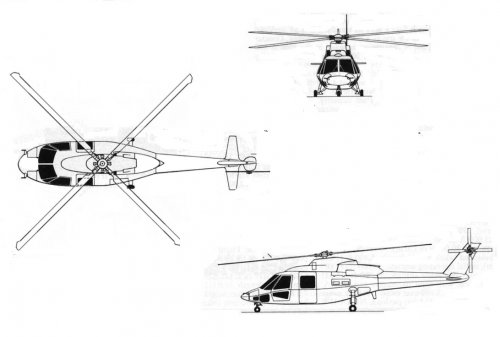

Hi, during my recent research in Air International, I came across this GA drawing of the S-75 that you might find useful
